Japanese 4x2 I SUZU FTR 10000 liter High pressure road cleaning truck
- Category: Sewage Suction Trucks >>>
- Supplier: Hubei Wanglong Special Purpose Vehicle Co. Ltd.
Share on (62332279374):
Product Overview
Description

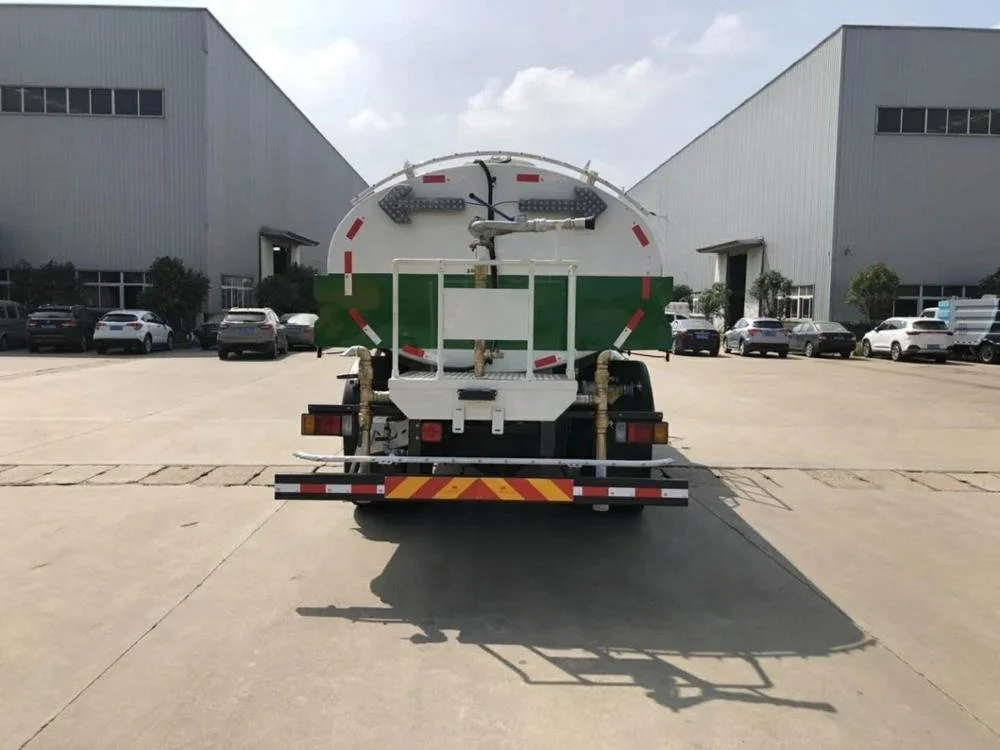

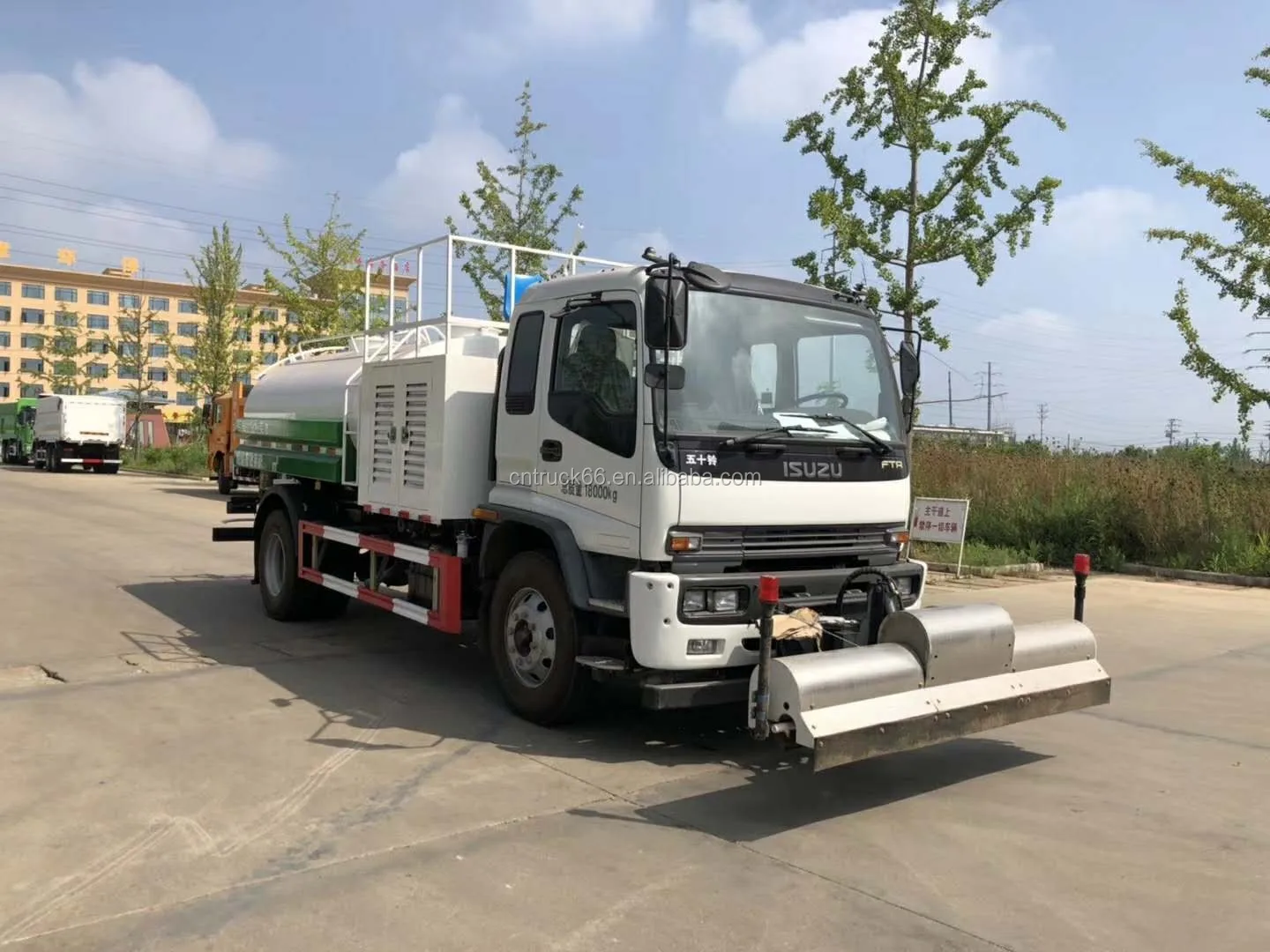

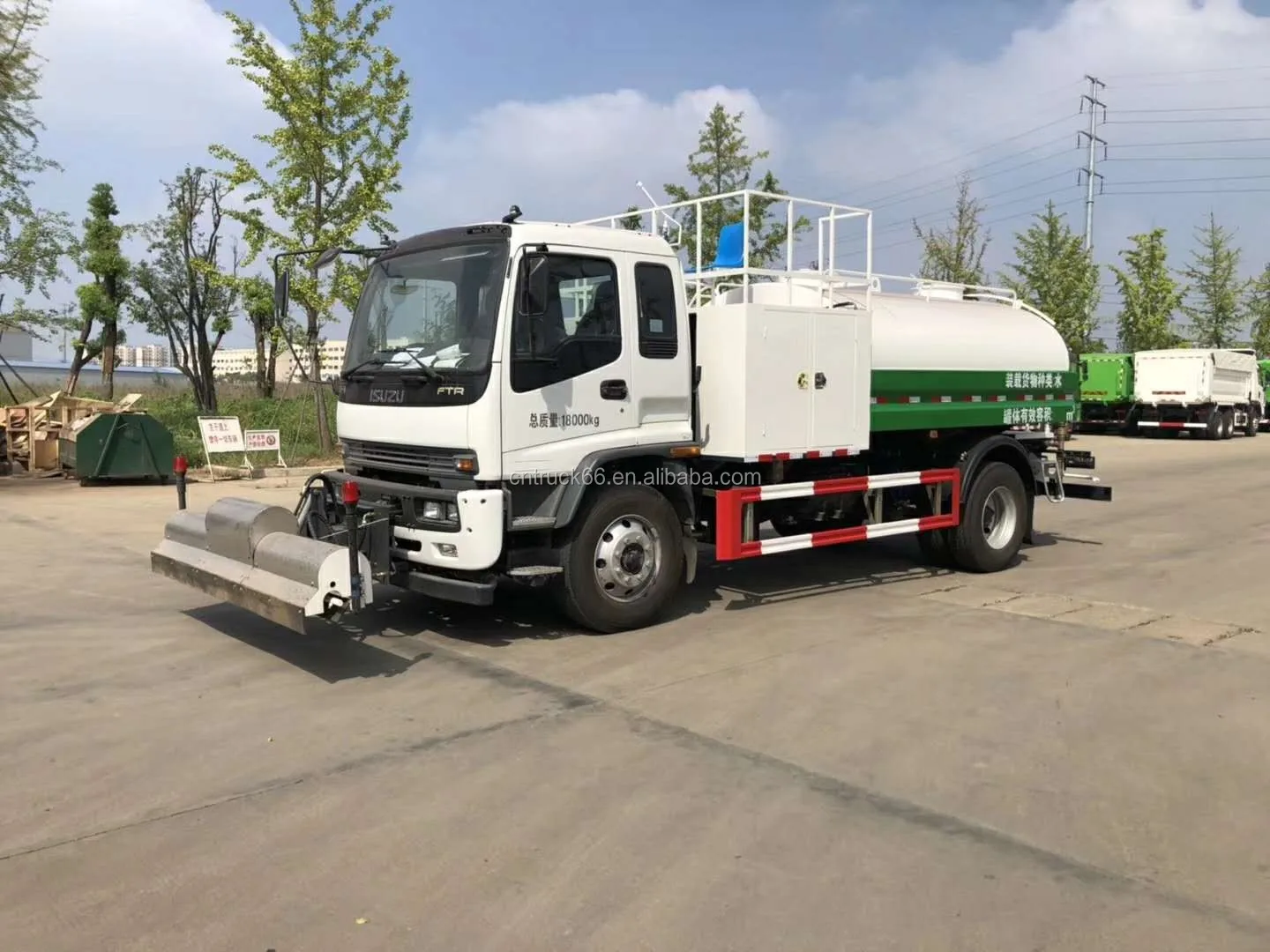

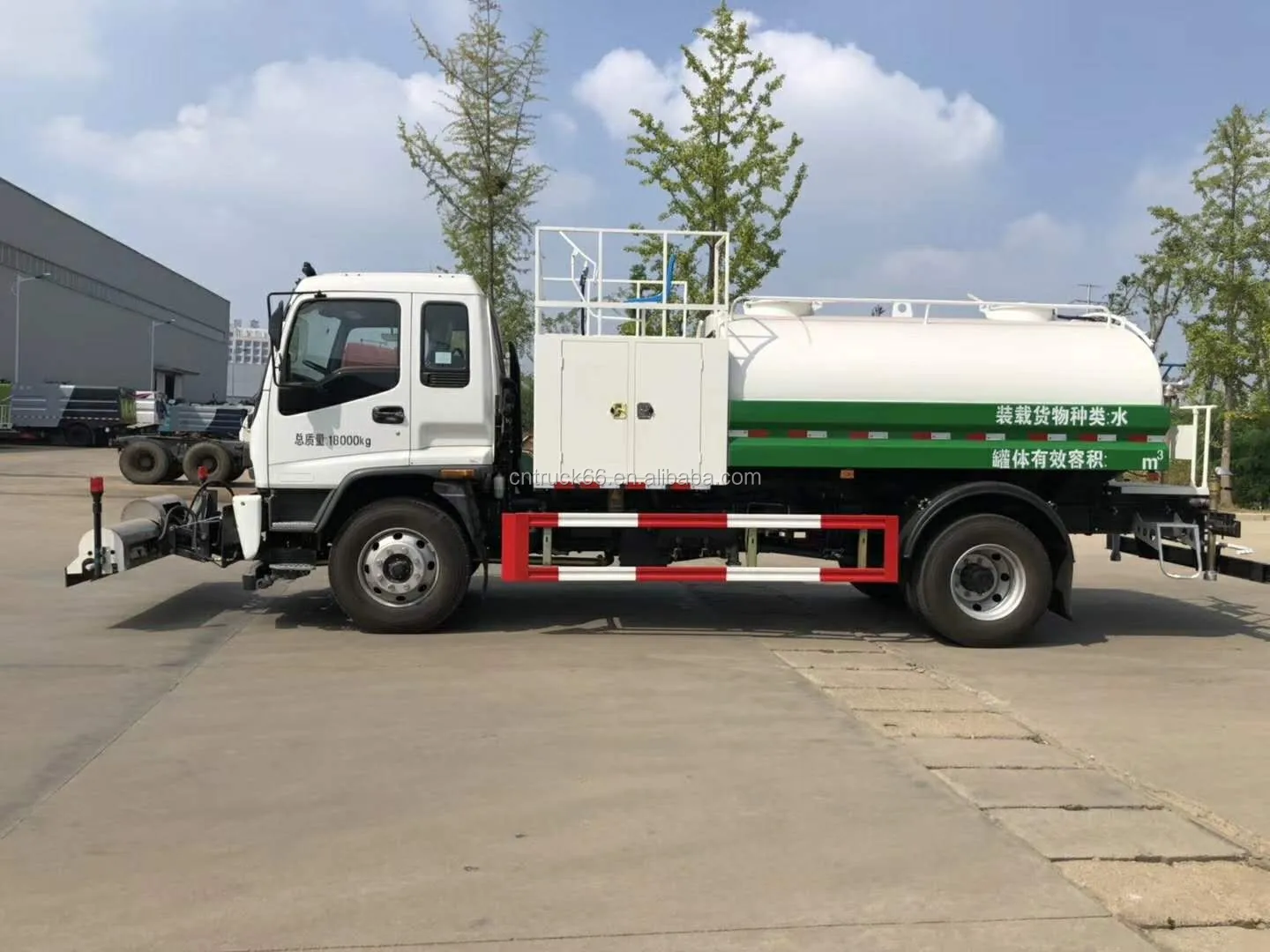

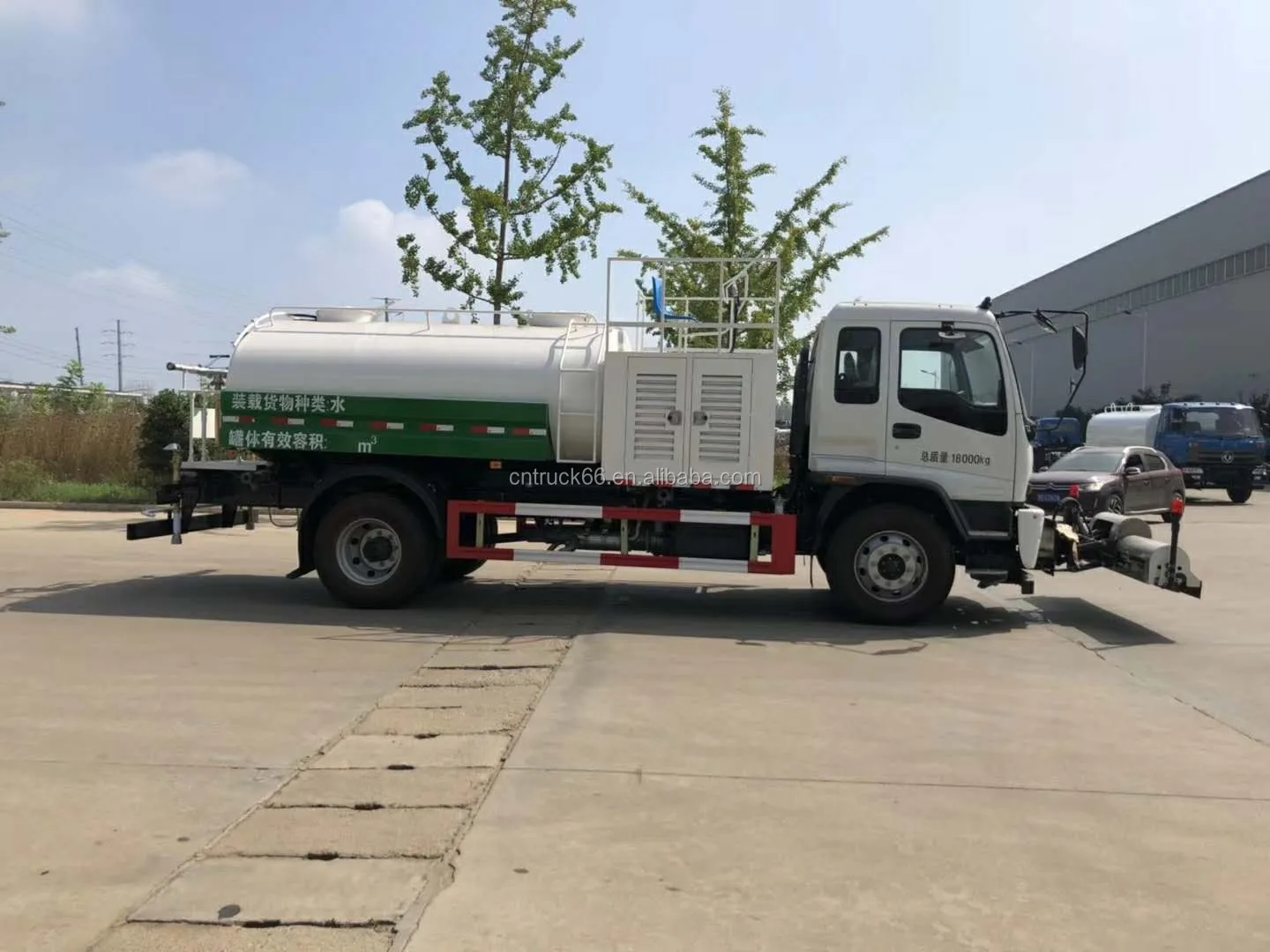

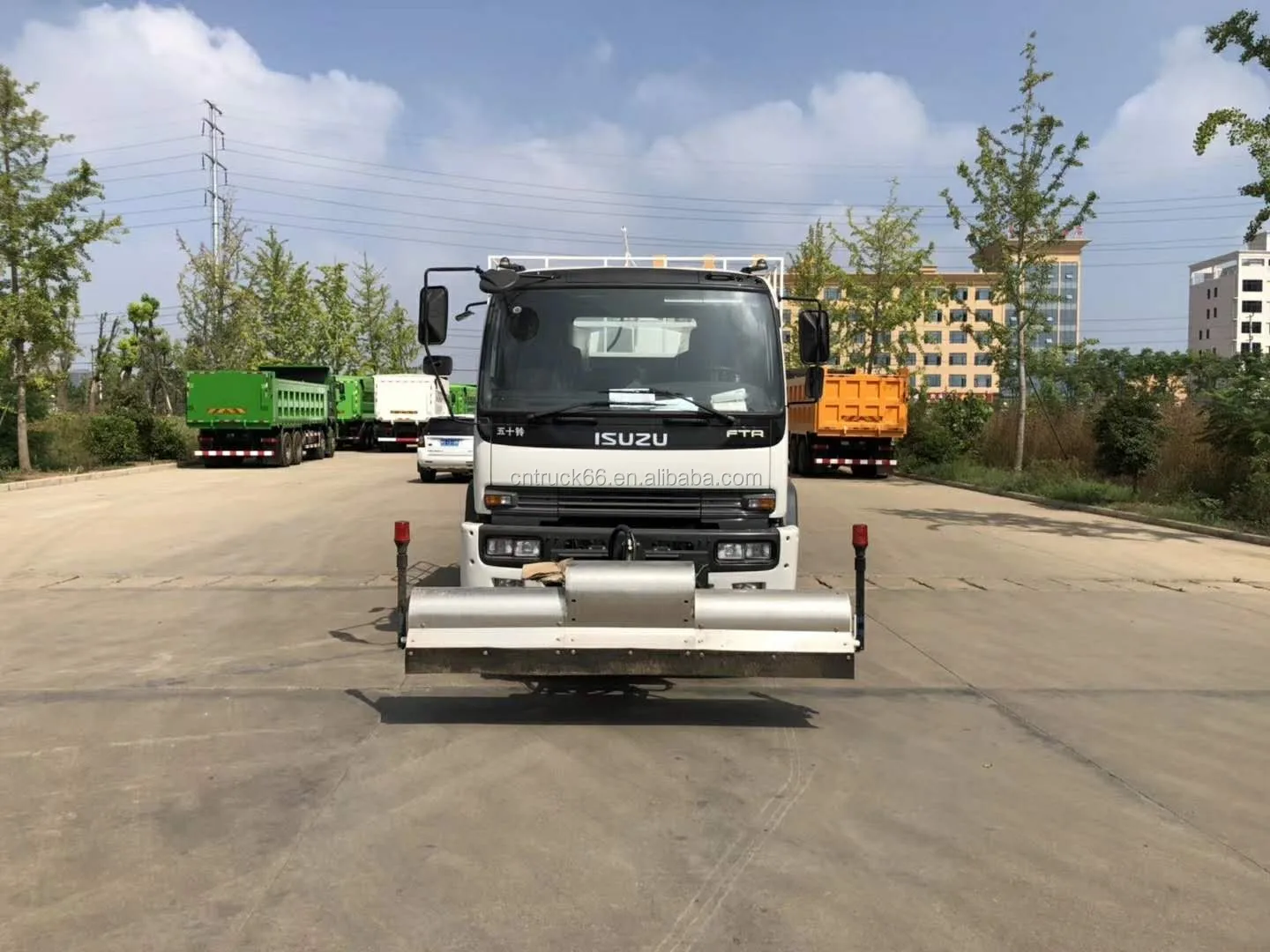

Japanese 4x2 I-SUZU FTR 10000 liter High pressure road cleaning truck
Our Services
1, 12 months whole vehicle warranty
We could support you original spare parts. Besides, we can give assistance in the following days by email or telephone. If necessary, our outwork engineer could go for technical assistance.
2,We will provide customers with the mos economical design according to the loading equipment and the payload.ODM & OEM customize, professional and technical team provide you the best design , free logo print.Trailer assembled under strict quality control, any process is inspected .
3,With years of export experience along with excellent quality, advanced services and competitive prices, Chengli truck has won numerous customers' trust and support.
4,Packaging Details : nude , covered with wax, small type can be put into 20'GP OR 40'GP container , over sized can be carried by bulk carriers or ro-ro ship , or according to your requirements.
5. Model: we have sewage suction truck and sewage suction cleaning truck;
6. Drive model: 4*2, 4*4, 6*2, 6*4, 8*4;
7.Equipments: round tank with material of carbon steel, high-power vacuum pump, dump body, back cover can be opened by hydraulic, back cover equipped with self-flowing hole and special valve, suction height can be 8.8 meter, equipped with special sewage suction pipe;
9. Tank capacity: we have tanks for 3-20CBM;
10. Right/Left hand drive, with A/C, single row or one and a half rows with sleeper.
Product Description
Vehicle name | Japanese 4x2 I-SUZU FTR 10000 liter High pressure road cleaning truck | Volume (m3) | 10 |
Dimensions (mm) | 8150×2380×2920 | Tank size (mm) | 5350×1800×1300 |
Tank material | Carbon steel | Tank thickness (mm) | 4 |
High pressure pump brand | Tianjin Tongjie / Italy Import | Pressure (Mpa) | 16-19 |
Washing water flow rate (L/min) | 120 | Spray flow rate (L/min) | 120 |
Cleaning width (m) | ≥ 16 | Washing water flow rate (L/min) | 500-800 |
Flow rate (m3/h) | 8 | Water gun range (m) | 38 |
Total mass (kg) | 11450 | Rated mass (kg) | 6305 |
Curing quality (kg) | 4950 | Maximum speed (km/h) | 103 |
Fuel type | Diesel | Emission Standards | Country five |
Wheelbase (mm) | 4500 | Tire specifications | 10.00R20 |
Chassis brand / model | I-SUZU1160 | Engine brand / model | I-SUZU |
Power / horsepower (kW / ps) | 190 | Displacement (mL) | 4500 |
Top loading configuration parameters | |||

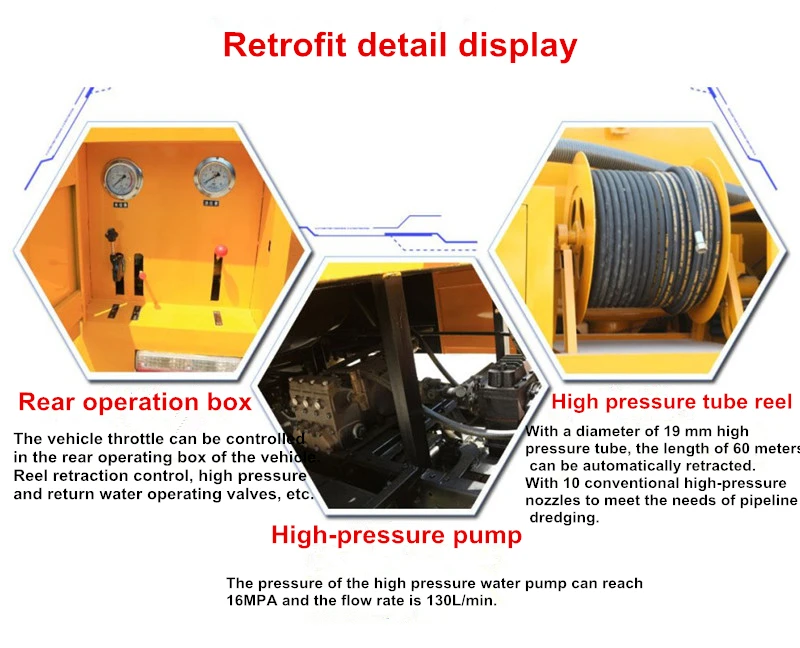

The standard configuration | Install the sandwich power take-off, drive shaft, high-pressure cleaning pump, rated pressure 16Mpa, hydraulic reel, water level gauge, washing pipe, operation valve at the rear of the tank, equipped with a 60m 19mm high pressure pipe, 10 high pressure flushing heads . | ||
Optional configuration | Sprinklers, green sprinklers, front and rear sprinklers, side sprays, snow shovels, hydraulic lifting platforms, guardrail cleaning brushes can be added to meet the needs of different users. | ||
Detailed Images
Related Products
Advantage of CLW brand sewage suction truck
1 Truck with powerful vacuum pump
2 High quality low price ,we can custom sewage suction truck as customer’s required
3 One year warranty
Fecal suction truck is a special purpose vehicle mainly used in cleaning the septic-tank, bilge and
sewer.
It is mainly used for urban and rural sanitation sector suction and delivery feces and other sewage.
Suitable for sucking fecal, sewage, mud, and liquid mixed with tiny granules. It is apply to the municipal
sanitation, large & small industrial and mining enterprises, neighborhoods, schools, septic tank
cleaning & transport , city pipeline cleaning & dredge, factories marsh liquid biogas clean-up.
Fecal suction truck using the vacuum negative pressure principle to suck the fecal into the mobile container.
This type of sewage truck used for process the septic-tank.Can work side drawing and side rowing. The maximum working height is 8 meters.
