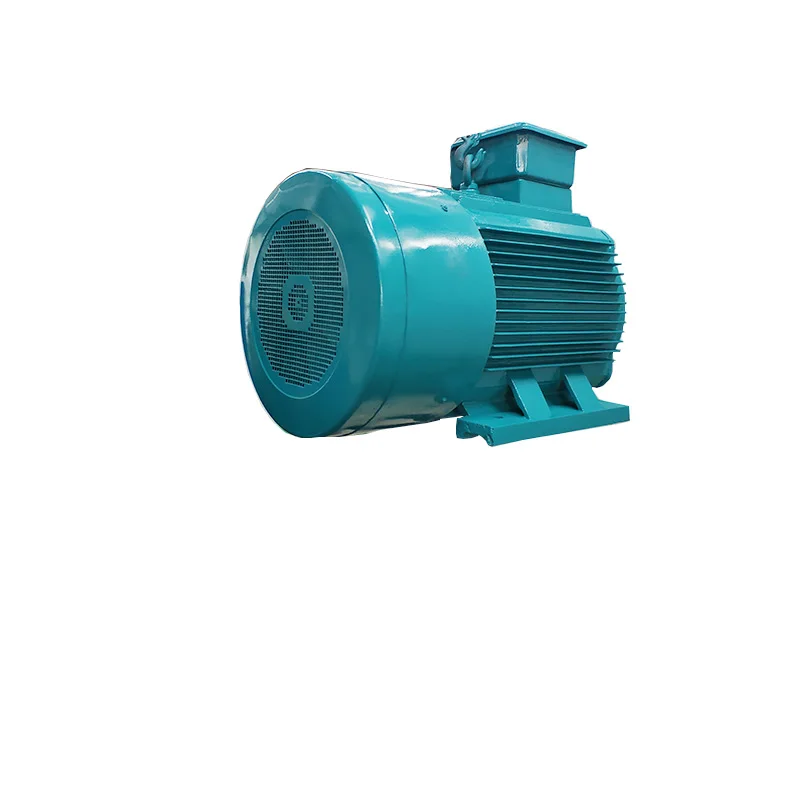

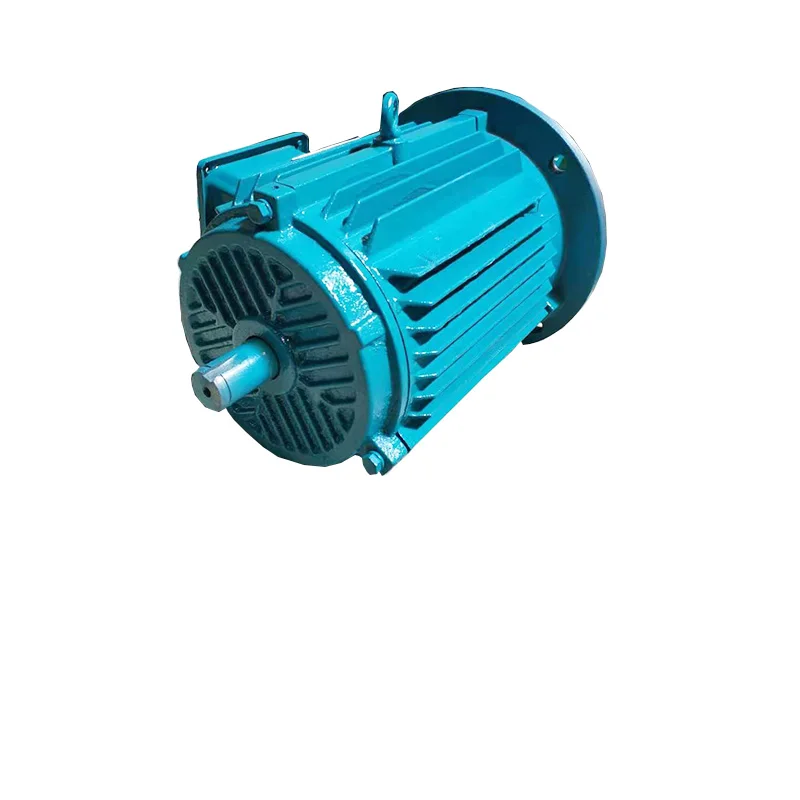

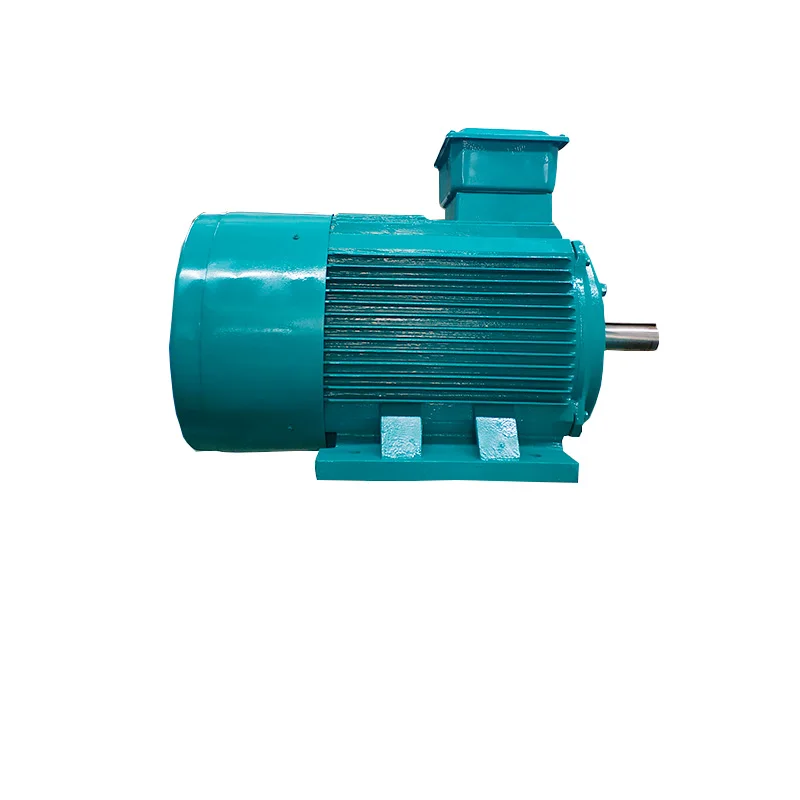

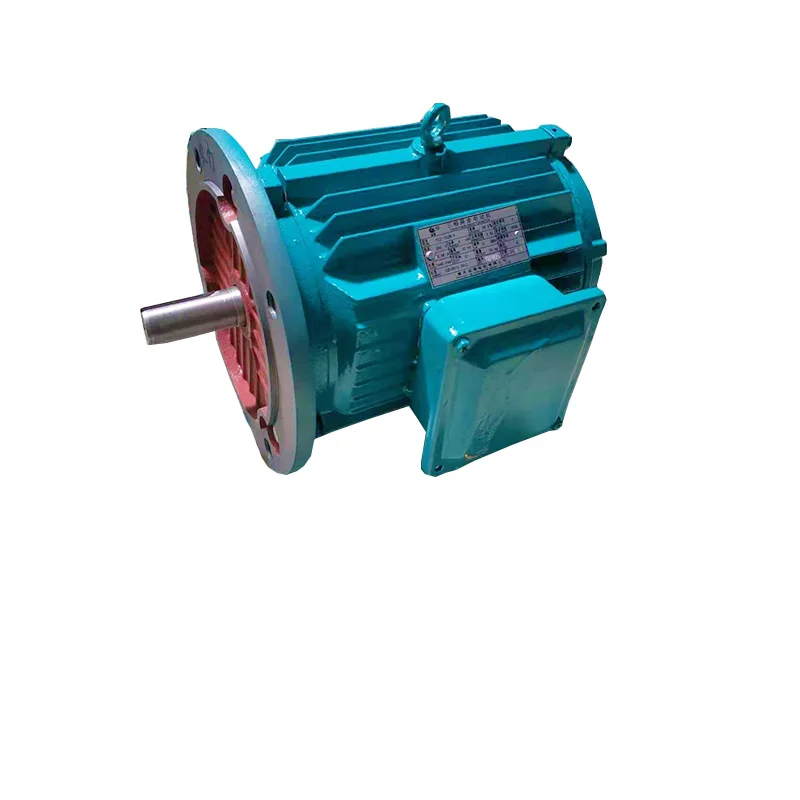

Y Series Three Phase 2 Pole Asynchronous Electrical Motor
YE3 series (center height H80-355mm, 0.75-375kw) motors are fully enclosed, self-fan-cooled squirrel-cage three-phase asynchronous motors, and the energy efficiency of the products is consistent with IE3 of IEC60034-30. The general voltage is 380V and the frequency is 50Hz, which can also be customized according to customer requirements. Working environment: -15 ~ 40 ℃, altitude not exceeding 1000 meters, insulation class F (level B assessment), protection class IP55, cooling method IC411, working system S1, installation method conform to IEC and DIN standards. YE3 series motors are general-purpose motors, suitable for driving various mechanical devices without special requirements. YE3 series motor GB18613-2012 energy efficiency limit level 2.
Product name
Y Series Three Phase 2 Pole Asynchronous Electrical Motor
Type
Y112M-2
Efficient
85.5%
Power factor
0.87cos
Current
8.2A
Speed
2890
Weight
42kg
Frame
Cast Iron
Ambient temperature
-15° to +40°c
Altitude
1000Meters
Protection Class
P44/IP54
Cooling Method
IC01 41(total-enclosed fan-cooled type)
Packing size
475mm*230mm*310mm
Related Products
Chengxie Motor can Supply many kinds of Motorss. Including YE3 Series, YE2 Series, Y3 Series, YVF2 Series, YB3 Series, YD Series, YL Series, YEJ Series, YCT Series, YB3 Flameproof Motor.
FAQ
Q: Are you Factory or Trading Company? A: We are Factory. That has been focusing on motors and accessories for more than 20 years.
Q: What is your warranty? A: Our warranty is One Year. Any parts damaged within warranty. We will provide new one for free and supply the solution within 2 workdays.
Q: Do you offer OEM Service? A: Yes. We offer OEM/ODM service.
Q: What is your lead Time? A: Usually 7 days. Precise Time depend on Qty.
