The DOT PEEN MARKER also known as Dot Marking, micropercussion and indent marking , that is carbide stylus pin dotting on the surface with high frequency than made a mark , it could mark alphanumeric (date , VIN codes , series NO ), logo or 2D barcode information on metal and plastic material --for part identification requirements. such as aerospace, automobile, mechanical, cast, electromechanical.
Model NO :
XG3-A PIN MAKRER
Marking speed
3-5 digital /s
Marking area
110*80/150*100/200*150mm
Marking deepth
0.01-0.3mm
air pressure
0.3-0.6mpa
power
≤100W
Marking Application

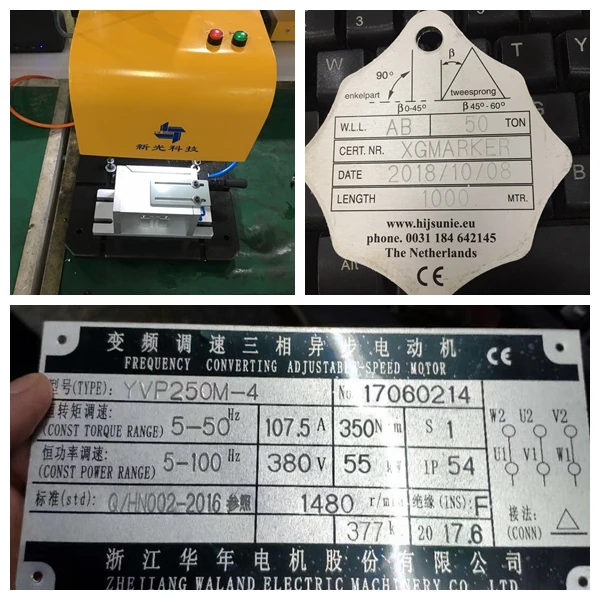

XG3-A could marking character , digital , data matrix barcode on flat surface of aluminum products .
Marking application

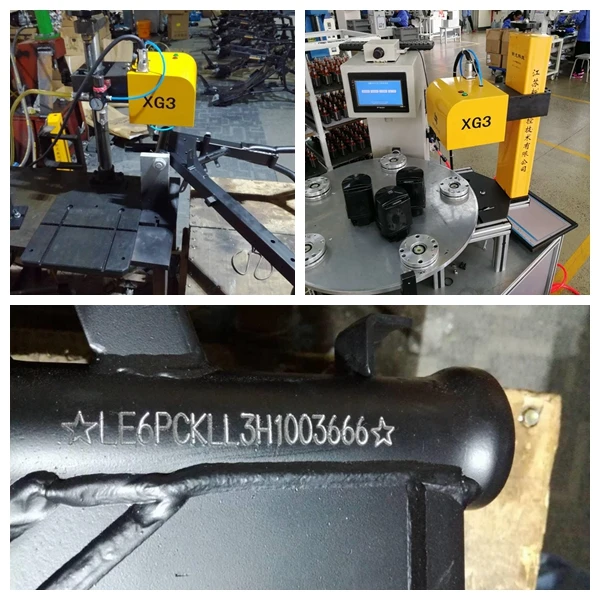

XG3-A pin marker could marking character , digital , logo , VIN code on motorcycle frame .
Detailed Images
A Controller
* USB connection
* PC with win 7 system required
* air nameplate fixture

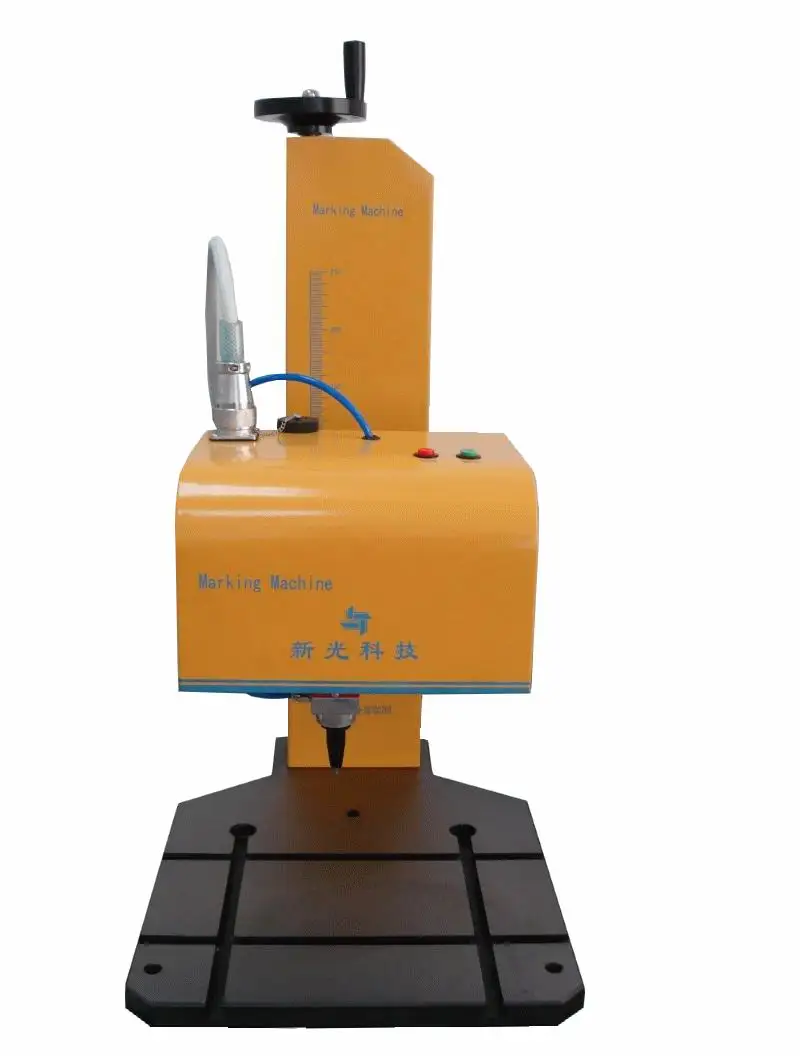

Marking head with column
Marking head
*Lead screw column
*Iron plate marking table more stable
*Tungsten carbide stylus pin
Spare parts
stylus pin
4set
footswitch
1pcs
USB memory disk
1pcs

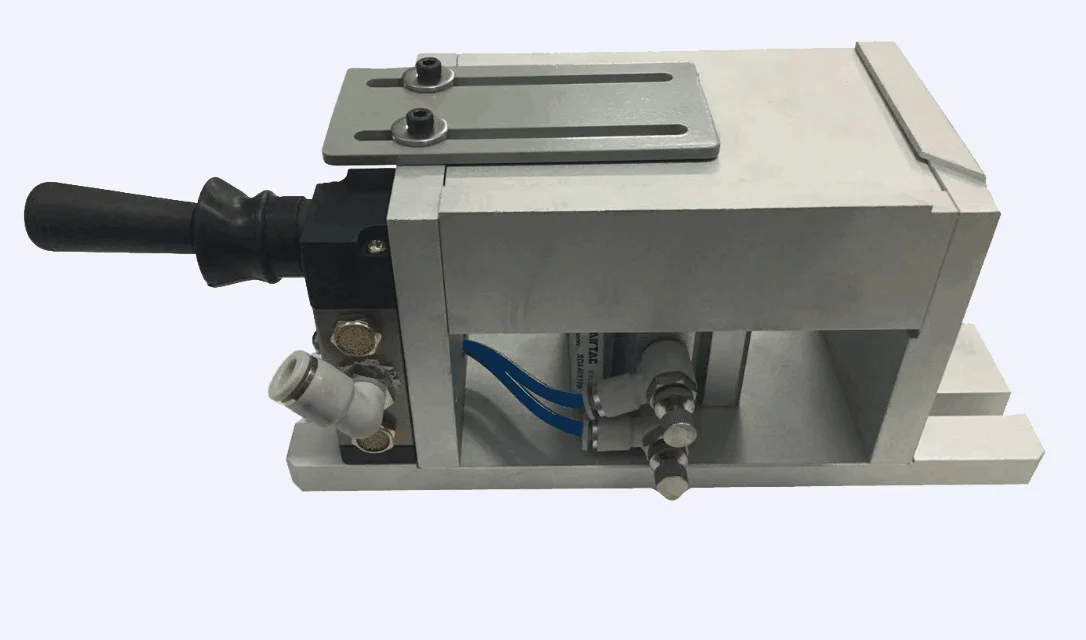

nameplate fixture(air )
1pcs
extender
1pcs
