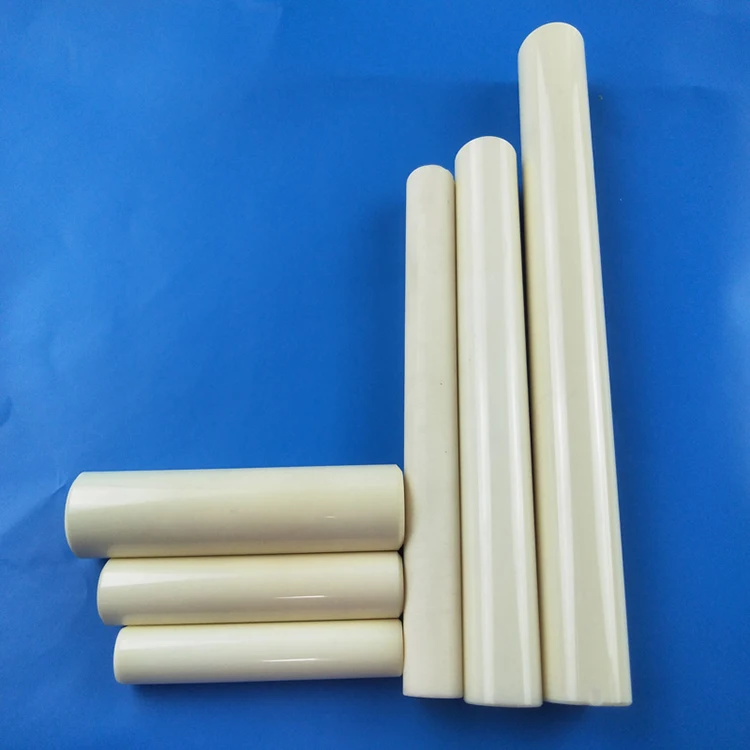

Hot Sale Insulating Al2O3 Alumina Plunger Shaft Ceramic Rod

Product Overview

Description

Hot Sale Insulating Al2O3 Alumina Plunger Shaft Ceramic Rod

ceramic threaded rods

Alumina or aluminum oxide (Al2O3) in its various levels of purity is used more often than any other advanced ceramic material. Tigar Ceramic offers a wide range of material types with different property profiles that can be adjusted via a targeted matrix design.

This material has very high hardness, very high stiffness, very good corrosion resistance to chemicals at high temperature, and very high refractoriness or use temperature.

The applications for alumina advanced ceramics are heavy-duty forming tools, substrates and resistor cores in the electronics industry, tiles for wear protection and ballistics, thread guides in textile engineering, seal and regulator discs for valves, heat-sinks for lighting systems, protection tubes in thermal processes or catalyst carriers for the chemicals industry.

Property	Units
Al2O3 Content	%	96	98	99.5	99.7
Density	g / cm3	3.70	3.80	3.90	3.92
Color	-	White	White	Ivory	Ivory
Compressive Strength @ 25 C	Mpa	2229	2091	2512	2350
Tensile Strength @ 25 C	MPa	200	200	248	252
Flexural Strength @ 25 C	MPa	331	276	324	320
Elastic Modulus @ 25 C	GPa	290	331	366	380
Hardness : Knoop Rockwell	(Gpa) Kg/mm2 R45N	(11.7)   1196 79	(12.5)   1276 77	(14)   1428 85	(15) 1510 90
Thermal Conductivity @ 25 C	W / m-Deg K	20.8	28.1	30.7	31.6
Coefficient of Thermal Expansion @    25-1000 C	1 X 10-6 / Deg C	7.9	8.5	8.1	8.0
Specific Heat @ 25 C	cal / g / Deg C	.184	.184	.182	.180
Maximum Working Temp.	Deg C	1650	1650	1700	1700
VolumeResitivity       @25C   @700 C	ohm-cm ohm-cm	1 X 10-13 1 X 10-8	1X 10-13 2.2 X 10-9	1 X 10-13 6 x 10-7	1 X 10-13 6 x 10-7
Dielectric    Strength        (@Thickness)   100Mils	ac volts per mil	350	340	335	330
Dielectric Constant   1Mhz  @25C	e' / eo	8.6	9.4	9.7	10.0
Dissipation Factor 1 Mhz @25C	Tan Delta	.0004	.0003	.0003	.0002



Q1. Are you a factory or a trading company?

A: We are professional manufacturers. We warmly welcome customers from all over the world to visit our factory and cooperate with us.

Q2. The quality of how?

A: We insist on providing quality products to our customers.

Q3. Can I offer a customized product?

A: We always support customization according to different raw materials of our customers.

Q4. How do you get a quote?

A: Please send me your drawings and attach the technical requirements and quantity required. If you do not have a drawing, please provide us with a sample of the courier.We will quote the best price within 24 hours.
