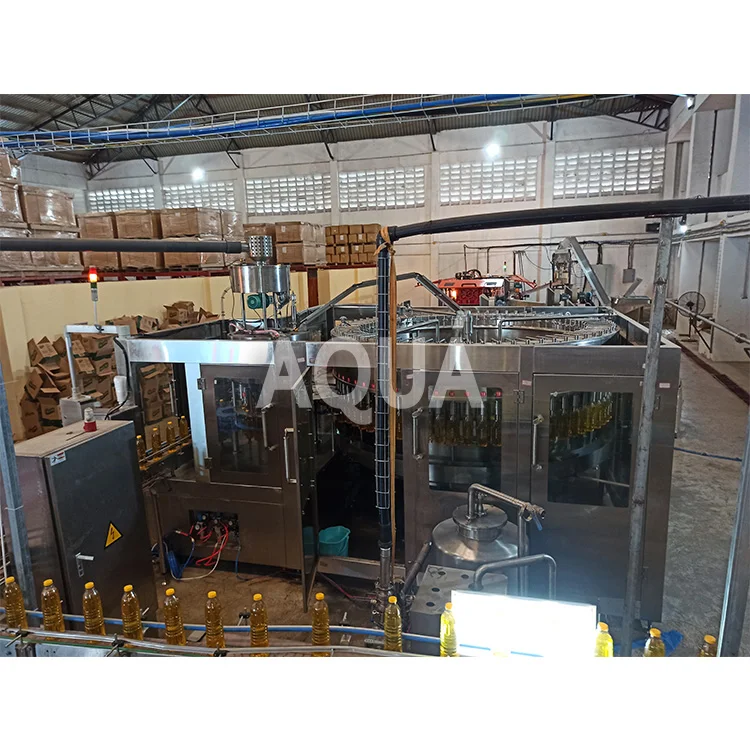

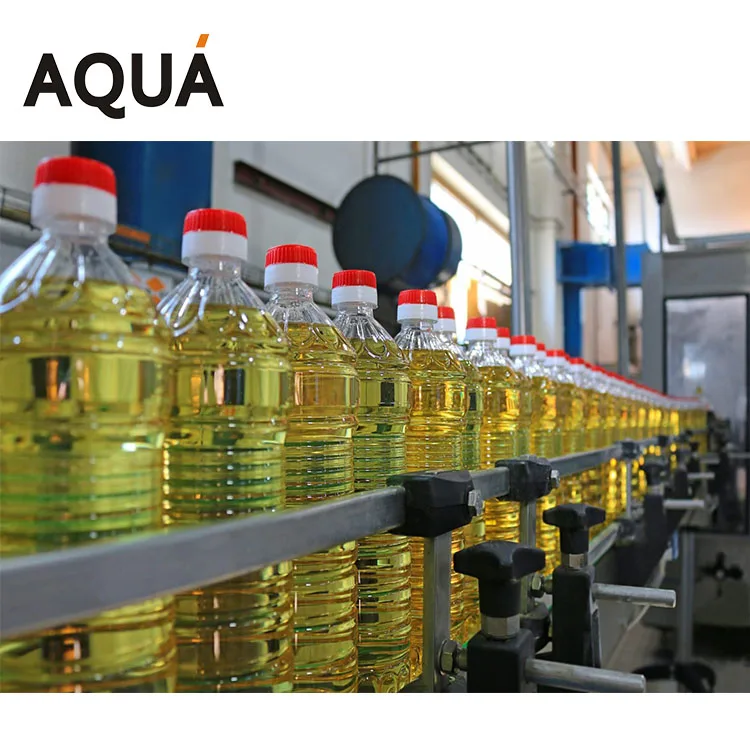

Automatic Oil Filling Machines For Edible Oil / Sunflower Oil Plant
- Category: >>>
- Supplier: Zhangjiagang Aqua Machinery Co. Ltd.
Share on (62332612943):
Product Overview
Description
Product Overview
Automatic Oil Filling Machines For Edible Oil / Sunflower Oil Plant

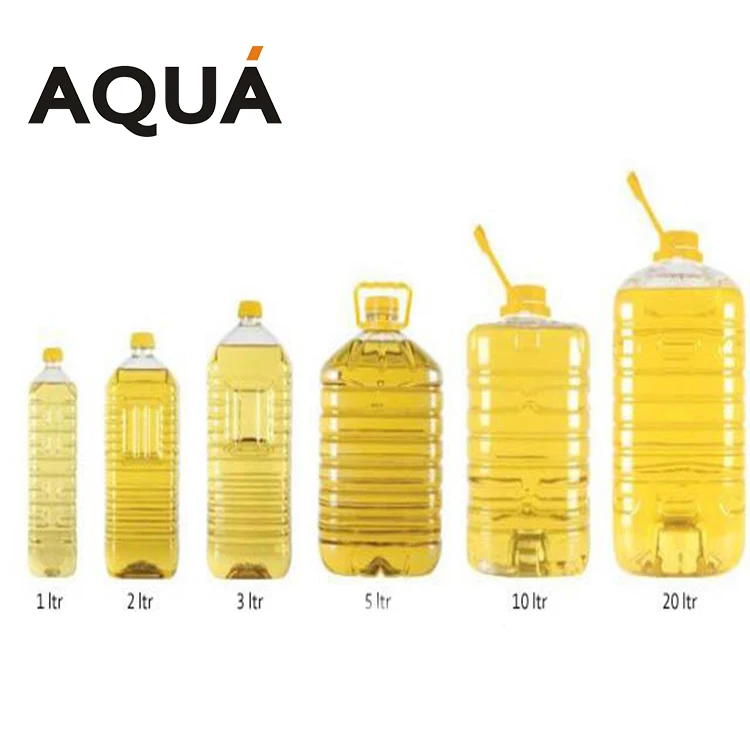

Bottle Dates
Bottle Material: PET Bottle
Cap: Screw cap, threaded aluminum cap Rolled aluminum cap etc
Bottle Volume: 1L-10L
Production Speed: 960-2880bph
Suitable Bottle:
Height 170-350mm
Diameter 20-150mm
Cap: Screw cap, threaded aluminum cap Rolled aluminum cap etc
Bottle Volume: 1L-10L
Production Speed: 960-2880bph
Suitable Bottle:
Height 170-350mm
Diameter 20-150mm
Process Of Oil Production Line
1. Bottle making system
PET preform→Auto loader→Reheater →Molding→ PET Bottles
Auto loader→Molding →Extrusion blowing→ HDPE Bottles
2. Bottle filling system
Empty Bottle Air Washing→Full Automatic Oil Filling Machine→Screw Capping / Press Capping Machines
3. Packing system
Bottle labeling machine →Inkjet machine → PE film packing machine / Carton packing machine→ Warehouse
PRODUCT SPECIFICATIONS
Model | YGZ 4-1 | YGZ 6-1 | YGZ 8-1 | YGZ 10-1 | |||
Diemension | 2000 x1000x2400 | 2000 x1000x2400 | 2200 x1200x2400 | 2400 x1400x2400 | |||
Filling Head | 4 | 6 | 8 | 10 | |||
Capacity | 1000bph | 1500bph | 2000bph | 2800bph | |||
Filling Accuarcy | ±1% | ±1% | ±1% | ||||
Bottle Size | 1L-10L | ||||||
Power | 1.1kw | 1.5kw | 2.2kw | 3.0kw | |||
Voltage | 380V / 220V 50HZ / 60HZ | ||||||
Products Description
Automatic oil filling machine is applied for edible/olive/lubricating oil filling in field of foodstuff as well as similar liquid
filling.
--Adopt volumetric piston pump, pneumatic control SS check valve to fill various kinds of liquid with different viscosity;
--Pneumatic control piston pump, easy to adjust filling volume;
--Adopt top liquid hopper, with auto level sensor to control stuff supply and stop;
--Auto anti-leaking filling nozzle, prevent drop while filling;
--Convenient to take out componet parts to clean and sterilize, easy to change different bottles without changing parts.
--Frequency inverter speed control, no bottle no fill.
--All electrical elements adopt MItsubishi, Schneider brand.
--Whole machine designed and manufactured according to GMP regulation.
filling.
--Adopt volumetric piston pump, pneumatic control SS check valve to fill various kinds of liquid with different viscosity;
--Pneumatic control piston pump, easy to adjust filling volume;
--Adopt top liquid hopper, with auto level sensor to control stuff supply and stop;
--Auto anti-leaking filling nozzle, prevent drop while filling;
--Convenient to take out componet parts to clean and sterilize, easy to change different bottles without changing parts.
--Frequency inverter speed control, no bottle no fill.
--All electrical elements adopt MItsubishi, Schneider brand.
--Whole machine designed and manufactured according to GMP regulation.

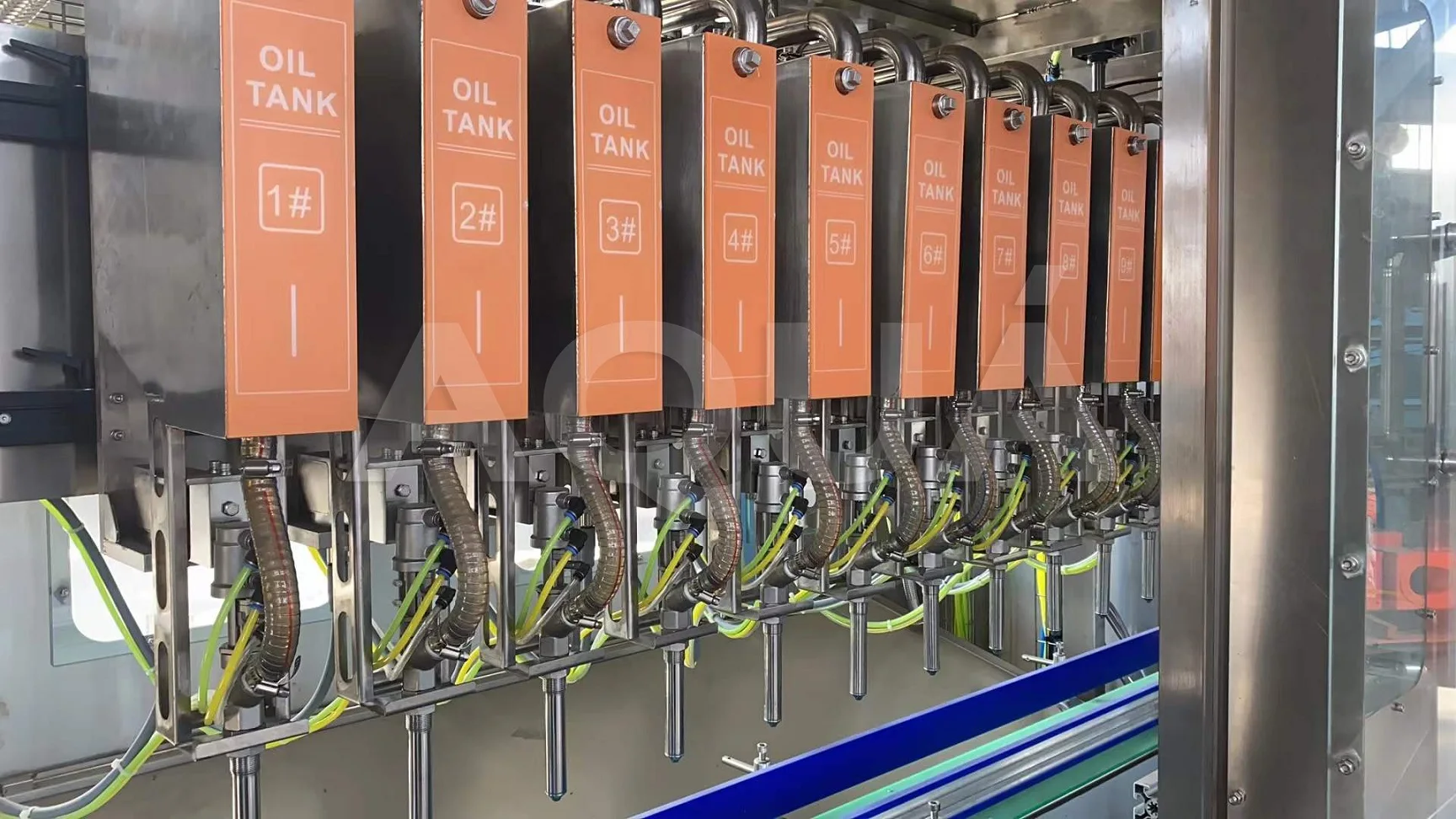

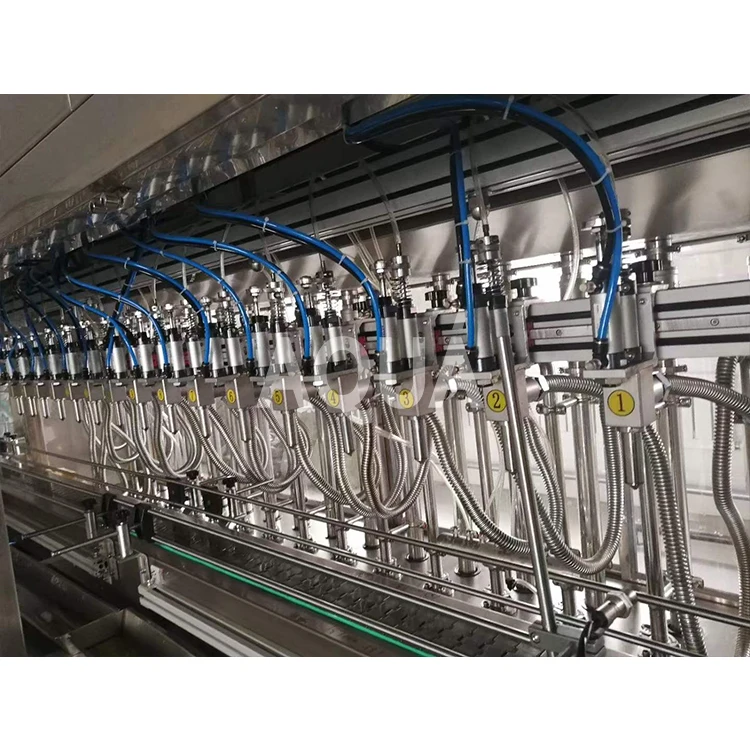

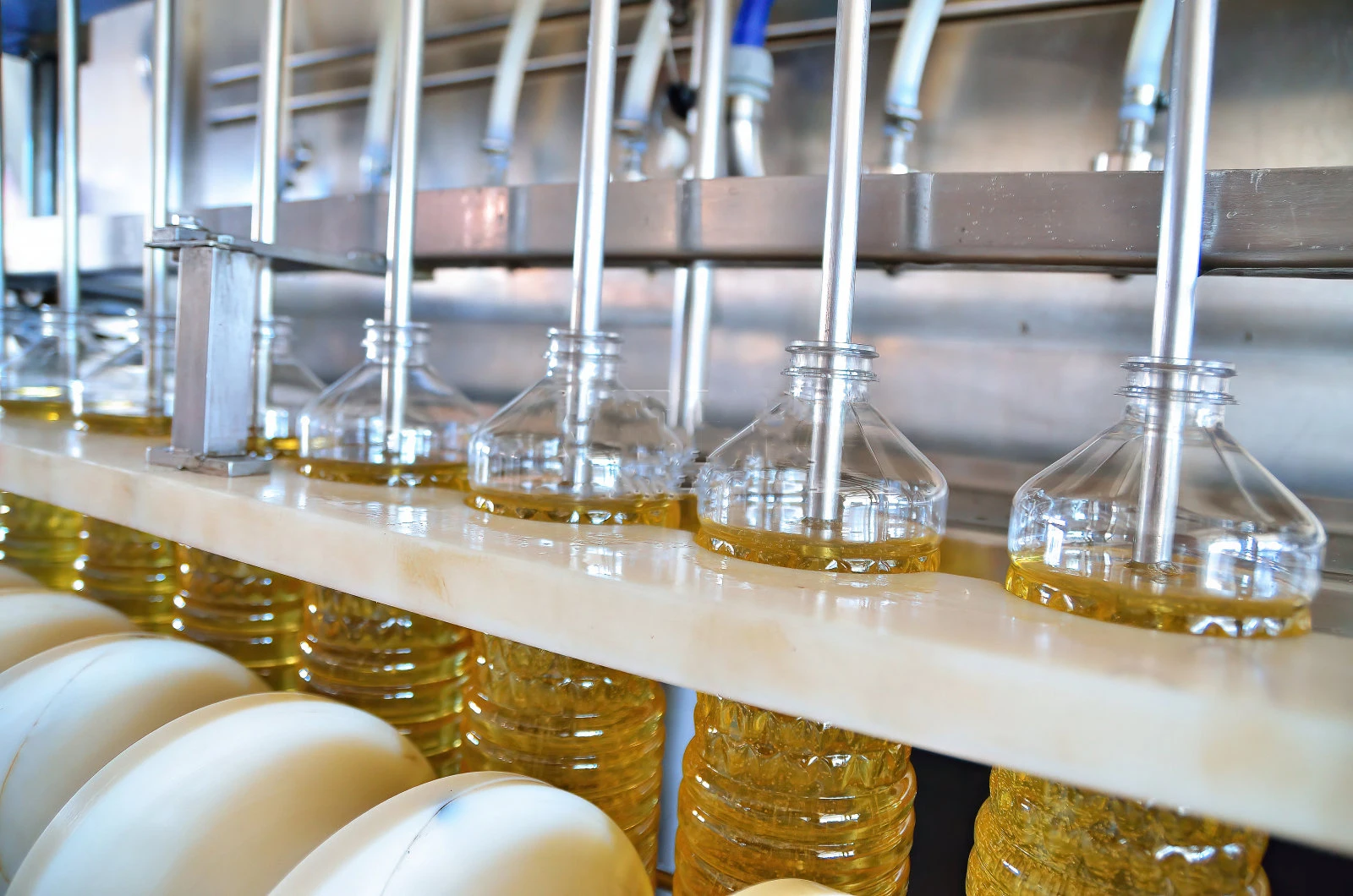

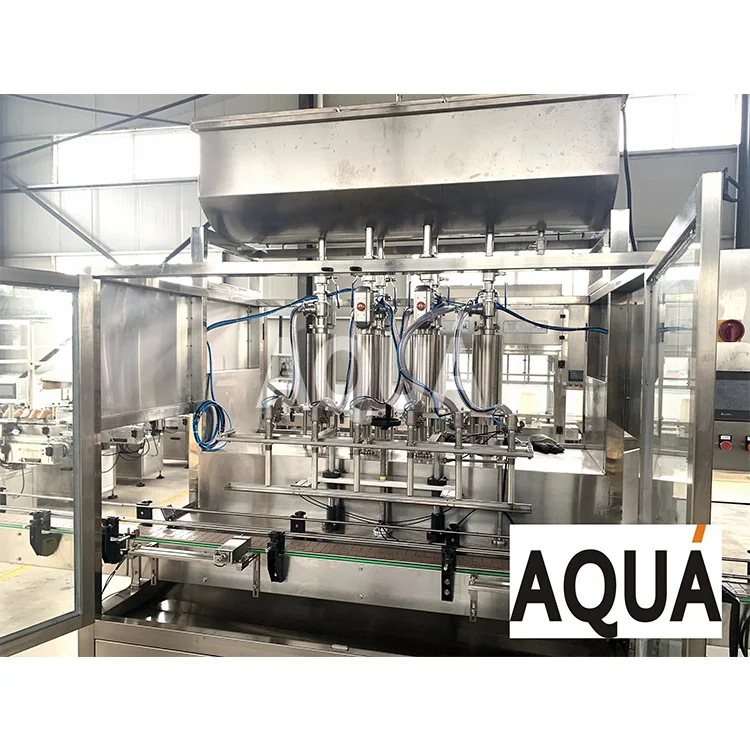

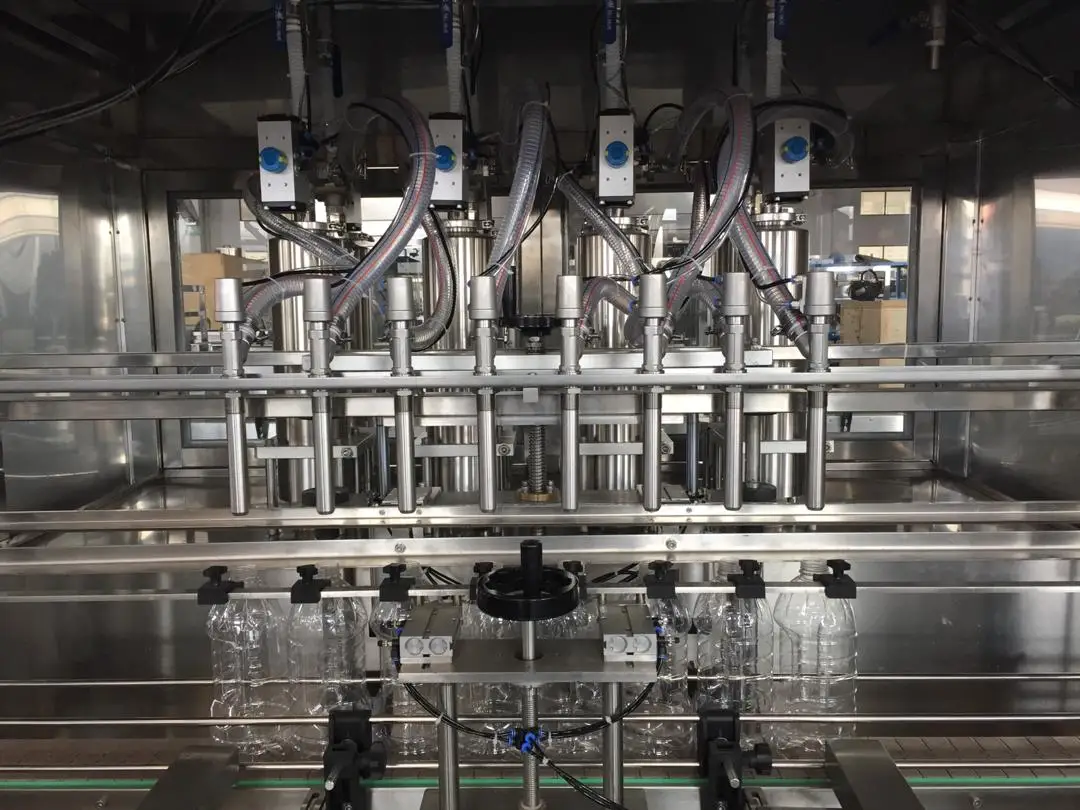

Filling Part ( Linear Type)
According to the customer's different choice, can be equipped with different materials of pipe, to meet the customer variety of
different liquid safe filling.
1. Teflon corrugated pipes
This pipe is suitable for edible oil,lube oil,liquid detergent,liquid soap,hand sanitizer,etc.it is suitable for various viscosity
and non- viscosity liquid.
2. Food-grade silicone hoses
This pipe is suitable for Mustard sauce, mayonnaise, chili sauce, ketchup and other sauce materials,etc. Filling with non-
residue.
different liquid safe filling.
1. Teflon corrugated pipes
This pipe is suitable for edible oil,lube oil,liquid detergent,liquid soap,hand sanitizer,etc.it is suitable for various viscosity
and non- viscosity liquid.
2. Food-grade silicone hoses
This pipe is suitable for Mustard sauce, mayonnaise, chili sauce, ketchup and other sauce materials,etc. Filling with non-
residue.
Screw Capping Part
1. There is no need to replace the parts when changing the bottle shape, just adjust the position of some parts. The machine is
simple in structure and easy to adjust.
2. When use pressure capping type,this machine can be changed into pressure capping type machine.
simple in structure and easy to adjust.
2. When use pressure capping type,this machine can be changed into pressure capping type machine.

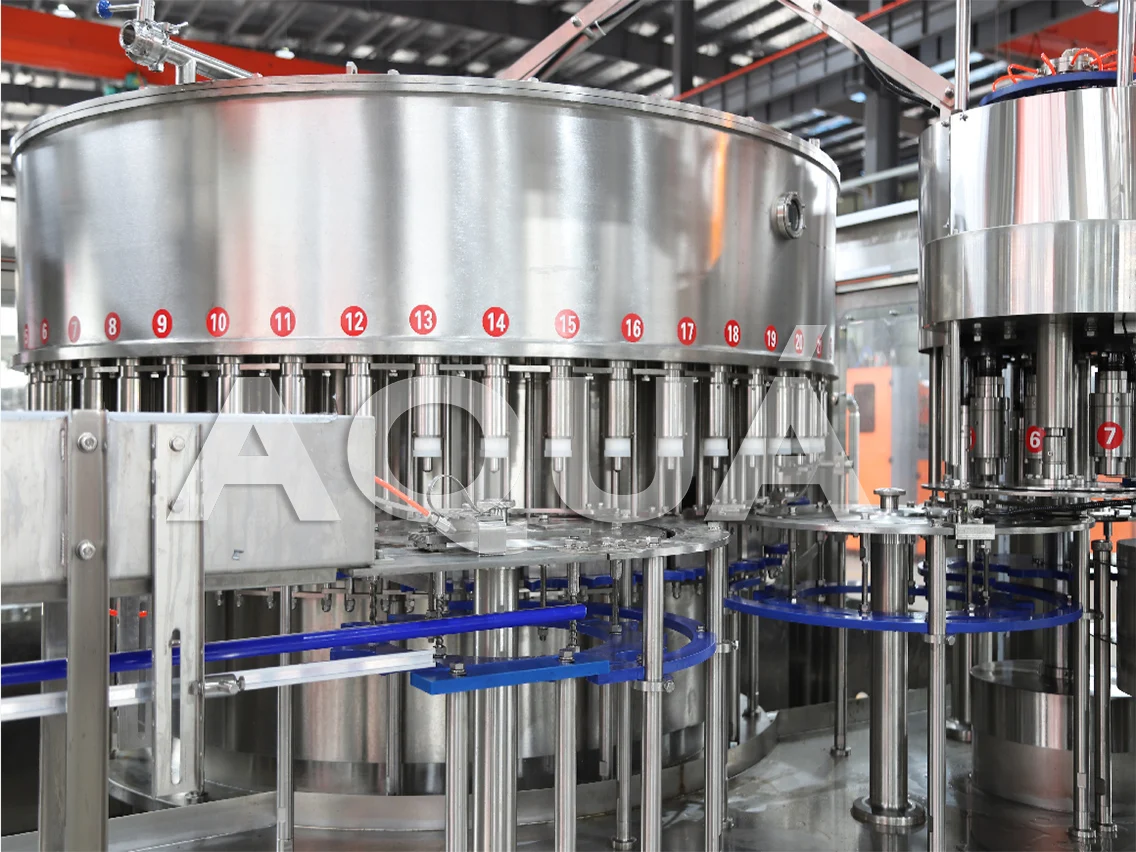

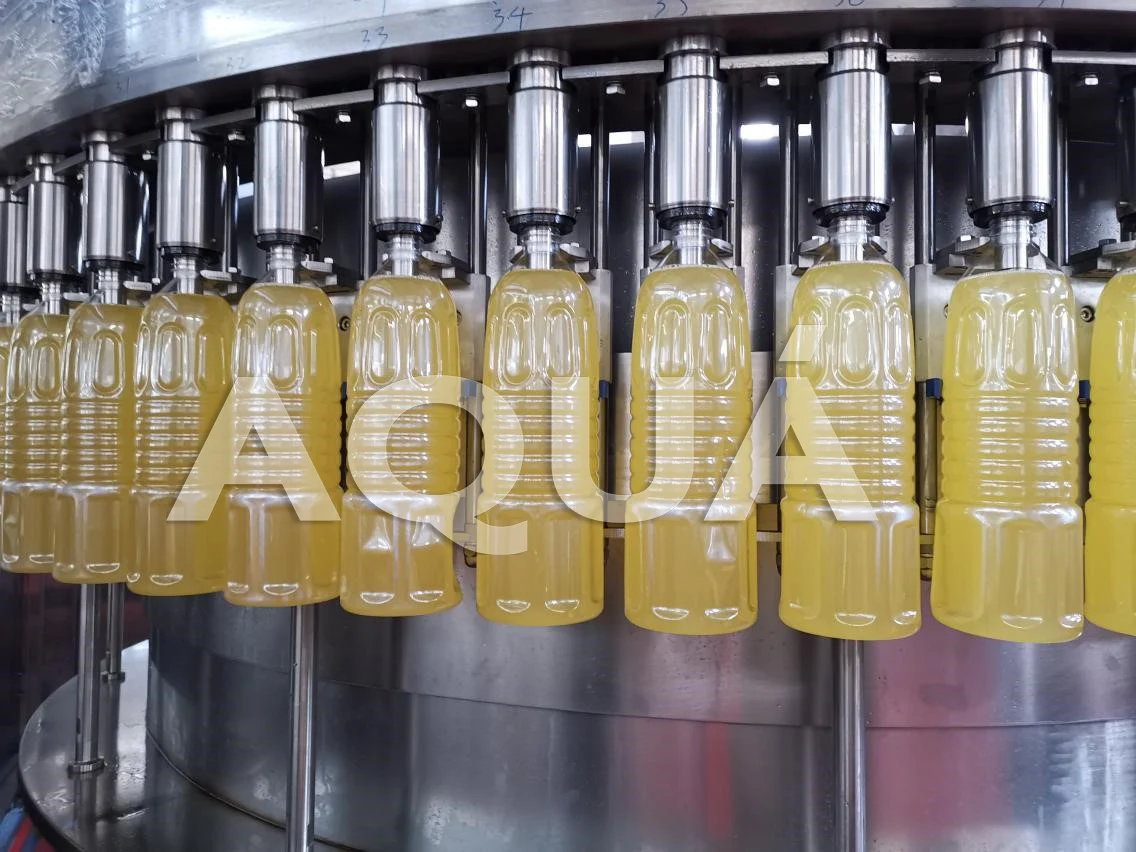

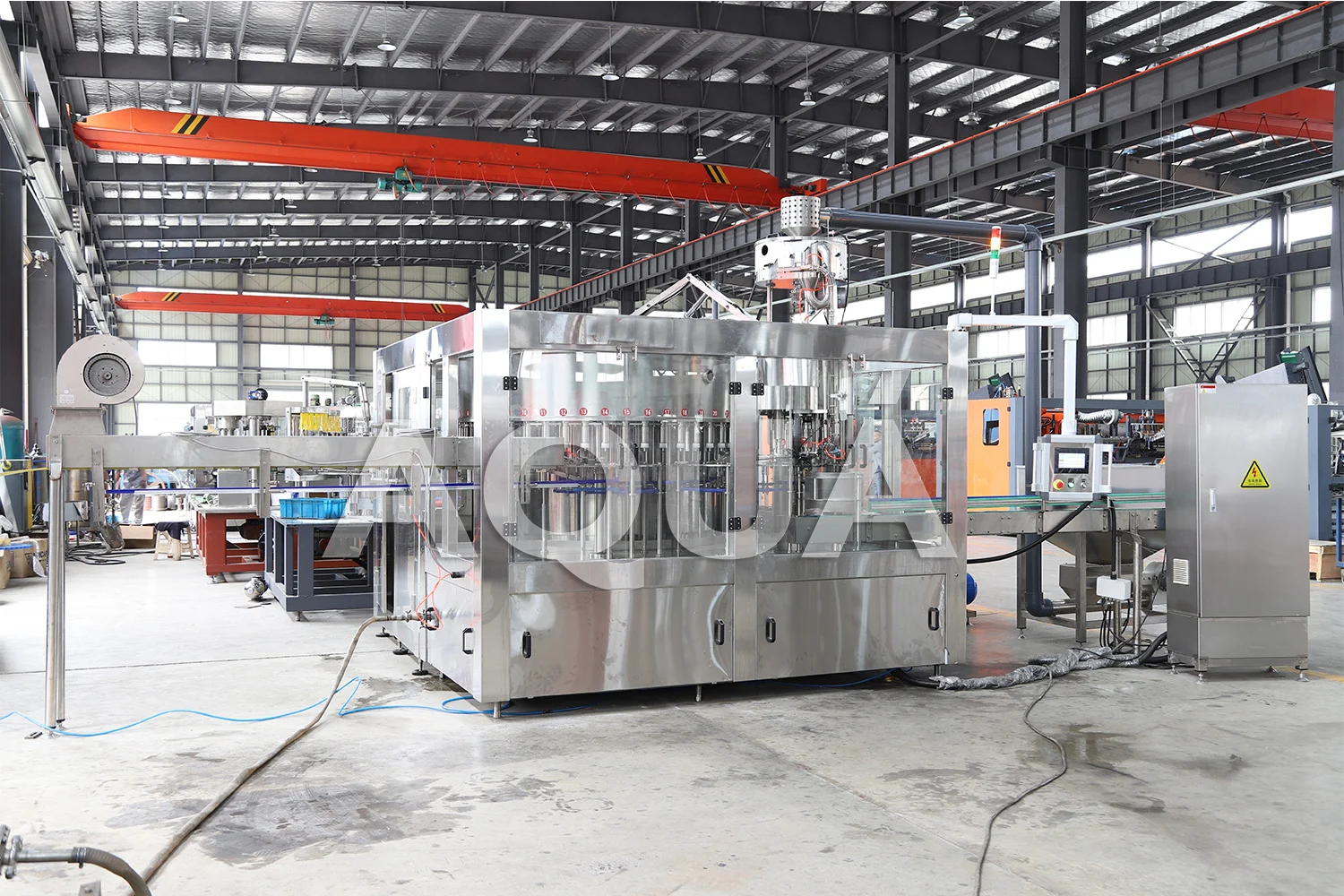

Filling Capping Machine ( Rotray Type)
- Filling volume adjustable in fine rank, same liquid level after filling
- All 304/316 stainless steel contact parts & liquid tank, fine polish, no death corner, easy to clean
- Place and capping system, electromagnetic capping heads, with burden discharge function, make sure minimum bottle crash during
capping
- Automatic stop when lack of bottle
- Capping effect is stable and reliable, Defective rate ≤0.2%
- All 304/316 stainless steel contact parts & liquid tank, fine polish, no death corner, easy to clean
- Place and capping system, electromagnetic capping heads, with burden discharge function, make sure minimum bottle crash during
capping
- Automatic stop when lack of bottle
- Capping effect is stable and reliable, Defective rate ≤0.2%
Related Machines
Automatic Sticker Labeling Machine
Automatic double-side labeling machine for square bottles or flat shape of things off the side of the bottle labels ,which can be applied in many industries for automatic labeling and other irregular shape of the bottles.
Easy operation
Adopt mature PLC control technology, make the machine stable and high-speed.Can be suitable or square flat bottles at the same time.Adopt touch screen control system, simple,practical and efficient operation
Easy Adjustment
Adopt high quality sponge wheel to leave some space between the bottles, so as to ensure that the labels will not be missed. The rotary speed of the sponge wheel can be adjusted to adjust space between the two bottles.
Widely Use The parts of the machine that store labels and collect label paper are designed to be adjustable to accommodate a wide variety of labels. Special Customization we can making the labeling machine can suitable for square bottle,flat bottle and round bottles at the same time. When change the bottle from square or flat to the round bottles,it is only need a simply adjust on this machine.
High Accuracy
Adopt photoelectric equipment imported from Germany, and high quality servo motor, the labeling accuracy is greatly improved.
Easy operation
Adopt mature PLC control technology, make the machine stable and high-speed.Can be suitable or square flat bottles at the same time.Adopt touch screen control system, simple,practical and efficient operation
Easy Adjustment
Adopt high quality sponge wheel to leave some space between the bottles, so as to ensure that the labels will not be missed. The rotary speed of the sponge wheel can be adjusted to adjust space between the two bottles.
Widely Use The parts of the machine that store labels and collect label paper are designed to be adjustable to accommodate a wide variety of labels. Special Customization we can making the labeling machine can suitable for square bottle,flat bottle and round bottles at the same time. When change the bottle from square or flat to the round bottles,it is only need a simply adjust on this machine.
High Accuracy
Adopt photoelectric equipment imported from Germany, and high quality servo motor, the labeling accuracy is greatly improved.

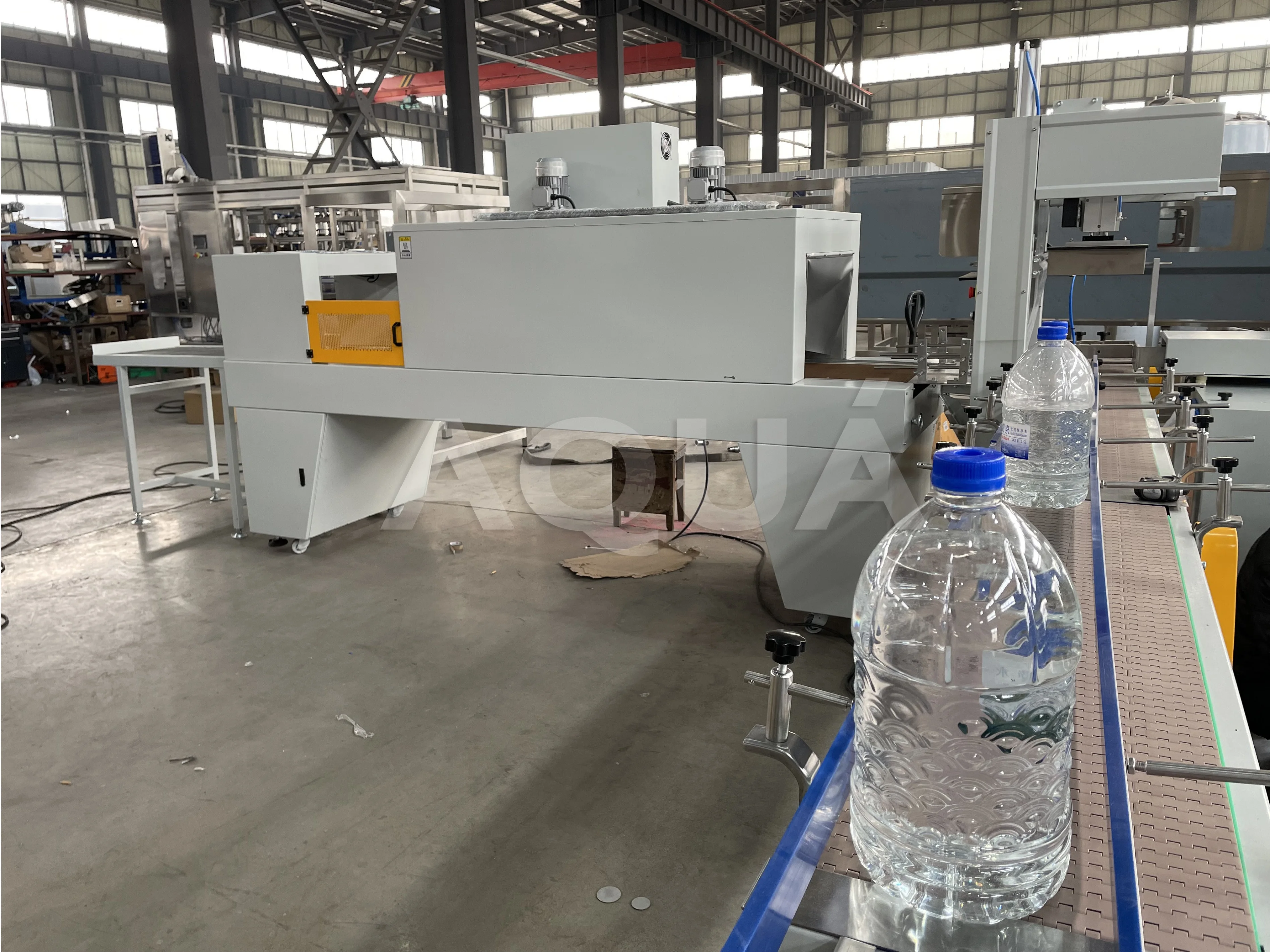

Automatic PE Film Shrink Wrapping Machine
Packing Bottles By pe film as 4*5/4*5/3*4/2*3 type
Water Treatment System
Automatic PET Blowing Machine
Water Filling Machine
