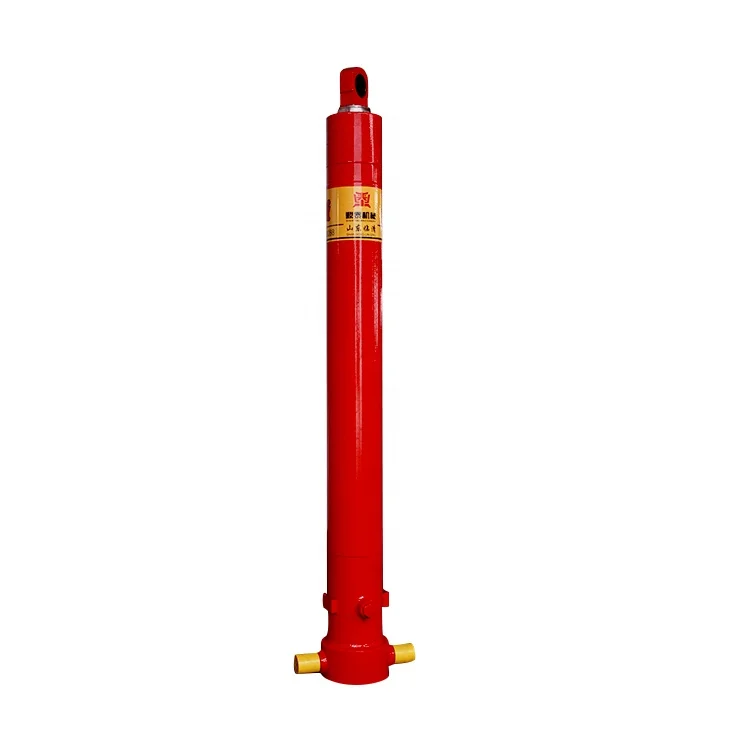

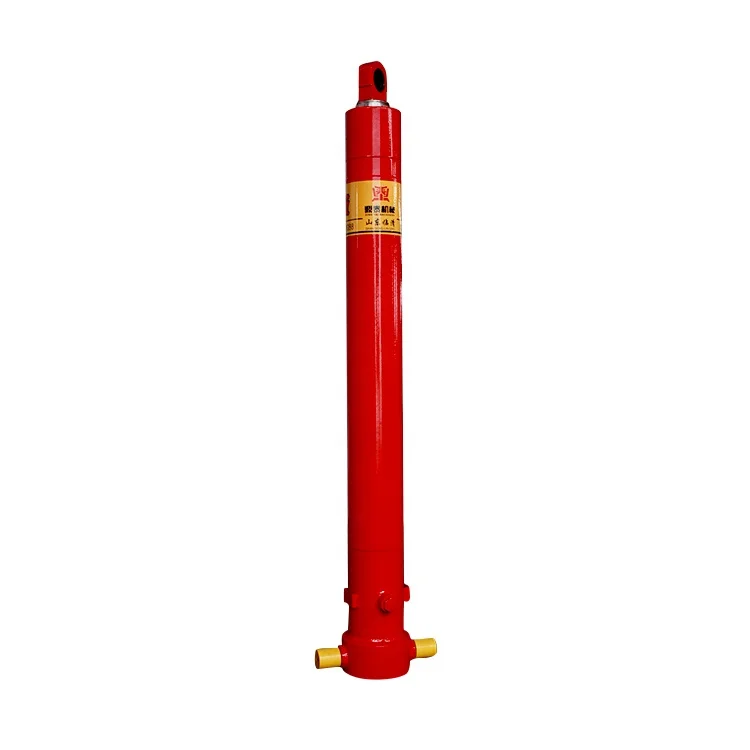

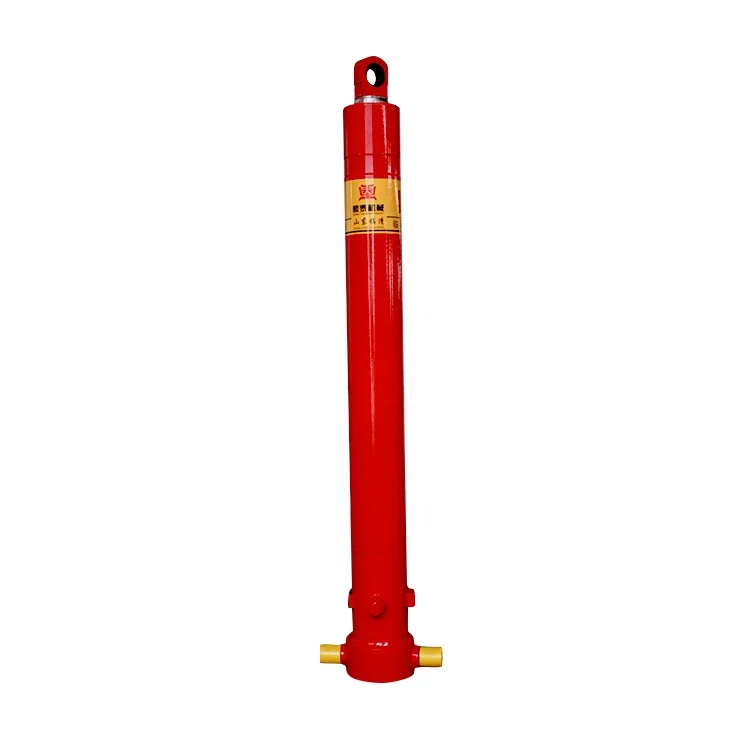

Hydraulic cylinder 2500mm long stroke hydraulic cylinder telescopic hydraulic ram

Installation instructions

1.The specifications for all the install screw and self-     locking is M16(DIN931.Q8.8)

2.The specifications for grommet is M1730MM.

3.The biggest gap between support and cylinder is

   2mm.

4.Make sure the hydraulic cylinder vertically ,up

   and down two parallel shafts when installed.

5.The installation should be greater than the center

   distance between the closed hydraulic cylinder

   center distance 20mm-30mm.

Six advantages for hydraulic

More secure

Faster unloding speed.

The lifting frequency higher

A stronger ability to adapt to the environment

Lighter

Lift more
