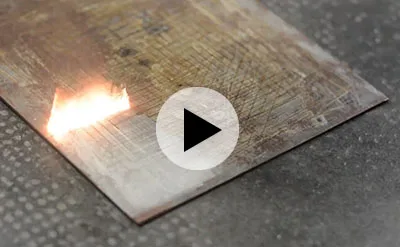

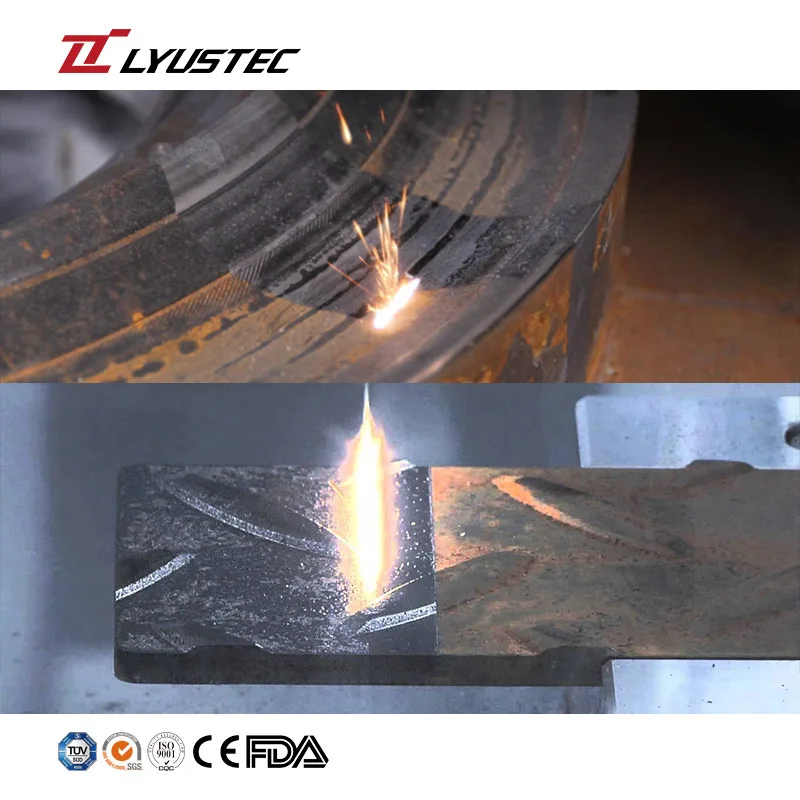

Laser cleaning is a new non-contact surface cleaning technology, which mainly sues low-power and high energy density pulse laser beam to act on the surface of the workpiece, so that the surface stains, oxides or coatings can be evaporated and gasified or thermally expanded in an instant , so as to achieve the effect of surface cleaning and purification. Compared with the traditional way, it has the advantages of environmental protection, no grinding , no thermal effect etc, and has unique advantages in cleaning precision workpiece.

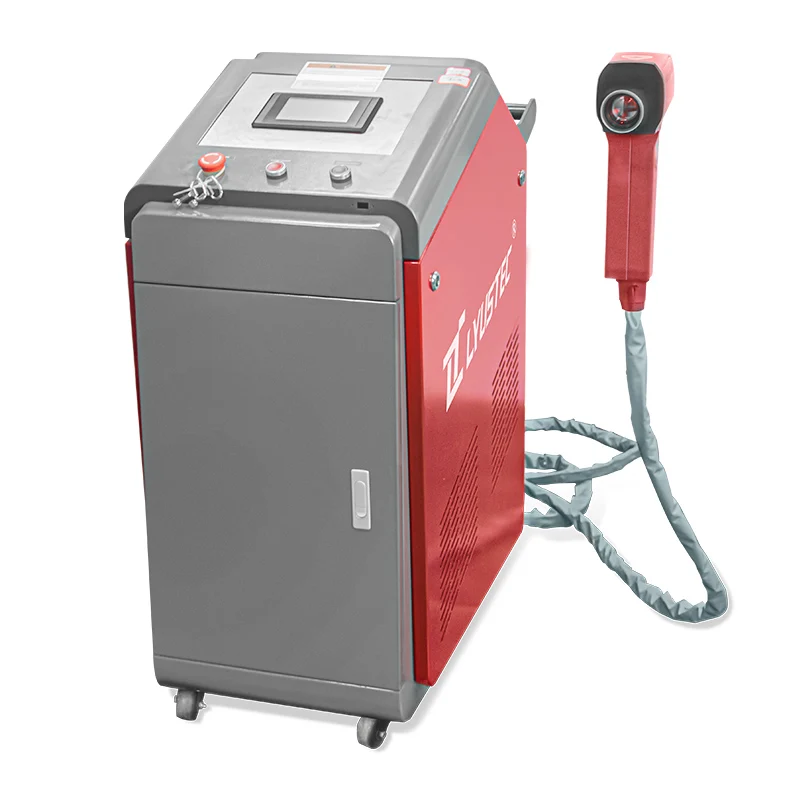

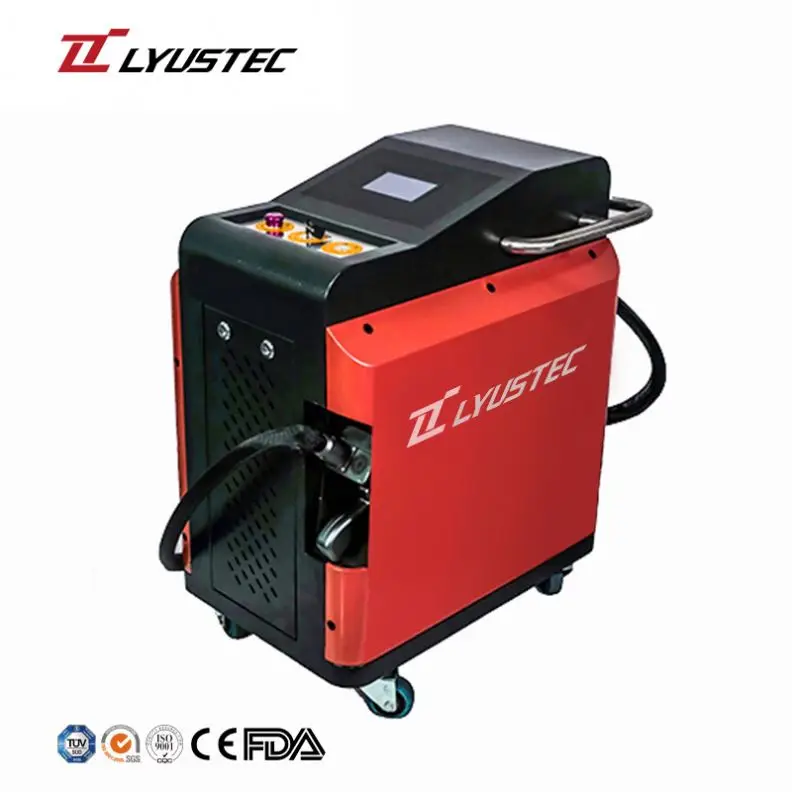

LYUSTEC FastCleaning series laser cleaning machine has advanced technology, humanized design, small size, flexible operation, low energy consumption, environmental protection and other characteristics, with a certain degree of practicality and operability. The customer can preset the cleaning mode through the software, and can directly switch the node for operation without adjusting the parameters, and start the cleaning without chemical reagent medium, dust and water. Through auto focusing , surface fitting cleaning , removing resin, stain, rust, coating, paint, etc, the cleaning is high.
Model
MT-CL50
MT-CL100
MT-CL200
Power
50W
100W
200W
Laser Type
Pulsed Fiber Laser Generator
Wavelength
1070nm
Pulse Energy
1.0mJ（Customized 1.5mJ）
1.5mJ（Customized 2mJ）
Peak Power
13~18KW
15~20KW
Head Weight
1.95Kg(Isolator)
Standard：1.6Kg (Anti-shake head：1.8Kg)
Standard：1.8Kg (Anti-shake head：2.0Kg)
Scan Width
5mm~120mm （Customized ） Continuously Adjustable
Cooling
Air Cooling

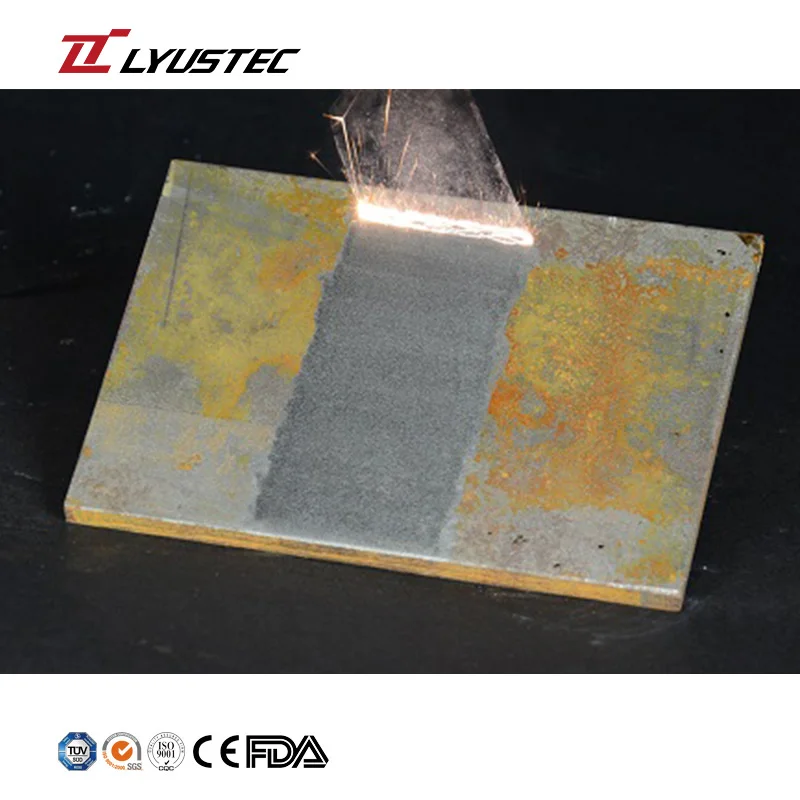

（20μm）Cleaning Paint / Rust
2.0m2/h
4.0m2/h
8.0m2/h
（20μm）Cleaning Oil
2.3m2/h
4.5m2/h
9.0m2/h
Titanium Alloy/ Stainless Steel Oxide
2.0m2/h
4.0m2/h
8.0m2/h
Cleaning Aluminum Alloy Oxide Film
1.5m2/h
3.0m2/h
6.0m2/h

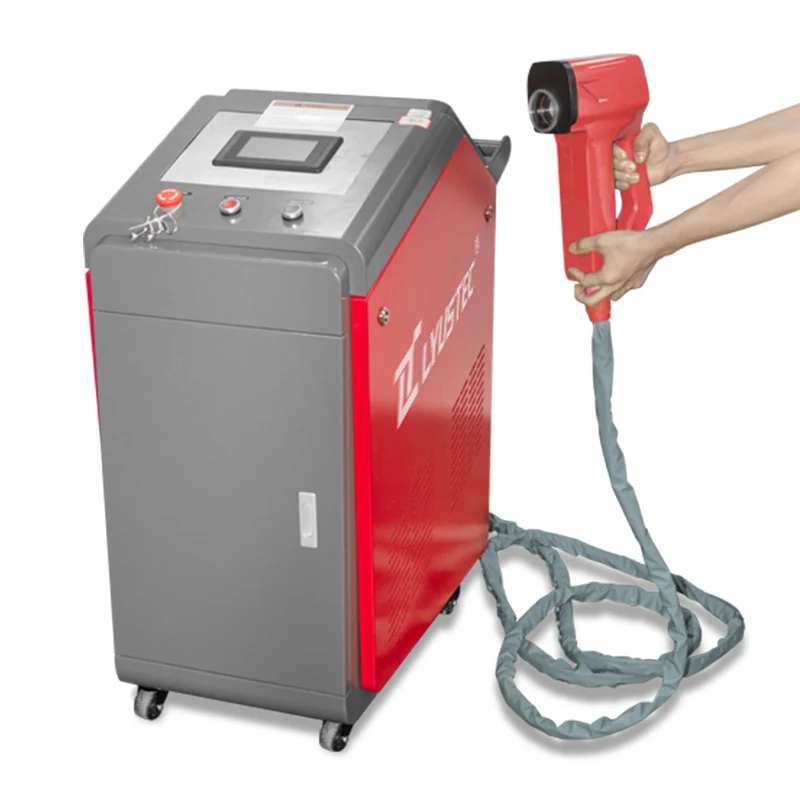

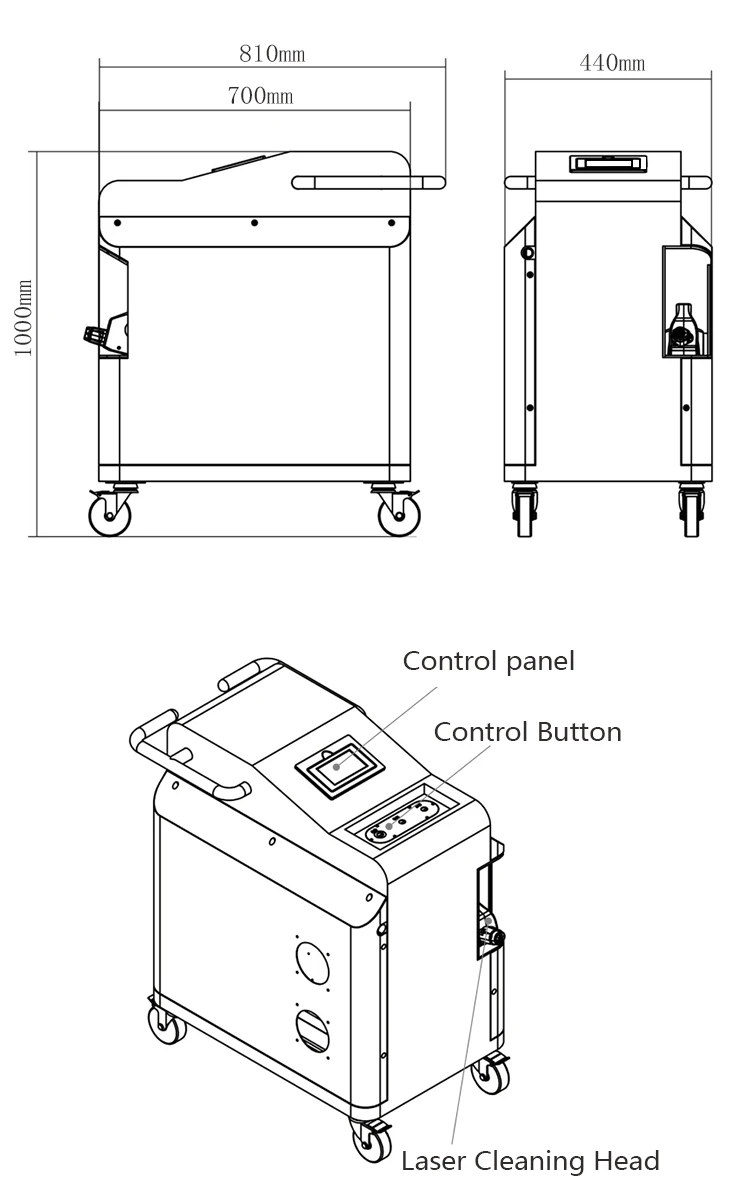

* Ergonomic design, small size, no more than 5 kg, easy to transport.
* Non-contact cleaning, no chemical agent, no damage to the part base.
* Environmentally friendly and no consumables. * Precise positioning for precise cleaning and precise size. * Simple operation, power-on operation, automatic cleaning with hand or robot. * Efficient and stable, high cleaning effect, low maintenance cost.
Parent metal
Surface
The effective depth of focus
(mm)
Economical Type
Cleaning efficiency
( mm2/s)
Standard Type
Cleaning efficiency
( mm2/s)
High-speed Type
Cleaning efficiency
( mm2/s)
The effect
Cast iron
Severe corrosion
10
1800
2200
3500
The surface is clean and harmless
Carbon steel plate
Moderate corrosion
10
1800
2200
2500
The surface is clean and harmless
Stainless steel plate
Surface oil, slight corrosion
10
1800
2200
3000
The surface is clean and harmless
Die steel gear
Moderate oil,
Attached scrap iron
10
1800
2200
2500
The surface is clean and harmless
Aluminum plate
Oxide/surface fouling
10
1800
2200
2200
The surface is clean and harmless

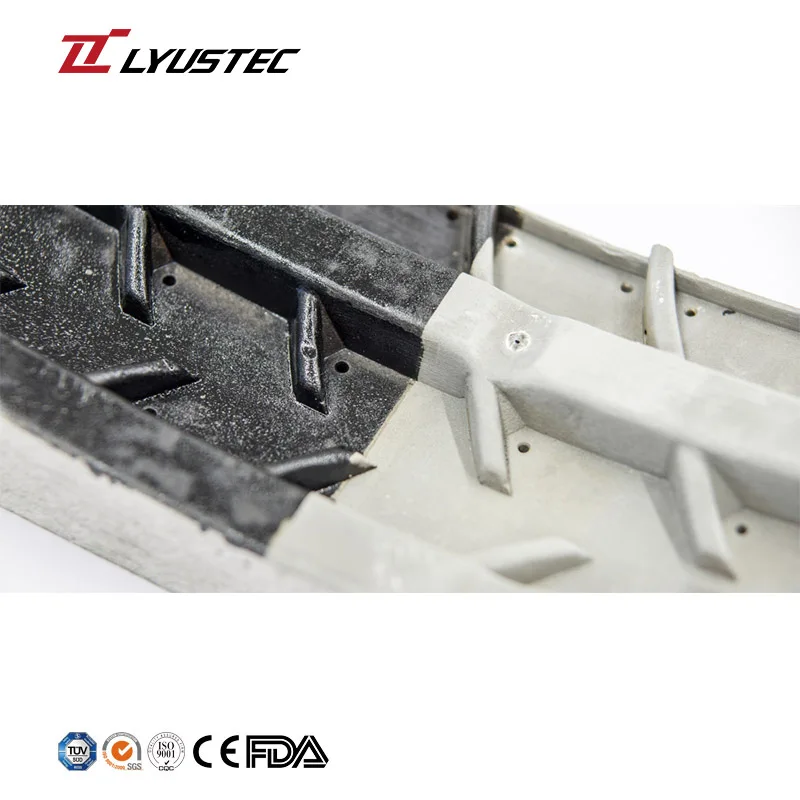

No putty coating
White baking varnish
10
1800
2200
3000
The surface is clean and harmless
The product emits infrared laser radiation with the wavelength of 1064nm, and the average power radiated by the cleaning head is more than 100W, and the peak power is more than 15KW, which will cause damage to the eyes and skin directly or indirectly exposed to such light intensity. The infrared radiation is invisible, and the laser beam can cause irreversible damage to the retina or cornea. Be sure to wear the appropriate and certified 1064nm near-infrared laser protective glasses before running the laser.
Applicable Materials:

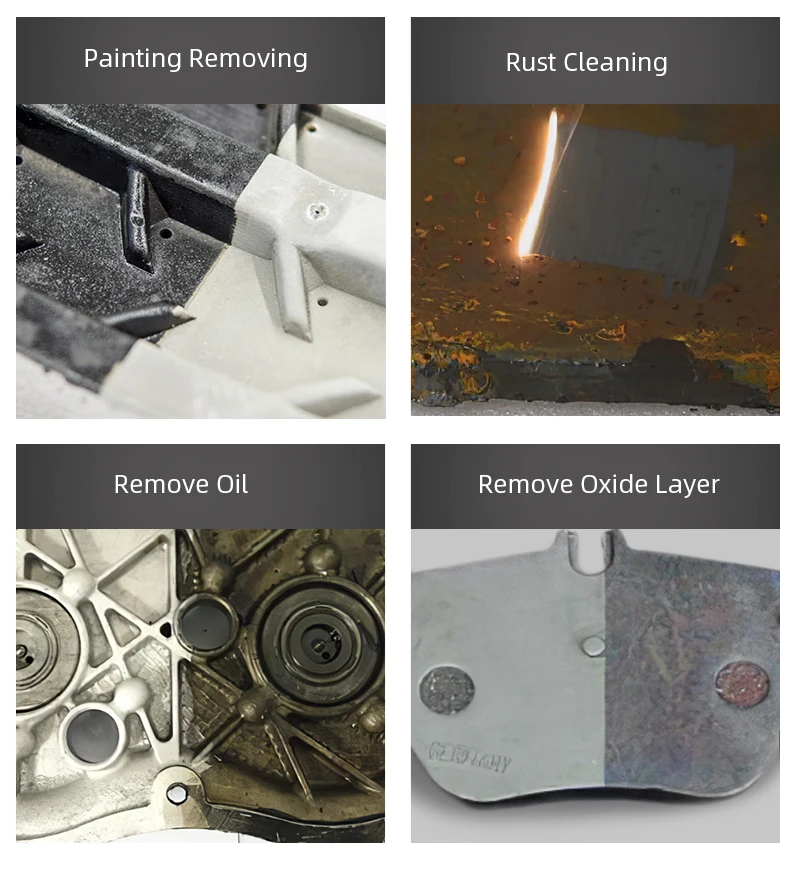

Laser Cleaning Machine is suitable for cultural relic cleaning, module cleaning , remove Industrial rust , metal parts recovery etc.

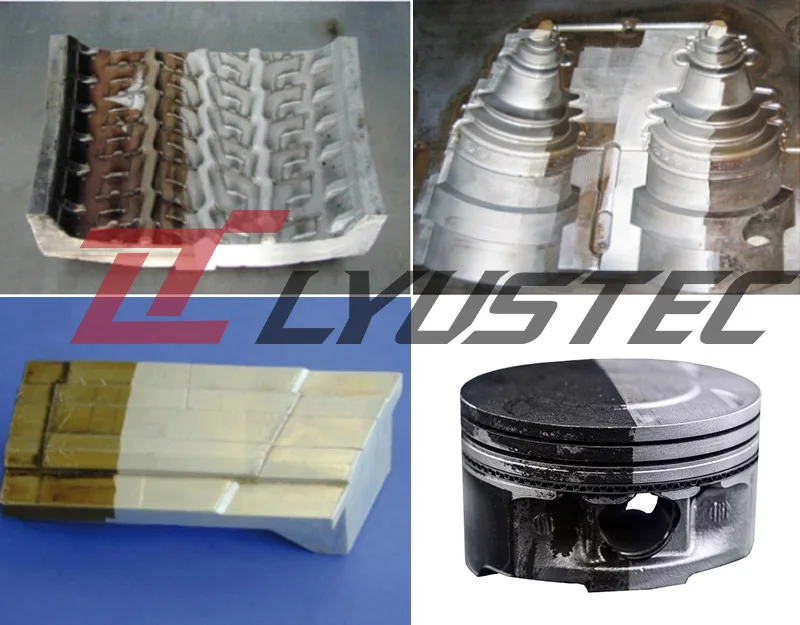

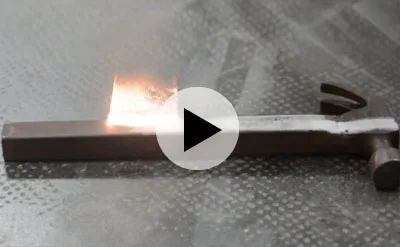

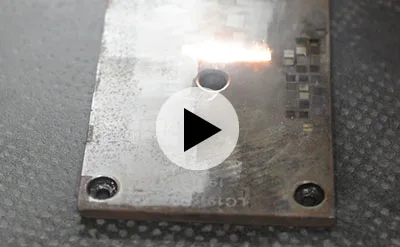

Samples Show
