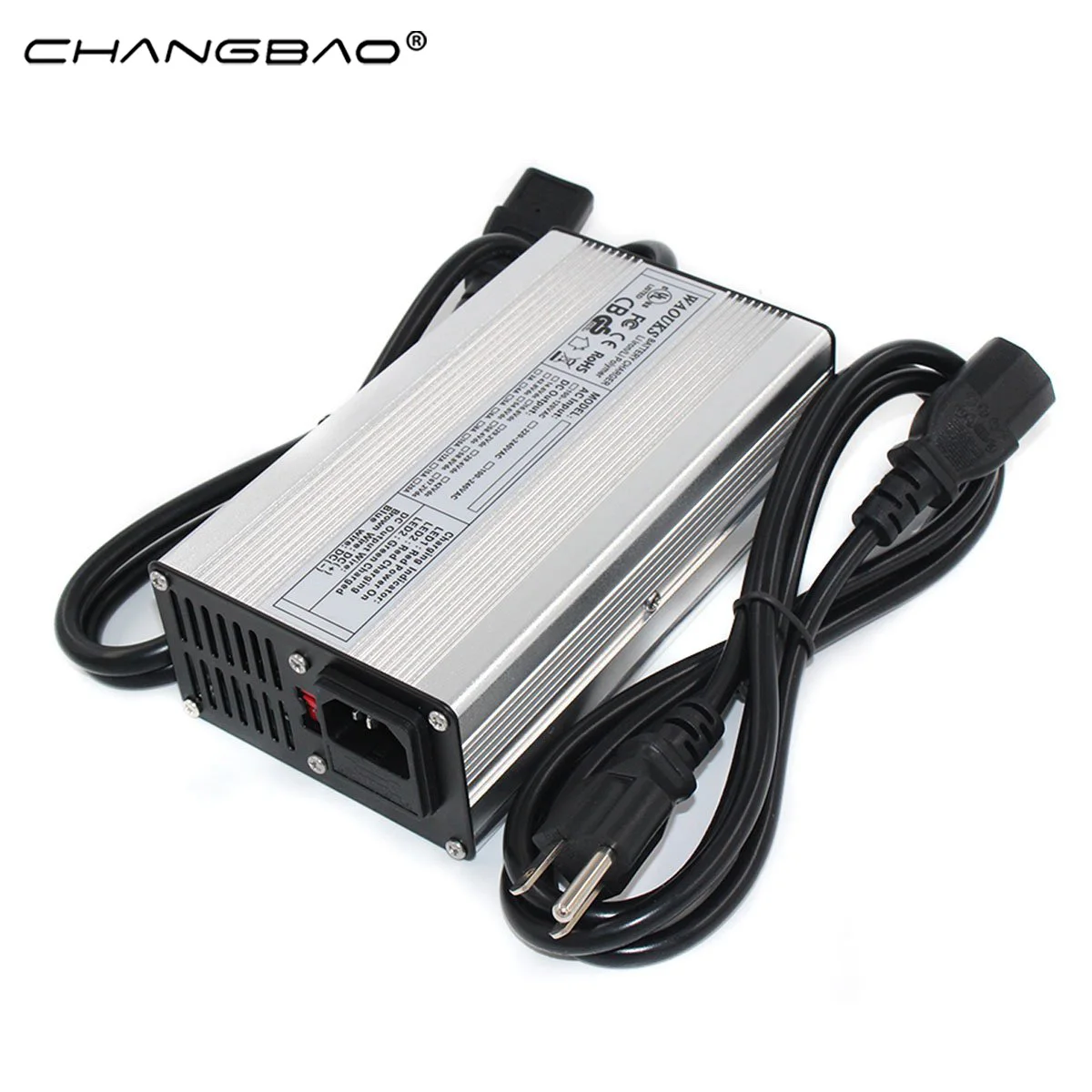

36V 4A lead acid battery charger for electric scooter forklift bike car SLA battery charger
- Category: Battery Charger >>>
- Supplier: Dongguan Changbao Electronics Technology Co. Ltd.
Share on (62333013808):
Product Overview
Description
Details Images
42.0V 4A E-bike Battery Charger
1). for 36V Lead Acid /Li-ion / LiFePO4 Battery Pack
2). for Electric Car, Electric Wheelchair, Sightseeing Car, E-bike, Electric Golf Cart, E-Motocycle, E-Patrol Car, E-forklift,
E-boat, E-Cleaner, E-sooter, E-torist Coach, Robot and more
2). for Electric Car, Electric Wheelchair, Sightseeing Car, E-bike, Electric Golf Cart, E-Motocycle, E-Patrol Car, E-forklift,
E-boat, E-Cleaner, E-sooter, E-torist Coach, Robot and more

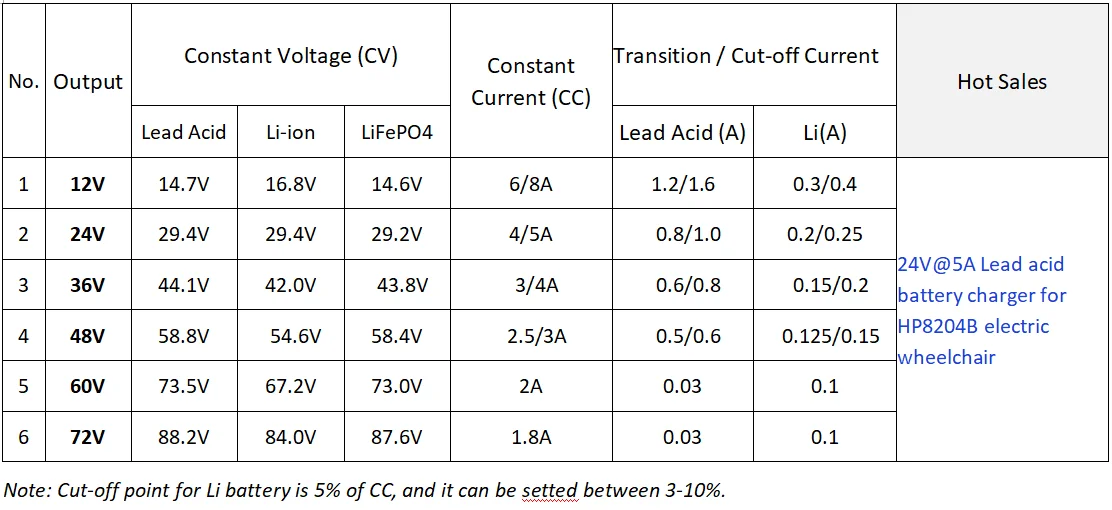

Product Paramenters
180W electric vehicle battery charger Series units: 12V / 24V / 36V / 48V / 60V / 72V / @ 8A max. 180W power

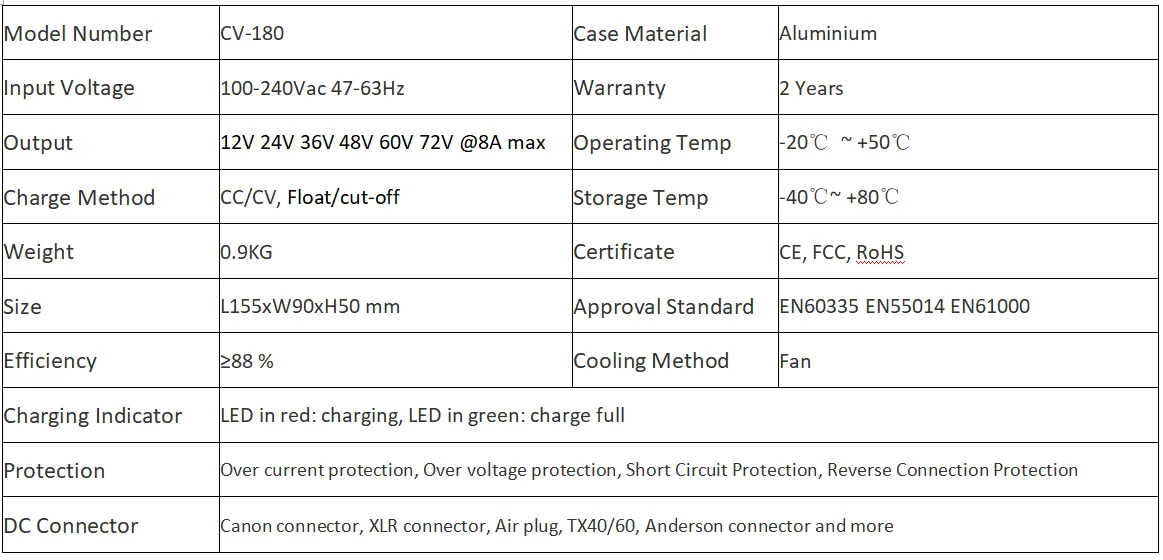

General spec:
Compatiable batteries: Li-ion, Lifepo4, Lead acid Lithium Titanate,Ni-mh Titanate
Charging curve

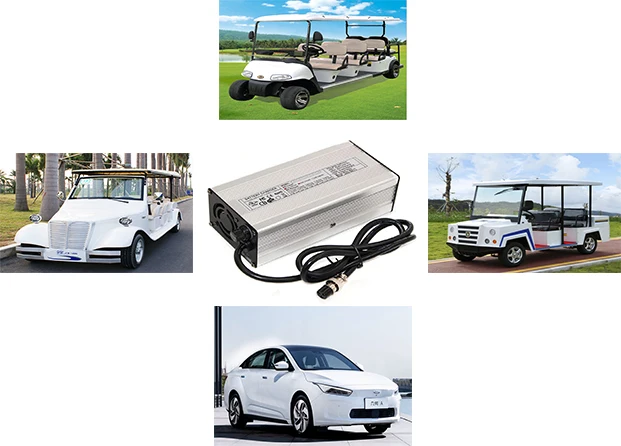

Products application
Wide application:
Electric car, sight seing car, wheelchair
E- golf cart, forklift, motorcycle
E-boat, E-cleaner, E-scooter, E-bike
E-tourist coach, E-robot DC power supply, Smart intellent& home, and more
2. Speaker system, Soundbar, POE injectors, CCTV camera, LCD monitor, Led light
3. Lamps, Motor-driven tools and appliances, geyser, water pumps, toys, barbecue machines

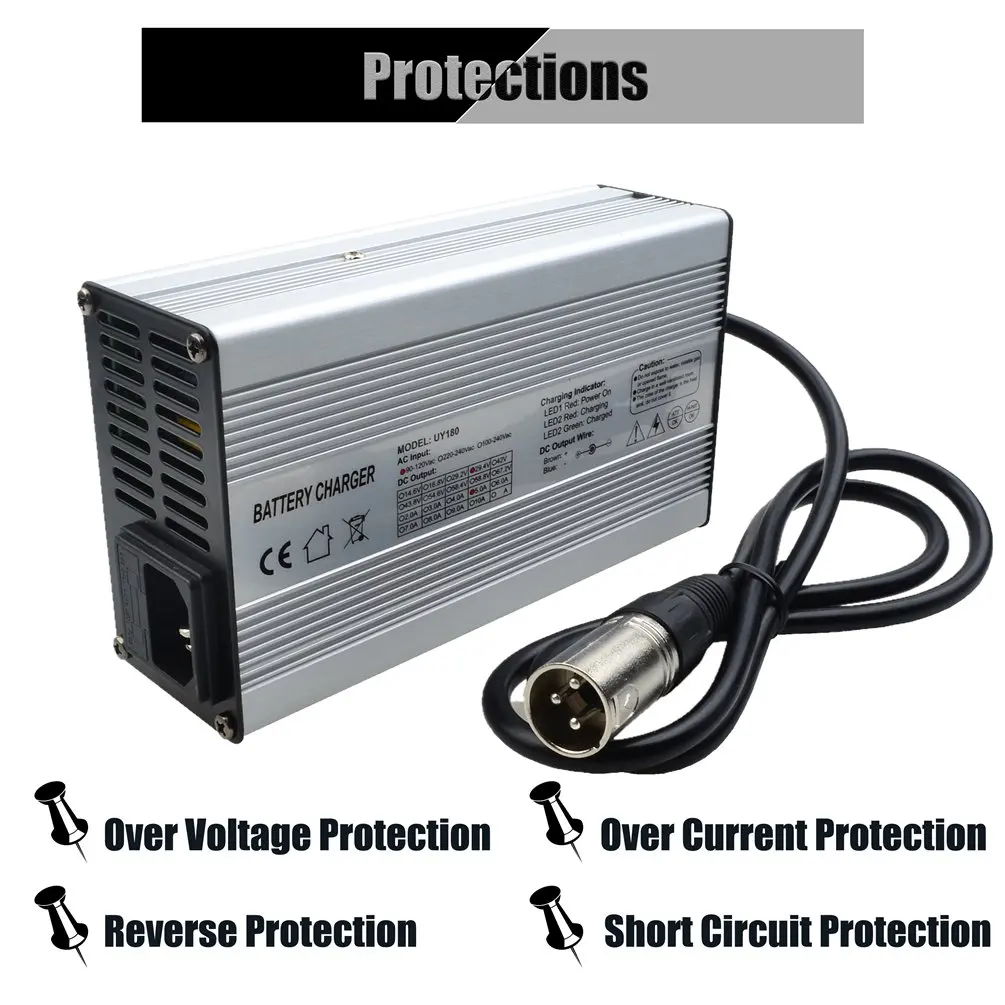

Over volatge protection
Short circuit protection
Reverse connection protection
2. Safety: ETL CE RoHS
3. Approval standard: EN60335 EN55014 EN61000

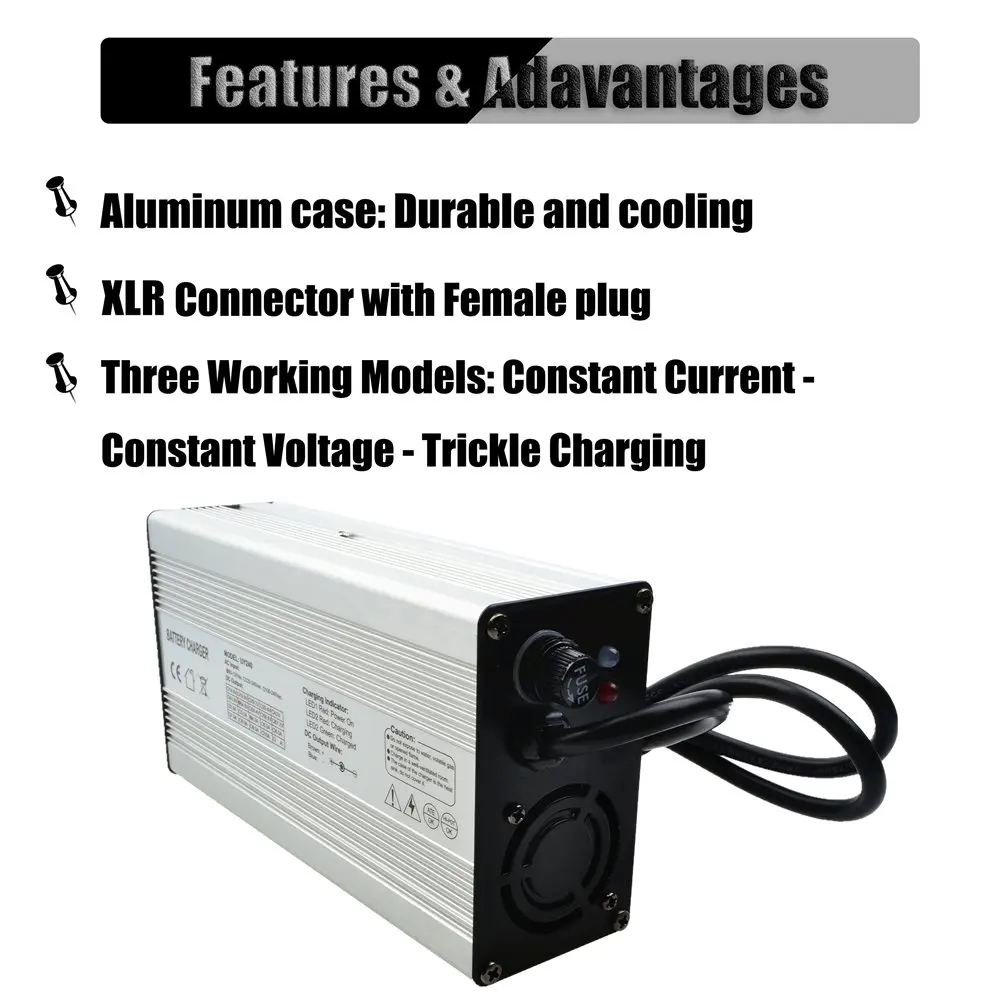

Why choose this
2. Durable aluminum housing
3. Reliability quality
4. Low fever and no noise at full wattage working

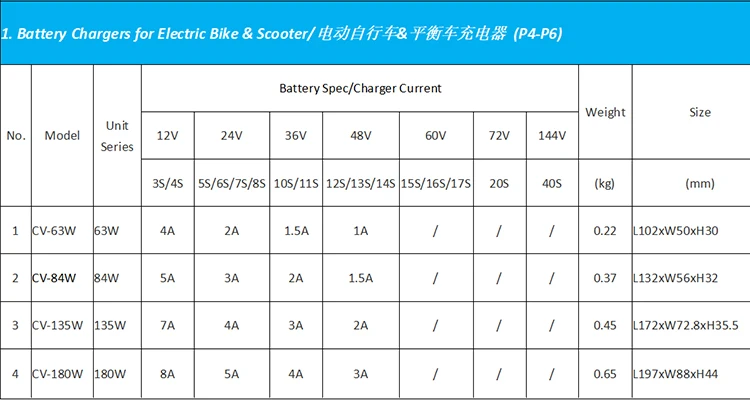

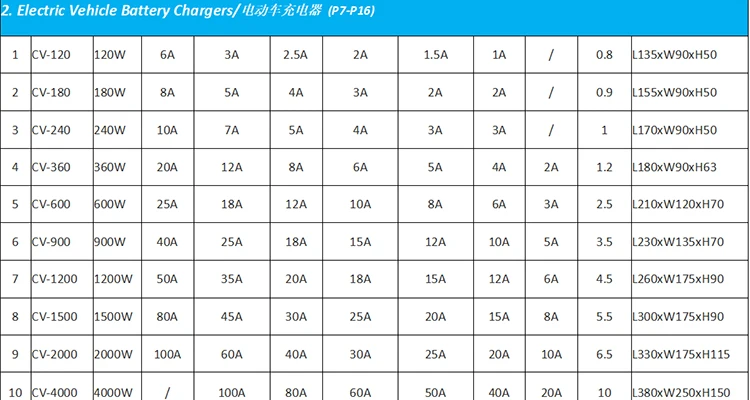

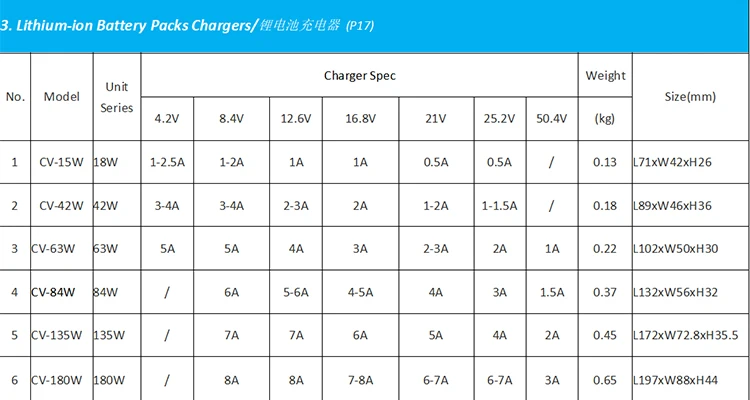

More battery chargers to supply:
Product packaging
FAQ
FAQ
1. The LED turns off while charging.
-This charger has a build-in thermal protection function. Battery charging is shut off when the temperature of charger increases
beyond set limit, and LED turns off (no color). Once the charger temperature drops to acceptable limit, the charging process is
resumed and the LED turns on (Green/Red color).
2. LED color changes to Yellow
-This indicates that battery is not being charged correctly. Remove the battery pack from Charger and re-insert into charger. If
this occurs repeatedly, either battery is dead or charger is not working.
3. Battery is inserted in the charger, but the LED does not change to RED.
-This indicates that battery is not being charged correctly. Remove the battery from charger and re-insert into charger. If this
occurs repeatedly, either battery is dead or charger is not working.
4. LED changes to Green, but the capacity is too low.
-This indicates that battery is not being charged correctly. Remove the battery from charger, clean the contacts with a soft clean
cloth, re-insert into charger. If this occurs repeatedly, either battery is dead or charger is not working.
-This charger has a build-in thermal protection function. Battery charging is shut off when the temperature of charger increases
beyond set limit, and LED turns off (no color). Once the charger temperature drops to acceptable limit, the charging process is
resumed and the LED turns on (Green/Red color).
2. LED color changes to Yellow
-This indicates that battery is not being charged correctly. Remove the battery pack from Charger and re-insert into charger. If
this occurs repeatedly, either battery is dead or charger is not working.
3. Battery is inserted in the charger, but the LED does not change to RED.
-This indicates that battery is not being charged correctly. Remove the battery from charger and re-insert into charger. If this
occurs repeatedly, either battery is dead or charger is not working.
4. LED changes to Green, but the capacity is too low.
-This indicates that battery is not being charged correctly. Remove the battery from charger, clean the contacts with a soft clean
cloth, re-insert into charger. If this occurs repeatedly, either battery is dead or charger is not working.
