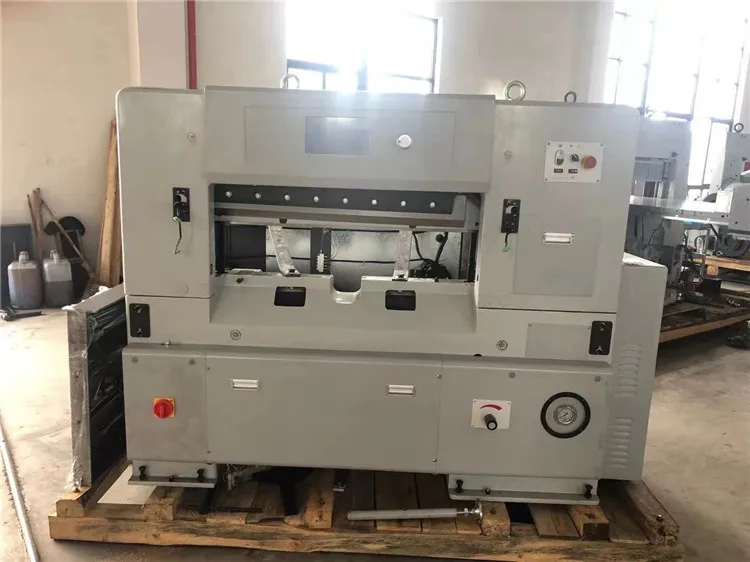

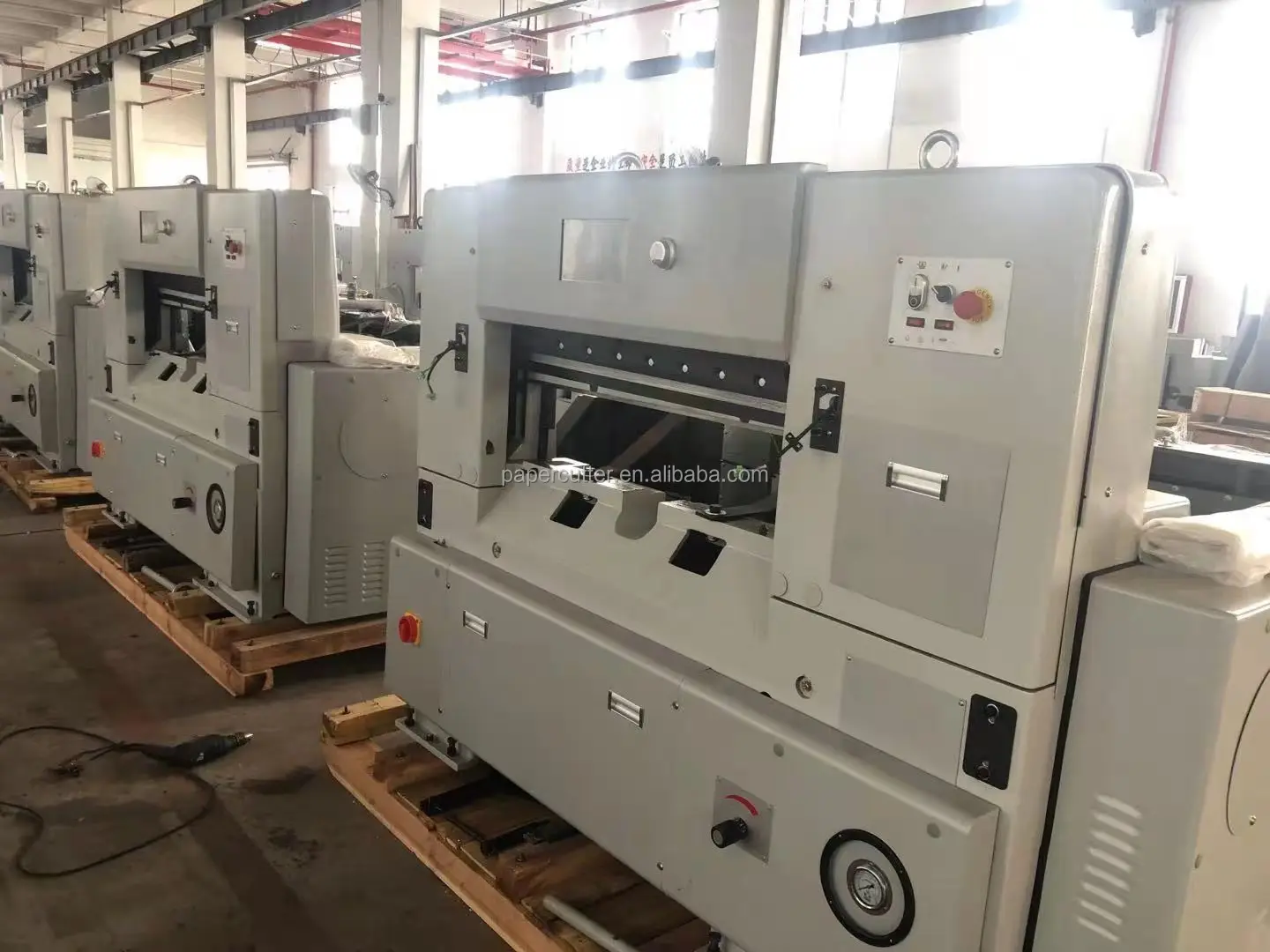

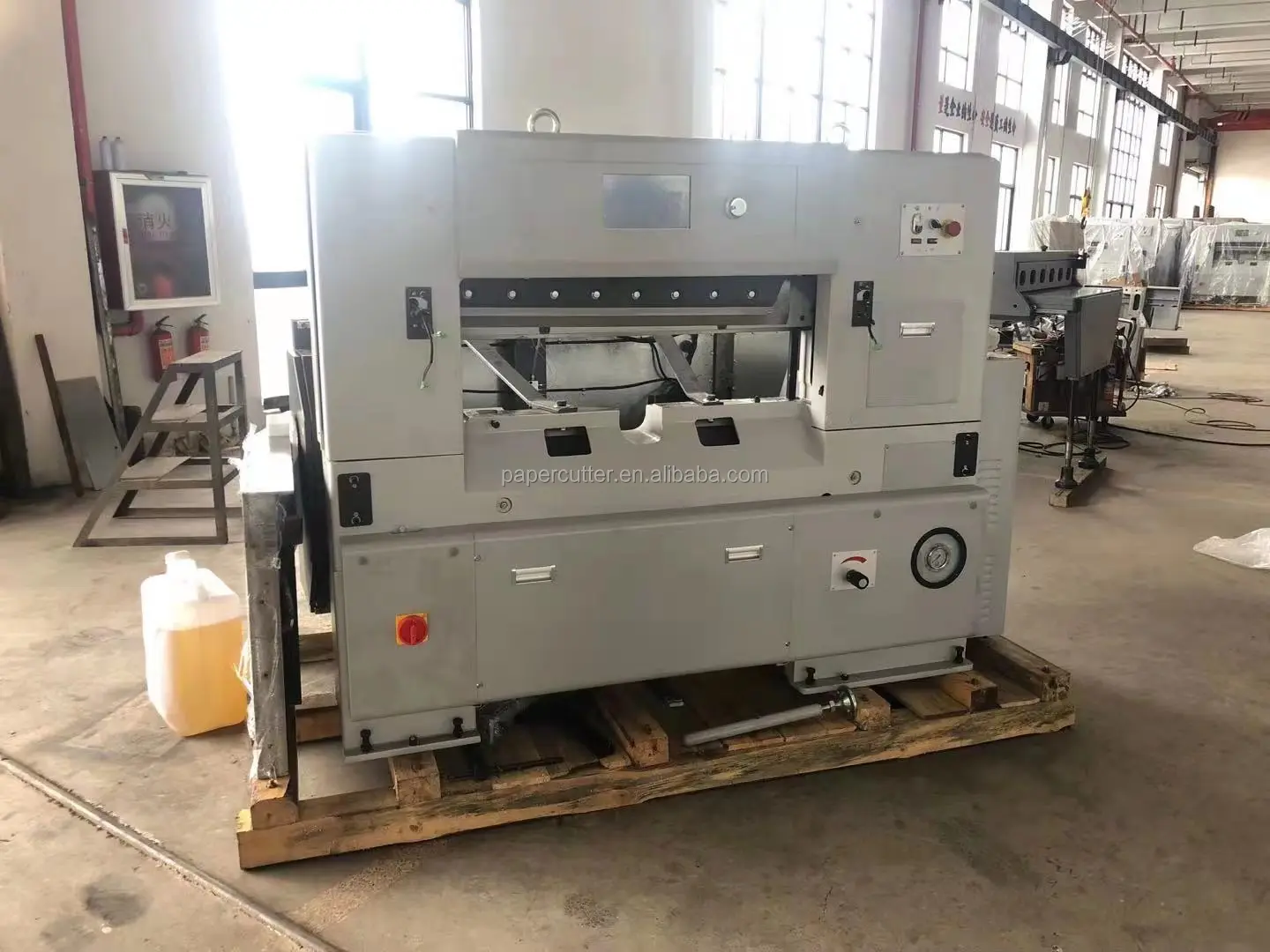

Automatic A4 hydraulic program paper cutting machine guillotine cutting machine paper
- Category: >>>
- Supplier: Ruian Dapeng Printing Machinery Co. Ltd.
Share on (62333100449):
Product Overview
Description
Products Show
Product Description
Modle | Unit | QZYK920DH-10 |
Total width of machine | cm | 217 |
Total length of machine | cm | 213 |
Total height of machine | cm | 151 |
Max cutting width | cm/lnch | 92/36.2 |
Max.cutting length | cm/lnch | 100/39.3 |
Max.cutting length | cm/lnch | 13/5.1 |
Weight | kg | 2600 |
Packing size (L×W×H) | cm | 237×137×187 |
Voltage(three-phase) | V | 365-395 |
Wire size | mm2 | 2.5 |
★Usage:QZYK920DH-10 Touch screen Paper Cutting Machine is used to cut the printing paper of various kinds, paper products, plastic, thin film, leather, slice of non-ferrous metal, etc.
★Touch Screen: it adopts 10.4 inch touch screen color liquid crystal touch screen. It is equipped with imported whole set computer controlling system. The computer can do self-diagnose while malfunction, and do self-protection while wrong operation.
★ Double Hydraulic Device: the hydraulic system adopts the Germany advanced technology. Equipped with combined hydraulic valve, double hydraulic controlling structure, it approves hydraulic device greatly. The hydraulic device pass CE certificate.
★ Double Guide Device: the paper pusher adopts double linear guide and roller ball screw.,which can prolong the machine use life, and can bear the high speed paper delivering.
★ Photo cell: it is equipped with a photo cell safety protection device.
★ Over load protection device; convenient knife changing device.
★ Worktable chrome treatment: the worktable and side board surface are all adopted chrome treatment to improve the precision and quality of the machine.
★ Air ball: air balls are installed in the worktable. The paper sending work will be easy and accurate.
★ Cutting controller: both of the user's hands operate the machine. It can cut paper in one time.
★ Electronic knife lock: when the machine is malfunction, the electronic knife lock will lock the knife, and the machine will stop cutting to protect safety.
★ Safety notice & Glass covers: the machine has passed CE certificate. All the safety notice and direction mark is used to cause the safety attention of the user, and do protection and maintenance in time.( optional)
★ Main electric device are imported from Germany, French, Switzerland etc.
Our Company
Customer Photos
Our Service
Pre-Sales Service
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
After-Sales Service
* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.
Contact Us
FAQ
Q: Are you a manufacturer or a trading company?
A: We are a manufacturer, specialized in manufacturing paper processing machine since 1986.
Q: What’s your main products?
A:(1) 66/68/78/92/115/130/162/185/220cm paper cutting machine/ paper cutter / paper guillotine
(2)Automatic paper load machine/ paper unload machine/ paper lift machine
(3)Rotary die cutting machine
Q: Which industries are your machines used in?
A: We provide professional paper cutting equipments for books and periodicals, press and publications, packaging decoration, commercial printing, office printing, finance tickets and other professional departments.
Q: How to choose suitable machine?
A: We will recommend the most suitable machine for you after we get your original material size
( length/ width / thicknees) and other details requirements.
Q: Why do you choose our company and machine?
A:(1) 30 years of production experience with good quality. All our machines have got CE certificate.
(2)Competitive price in the same level quality of paper cutting machines.
(3)Thoughtfulpre-sale and after-sale service. Any questions, pls feel free to contact us.
Q: What about your after-sale service?
A: We offer some spare parts follow the purchased machine. And we provide one-year guarantee. If the machine has any problems during the one-year warranty period, we will offer technical support. If you need us to send technicians, it’s ok. But pls noted that buyer pays all the expenses including the round air tickets, accommodation and the application of visa during the repairing period. If there is any broken part of the machine during warranty period, we can offer the part. But we hope that you can understand that you need to bear the freight.
