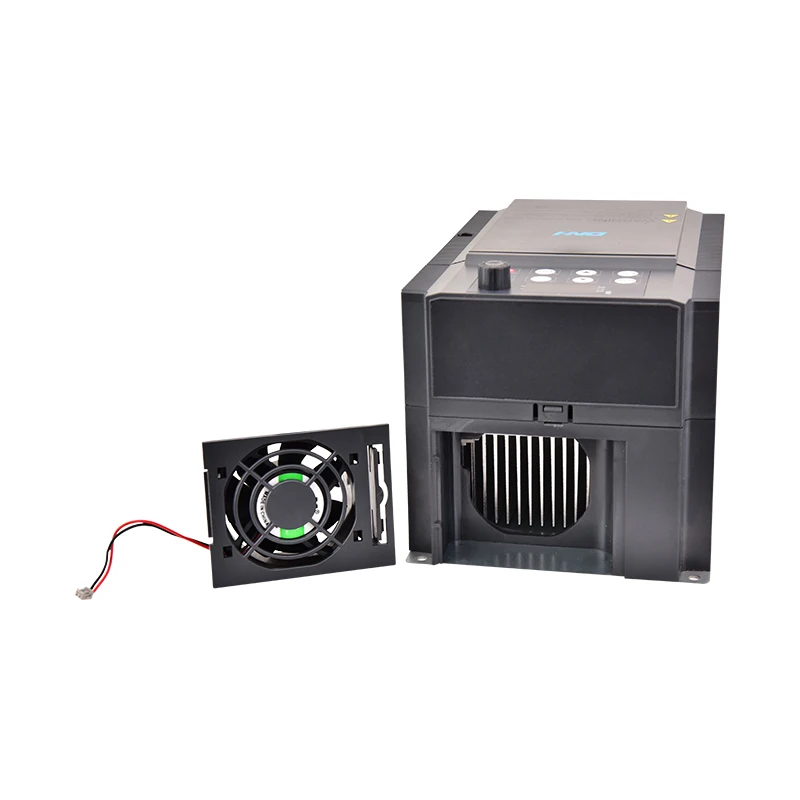

converter high voltage frequency converter D71 series 0.75Kkw to 3kw VFD
- Category: >>>
- Supplier: Jiaxing Dannahe Electronic Science & Technology Co. Ltd.
Share on (62333102947):
Product Overview
Description
Dimensions
| MODEL | product dimensions (mm) | Installation dimensions (mm) | aperture | |||
| H | W | D | H1 | W1 | ||
| D71-0R7G/1R5P-T4 | 145 | 107 | 144 | 135 | 95 | φ5 |
| D71-1R5G/2R2P-T4 | ||||||
| D71-2R2G/3RP-T4 | ||||||
| D71-4RG/5R5P-T4 | 200 | 138 | 134 | 188 | 124 | φ5 |
| D71-5R5G/7R5P-T4 | ||||||
| D71-7R5G/11RP-T4 | 232 | 153 | 164 | 220 | 139 | φ5 |
| D71-11RG/15RP-T4 | ||||||
| D71-15RG/18RP-T4 | 335 | 200 | 195 | 321 | 140 | φ9 |
| D71-18RG/22RP-T4 | ||||||
| D71-22RG/30RP-T4 | ||||||
| D71-30RG/37RP-T4 | 410 | 260 | 214 | 396 | 180 | φ9 |
| D71-37RG/45RP-T4 | ||||||
| D71-45RG/55RP-T4 | 740 | 290 | 310 | 720 | 240 | φ9 |
| D71-55RG/75RP-T4 | ||||||
| D71-75RG/90RP-T4 | 840 | 290 | 330 | 820 | 240 | φ9 |
| D71-90RG/110RP-T4 | ||||||
| D71-110RG/132RP-T4 | ||||||
| D71-132RG/160RP-T4 | 860 | 360 | 350 | 840 | 240 | φ12 |
| D71-160RG/185RP-T4 | ||||||
| D71-185RG/200RP-T4 | 1050 | 470 | 400 | 1022 | 300 | φ14 |
| D71-200RG/220RP-T4 | ||||||
| D71-220RG/250RP-T4 | ||||||
| D71-250RG/280RP-T4 | 1270 | 470 | 430 | 1242 | 300 | φ16 |
| D71-280RG/315RP-T4 | ||||||
| D71-315RG/350RP-T4 | ||||||
| D71-350RG-T4 | 1100 | 650 | 465 | 1060 | 350 | φ17 |
| D71-400RG-T4 | ||||||
| D71-500RG-T4 | ||||||
| D71-560RG-T4 | 2200 | 1100 | 800 | 943 | 665 | φ16 |
| D71-630RG-T4 | ||||||
