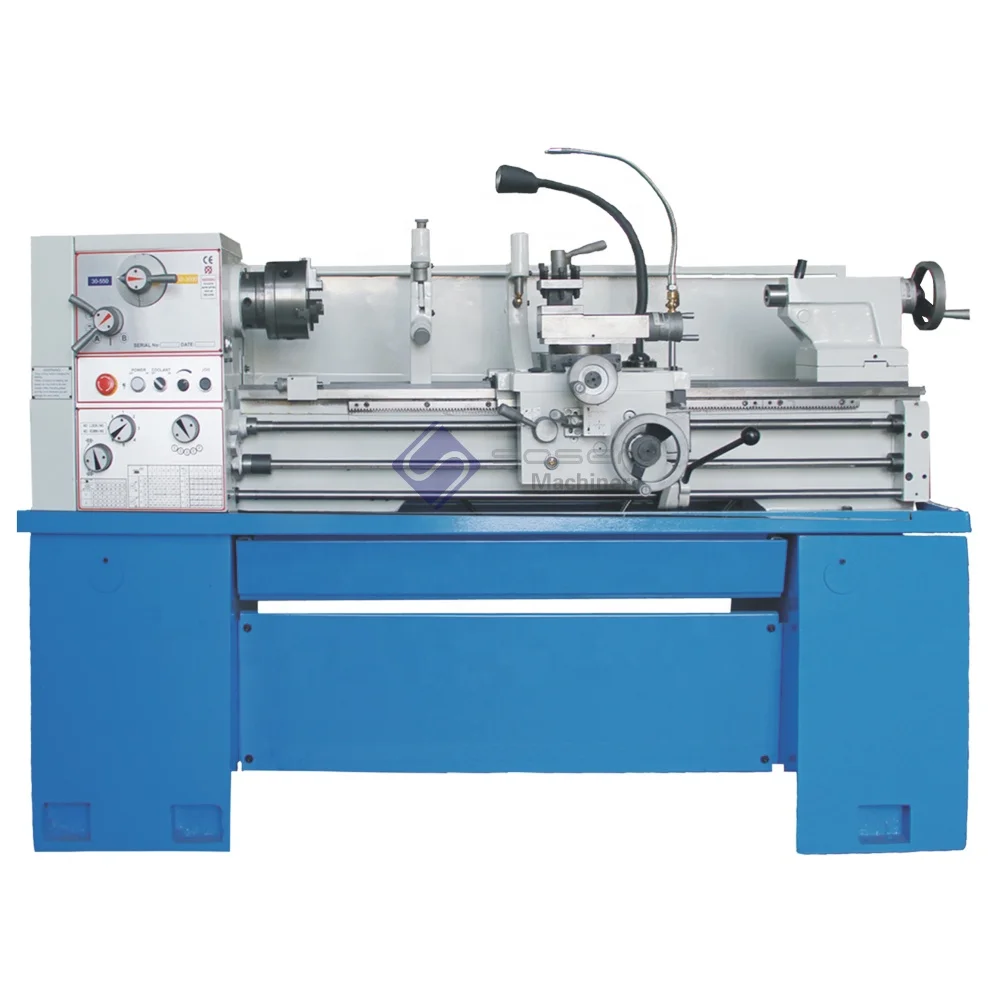

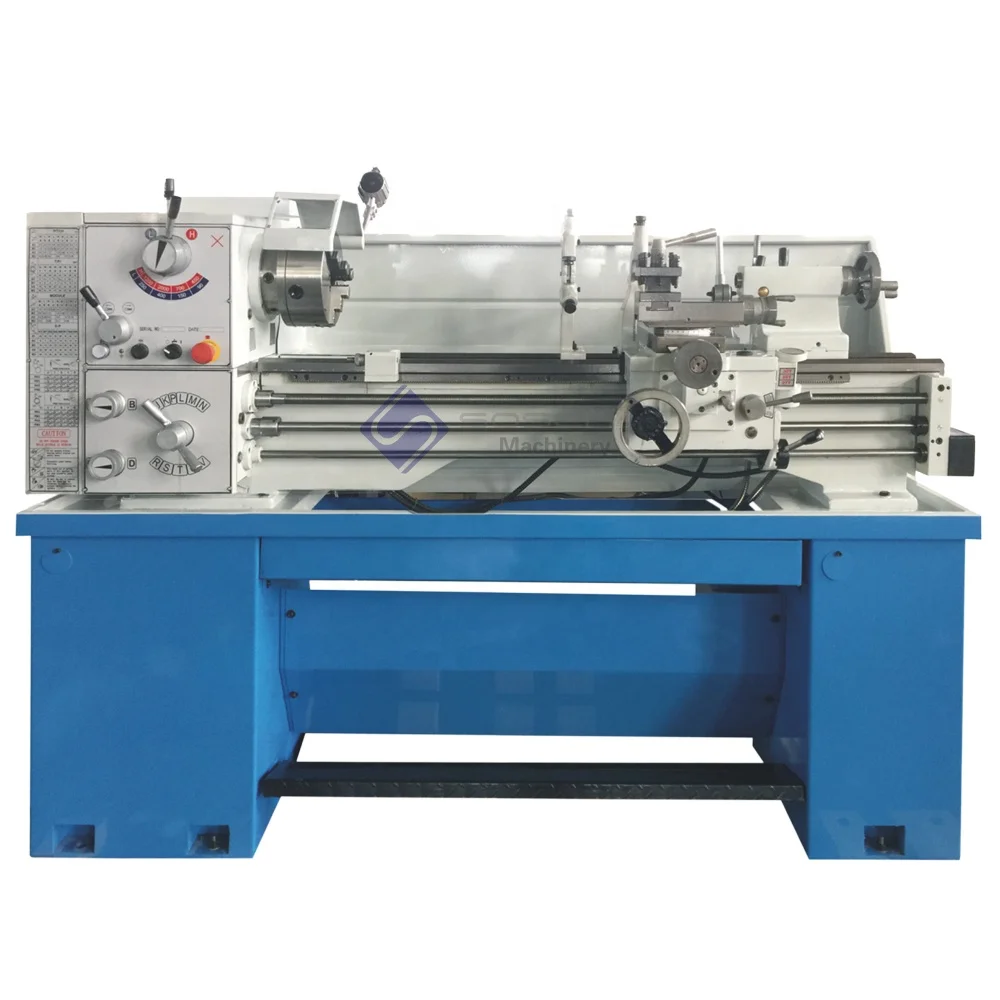

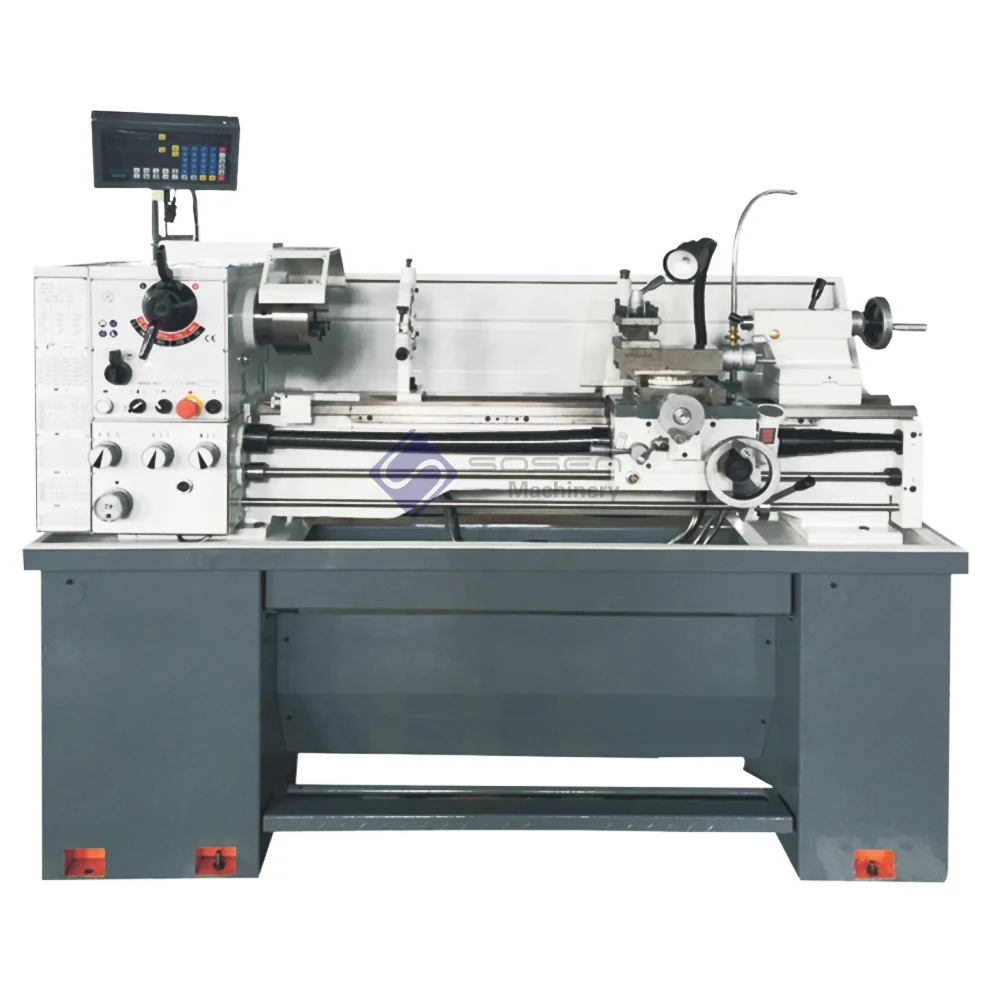

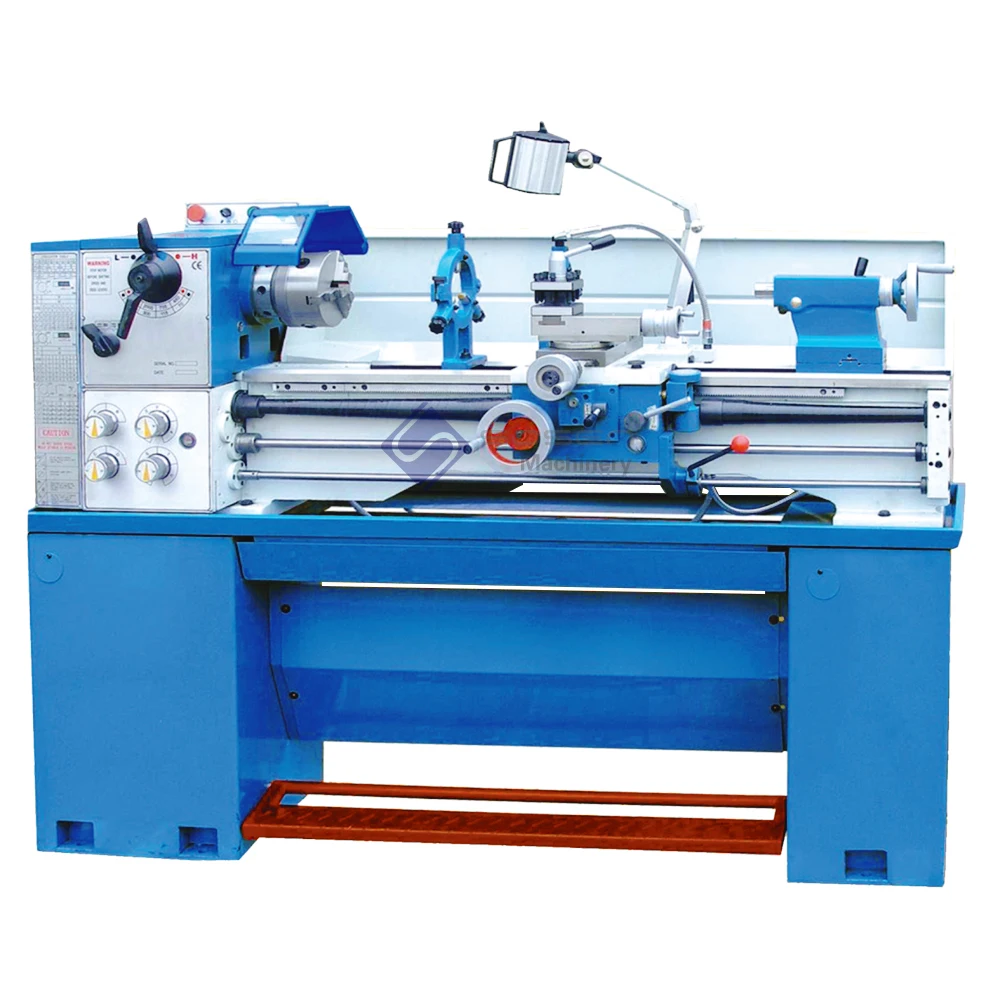

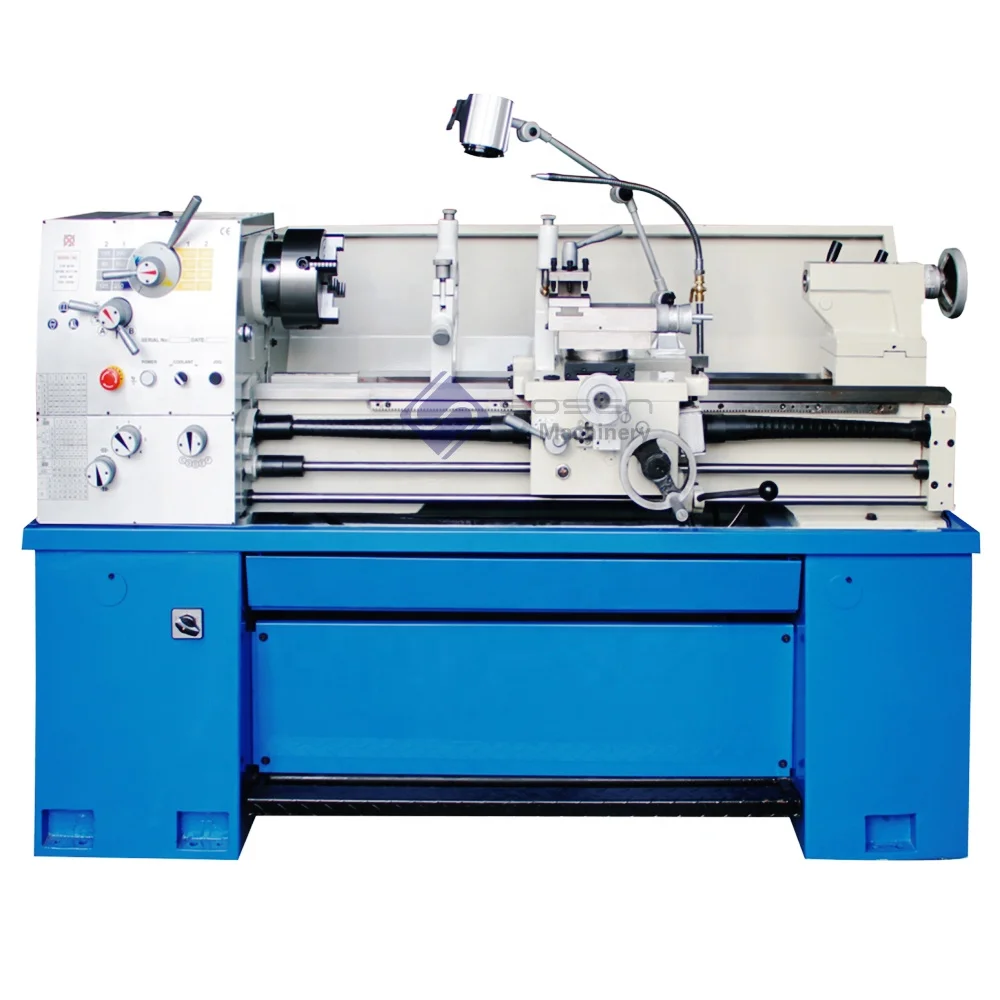

Manual Small 40mm spindle Horizontal Dro Turning Metal Lathe
- Category: >>>
- Supplier: Tengzhou Sosen Co. Ltd.
Share on (62333162833):
Product Overview
Description

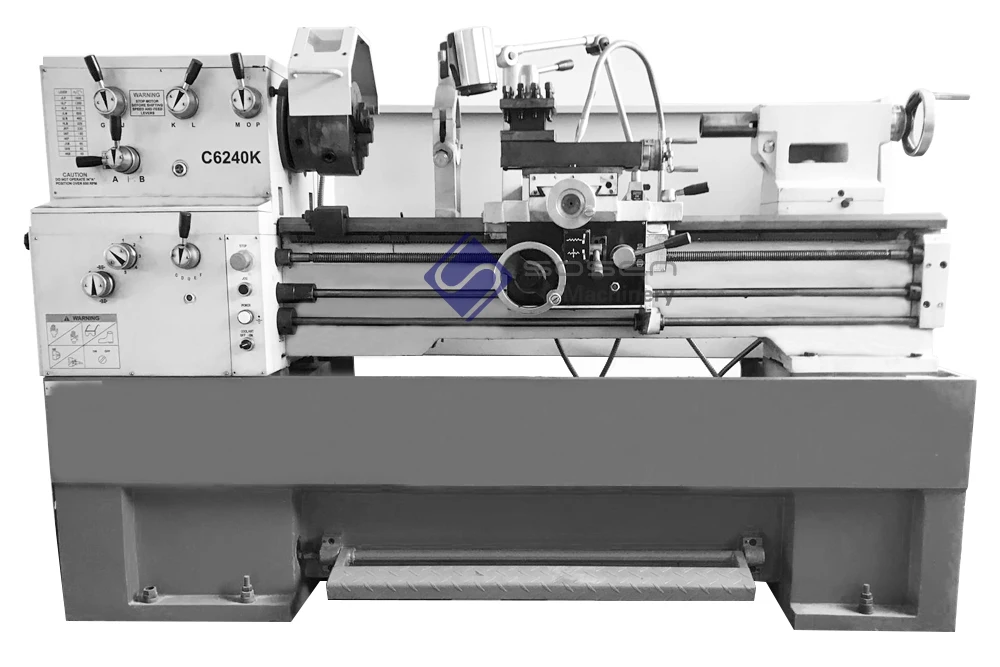

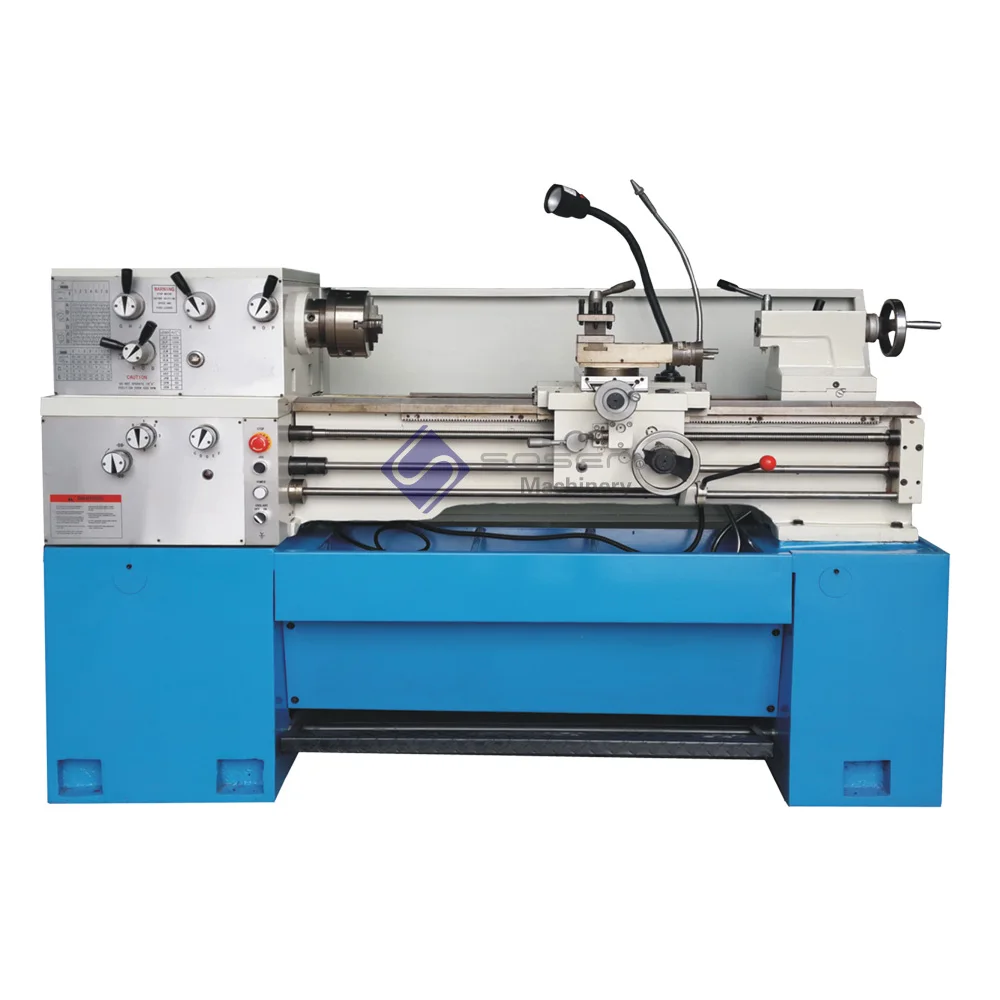

Manual Small Horizontal Dro Turning Metal Lathe
Product Description

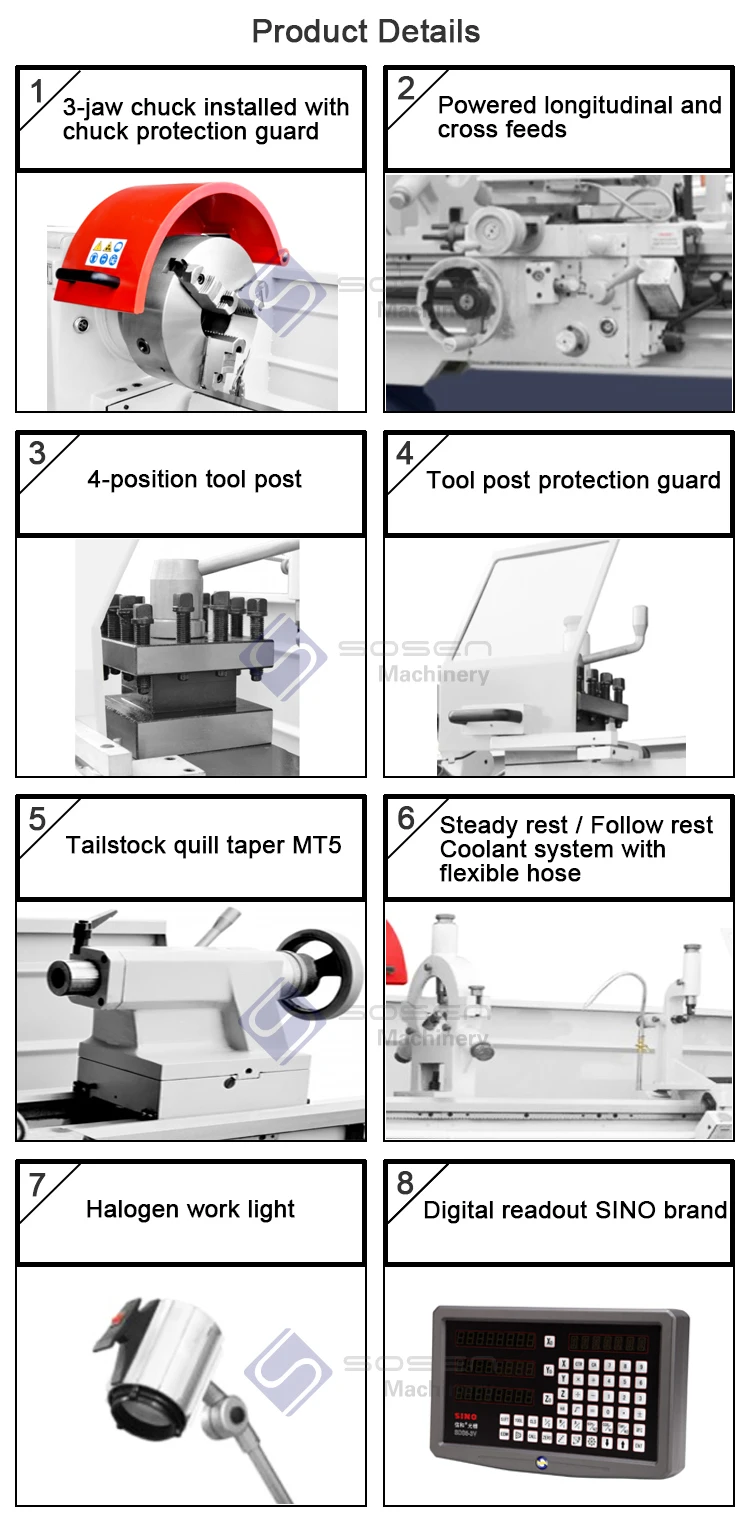

Features:
1. Hardened and ground bed ways
2. 12 speeds all geared head stock
3. 3HP(2.2kW)three phase motor
4. Foot brake giving rapid braking.
5. Emergency stop button equipped on the front of headstock.
6. Jog button for easy gear engagement and inching spindle.
7. Extra safety switch shuts down machine automatically for changing belt or gear for threading cutting.
| Model | C6236K |
| Max.swing over bed | Φ356mm |
| Max.swing over cross slide | Φ210mm |
| Max. swing over gap | Φ508mm |
| Effective length of gap | 180mm |
| Distance between centers | 1000mm |
| Width of bed | 260mm |
| Max.section of tool | 20mm×20mm(3/4"×3/4") |
| Spindle bore | Φ40mm |
| Spindle nose | D4 |
| Taper of spindle bore | M.T.#5 |
| Range of spindle speed | 12 steps 40-1800r/min |
| Leadscrew pitch | 4mm or 8 T.P.I. |
| Range of metric longitudinal feeds range | 0.043-0.653mm/rev(40 No.) |
| Range of metric cross feeds | 0.024-0.359mm/rev (39 No.) |
| Range of metric threads | 0.4-7mm(NO. 37) |
| Range of inch threads | 4-56T.P.I.(NO. 28) |
| Dia. of tailstock sleeve | 45mm |
| Travel of tailstock sleeve | 110mm |
| Morse taper of tailstock sleeve | M.T.#3 |
| Power of main motor | 2.2kw |
| Power of coolant pump | 40W |
| Packing size(L*W*H) | 1990x760x1410mm |
| N.W/G.W | 1150/1350kg |
Packaging & Shipping
Standard full closed plywood case suitable for shipment by sea.
Packing size:1970*760*1460mm
Company Information
FAQ
Q1.How to send my enquiry?
You can contact us by email, phone call, message (Whats APP, We Chat, Skype).
Q2.How long can I get feedback after enquiry?
We will reply you within 3 hours in working day.
Q3.Delivery time
Machines order takes 30 days after deposit payment received. Please inquiry sales.
Q4.What is the package? Is it suitable for shipment?
Machine is by waterproof cloth to covered. And be packed by standard exported wooden case with steel foot. It is very much strong for oversea transportation.
Q5.Payment term
30% T/T as down payment, balance 70% by T/T before delivery. If others payment terms, we can discuss the details. Welcome to inquiry sales.
Q6.Can I trust you?
Sure, we’re Alibaba Gold Suppliers, Alibaba Assessed Supplier, Alibaba Trade Assurance Supplier.
Q7.How long is the warranty for machines?
Machines warranty is 12 months after receive goods. in Warranty time,we can provide new free parts for changing. Please contact our SOSEN sales representative for details.
Q8.How about your after-sale service?
Our after sales support and service is second to none and we urgently respond to your queries, if parts are required they would be sent to you by international courier within 3 days.
Q9.Can you engineer come to our place to help with machine installation & commission?
Yes, our engineers are available to travel to your place. Round flight tickets & accommodation will be at your cost.
