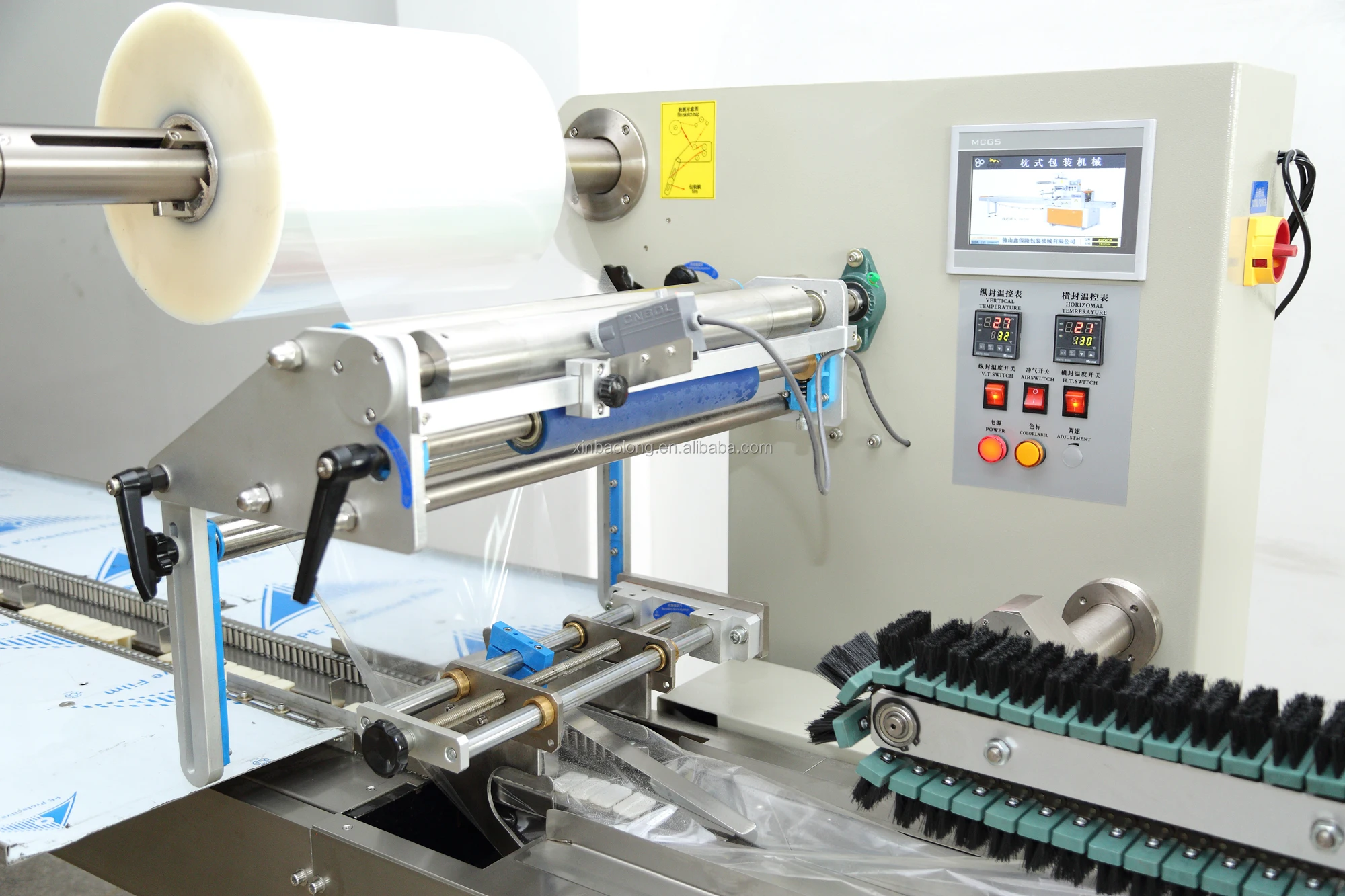

Flow Automatic Blueberry Packing Machine With Tray
- Category: >>>
- Supplier: Foshan Xinbaolong Packing Machinery Co. Ltd.
Share on (62333184794):
Product Overview
Description
Product Description
Technical parameters:
Model | XBL-350A |
Packing speed | 35-180 bag/min |
Bag size | L(80-300)mm* W(30-160)mm* H(5-65)mm |
Film width | 80-360mm |
Packing material | OPP/CPP,PT/PE,KOP/CPP,ALU-FOIL |
Dimension | (L)3900mm *(W)950mm*(H)1500mm |
Heating power | 2.1kw |
Motor power | 0.55+0.75kw |
Total power | 3.4kw |
Overall weight | 600kg |
Applicable for packing various solid regular objects. Such as blscults, bread,instant noodle ice cream, mooncake, canary. Medicine, hardware or loaded by box/tray etc. Any kind of products and so on.
Principal capability and structural features
1. The bag length is free of manual setting, the equipment automatically detect and set the length.

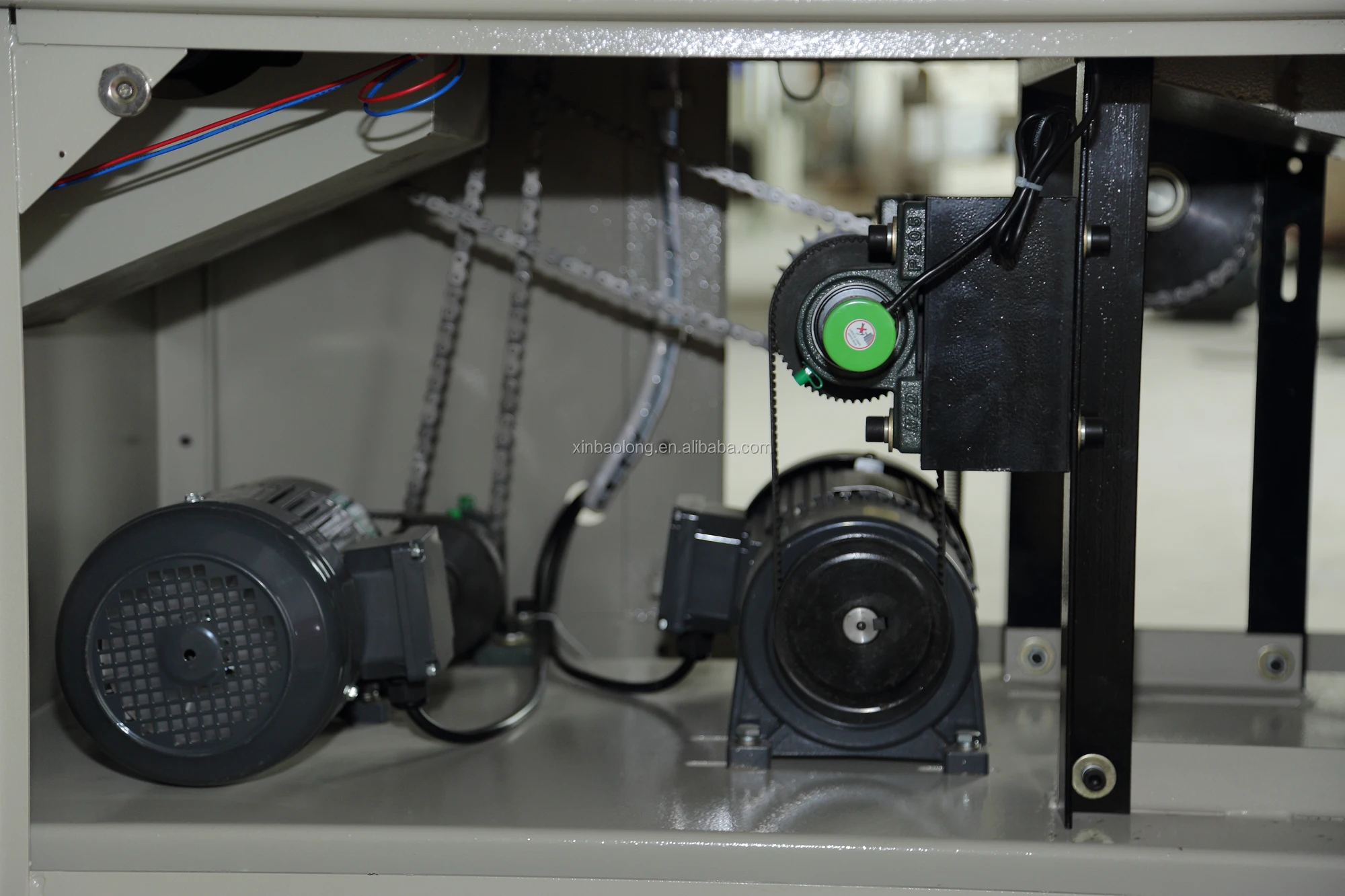

2. Simplified mechanic gearing, easy to maintain, little vibration, little wear, and long life.

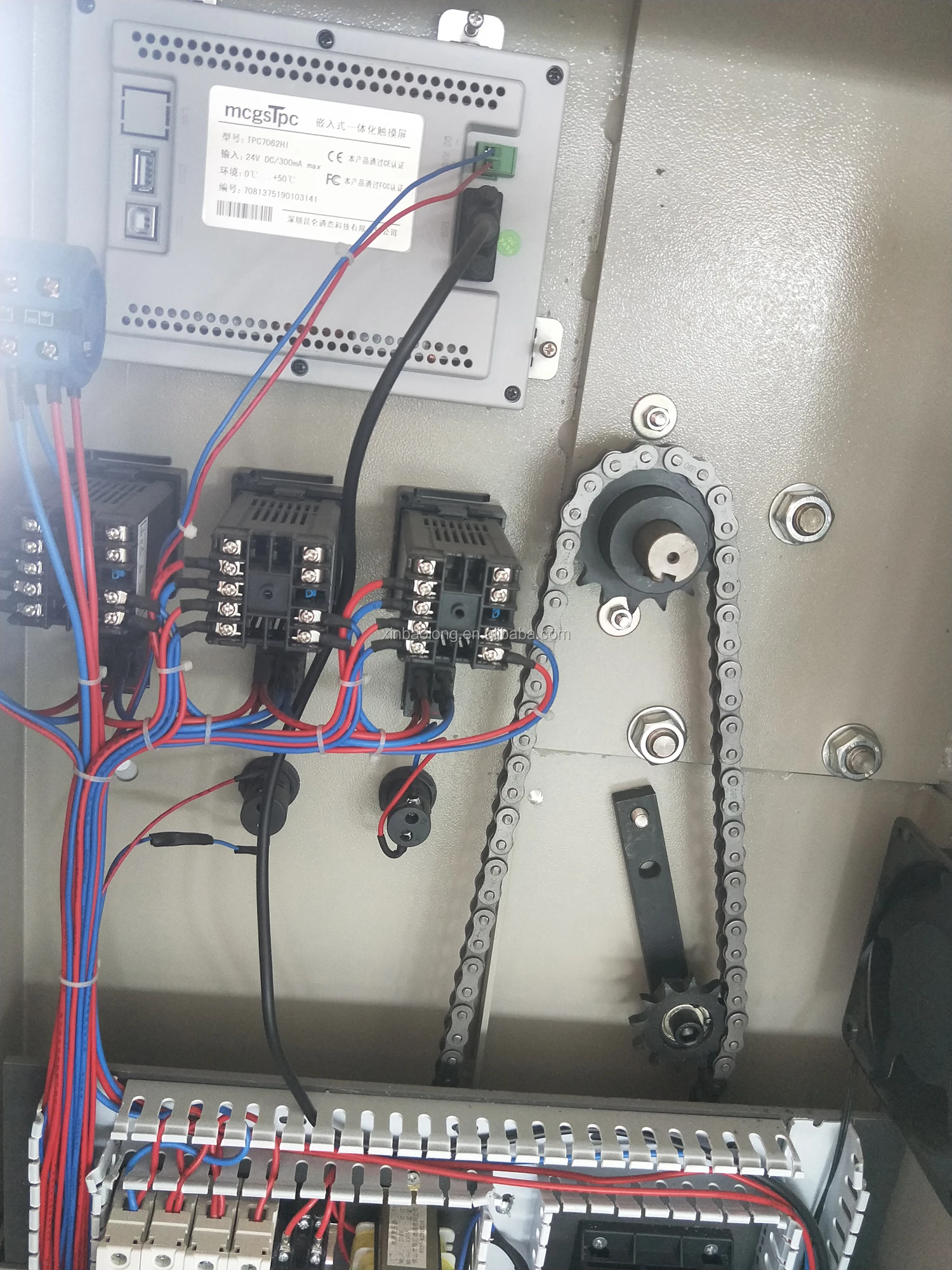

3. The main control circuit takes the single chip developed by our own company, digital screen display and controlled by transducer. Perfect interface between operator and machine, operation convenience.
4.The capacity and the length of bag take double frequency converter control with stepless speed shift and wide adjustment.
It can match well with the former working procedure of production line.
5. High sensitivity photoelectric eye tracking automatically and accurately.

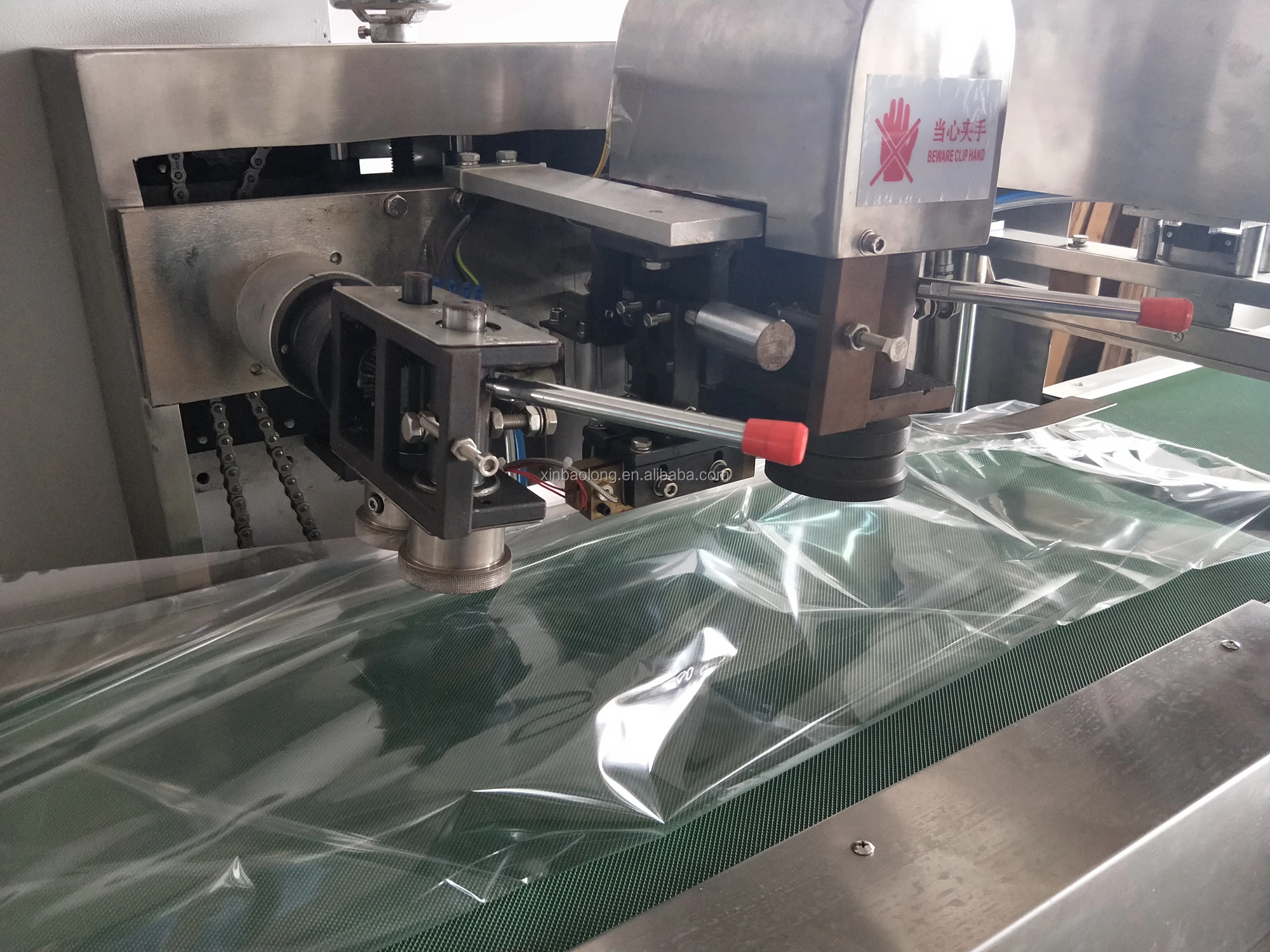

6. Independent temperature control for each sealer to make sealing more beautiful and stable, suitable for variety of flexible packing material.
7. Device for intermission charing,alcohol spray can be mounted, machinery gusseted device and coder.
2. Simplified mechanic gearing, easy to maintain, little vibration, little wear, and long life.
3. The main control circuit takes the single chip developed by our own company, digital screen display and controlled by transducer. Perfect interface between operator and machine, operation convenience.
4.The capacity and the length of bag take double frequency converter control with stepless speed shift and wide adjustment.
It can match well with the former working procedure of production line.
5. High sensitivity photoelectric eye tracking automatically and accurately.
6. Independent temperature control for each sealer to make sealing more beautiful and stable, suitable for variety of flexible packing material.
7. Device for intermission charing,alcohol spray can be mounted, machinery gusseted device and coder.
