PMI linear motion guide slide bearing MSA55E
- Category: >>>
- Supplier: Tianjin Tengqi International Trade Co. Ltd.
Share on (62333225428):
Product Overview
Description
Product Description
PMI linear motion guide slide bearing MSA55E
1.High positioning accuracy, high repeatability
2.Low frictional resistance, high precision maintained for long period
3.High rigidity with four-way load design
4.Suitable for high speed operation
5.Easy installation with interchangeability
Product Name | PMI linear motion guide slide bearing MSA55E |
Material | Stainless Steel/chrome steel |
Brand Name | PMI |
Block Series | MSA15E,MSA20E,MSA25E,MSA30E,MSA35E,MSA45E,MSA55E,MSA65E,MSA20LE,MSA25LE,MSA30LE,MSA35LE,MSA45LE,MSA55LE,MSA65LE |
HS CODE | 8483300090 |

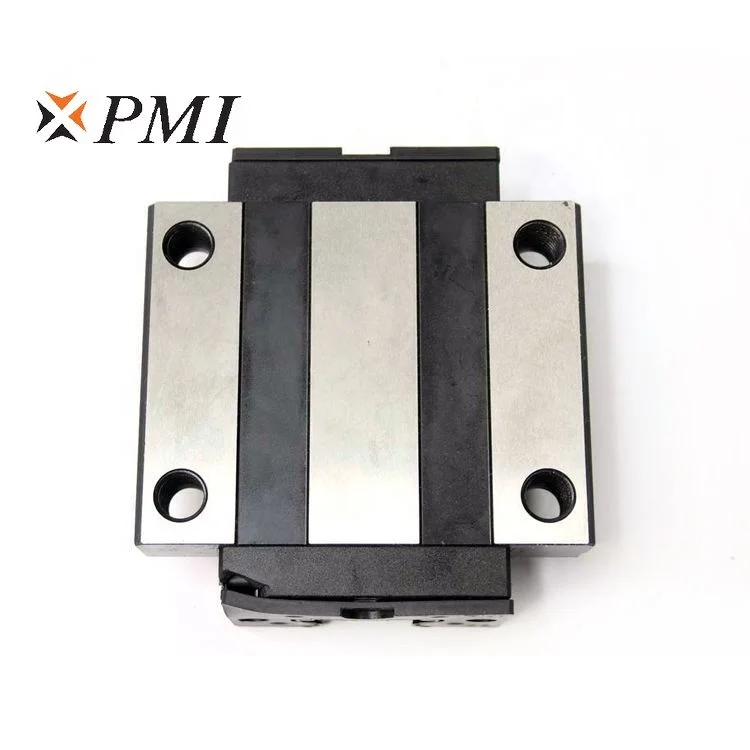

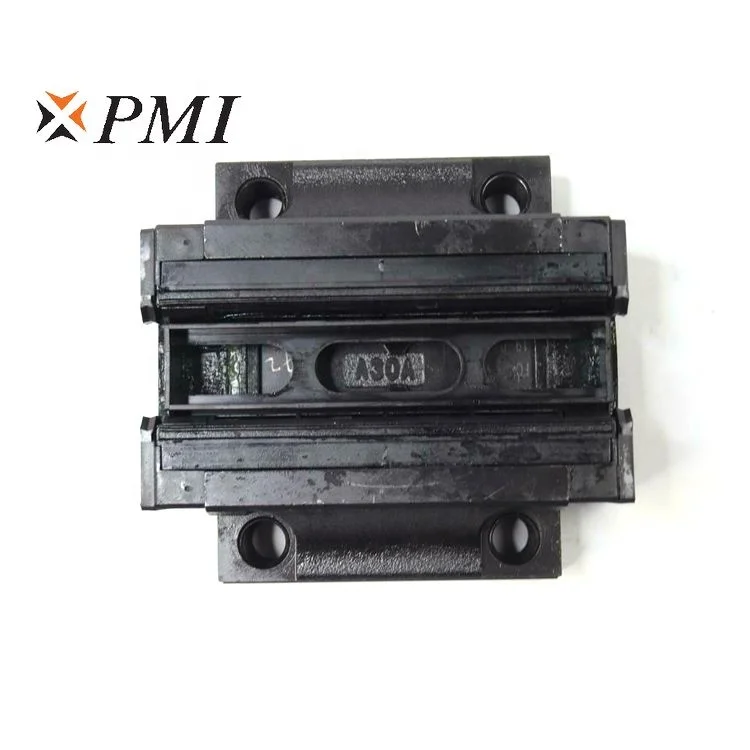

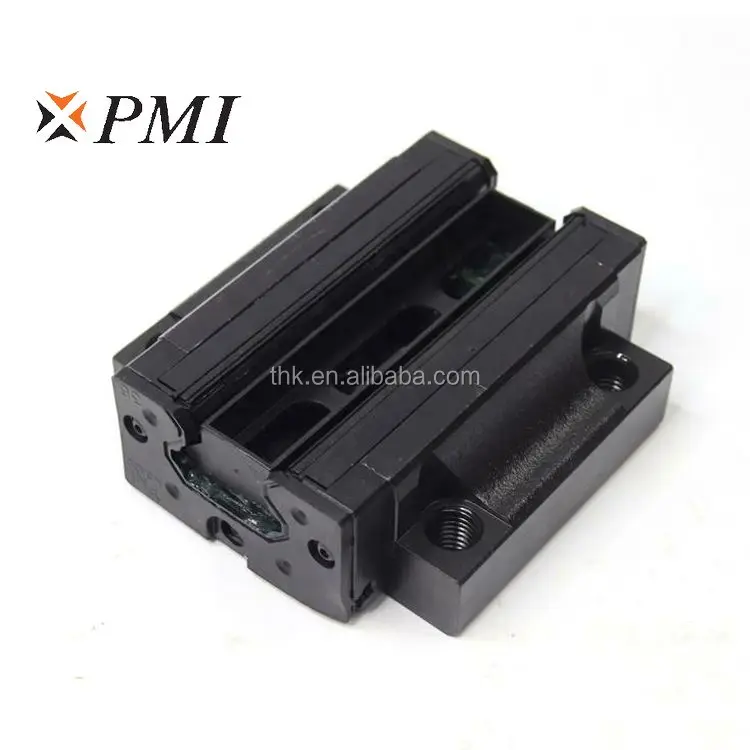

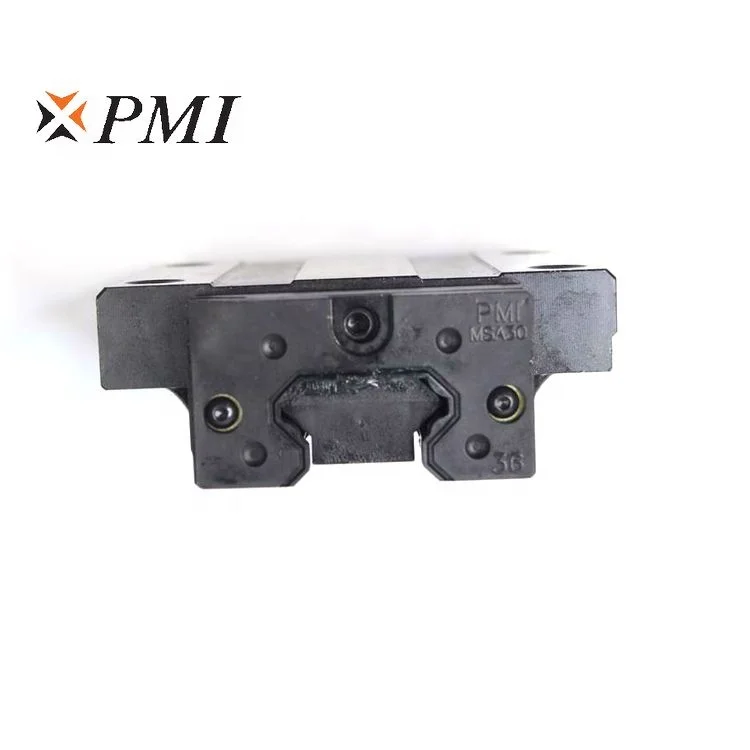

Products Show
PMI linear motion guide slide bearing MSA55E

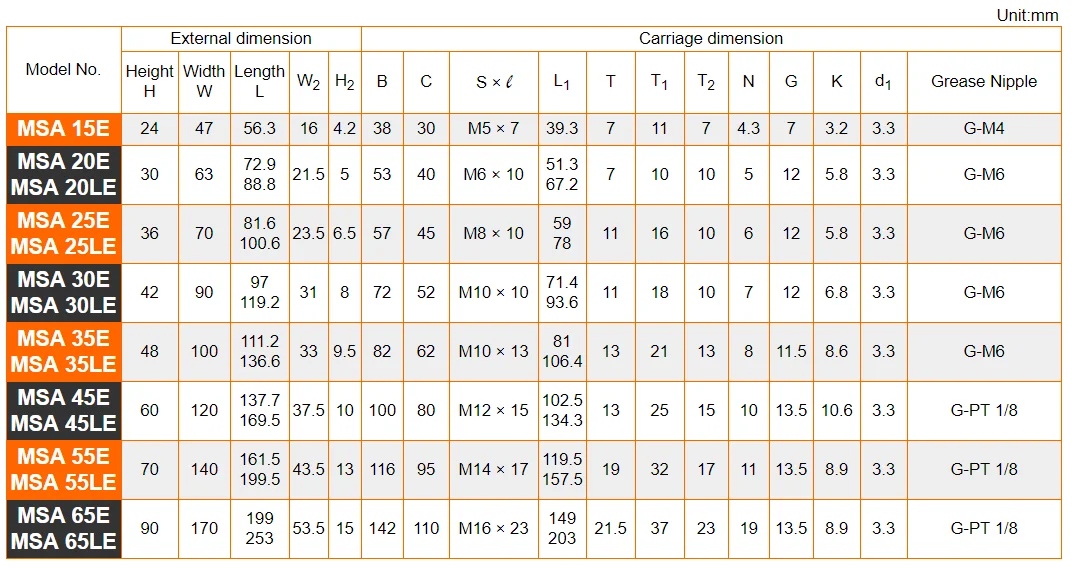

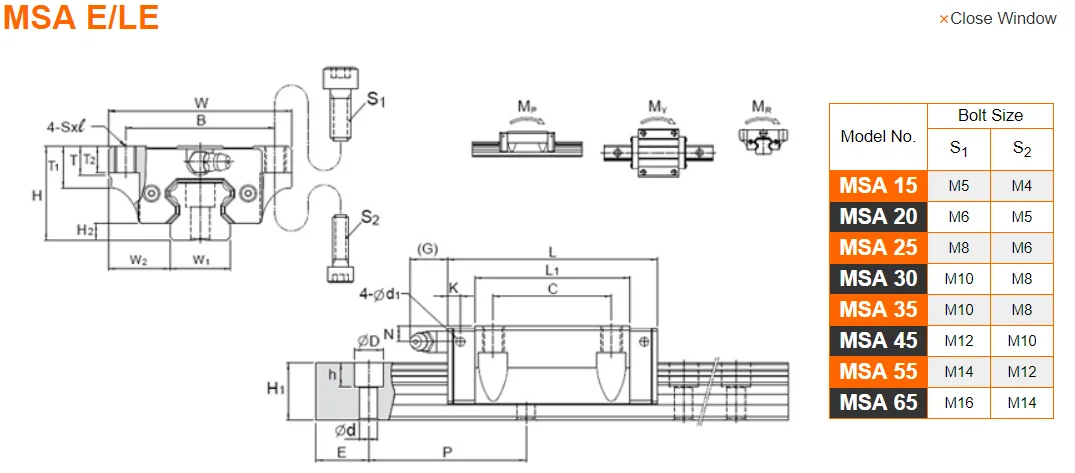

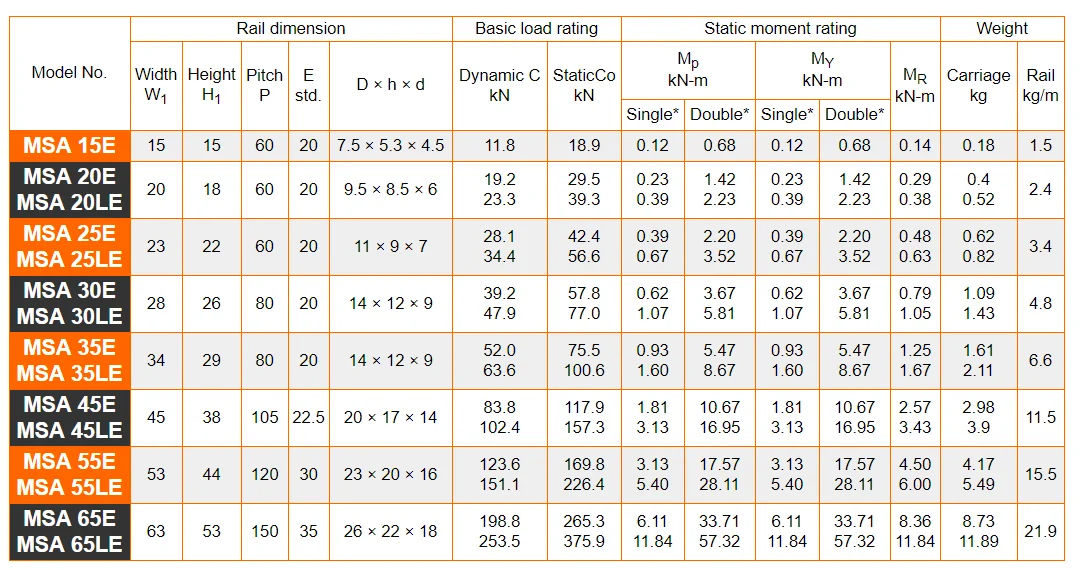

Drawings and Parameters
PMI linear motion guide slide bearing MSA55E
Note: The basic dynamic load rating C of ball type is based on the 50 km for nomonal life.
The conversion between C for 50 km and C100 for 100 km is C=1.26 x C100.
Note*: Single: Single carriage / Double: Double carriages closely contacting with each other.
The conversion between C for 50 km and C100 for 100 km is C=1.26 x C100.
Note*: Single: Single carriage / Double: Double carriages closely contacting with each other.
PMI Other Models
MSA-A
Installed from top side of carriage with the thread length longer than MSA-E type.
MSA-LA
All dimensions are same as MSA-A except the length is longer, which makes it more rigid.
MSA-E
This type offers the installation either from top or bottom side of carriage.
MSA-LE
All dimensions are same as MSA-E except the length is longer, which makes it more rigid.
MSA-S
Square type with smaller width and can be installed from top side of carriage.vvh
MSA-LS
All dimensions are same as MSA-S except the length is longer, which makes it more rigid.
Packing & Delivery
Our package
1 Single box
2. Single box + carton
3. Single box + carton + wooden box
4.according to demand of customers
1. Single box
2. Single box + carton
3. Single box + carton + wooden box
Shipping mothods available as below.
DHL, TNT, FEDEX, UPS, by air or by sea according to your request.
It usually takes 4-7 working days to deliver.
We'd like to check freight cost for your reference when order confirmed.

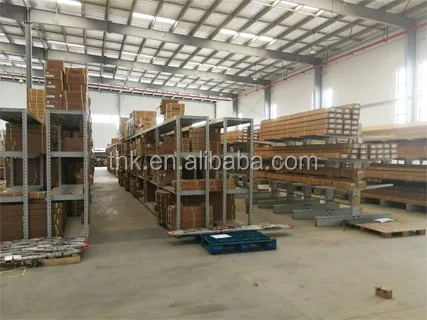

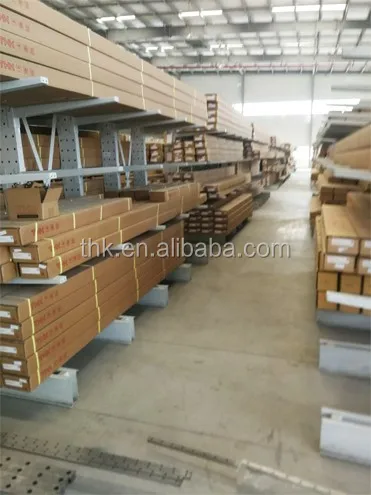

Warehouse
FAQ
Q: Are you trading company or manufacturer ?
A: We are trading company
Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we provide samples, but need to pay the value of goods and freight
Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
