CHNMAX is high quality UHMWPE rope product used for most demanding mooring,towing and lifting applications. The advance equipment from Germany and Denmark and the mature technology in rope manufacturing account for its high quality and stability.
CHNMAX rope is your optimal choice for diversified mooring applications for its properties of high strength,excellent abrasion resistance,high strenghth-to-weight ratio,extremely low elongation and superior flex fatigue resistance.
Specification
Dia (mm)
Cir (ins)
Linear Density (Ktex)
MBL (KN)
Unspliced Rope
MBL (KN)
Eye-spliced Teminations
16
2
151
260
235
20
2-1/2
232
380
340
24
3
331
520
470
28
3-1/2
445
680
610
30
3-3/4
506
770
690
40
5
881
1260
1130
44
5-1/2
1060
1460
1310
48
6
1250
1700
1530
56
7
1690
2260
2030
60
7-1/2
1930
2530
2280
64
8
2200
2840
2560
80
10
3430
4300
3870
88
11
4170
5200
4680
96
12
4970
6180
5560
Feature
Specific Gravity: 0.97, Floating
Melting Point: 150
Elongation:3-4％
Abrasion Resistance:★★★★★
Chemical Resistance :★★★★
UV Resistance: ★★★★★
Easy to handle,Inspect and Repair

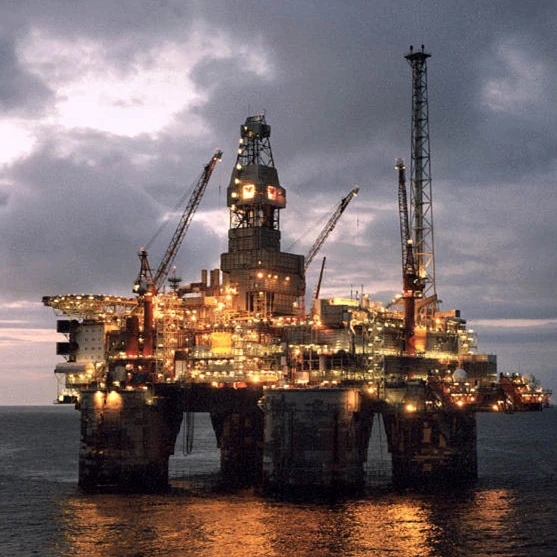

Application
Certificate
Packing&Shipping
IN COILS
REEL
SKIDS
Company Introduction

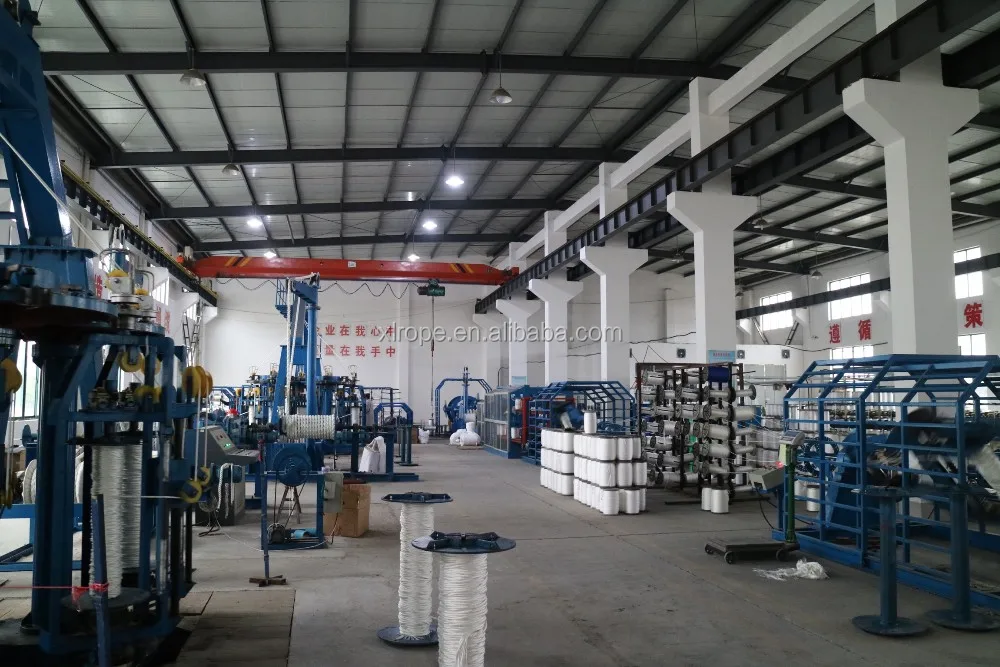

Xinglun Rope Cable Co., Ltd is a comprehensive high-tech enterprise with design, production and sales combined together,specializing in rope area for 48 years.As the development of the company, Xinglun people gradually became aware of the enormous power of science and technology, through the continuous research & development and innovation of the Xinglun technology department, each manufacture facility in the factory is adjusted to maximum productivity, what's more, we imported new production machines from Germany and Denmark. Besides, we keep technical communication with Germany rope companies, to improve our productiontechnology, to make Xinglun Rope go further and further.
Xinglun rope, leading the world! This is right the reflection of the pursuit of resources sharing and win-win cooperation. We insist on the good quality, the high technology, the perfect service, what's more, we insist on the China dream-Made in China become the best brand in the word! This is Xinlgun Rope's way of development.
