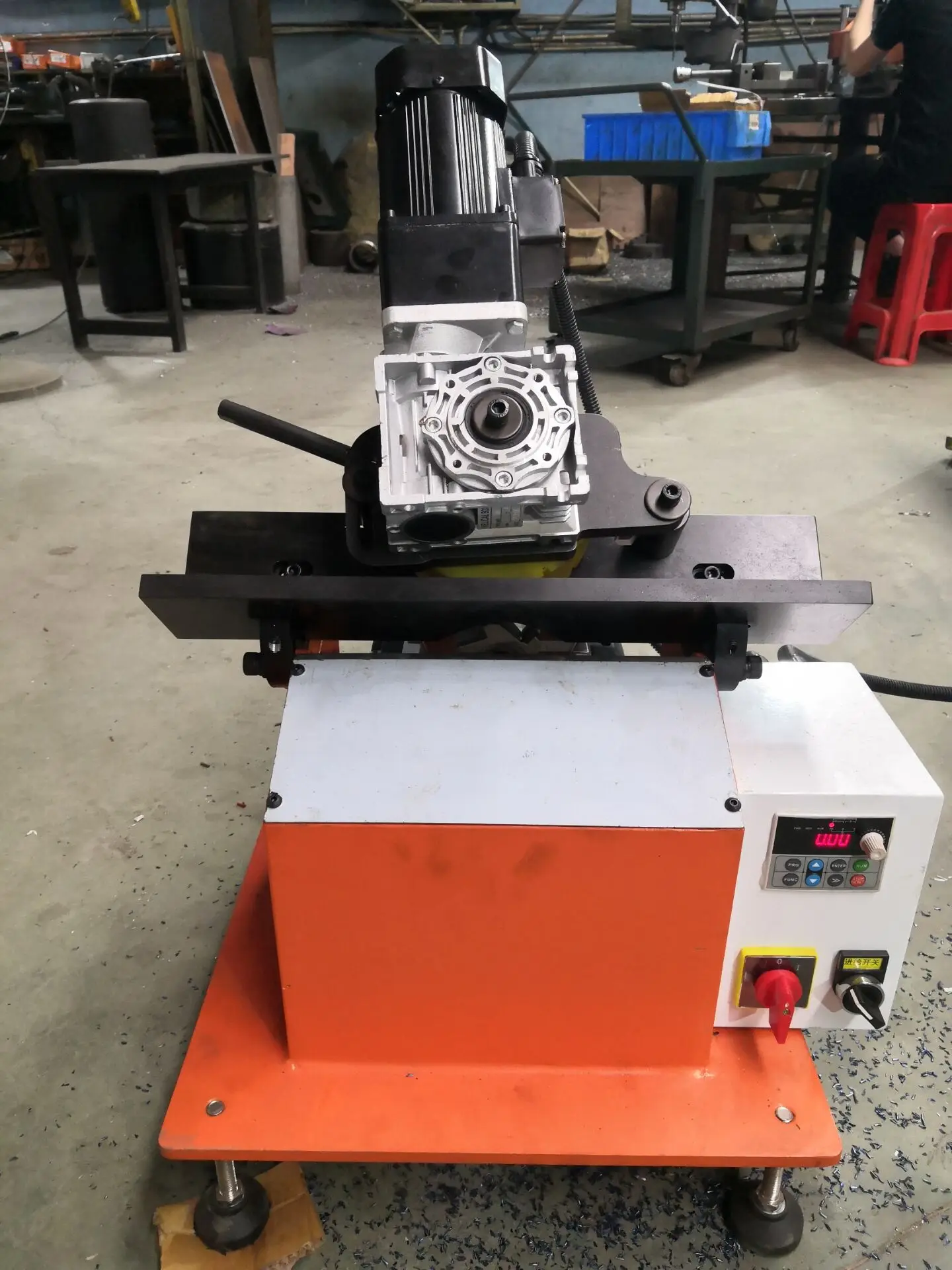

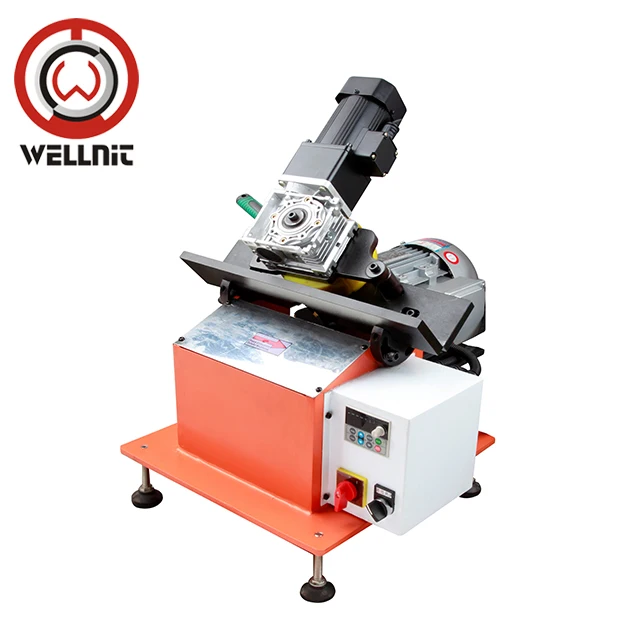

PB-10D Automatic Feed Plate Edge Milling Machine



Product Introduction

PB-10D Self-walking Automatic beveling machine has the advantages of small in size, light weight and easy operation. It is applicable to use in the workshop and small factory. The working speed of PB-10D automatic beveling machine is as good as the traditional milling machine. In addition, this model machine is equipped with common cemented carbide cutting blade to reduce the cost for customers.



Feature

• The beveling angle of machine can adjust from 30° to 60°


• Rear-mounted speed reducer is good for processing narrow plate, and it is safer


• Special seperate design of Control Box and electrical carbinet make the operation safer


• Adopt multiply-cutting blades head to process plate beveled edge, therefore the milling speed of each blade is faster and  esiser


• The surface roughness of plate beveling face can reach to Ra3.2~6.3, it can complete meet the welding demand of pressure vessel


• Small in Size, light in weight


• Cold milling method does not affect the material property, no oxidation in beveled surface

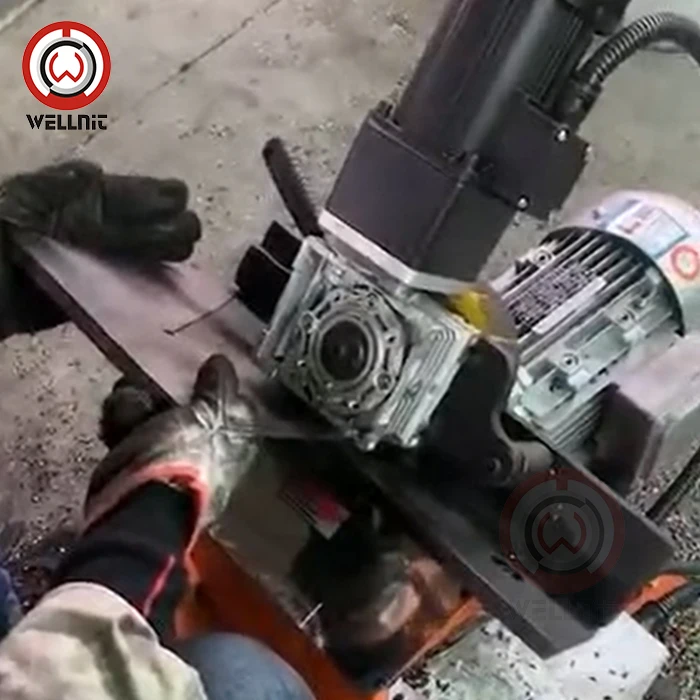

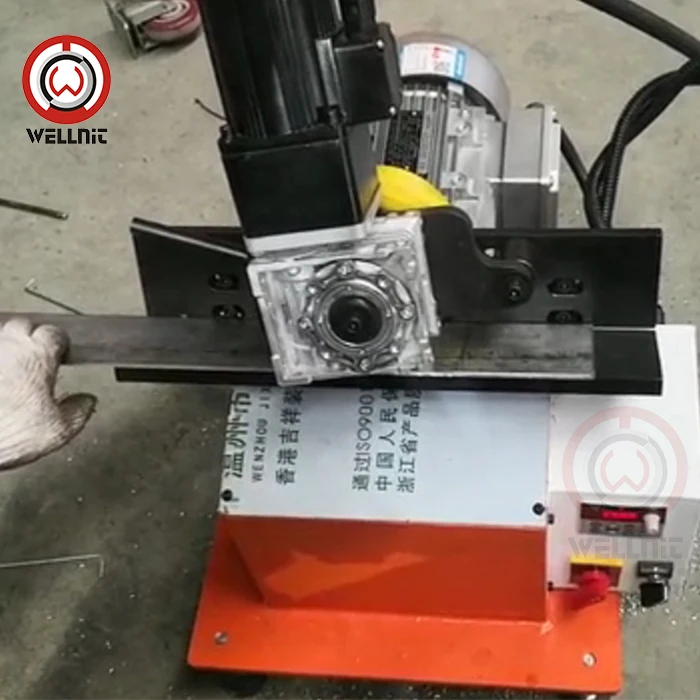

Machine Test

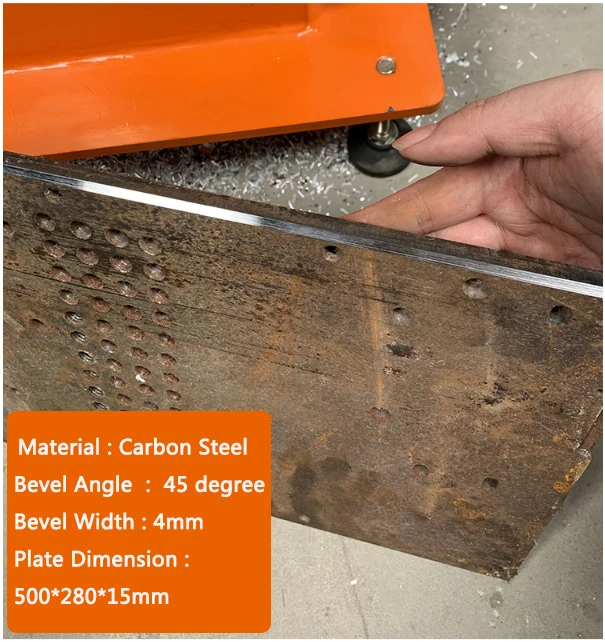

• Carbon Steel Plate (Q345)

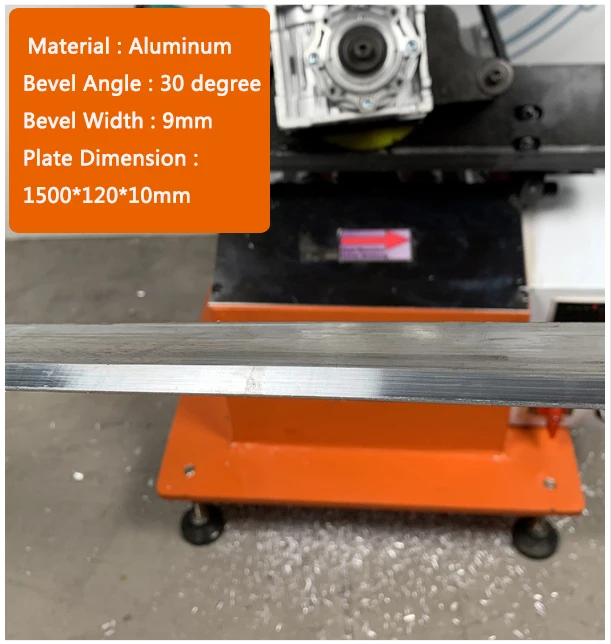

• Aluminum Alloy Plate (6082)

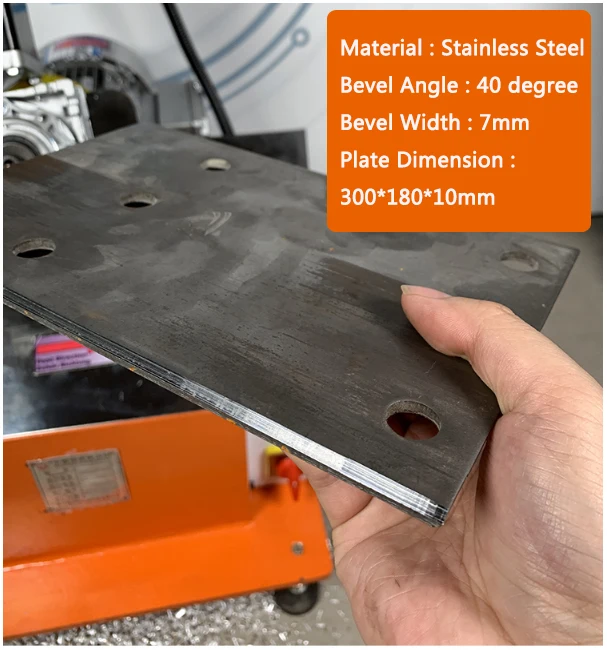

• Stainless Steel Plate (316)

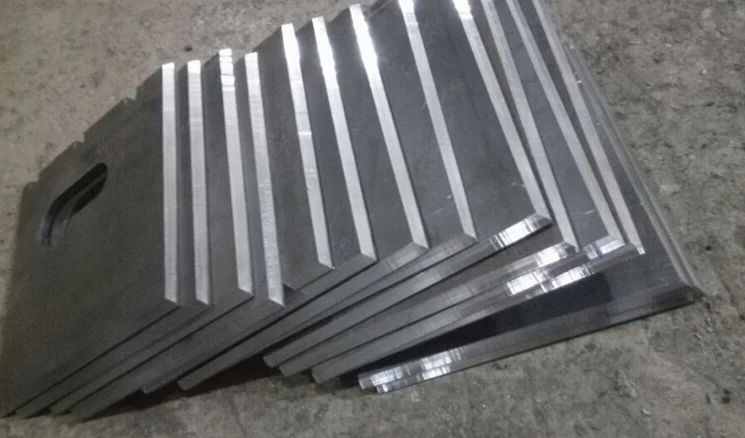

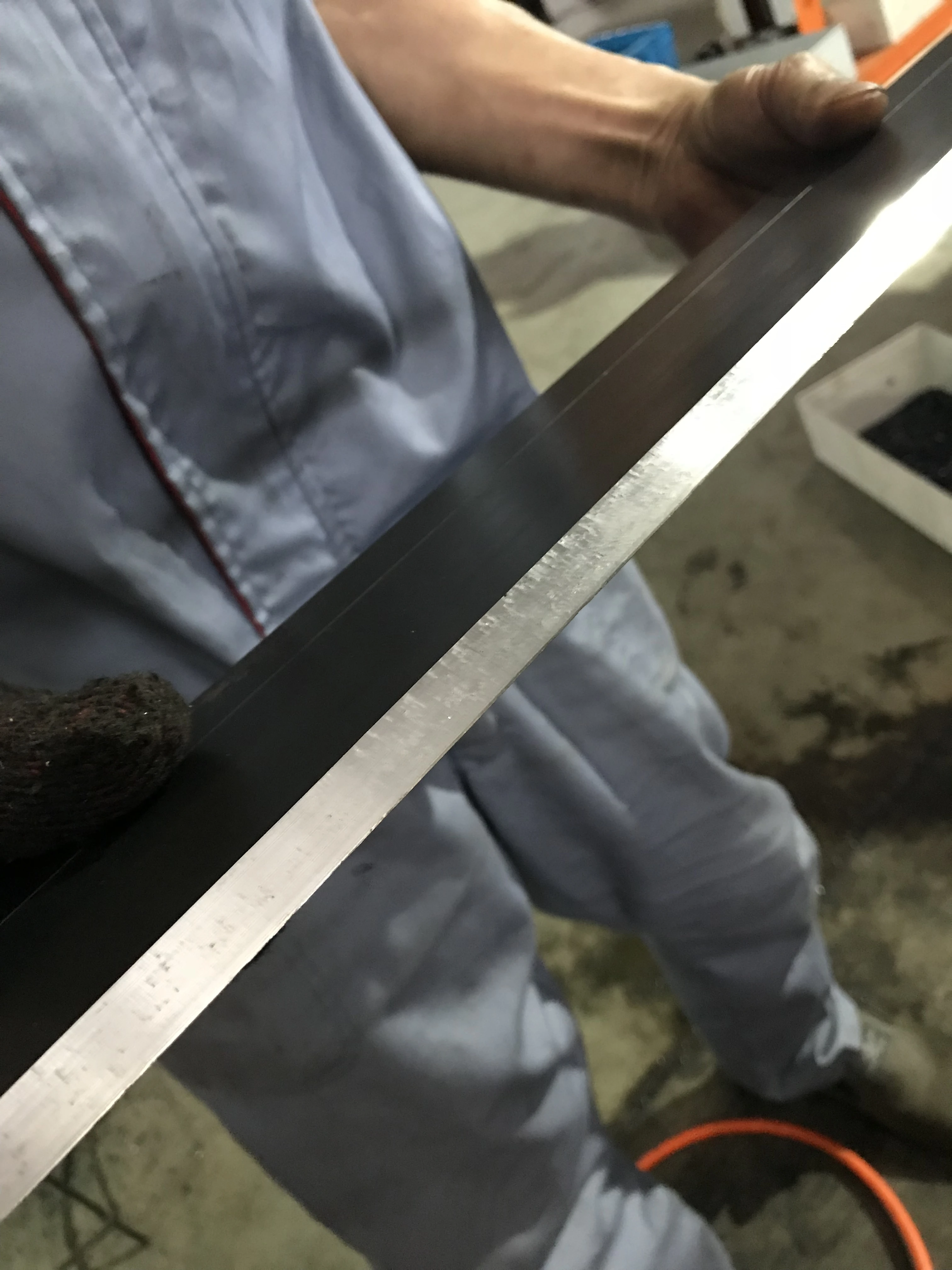

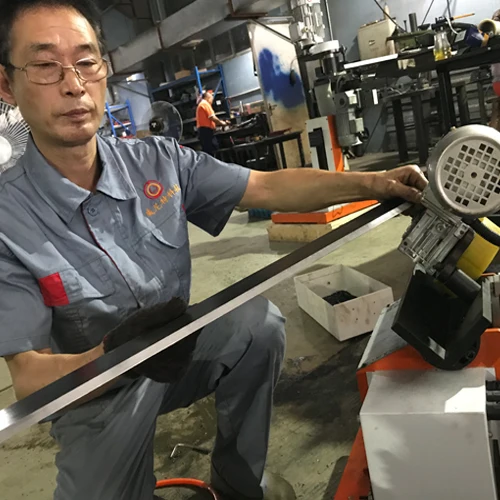

Actual Processing Picture







Production Specification

Product Type	PB-10D
Power	AC 380V 50Hz
Total	2200W
Spindle Speed	2800r/min
Feed Speed	0~1200mm/min
Bevel Width	1-18mm
Single Bevel Width	1-10mm
Bevel Angle	30°-60°
Clamp Thickness	2~40mm
Plate Width	>20mm
Net Weight	80KG
Processing Materials	Carbon Steel Stainless Steel Aluminum Alloy Composite Plate etc

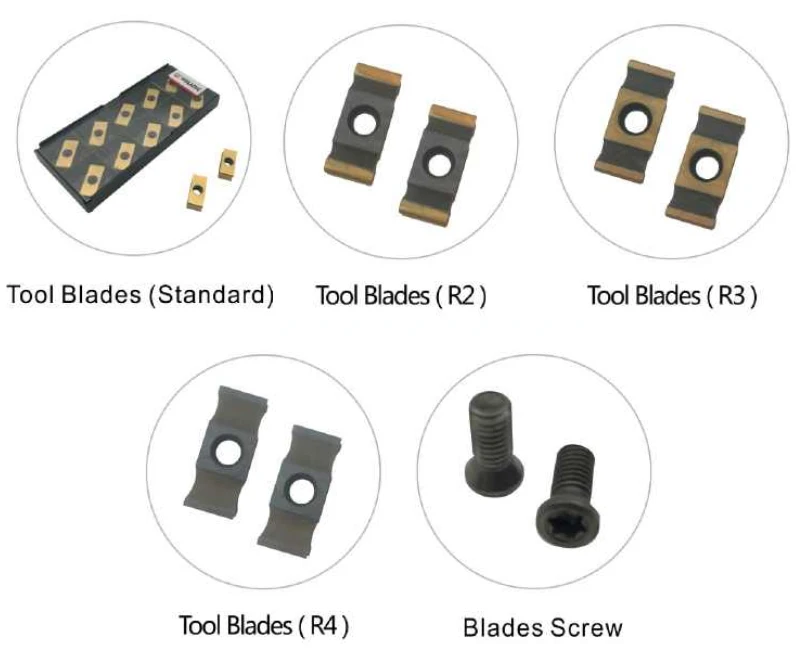

Wearing parts (Blades)







Adopt CNC numerical control cutter, high machining accuracy





The Finish of the groove is as high as Ra 3.2~6.3



Order Guide



Before you place order to us, please let us know the following information:

•


  Choose the right Model





•


  Confirm your electric power supply ( Voltage, frequency and phase)





•


  Confirm the beveling angel required





•


  Confirm the welding joint required (U, V, Double V or Compound preparation)





•


  Advise your pipe material ( Carbon steel, stainless steel or others)





•


  Other special demands about machine





•


  The spare parts needed
