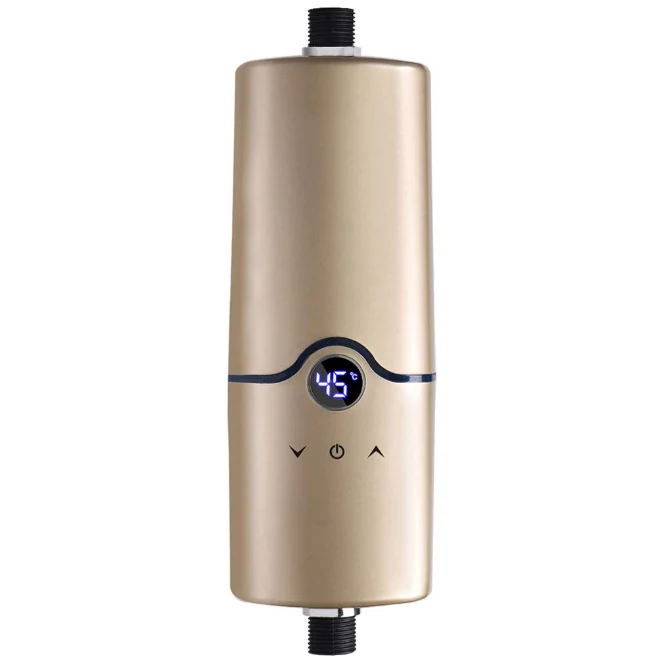

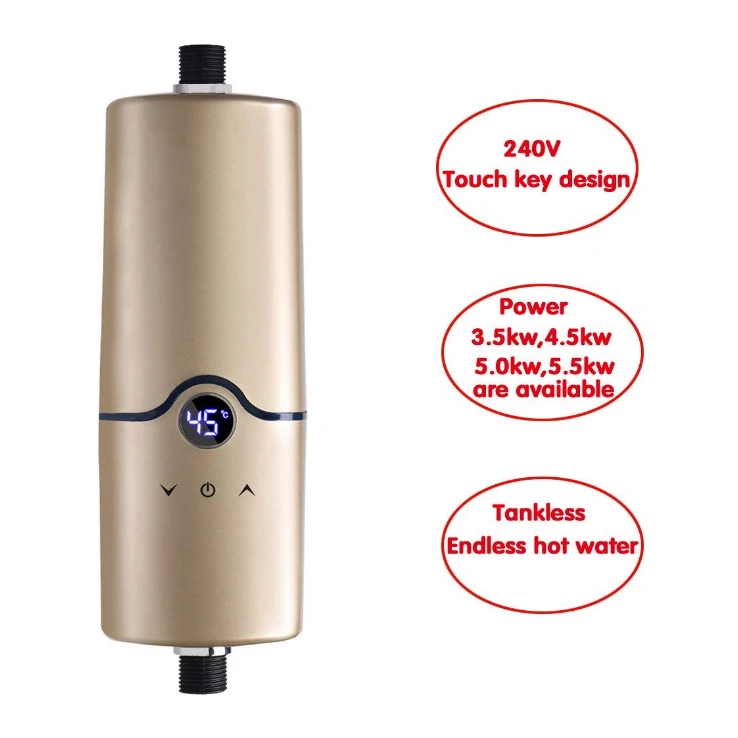

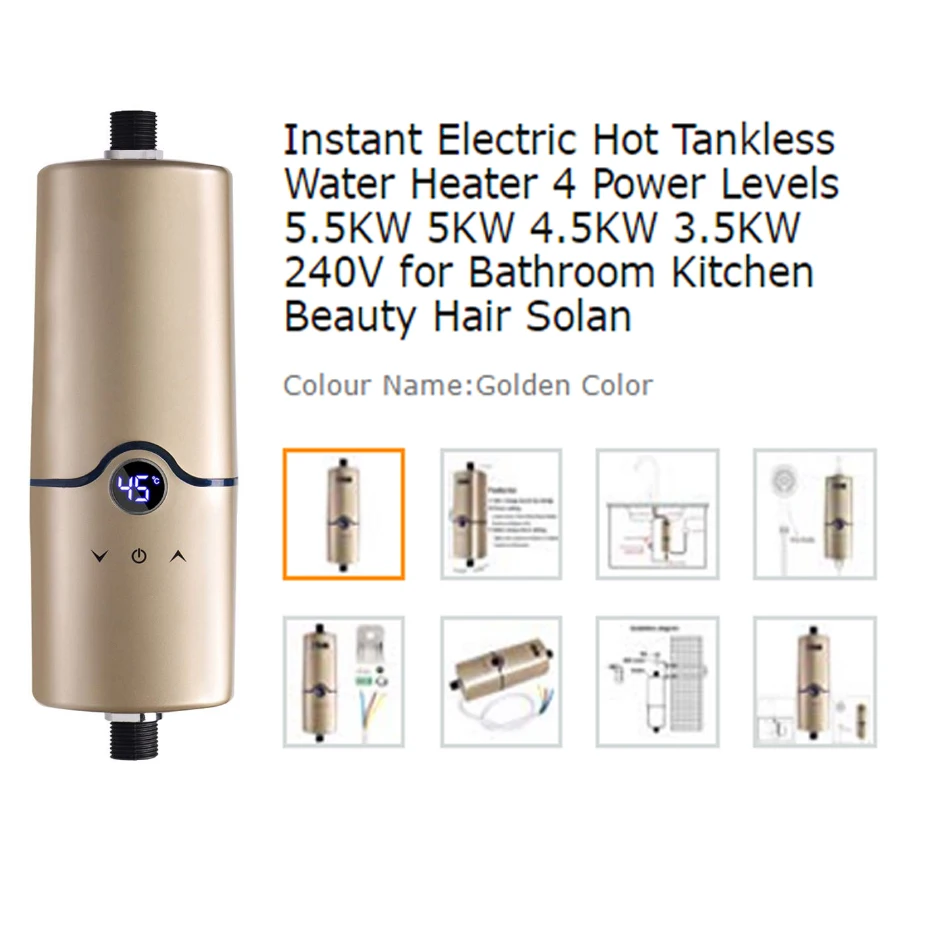

· Multifunctional Mini size instant water heater with 4 power levels power setting (5.5KW 5KW 4.5KW 3.5KW), and 10 power settings per level.
· Constant temperature function with touch control digital LCD temperature dispaly in 1-degree increments allows control of hot water.
· Super low water pressure start-up, and microcomputer memory, anti-dry functionality, water leakage and earth leakage prevention.
· The Water Heater Request Breaker: 30A and Standard Pipe Section G1/2" water connection (Very important: You must run this heater on 240V Voltage).

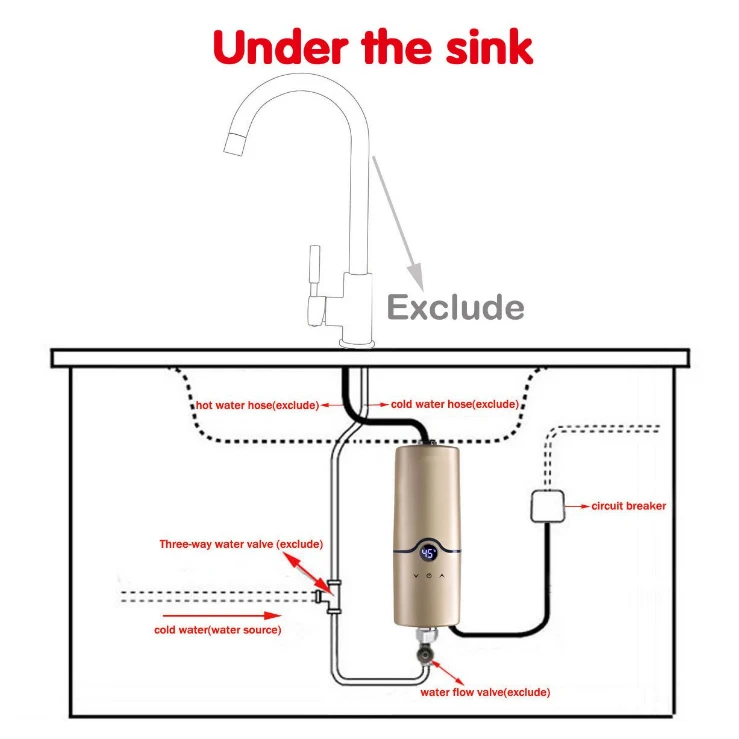

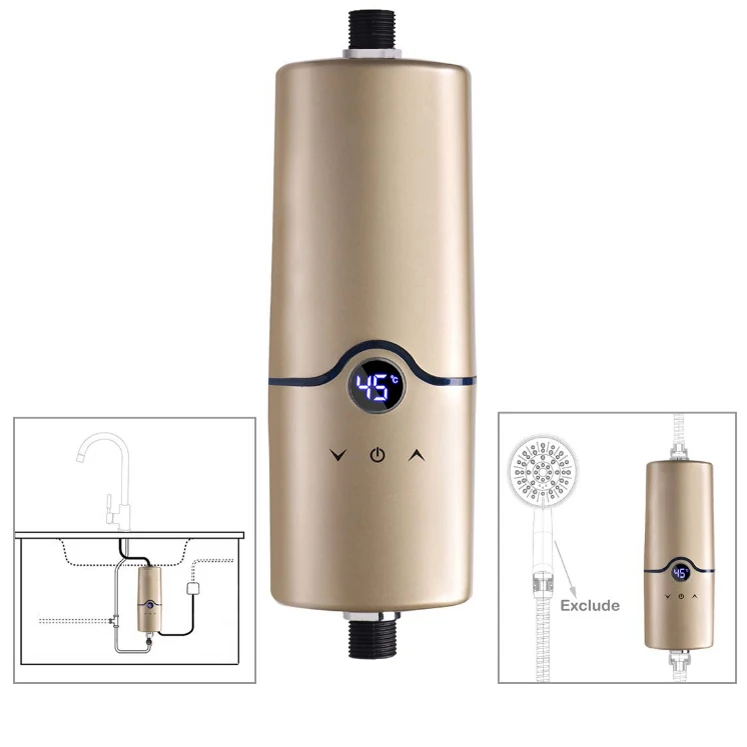

· The water heater can be connected with shower head (not included), or under the sink. But cannot provide multi-way hot water supply in the same time.
Specification:
Size(L x W x T): Approx. 9 x 3 x 3 inch
Rated Current: 25A Connecting Wires: 3x 2.5mm2
Rated Pressure: 0.05Mpa-0.6Mpa
Required Isolator Switch: 32A
Safety Class: IPx4
Temperature Setting: 25C-55C
Termal Cut-out: 85C
Pipe Section: G 1/2"
Min. Water Flow to Activate Unit: 1.2-1.5L/Min
Max. Water Flow: 4.5L/Min
Body Material: ABS
Heating Time: 3-5 seconds
Rated Output: 5500W
Rated Voltage: 220-240V / 50-60Hz
Product Size: 350*155*70mm
Gift Box Size: 365*90*165mm
Carton Box Size (12PCS/CTN):555*380*345mm
Loading Quantity (pcs)20'GP: 42743pcs /
40'HQ: 11178pcs
Inner Box G.W.: 1.95kgs
Water use information
Minimum Activation Flow rate(GPM):0.3
Max. Water Flow: 4.5L/Min
Instructions::
-All tankless instant hot water heaters are sized based on flow rate and temperature rise, so if used in a cold area requiring a high temperature rise, it will be more limited water flow speed
-Mini instant hot water heater system for kitchen bathroom
-Mini elegant appearance, fashionanle and practical with a resonable price
-Magnetized water, instant hot,just 3-5 seconds water is hot,no need to wait.
-Constant temperature, maintain the most comfortable water temp for you
-Energy efficient water heater - save on electricity costs, without radiation, pollution-free, no exhaust gas
-Advanced safety protection - Protection against dry heating and overheating, prevent electric leakage, with auto malfunction checking
Item must be EARTHED

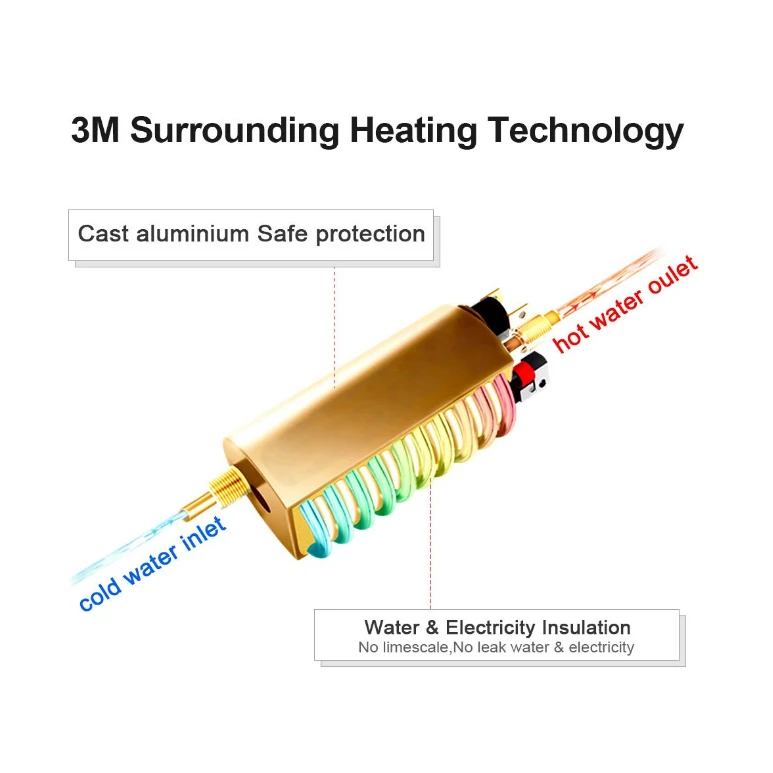

Patented casting aluminium heating system
4 power levels power setting (5.5KW 5KW 4.5KW 3.5KW), and 10 power settings per level
