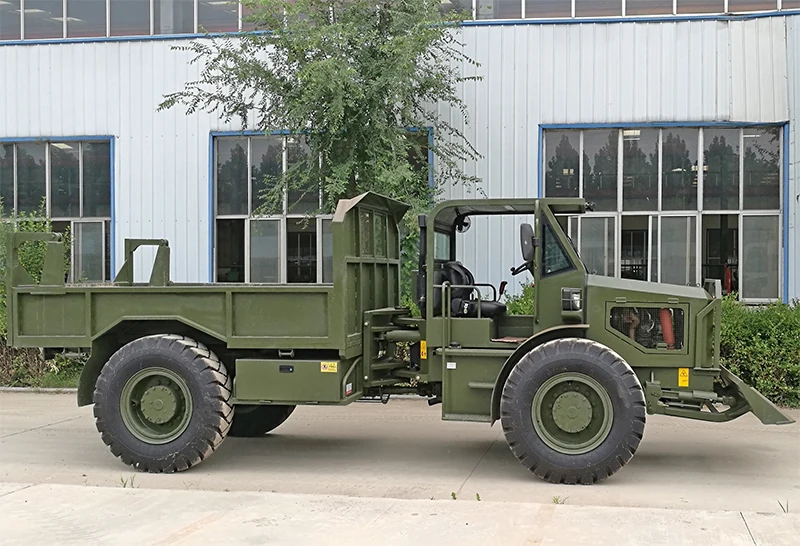

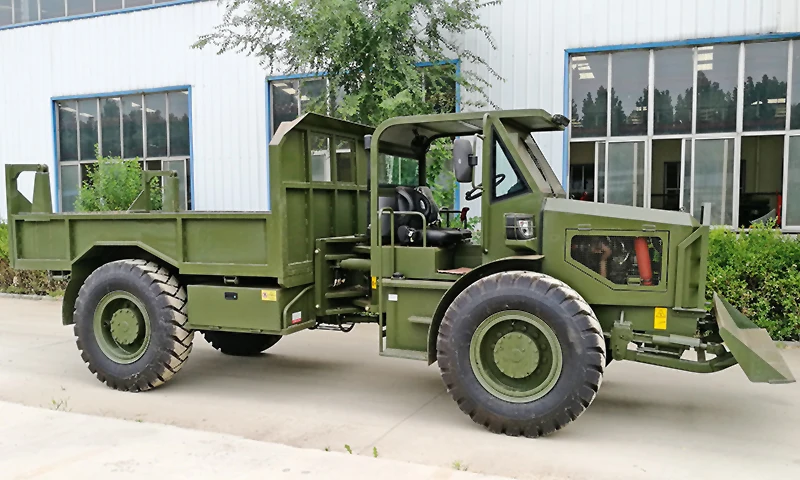

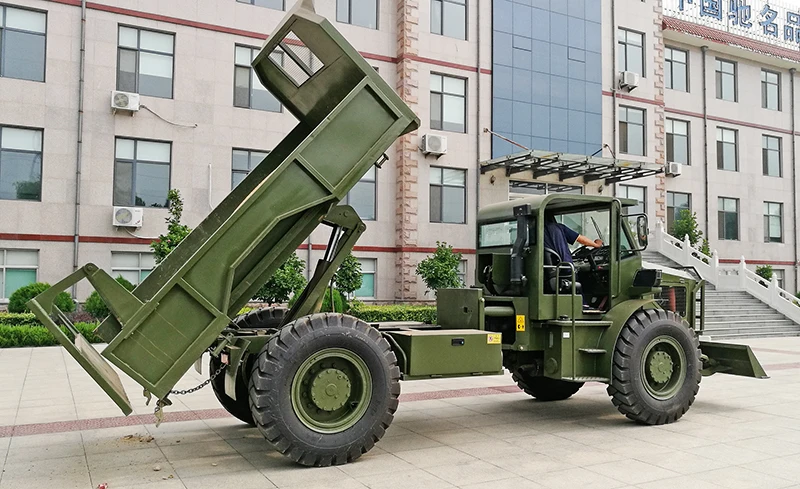

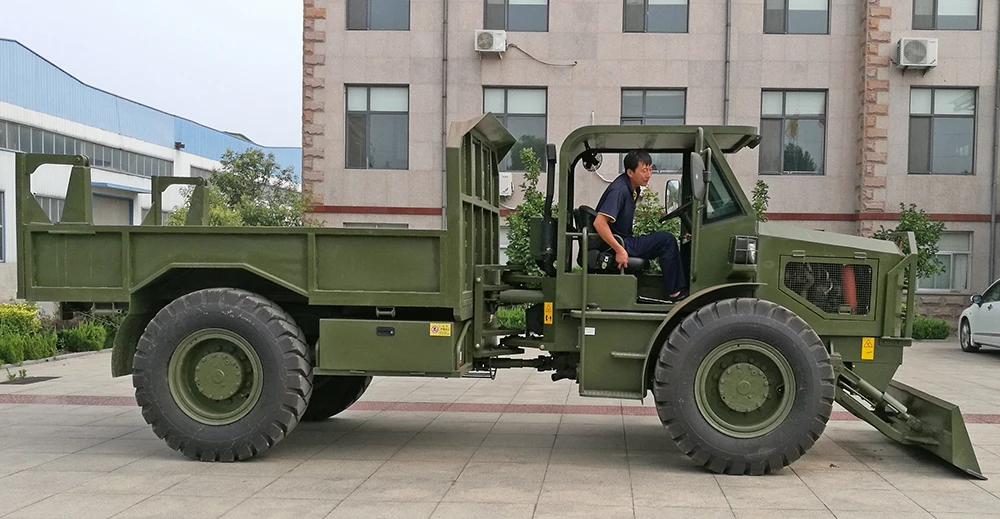

10 ton capacity (Load) and 4x4 Drive Wheel DUMP TRUCKS TIPPER TRUCKS
Rough terrain transporting solutions1 to 10 ton loading capacity
We focus on 1 ton to 10 ton capacity loading capacity rough terrain.With automatic gearbox control and articulated chassis.The machine can get off muddy or rough road easily
With professnal design team,We can design the machine according to your working requirements
If you have any questions,Pls feel free to send an Enquiry to me,Give me a change,We will get back you a right machine and good service!!!
| SPECIFICATION | |
| Grass weight | 9.5 tonne |
| Loading capacity | 10000kg |
| Bucket size | 8.0m3 |
| LxWxH | 6820x2500x3050mm |
| Turning radius | 6100mms |
| Engine brand | Deutz |
| Engine model | WP6G125E22 |
| Motor | 6 cyl diesel 92kw@2200rpm |
| Hydraulic Pressure | 14MPA-18MPA |
| Grading capacity full loading | 30 degree |
| Steering angle | +-30 |
| Minimum groud learance | 400mm |
| Tires | 17.5-25 |
| Speed | |
| F1 | 0-8km/h |
| F2 | 0-40km/h |
| R1 | -8-0km/h |
| R2 | -40-0km/h |
| Color | Yellow&Gray or Red&Gray or Customized |


Shippment time | 20 days upon the receive of payment |
| Payment term | 30 T/T in advance,The balance be paid before shippment |
| Warranty | 1 year or 1500 working hours which comes first |
| Payment | T/T L/C D/A D/P |
