2 3/8' API Reg pin to 3 1/2' API Reg box adapter
- Category: Mining Machine Parts >>>
- Supplier: Guizhou,Sinodrills,Equipment,Co.,Ltd.
Share on:
Product Overview
Description

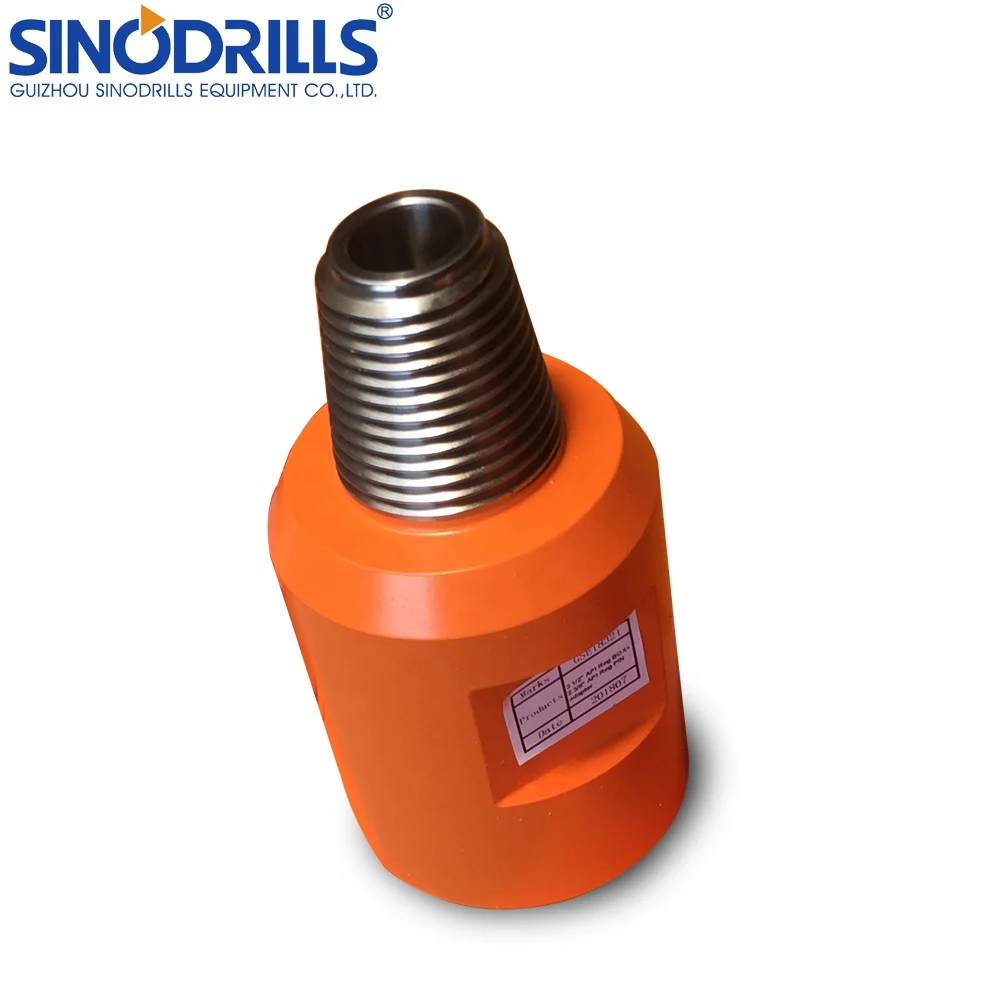

2 3/8'' API Reg pin to 3 1/2'' API Reg box adapter
Product Description

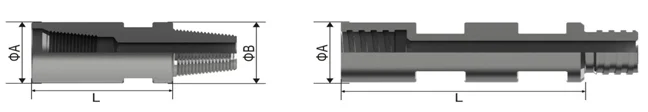

BOX-PIN adapters
API Threads | Wrench flats | Length | Dia.(mm) | Weight | Part NO. | |
Box | Pin | (mm) | (mm) | A B | (kg) |
|
2 3/8” REG | 2 3/8” REG | 65 | 140 | 77 77 | 4.0 | A2-1010-140065 |
2 3/8” REG | 2 3/8” REG | 65 | 140 | 90 90 | 5.5 | A2-1010-140065-A |
2 3/8” REG | 2 3/8” IF | 65 | 144 | 90 90 | 5.5 | A2-1011-140065 |
2 3/8” REG | 2 7/8” REG | 65 | 130 | 95 95 | 8.0 | A2-1020-130065 |
2 3/8” REG | 3 1/2” REG | 95 | 120 | 90 102 | 10.5 | A2-1030-120095 |
2 3/8” IF | 2 3/8” REG | 65 | 164 | 90 90 | 6.8 | A2-1110-164065 |
2 7/8” REG | 2 3/8” REG | 65 | 154 | 90 90 | 6.5 | A2-2011-154065 |
2 7/8” REG | 3 1/2” REG | 95 | 120 | 90 105 | 11 | A2-2030-120095 |
3 1/2” REG | 2 3/8” REG | 95 | 219 | 115 90 | 12.5 | A2-3010-219095 |
3 1/2” REG | 2 3/8” IF | 95 | 160 | 115 115 | 10.5 | A2-3011-160095 |
3 1/2” REG | 2 7/8” REG | 95 | 160 | 115 115 | 10.8 | A2-3020-160095 |
3 1/2” REG | 2 7/8” IF | 95 | 160 | 115 115 | 10.8 | A2-3021-160095 |
3 1/2” REG | 3 1/2” REG | 95 | 160 | 115 115 | 10.5 | A2-3030-160095 |
3 1/2” REG | 4 1/2” REG | 120 | 132 | 115 146 | 16.0 | A2-3040-132120 |
4 1/2” REG | 3 1/2” REG | 95 | 235 | 146 115 | 17.0 | A2-4030-235095 |
F48 | F42 | 40 | 203 | 59 59 | 4.6 | A2-7060-203040 |
F48 | F48 | 40 | 203 | 59 59 | 5.0 | A2-7070-203040 |
F48 | 2"REG | 40 | 203 | 59 59 | 5.2 | A2-7080-203040 |
BOX-BOX adapters PIN-PIN Adapters
API Threads | Wrench flats | Length | Dia.(mm) | Weight | Part N O. | |
Box/Box | Pin/Pin | (mm) | (mm) | A B | (kg) |
|
2 3/8” REG- 2 3/8” REG | —— | 65 | 200 | 77 77 | 4.5 | A1-1010-200065 |
2 3/8” REG- 2 3/8” REG | —— | 65 | 200 | 90 90 | 5.8 | A1-1010-200065-A |
2 3/8” REG- 2 3/8” IF | —— | 65 | 220 | 90 90 | 6.0 | A1-1011-220065 |
2 3/8” REG- 2 7/8” REG | —— | 65 | 225 | 90 90 | 6.2 | A1-1020-225065 |
2 3/8” REG- 2 7/8” IF | —— | 65 | 220 | 90 90 | 6.0 | A1-1021-220065 |
2 3/8” IF - 3 1/2”REG | —— | 95 | 210 | 90 115 | 10.5 | A1-1130-210095 |
2 3/8” IF- 2 3/8” IF | —— | 65 | 230 | 90 90 | 6.2 | A1-1111-230095 |
2 3/8” IF- 6 1/2” REG | —— | 171 | 260 | 180 114 | 21.0 | A1-1160-260171 |
2 3/8” IF- 7 1/2” REG | —— | 180 | 270 | 205 120 | 28.2 | A1-1170-270180 |
3 1/2”REG - 2 3/8” IF | —— | 95 | 200 | 115 90 | 9.0 | A1-3011-200095 |
3 1/2”REG- 2 7/8” REG | —— | 95 | 230 | 115 90 | 10.0 | A1-3020-230095 |
3 1/2”REG- 2 7/8” IF | —— | 95 | 220 | 115 115 | 10.0 | A1-3021-220095 |
3 1/2”REG- 3 1/2”REG | —— | 95 | 220 | 115 115 | 10.5 | A1-3030-220095 |
3 1/2”REG- 4 1/2”REG | —— | 120 | 240 | 115 146 | 18.0 | A1-3040-240120 |
—— | 2 3/8” REG- 2 3/8” REG | 65 | 70 | 90 90 | 5.0 | A1-1010-070065 |
—— | 2 3/8” REG- 3 1/2”REG | 95 | 97 | 90 115 | 9.0 | A1-1030-097095 |
—— | 3 1/2”REG- 3 1/2”REG | 95 | 90 | 115 115 | 10.0 | A1-3030-090095 |
