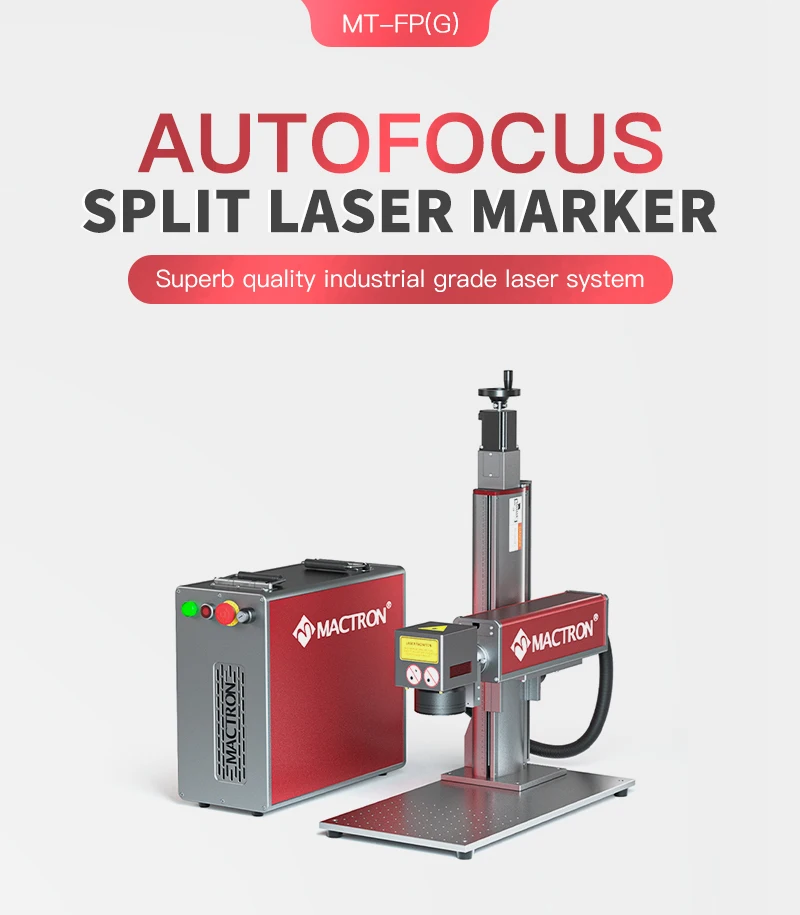

Portable Stainless Steel/Medical Scalpel Auto Focus Split Laser Marking Engraving Machine
- Category: >>>
- Supplier: Dongguan Mactron Technology Co. Ltd.
Share on (62333410001):
Product Overview
Description
Product Description
Portable laser marking machine is especially outstanding in the aspect of portability. It is endowed with the features of small volume and easily marking on the surface of big volume and heavy objects. The fiber laser marking machine adopts an advanced digital high-speed scan galvanometer and module design, which can separate the laser generator and lifter. This series has the advantages of low materials consumption, non-toxic, and pollution-free.

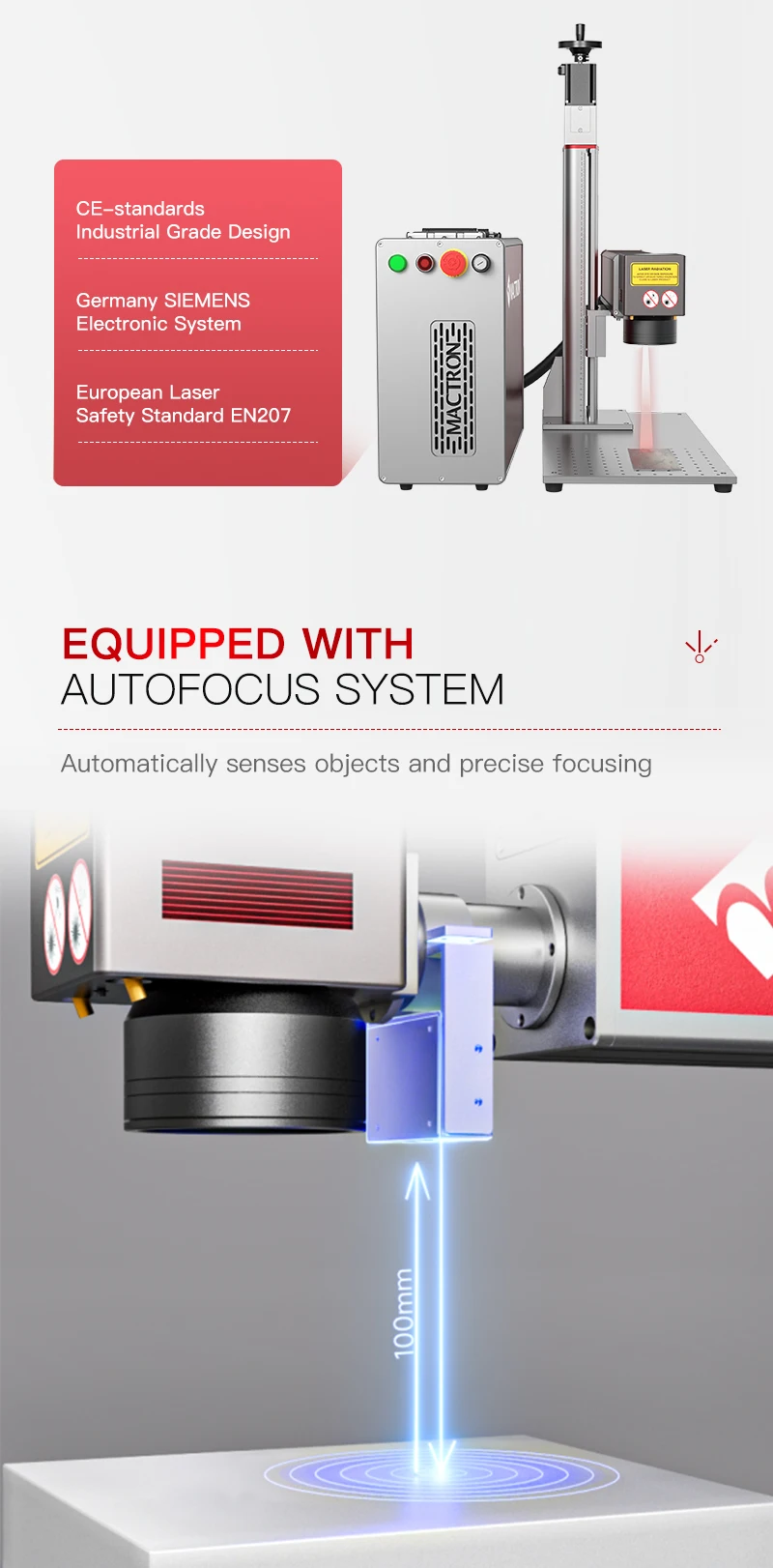

Based on the standard of portable fiber laser marking machine,equipped with an autofocus system that automatically senses objects through the sensor to achieve fully automatic and precise focusing
Technical Parameter
| Model | MT-FP20 | MT-FP30 | MT-FP50 |
| Laser Type | Q-Switched Pulse Fiber Laser / MOPA Pulse Fiber Laser | ||
| Wavelength (nm) | 1064 | ||
| Laser Power (W) | 20 | 30 | 50 |
| Pulse Energy (mJ) | 0.66 / 0.8 | 1 / 0.8 | 1 / 1.25 |
| Repetition Rate (kHz) | 30-60 / 1-600 or 1-4000 | 50-100 / 1-600 | |
| Pulse Duration (ns) | 120-150 / 200 or 2-350 | 120-150 / 200 | |
| Beam Quality (M2) | <1.5 / 1.4 | <1.6 / 1.5 or 1.4 | <1.6 / 1.8 |
| Output Power (%) | 10 - 100 | ||
| Marking Specifications | Font formats: TTF, JSF, DMF, SHX fonts, etc. Vector formats: PLT, DST, AI, DXF, SVG, GBR, NC, CAD, CDR, DWG, BOT, etc. Barcode formats: Code39, EAN, PDF417, DATAMATRIX, QR, 2D codes, etc. Bitmap formats: JPC, BMP, JPG, JPEG, PNG, etc. | ||
| Speed | Up to 8000 mm/s (314.96 in/s) | ||
| Beam Quality (M2) | Minimum Line 0.01 mm (0.0004 in) | ||
| Minimum Character | 0.2 mm (0.008 in) | ||
| Z axis type | Manual / Motorized & Programmable (optional) | ||

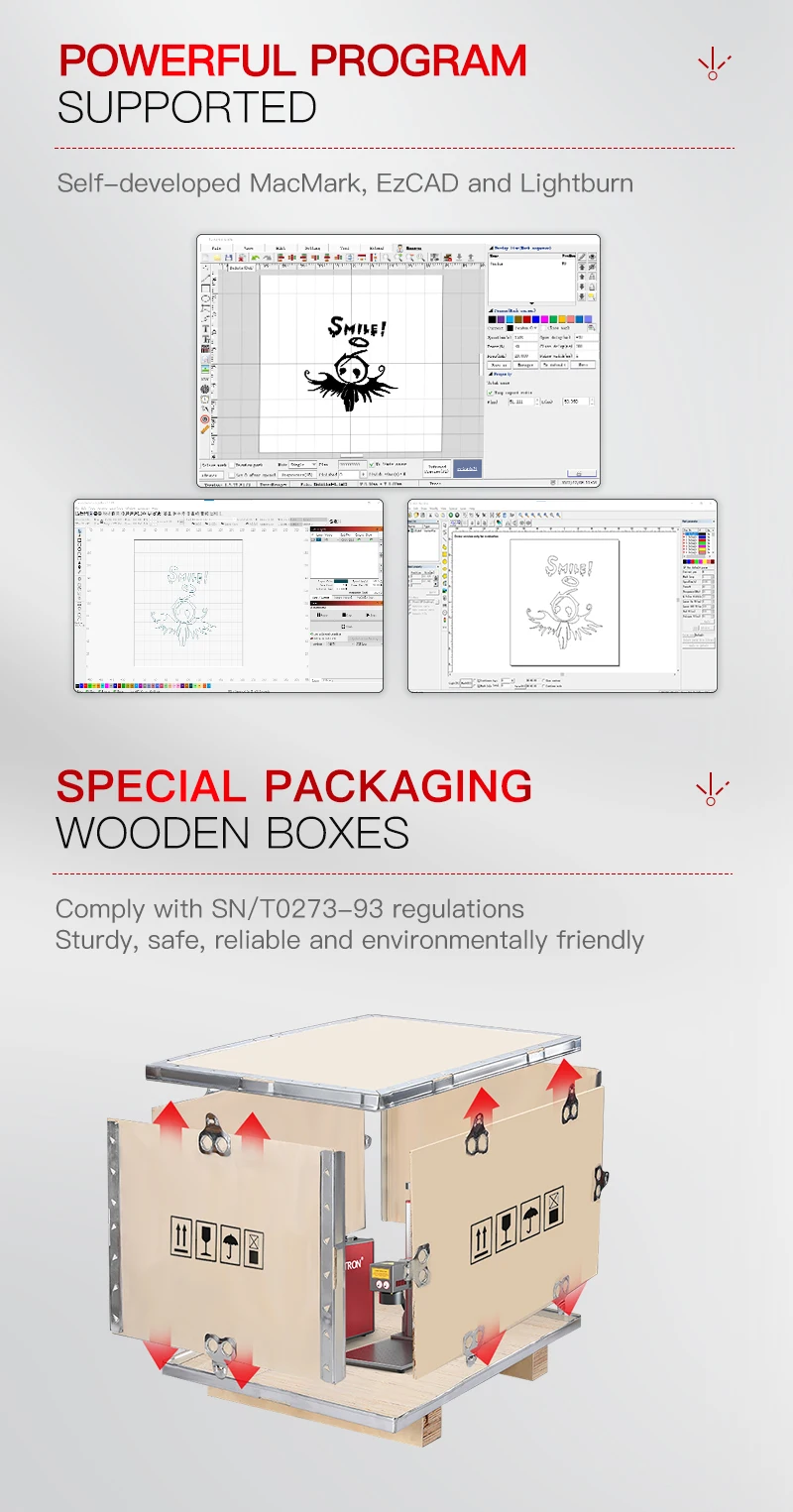

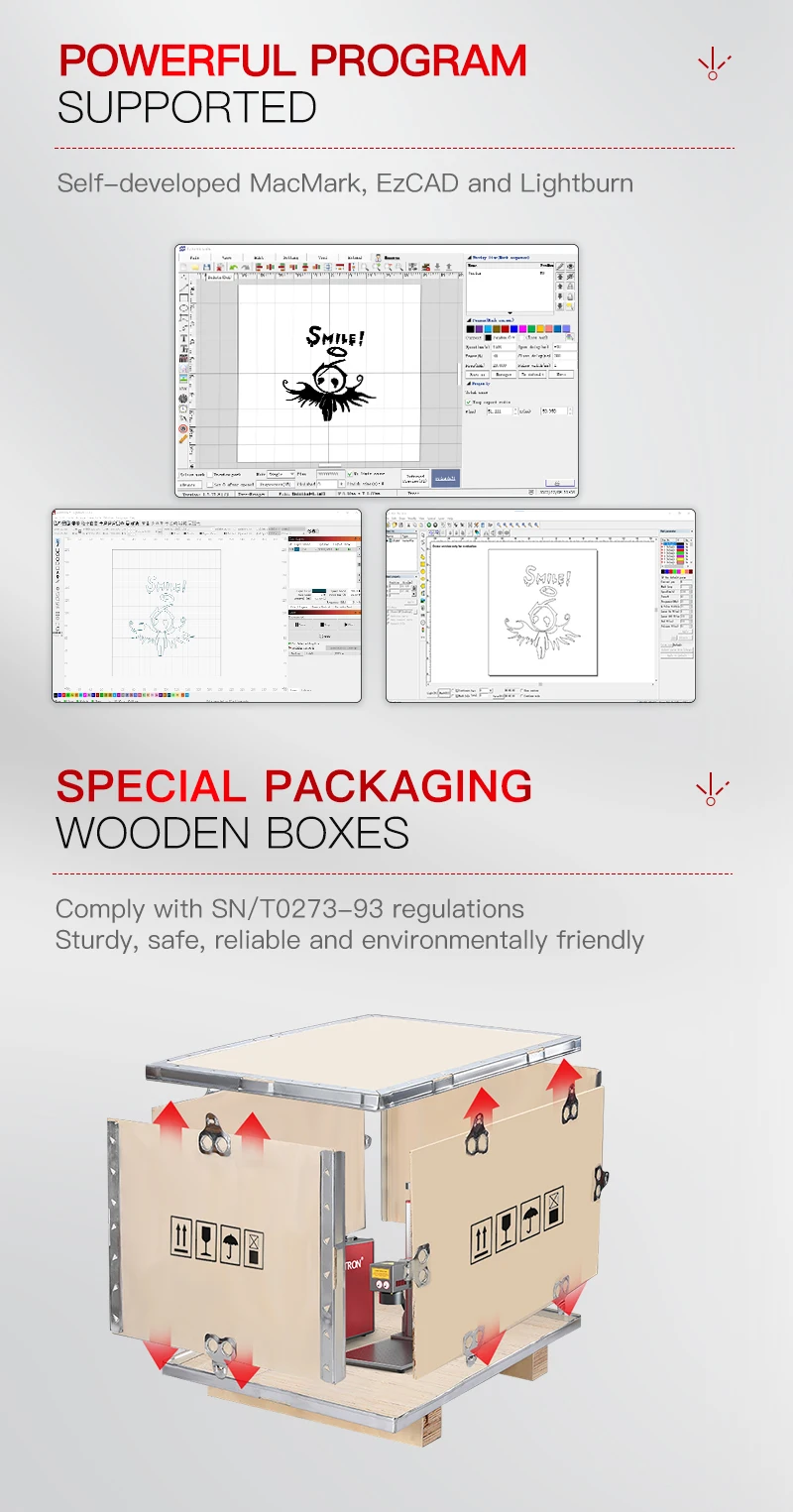

| Software | MacMark / PC software EzCAD (on separate, external, optional Windows OS PC) | ||
| Communication interfaces | USB; Terminal block I/O; (standard) Laser Safety Dedicated I/O; RS232; Ethernet TCP/IP (optional) | ||

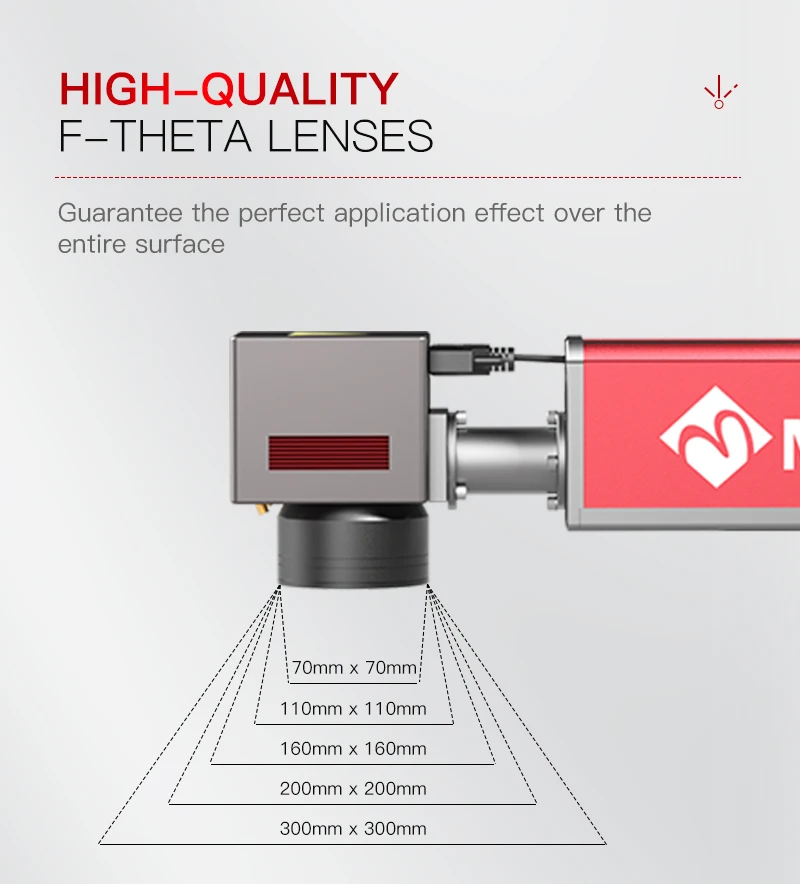

| Marking Area - Available lenses | Standard: F160: 110 mm (4.33 in) x 110 mm (4.33in) Optional: F100: 70 mm (2.76 in) x 70 mm (2.76 in), F254: 160 mm (6.29 in) x 160 mm (6.29 in), F330: 200 mm (7.87 in) x 200 mm (7.87 in), F450: 300 mm (11.8 in) x 300 mm (11.8 in) | ||
| Cooling | Air-cooled, auto-overheat protection | ||
| Laser safety classification | Class 4 | ||
| Operating Temperature | 10°C to 40°C (50F to 104F) | ||
| Humidity | 10%- 90%, non-condensing | ||
| Electrical Requirements | L/N/PE 100 - 240 VAC 50/60Hz ( According to local electricity supply ) | ||
| Power consumption rate | 400 W (800 W Max) | ||
| Machine weight | 52 Kg (114.64lbs) | 57Kg (125.66 lbs) | |
Product Features

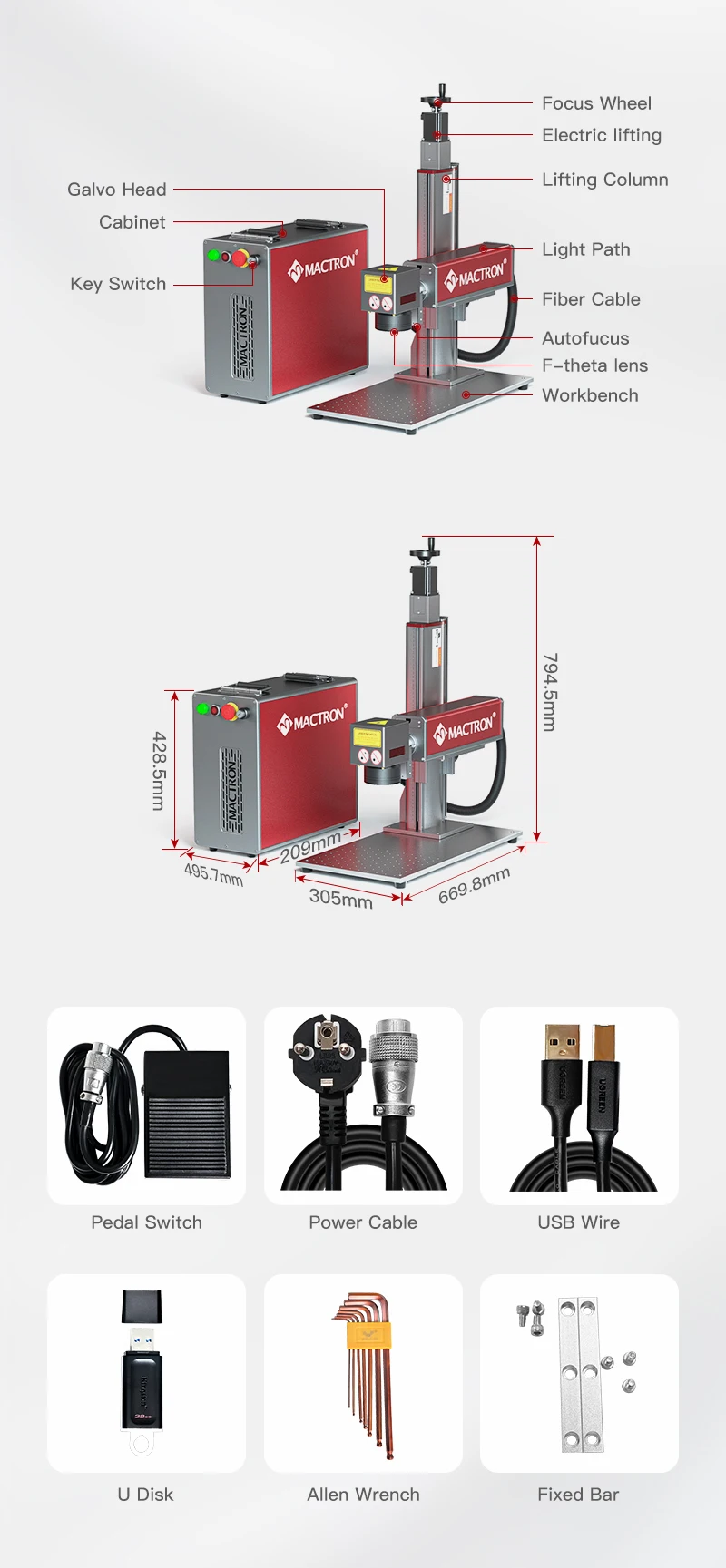

Packaging List

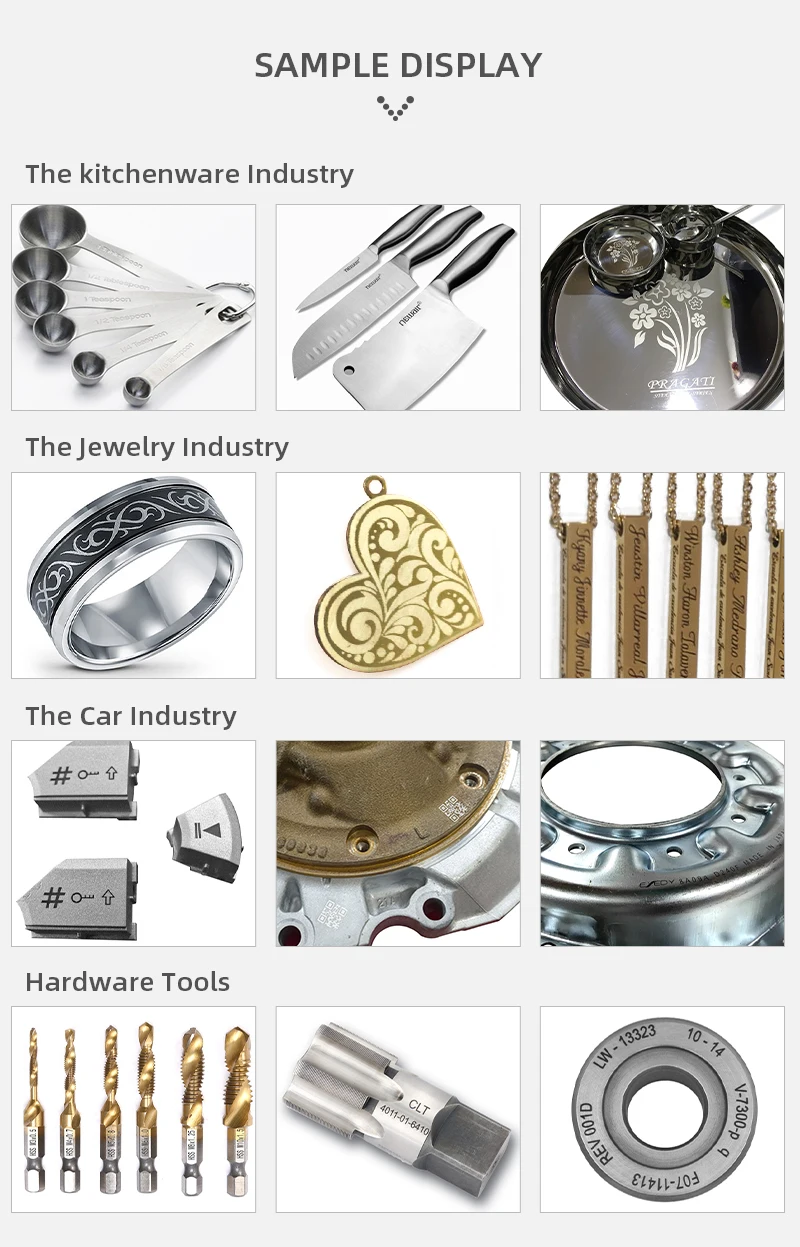

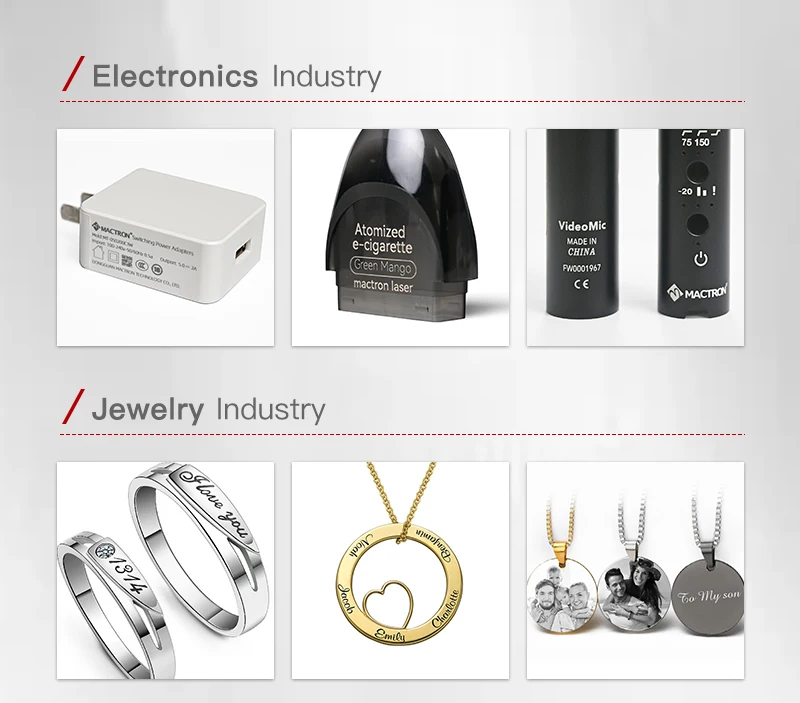

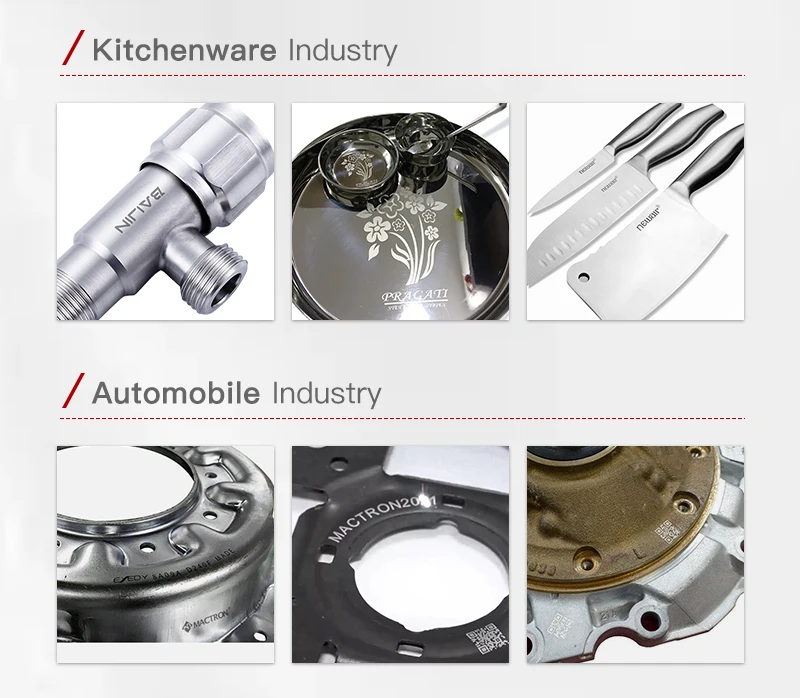

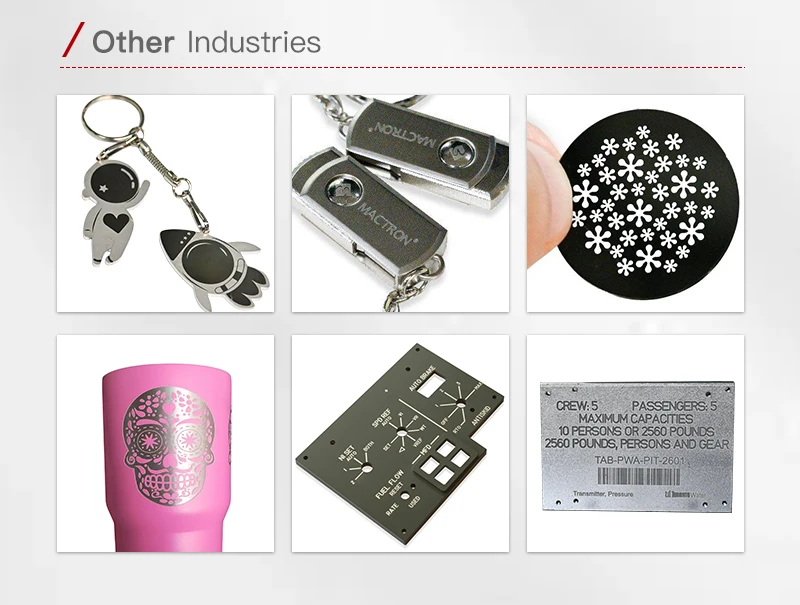

Samples

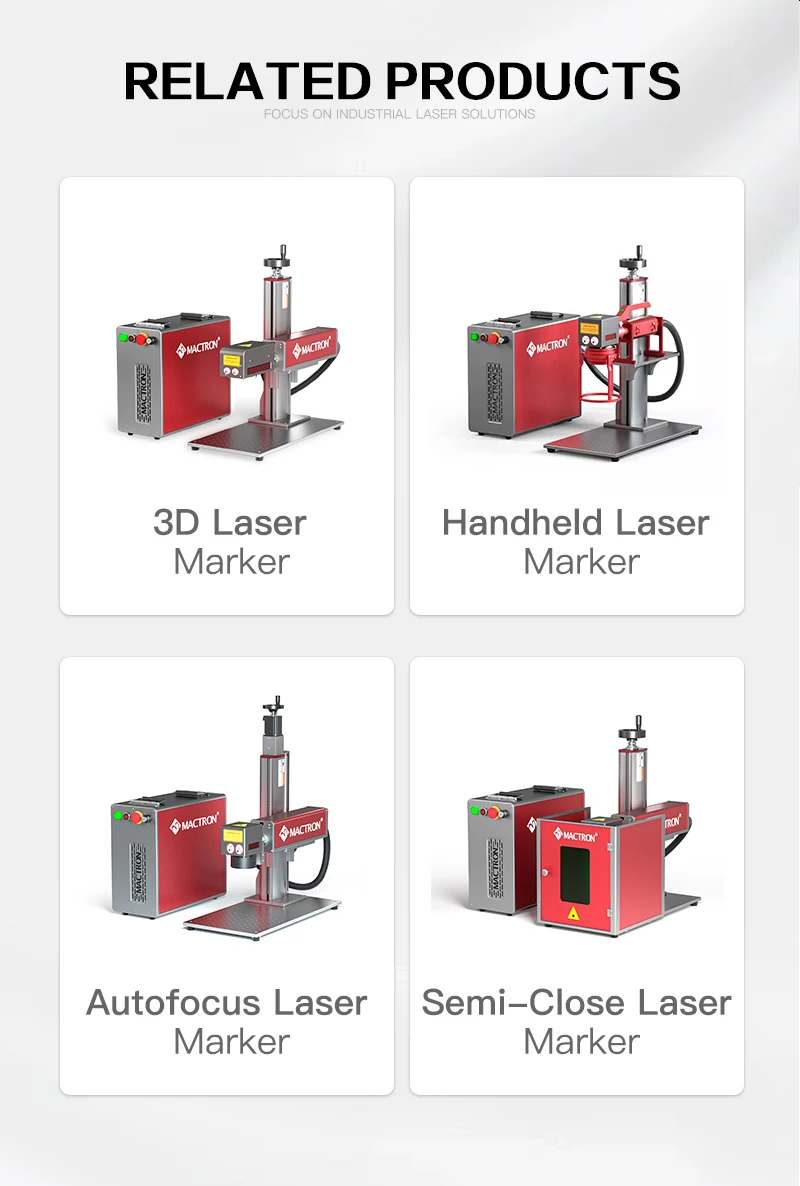

Related Products

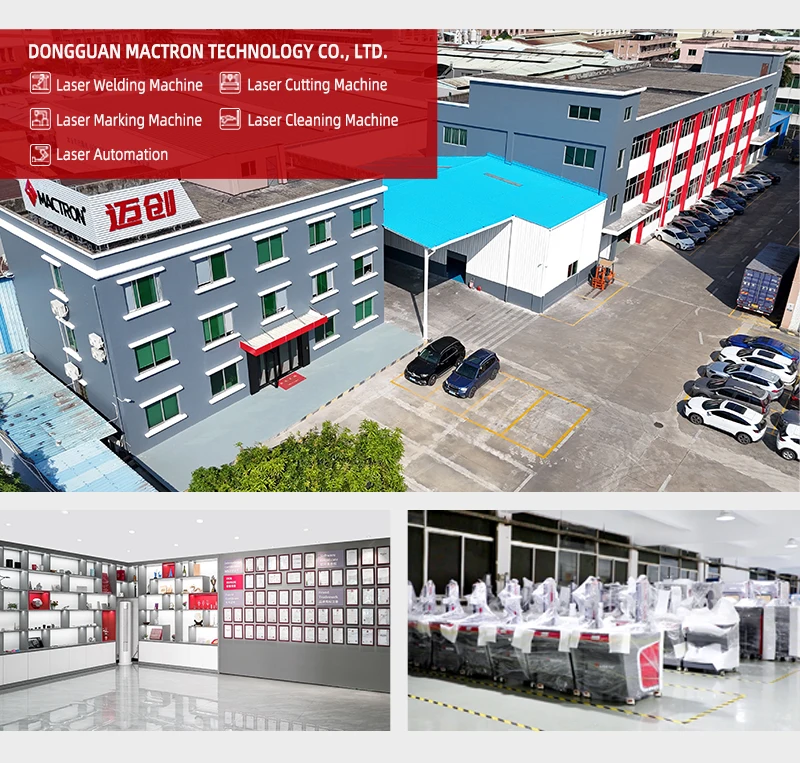

Company Information
Dongguan Mactron Technology Co., Ltd is specializing in developing, manufacturing and selling of industrial laser equipment system and customized automation devices. At present, it has developed into a global laser intelligent equipment service provider integrating laser equipment, precision machinery, software engineering and modern management.
Mactron's mainly product is including:
Mactron mainly manufactures and sells products like Laser Marking Machines, Laser Cutting Machines, Laser Welding Machines, Laser Engraving Machines, Laser Cleaning Machines, Laser automation and industry intelligence solutions. The laser equipment system is widely used in many fields, including electronic communications, clothing, leather, jewelry, hardware tools, printing and packaging, advertising decoration, automobile and motorcycle parts, mechanical molds, and aviation components, craft gifts, sanitary ware, lighting, home appliances and many other industries.
Mactron Technology's business tenet is "Do Honest Bussiness ".
Mactron Technology's managerial spirit: "Solidarity, Exertion, Truthfulness, Innovation"
FAQ
1) What are the primary products of your company?
Our primary products include laser marking machines, laser engraving machines, laser cutting machines, laser welding machines, and laser spare parts.
2) Where is your fiber laser equipment applied?
Our Fiber Laser Marking Machine is suitable for all kinds of metal, industrial plastic, electroplates, metal-coated materials, rubbers, ceramics and so on.
3) What are the advantages of your laser equipment?
Our laser equipment has several advantages.
High quality and precision are the featured properties of our laser marking machine. Our laser marking machine employs the domestic leading “Smart Engraving” technology, which could clearly engrave 2mm characters and 1mm letters on the materials.
4) How to do control the quality when you produce laser equipment?
We introduce international advanced production technology, and strictly implement a series of measures of quality and cost control to ensure the quality of laser marking machine. In addition, all raw materials are strictly inspected in accordance with international standards before they are put into production.
5) Which countries are your laser machinery sold to?
Our laser marking machine sell all over the world, such as United States, Mexico, Brazil, Australia, Singapore, Saudi Arabia, Turkey, India, Italy, UK, Germany, Poland, Spain, Romania and many other countries.
More Details--Contact Us ↓↓↓
