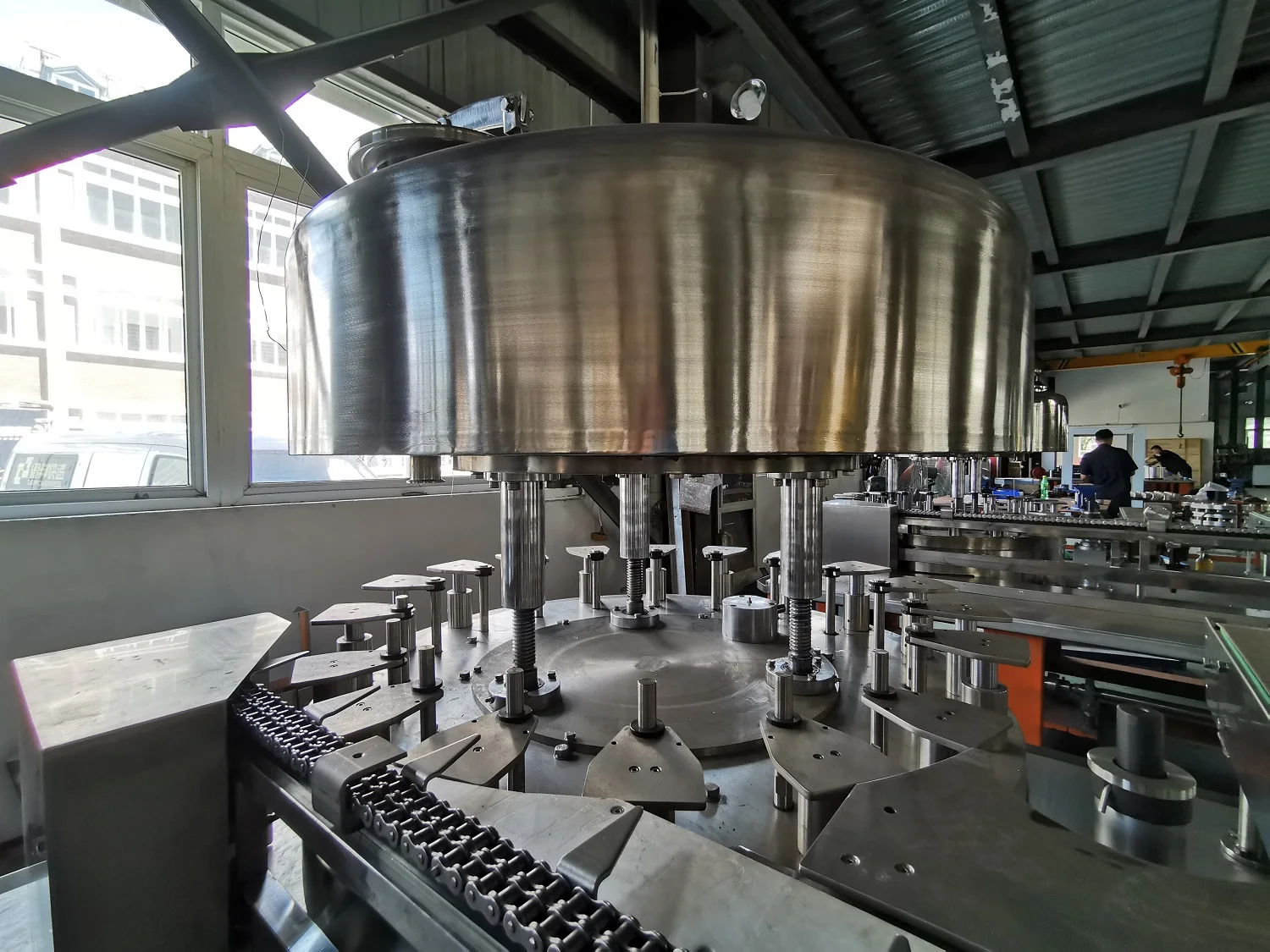

tin tomato sauce can filling machine
- Category: >>>
- Supplier: ZHEJIANG NEWWAY FOOD MACHINERY CO. LTD
Share on (62333419406):
Product Overview
Description
Product Description
The machine adopts the principle of piston filling. After the empty tinplate can or glass bottle sent to the filling position, the compressed air will enter into the cylinder after passing through the pneumatic triplex parts to turn on the filling valve. Under the action of the cam, the piston will move downwards in the piston cylinder to carry out filling. After filled, the filling valve will be automatically closed under the action of cylinder. The piston will carry out material suction.
The material cylinder is made of high quality stainless steel, and equipped with various automatic control designs, such as the material blending system, three-point liquid level control, and filling if there is any can.
The main electric components include PLC, frequency converter and proximity switch of Japan Mitsubishi, analog output module of Germany Siemens and solenoid valve of South Korea, all of which are designed into the most reasonable configuration by our experienced electric engineers. The overall production speed can be set freely on the touch screen according to requirements. All common malfunctions will send out alarms automatically, malfunction causes and positions will be given correspondingly. Accordingly to different malfunction levels, the PLC will automatically determine if the operation shall continue or the machine shall be stopped.
It is suitable for filling various sauces (such as ketchup, pepper sauce, fruit jam)viscous materials, beverages of high strength and containing pulps or granules, and even rationed pure liquids.
The material cylinder is made of high quality stainless steel, and equipped with various automatic control designs, such as the material blending system, three-point liquid level control, and filling if there is any can.
The main electric components include PLC, frequency converter and proximity switch of Japan Mitsubishi, analog output module of Germany Siemens and solenoid valve of South Korea, all of which are designed into the most reasonable configuration by our experienced electric engineers. The overall production speed can be set freely on the touch screen according to requirements. All common malfunctions will send out alarms automatically, malfunction causes and positions will be given correspondingly. Accordingly to different malfunction levels, the PLC will automatically determine if the operation shall continue or the machine shall be stopped.
It is suitable for filling various sauces (such as ketchup, pepper sauce, fruit jam)viscous materials, beverages of high strength and containing pulps or granules, and even rationed pure liquids.
Size Information
Main technical parameters
Model | XWN-12 |
The number of filling head | 12 |
Filling capacity | 70-850ml |
Production capacity | 80-200cans/min |
Can diameter | Φ52-99mm |
Can height | 39-160mm |
Power | 4kw |
Weight | 1500kg |
Dimension | 1800*1500*1900mm |
Service
Pre-Sales Service
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
* Sample testing support.
* View our Factory.
After-Sales Service
* Engineers available to service machinery overseas.
* Field installation, commissioning and training.
* Field maintenance and repair service.
* Field installation, commissioning and training.
* Field maintenance and repair service.
Company Introduction
Zhejiang NewWay Food Machinery Co., Ltd. is located in Zhoushan, the Oriental Pearl City Thousand Island City. It is 16 kilometers away from Mount Putuo airport. There are multiple flights to and fro Shanghai international airport everyday, 98 kilometers away from Ningbo Lishe airport, the traffic is very convenient.
The company is mainly engaged in the design and manufacture of beverages, canning machine and sealing machine packed with tinplate, aluminum, plastic and paper materials, as well as related products. Undertake the whole production line of easy-to-open beverage (including steam, non steam), sauce filling and sealing production line, Babao porridge canning, food, fruit and vegetable canning production line, etc.
The company fully uses CAD and CAM to design products. It is in a leading position in the field of filling and sealing equipment for canned food and beverage in China. The company specializes in the production of high-speed canning filling and sealing units and production lines, which make due contributions to the localization of similar imported equipment, reduce investment costs in the food and beverage industry, improve labor productivity of enterprises, and promote the rapid development and growth of the industry.
The company relies on strong technical force and effective technical guarantee, flexible business philosophy and quality service, advanced manufacturing technology, excellence in product quality and good reputation, to serve the vast number of new and old customers and welcome friends from all walks of life to visit and patronize.
The company is mainly engaged in the design and manufacture of beverages, canning machine and sealing machine packed with tinplate, aluminum, plastic and paper materials, as well as related products. Undertake the whole production line of easy-to-open beverage (including steam, non steam), sauce filling and sealing production line, Babao porridge canning, food, fruit and vegetable canning production line, etc.
The company fully uses CAD and CAM to design products. It is in a leading position in the field of filling and sealing equipment for canned food and beverage in China. The company specializes in the production of high-speed canning filling and sealing units and production lines, which make due contributions to the localization of similar imported equipment, reduce investment costs in the food and beverage industry, improve labor productivity of enterprises, and promote the rapid development and growth of the industry.
The company relies on strong technical force and effective technical guarantee, flexible business philosophy and quality service, advanced manufacturing technology, excellence in product quality and good reputation, to serve the vast number of new and old customers and welcome friends from all walks of life to visit and patronize.
