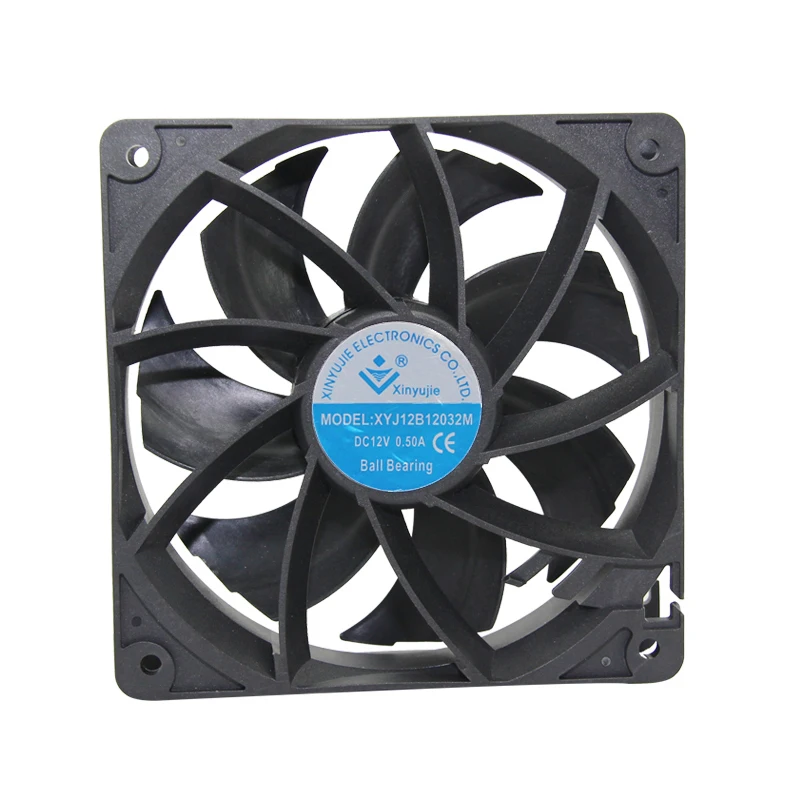

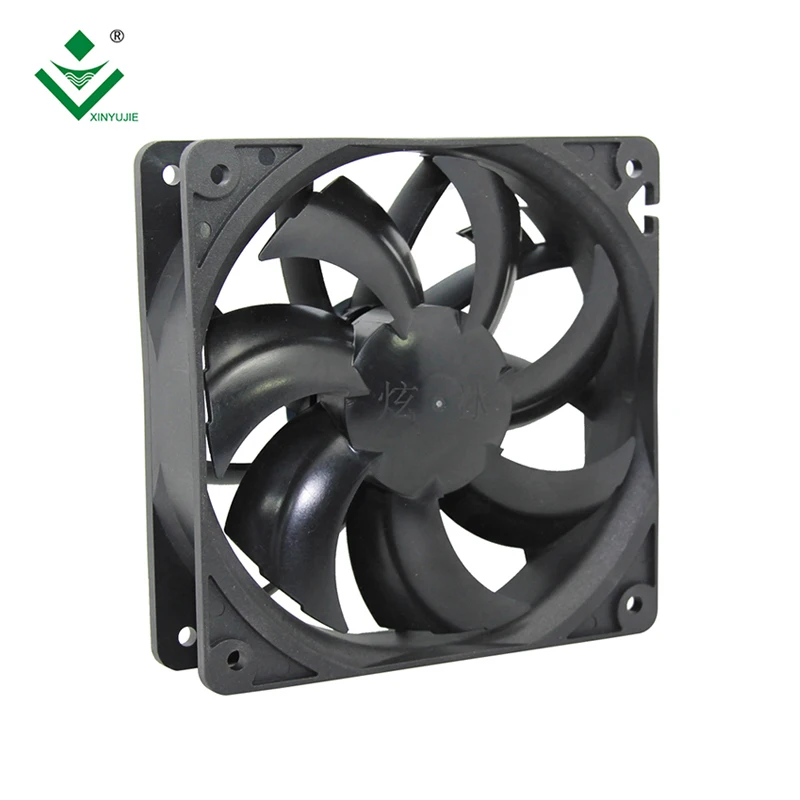

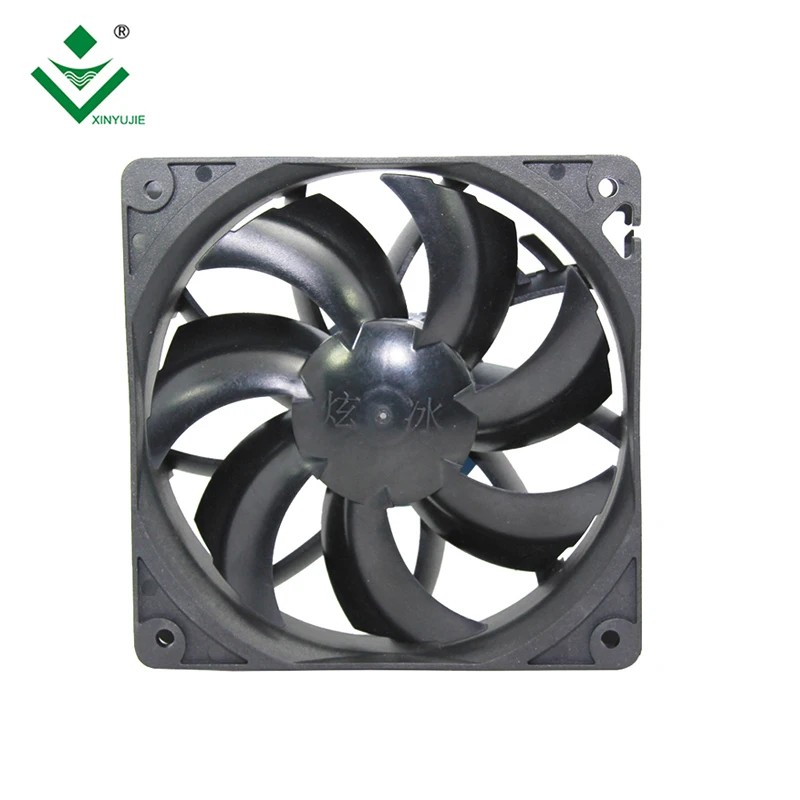

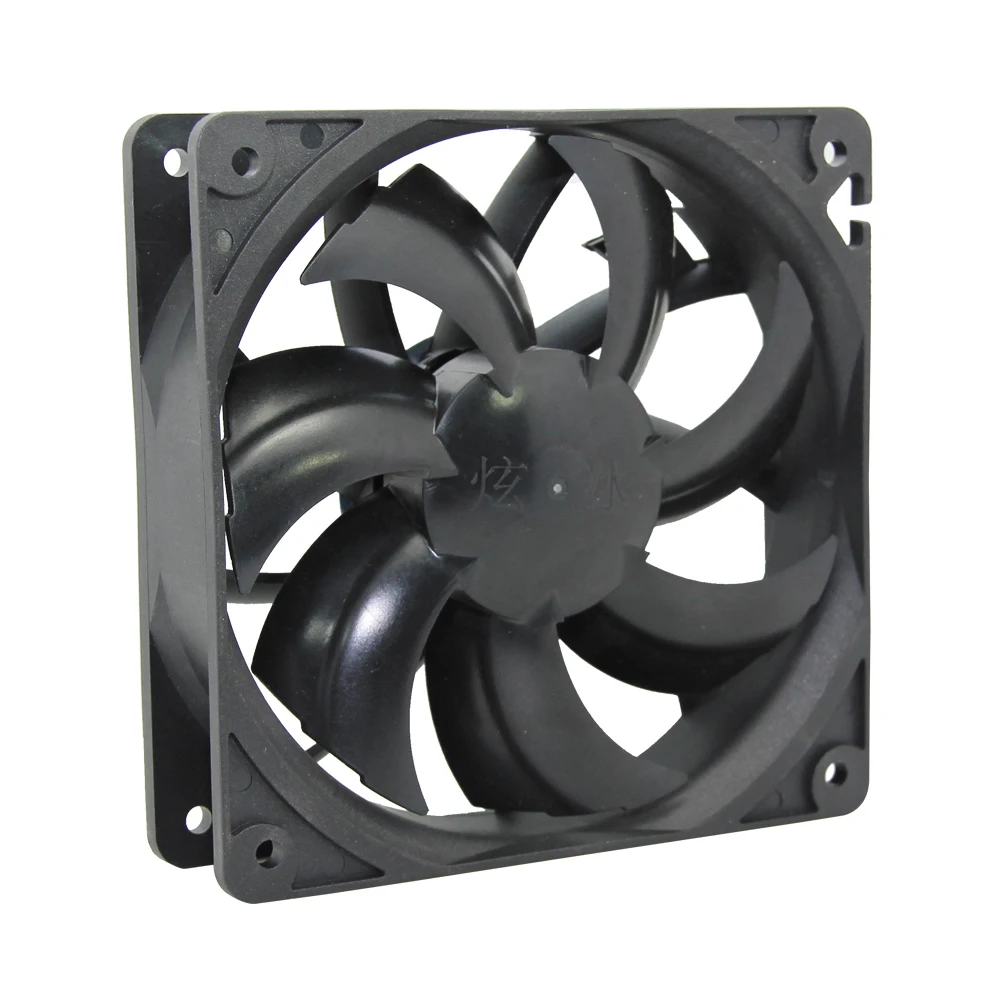

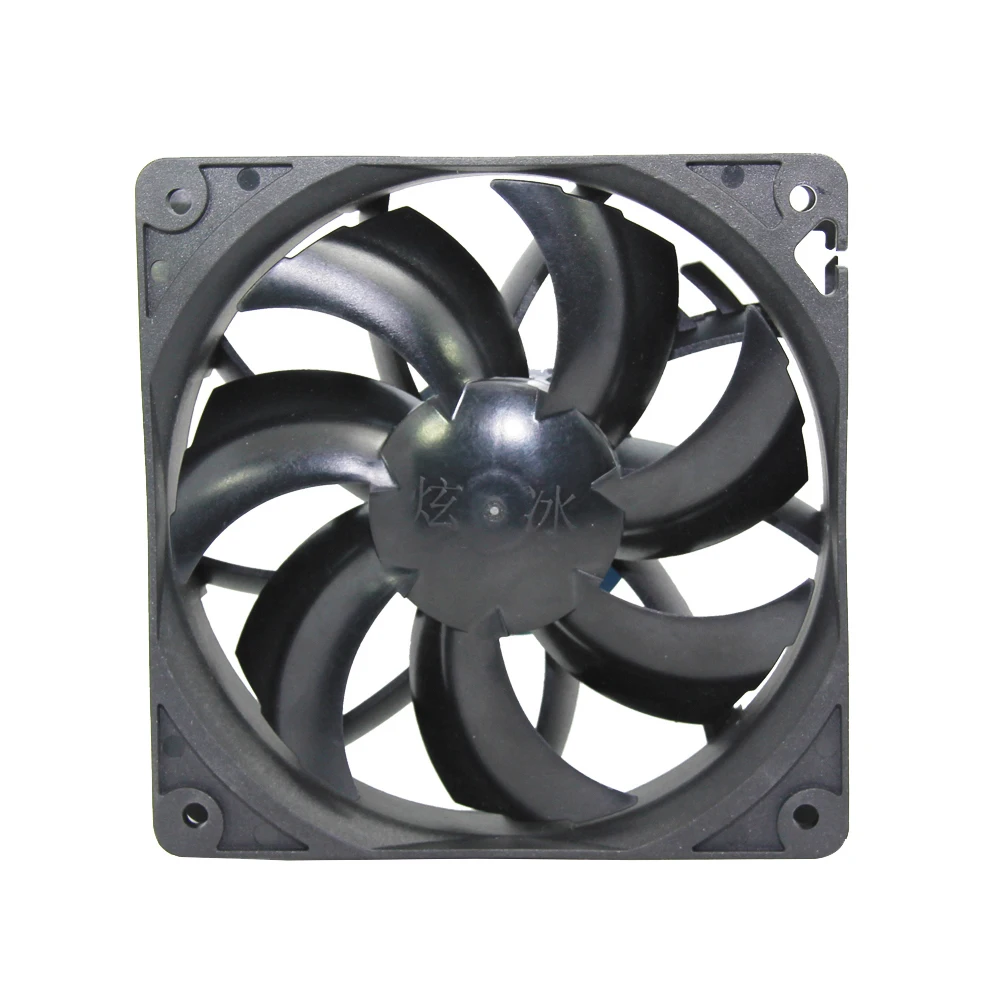

High Temperature Rotary 12v 24v 120x120x32mm DC Fan Brushless for Air Humidifier

Product Overview

Description

High Temperature Rotary 12v 24v 120x120x32mm DC Fan Brushless for Air Humidifier

General Specifications and use of environment

Frame	Thermal Plastic,Environmental Protection & Fireproof
Impeller	Thermal Plastic,Environmental Protection & Fireproof
Bearing type	Sleeve bearing or double ball bearing
Lead wires	Red +,Black -, default 200mm length,can be customized lenth
Motor Protection	Impedance Protected;Reverse Polarity Protected;Automatic Restart
Operating Voltage	4.5~5.5V,10.2-13.8V;20.4-27.6V (That's the suggest working voltage,not startup voltage)
Operating Temperature/Humidity	-10℃~70℃,15~85%RH
Storage Temperature/Humidity	-40℃~80℃,15~85%RH

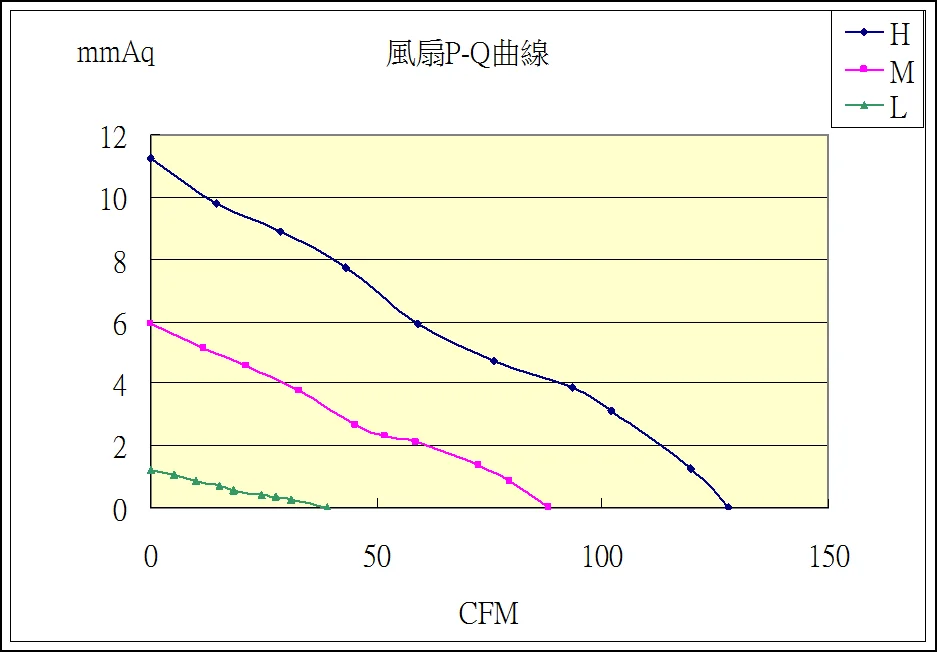

Fan performance curves

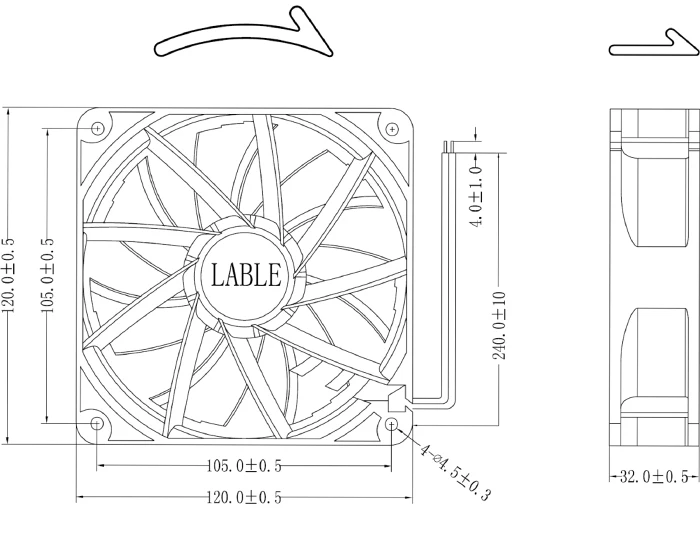

Measure

Specification

Dimension	Model	Rated voltage(V)	Current(A)	Speed(RPM)	Air flow(CFM)	Static Pressure(mmH2O)	Noise level(dBA)	Weight(g)	FG	RD	PWM	Auto Restart
120X120X32MM	12032L	12	0.04	1200	39.11	1.21	28.9	186	√	√	√	√
	12032M	12	0.30	2800	88.08	5.93	39.5	186	√	√	√	√
	12032H	12	0.92	4000	127.88	11.23	44.7	186	√	√	√	√
	12032L	24	0.02	1200	39.11	1.21	28.9	186	√	√	√	√
	12032M	24	0.15	2800	88.08	5.93	39.5	186	√	√	√	√
	12032H	24	0.92	4000	127.88	11.23	44.7	186	√	√	√	√



Spare parts-connector



Spare parts-fan guard

Bearing type contrast

	Sleeve bearing	Double ball bearing
Support function	FG,RD,Auto Restart function(not normal,optional)	FG,RD,PWM,Auto Restart(Not normal,optional)
Brand	NSK brand imported from Japan	Made in China
Advantage	Stable performance,low current amp,low noise,50000-80000hrs lifespan	Low cost,20000-30000 hrs lifespan,suit for small household appliance
Warranty	30000 hours	10000 hours
Material	Stainless	Copper sleeve
Price	Higher	lowerCertifications







1. What’s the difference between the sleeve and ball bearing fan?

The ball bearing brand was NSK bearing imported from Japan.

The warranty for ball bearing fan is 30,000 hours but sleeve bearing just 10,000 hours.

Ball bearing has 5-8 years lifetime,sleeve bearing has 2-3 years lifetime.

Ball bearing fan noise level won’t change for a long time term,but sleeve bearing fan noise level will grown as time goes on.

Sleeve bearing is cheaper than ball bearing fans.



2. What kind of function can we choose for fan?

Optional function :Auto-restart ,Speed detection,Stppage Alarm,Waterproof(IP55-IP68 optional), PWM function ,Temperature control etc.



3. How long can your wire length be ?

The wire length and terminal could be customized as your request. We just need the picture of connector and rank of wires for confirm.(Default wire length is 200mm)



4. What’s your MOQ and delivery date ?

MOQ200PCS

Sample lead time:5 working days

Mass production:15 working days

Waterproof fans need 1 more week
