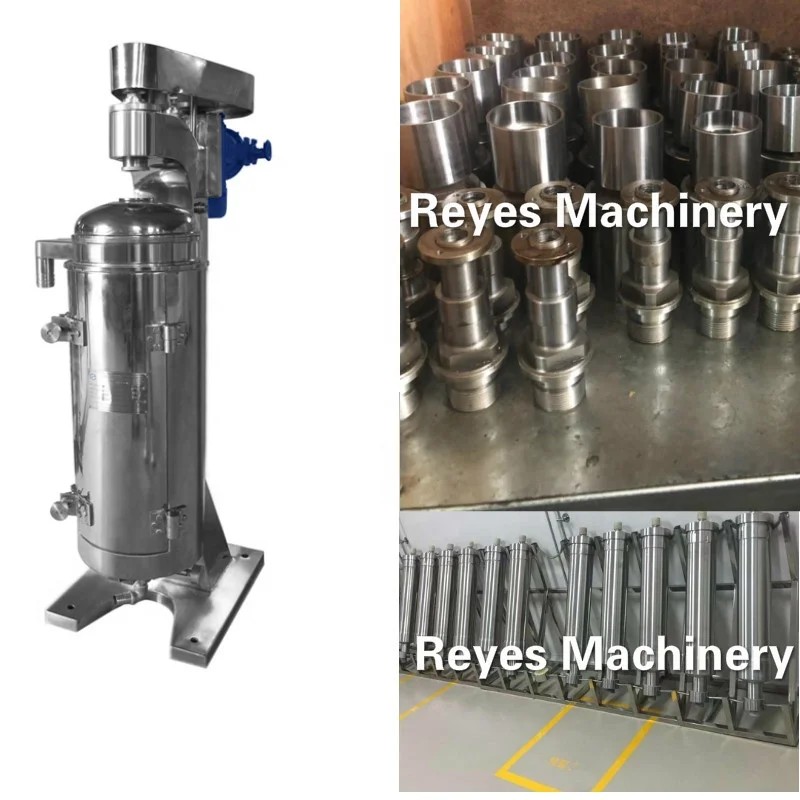

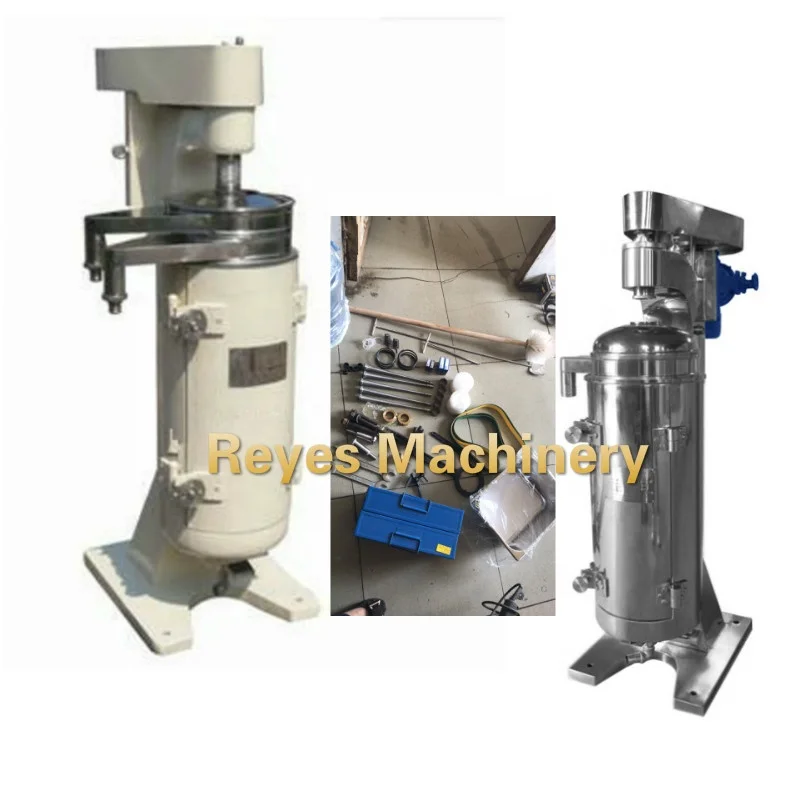

GQ105J (clarifying type) High Speed oil purifying tubular bowl centrifuge machine/separation equipment $6,000.00 $9,000.00 / Un

Reyes High-speed centrifuge separator are widely used in a variety of biological processes from cell harvesting and clarifying to separations of chemicals, food, blood and pharmaceuticals. High performance is consistently achieved in continuous, semi-continuous or batch operations.

Ruggedly build in a range of sizes, Reyes centrifuge separator provide an efficient, cost-effective technology for research through production applications. Reyes Centrifuges separator efficiently separate from one to several thousand liters of biological cultures and other mixtures. For extremely high solid concentrations, drum centrifuge can be supplied for high performance separations.

How They Work

Reyes Centrifuge are characterized by their ability to process many times the volume of their tubular bowl. Fluid mixtures are fed into the bottom of the rapidly rotating separating chamber. Solid are retained, while components are expelled from the top of the chamber through a collection tray.

For Liquid-Liquid separation , two collection trays are used. The retained solid cake is dry and densely packed by the high G-forces of the Reyes Centrifuge. Plastic bowl liner are available for models GF/GQ-105/125/150 to facilitate cell paste removal.

The optimum size centrifuge for a given application depends on the volume and properties of the process liquid. Typical process volumes specified for each centrifuge are approximate. Contact NBS for a no-obligation consultation.

Technical Parameter:



Item/Type		GQ/GF45	GQ/GF75	GQ/GF105	GQ/GF125	GQ/GF150
Bowl	Inner Diameter	45	75	105	125	142
	Height(mm)	240	450	730	730	730
	Sedimentation Volume(L)	0.4	2.2	6	8	10
	Max Speed (r/min)	8000-28000	20000	16300	15000	14000
	Maximum Separation Factor	19800	16700	15700	15750	15900
	Inlet Nozzle Diameter (mm)	2/2.5/3	3/5	6/8/10	6/8/10	8/10
	Material Inlet Pressure	≥0.05Mpa
	Water Through Capacity (l/h)	100	100-600	1200	2000	3000
Motor	Model	Single Phase	3 Phase Two Pole Motor
	Power (kw/h)	0.4	1.5	3	4	4
Overall Dim.	L*W*H(mm)	500×420×760	760×450×1120	840×500×1600	900×550×1600	900×550×1600
	Weight (kg)	90	300	570	610	660


Typical Applications

Harvesting biomass
Clarifying process liquids
Separating liquid products
Animal blood processing
Bioremediation
Process of granular, crystalline & fibrous suspensions
Separation of filterable & non-filterable sludge

Features & Benefits

Rapid separations
Consistent performance
Range of models facilitate scale-up
Simple to set up, use and clean for minimal down-time between separations
No replacement membranes or costly disposables
Small footprint saves space
Enclosed models available for ambient gas control
For mixtures with very high solid concentration, drum centrifuge can be supplied
Power 3-phase electric motors provide rapid acceleration and quieter operation.
Control panel attached with drum centrifuge can be applied to online fault check: Temp. Vibration, speed, current and also can achieve remoting control and monitoring.
Permanently-lubricated oversized head bearings maintain long service life
