DDG Cheap Price Primary Current Injection Test Set 1000A High Current Generator
- Category: >>>
- Supplier: Wuhan Huatian Electric Power Automation Co. Ltd.
Share on (62333570549):
Product Overview
Description
Primary current injection test set ,primary current injector ,current injection test set
Hot selling products
Brief introduction

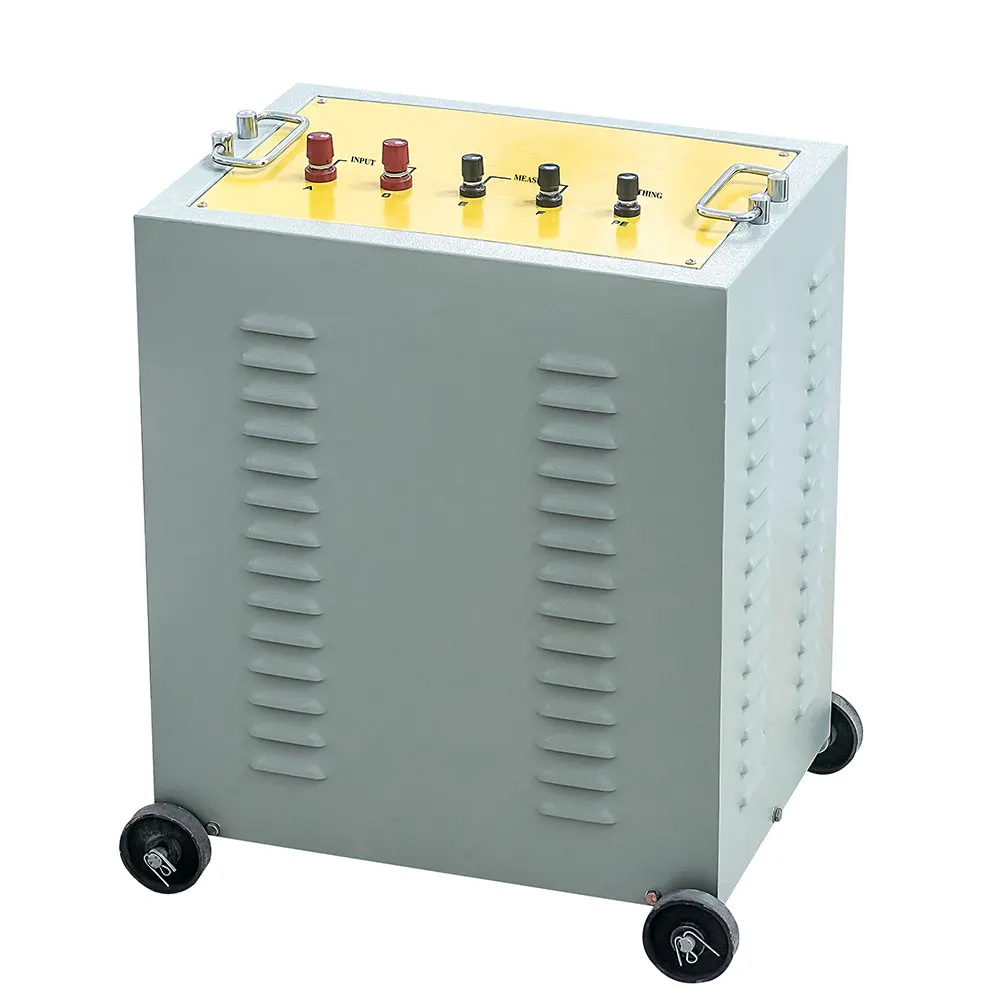

DDG Primary Current Injection Test Set is essential equipment used for electrical debugging to generate high current, which be widely used in power plants, power distribution stations, electrical plants , scientific research, laboratories and other units. It is a short-term or intermittent work device and characterized by small size, light weight, good performance, easy use and maintenance.
Products features
1. Two ammeters, can supervise different measurement range.
2. Auto transformer adjusts freely.

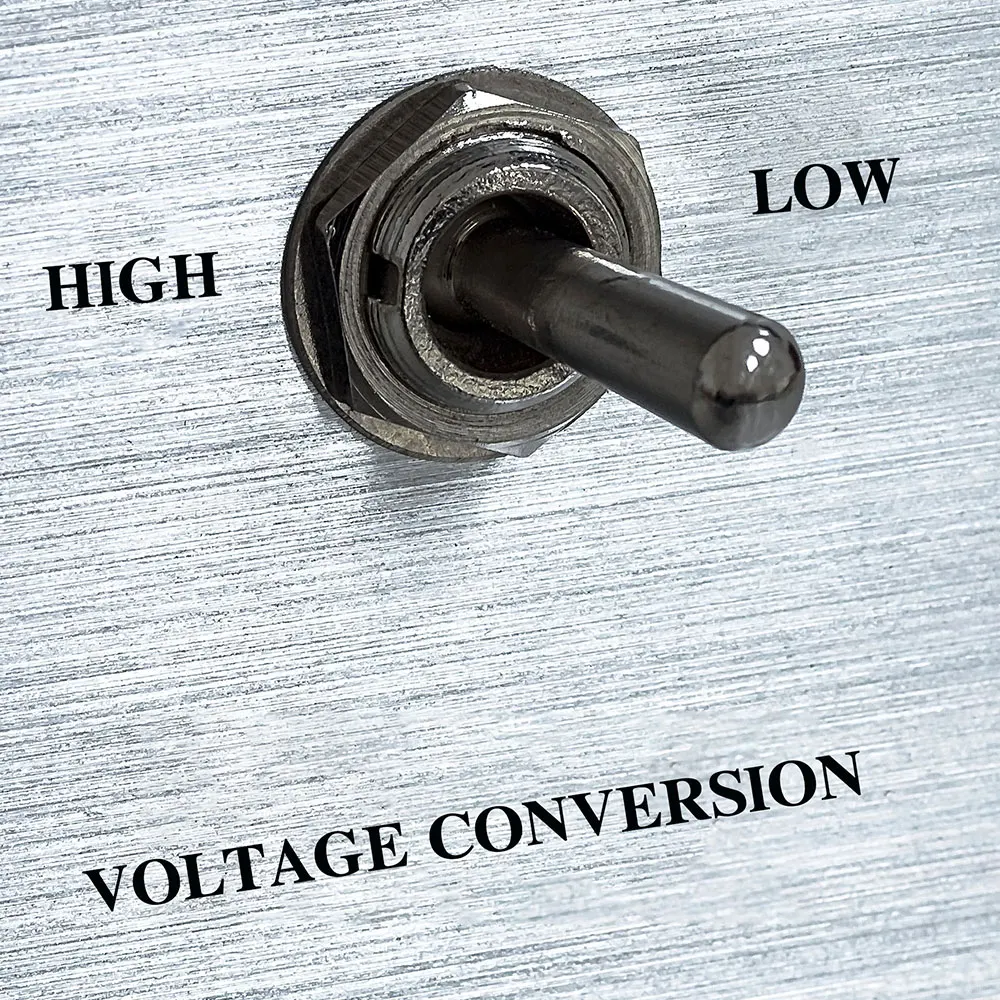

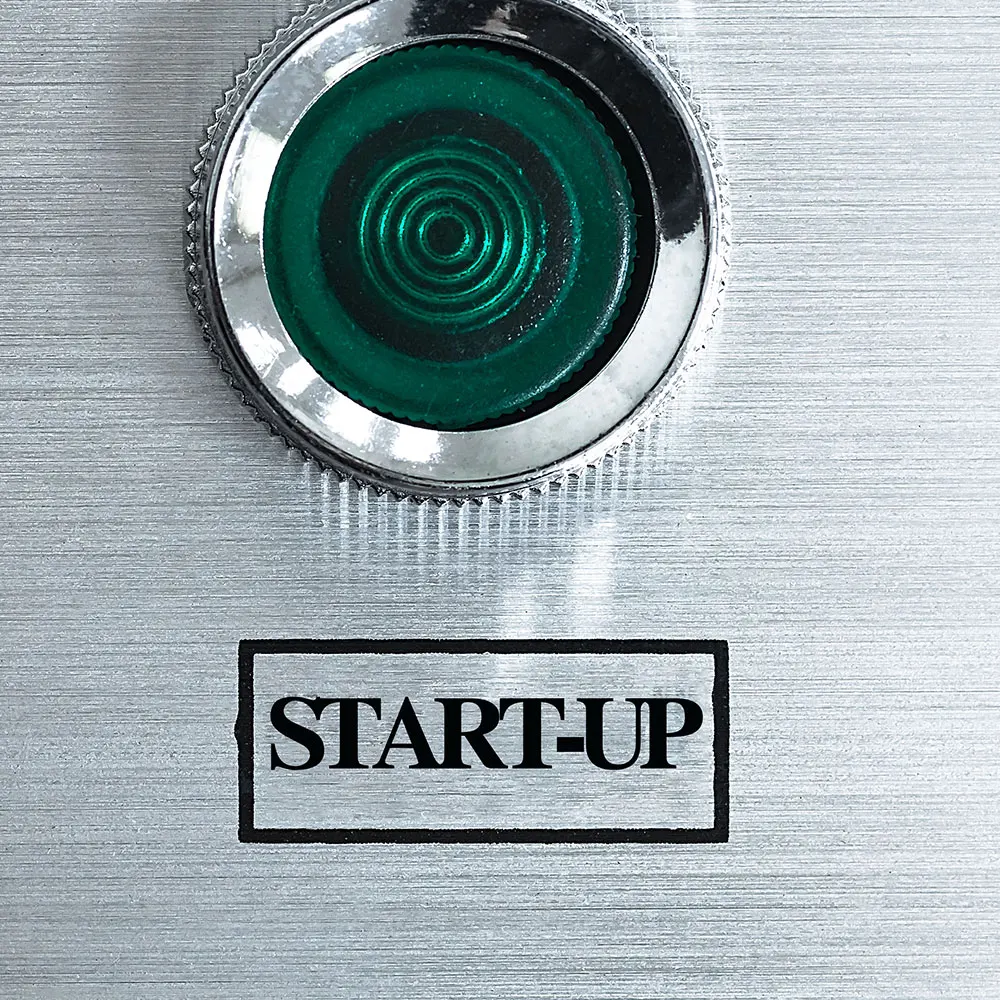

3. with indicator lighting and button, easy to operate
4. Incorporated and dividable structure, easy to move.
Product parameters
The Primary Current Injection Test Set capacity is designed based on 5-minute short-term work system. For intermittent work, working time should be less than 2.5 minutes, before continuing to work it should be shut down for 10 minutes so that all parts of the machine can cool down. Specifications and technical parameters as follows:
Model | Capacity (KVA) | Junior Range | Secondary Range
| dimensions (mm) L×W×H | Weight ( kg) | Structural Style | ||
V1 | A1 | V2 | A2 | |||||
DDG-500 | 3 | 220 | 15 | 6 | 500 | 430×338×550 | 45 | Integrated structure |
DDG-1000 | 6 | 220 | 27 | 6 | 1000 | 500×380×600 | 65 | Integrated structure |
DDG- 2000 | 12 | 380 | 31.6 | 6 | 2000 | 580×400×750 | 105 | Integrated structure |
DDG- 2500 | 15 | 380 | 39.5 | 6 | 2500 | 600×430×790 | 145 | Integrated structure |
DDG- 4000 | 24 | 380 | 63 | 6 | 4000 | 640×450×820 | 180 | Integrated structure/ split Structure |
DDG- 5000 | 30 | 380 | 79 | 6 | 5000 | 600×430×900 300×500×500 | 145 135 | Split Structure |
DDG- 6000 | 36 | 380 | 95 | 6 | 6000 | 600×430×900 300×500×500 | 150 140 | Split Structure |
DDG- 8000 | 48 | 380 | 126 | 6 | 8000 | 600×450×950 350×550×550 | 180 | Split Structure |
DDG- 10000 | 60 | 380 | 158 | 6 | 10000 | 800×600×1100 380×550×600 | 200 | Split Structure |
