Aluminum Cosmetic Collapsible Soft Tube Making Line Production machines
- Category: >>>
- Supplier: Wuxi Yingrun Machinery Technology Co. Ltd.
Share on (62333601725):
Product Overview
Description
Product Description
PRODUCT APPLICATION
Aluminum soft tubes line is also called aluminum collapsible tubes line. It is mainly used to produce various aluminum collapsible tubes, small aluminum barrel or cans. The line is applied to filling products like ointment, artistic pigment, cosmetics, sealant, toothpaste, shoe polish, AB glue, hair dye, tomato sauce, chocolate sauce, instant adhesive, pen or marker barrel, cigar, etc.

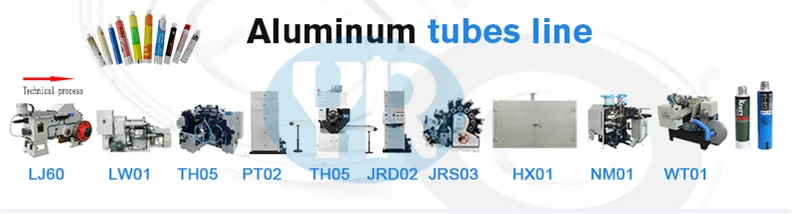

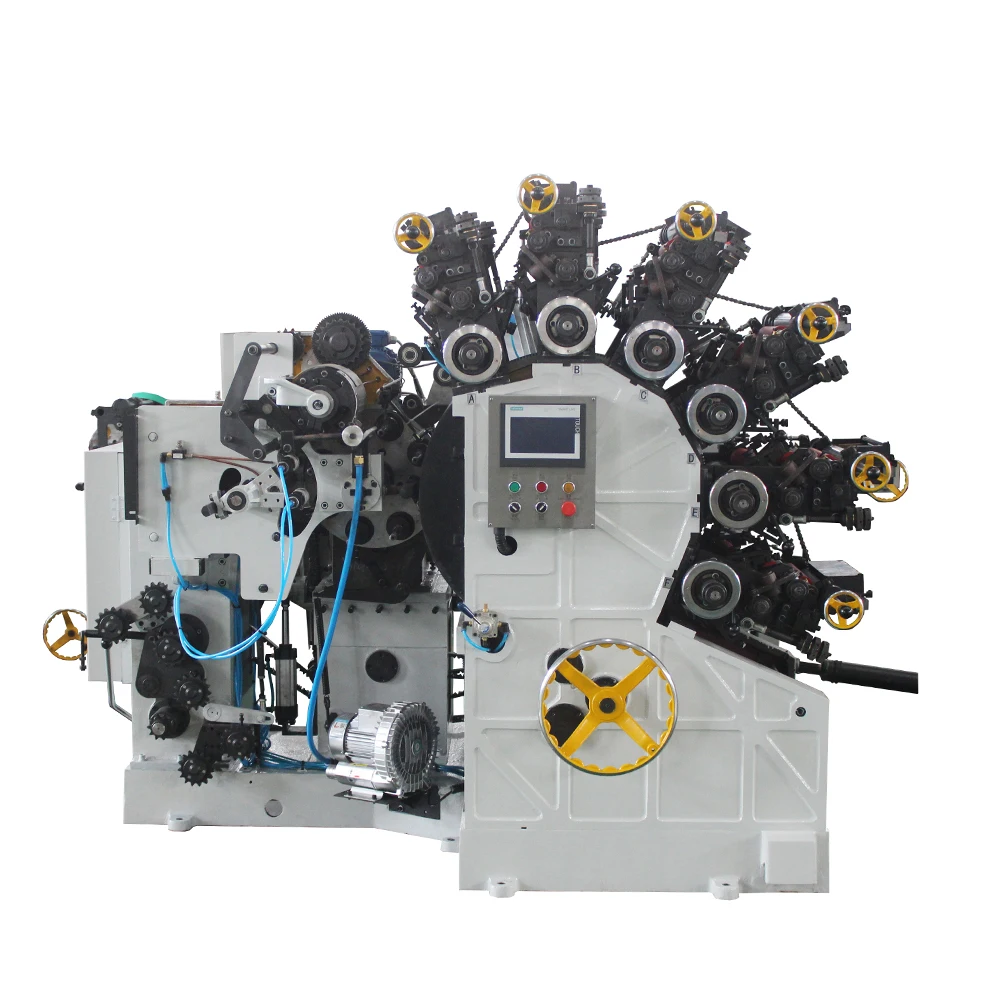

The aluminum tubes lines produced by our company are fully automatic. Each equipment of the series can work alone or form full or partial. The main machines include LJD01 Extrusion press, LWD01 Trimmer,THD01 Annealing oven, PTD02 and PTD03 Internal lacquering machine, THD05 Lacquer curing oven, DYD02 Base-coating machine,YSD01 4-color ,YSD02 5-color and YSD03 6-color printing machine, HXD01 Drying oven, NMD01 Capping machine and WTD01 Latexing machine.
All the equipment of the series is advanced in technology, of high quality, easy for maintenance, highly automated and much economical. Most devices adopt SIEMENS PLC to change frequency and speed. All ovens employ FUJI Temperature Controller to automatically control the working temperature. All the products can be passed automatically through the production line. The text displayer can show the instant information of speed and production at the stations of internal lacquering, printing and capping, which is convenient for management.
SPECIFICATIONS FOR 25 TON CRAWLER EXCAVATOR
Production speed:
≤60pieces/min
Diameter:
φ11㎜- φ22㎜or φ25㎜-φ35㎜
Motor power:
108KW or 135KW
Dimensions:
24000×3500×4200(㎜)
Intake pressure:
0.55MPA
SPECIFICATIONS FOR ALUMINUM TUBE MAKING LINE | ||
Production Speed | ≤60pieces/min | |
Tube Diameter Range | φ11㎜- φ22㎜or φ25㎜-φ35㎜ | |
Motor Power | 108KW or 135KW | |
Dimensions | 24000×3500×4200(㎜) | |
Intake Pressure | 0.55MPa | |
Weight | 20T | |
MAIN MACHINE

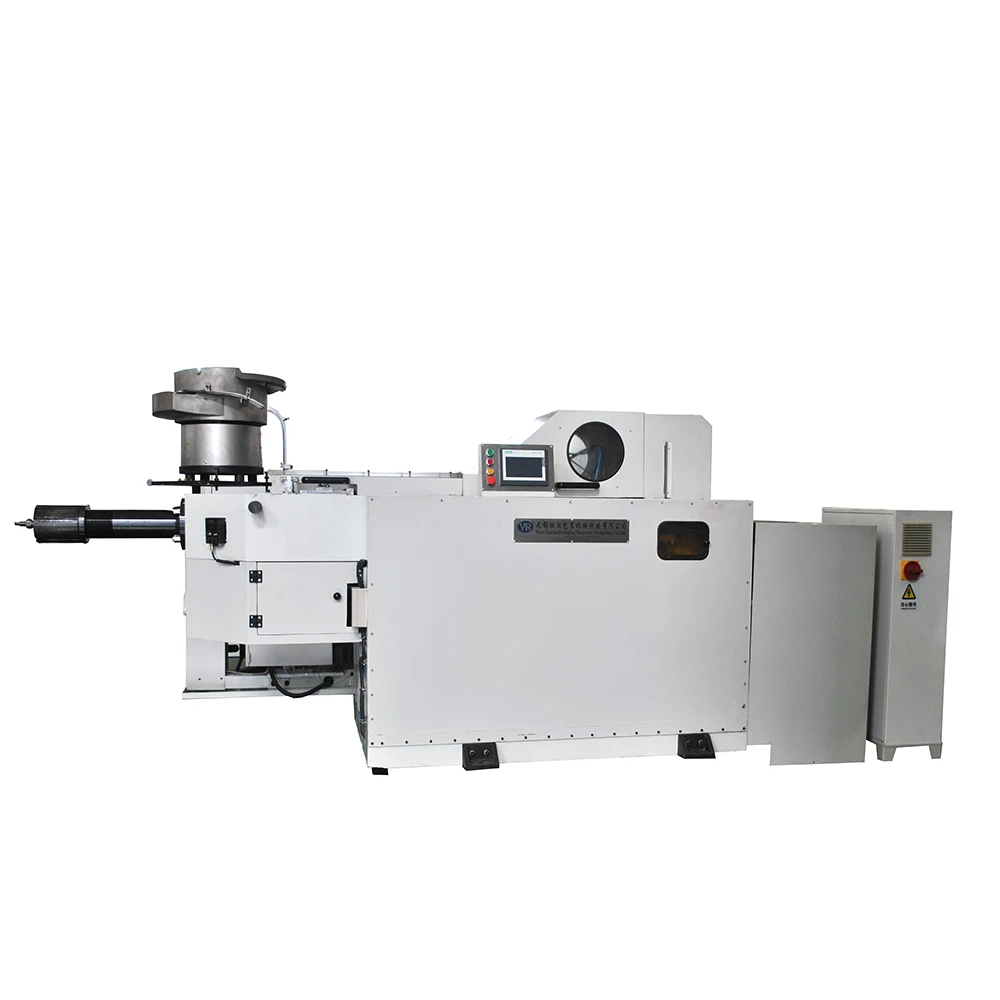

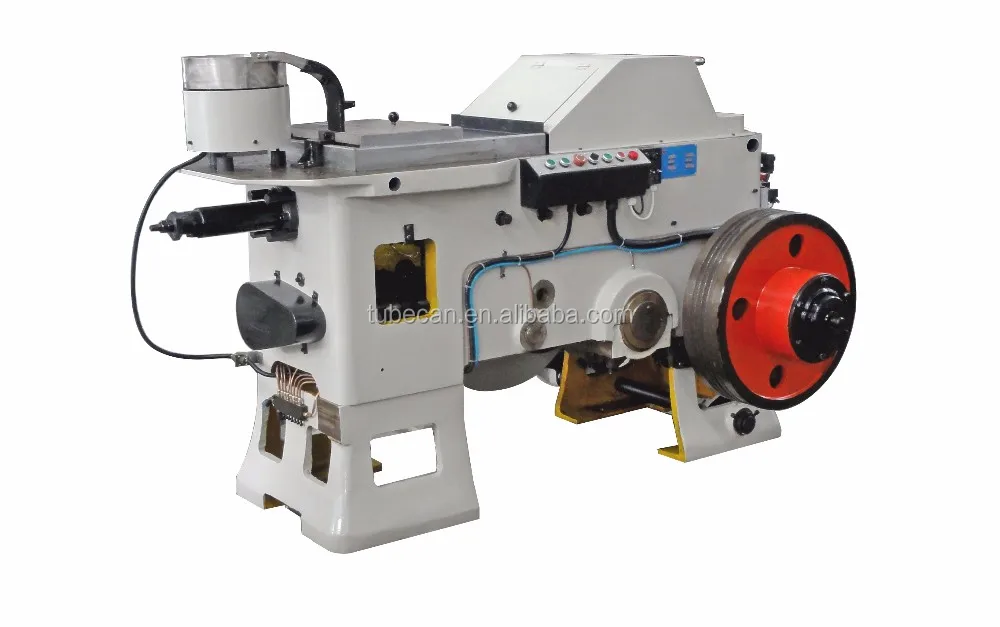

Name: LJ60 Extrusion press machine
Main technical parameters
A. Tube diameter range: φ11mm-φ22mm
B. Tube length range: <150mm
C. Production speed: ≤60tubes/min
D. Motor power: 4KW
E. Dimensions:2650*1500*1340mm
F. Weight: 3000 KG
Main technical parameters
A. Tube diameter range: φ11mm-φ22mm
B. Tube length range: <150mm
C. Production speed: ≤60tubes/min
D. Motor power: 4KW
E. Dimensions:2650*1500*1340mm
F. Weight: 3000 KG
- MAIN MACHINE

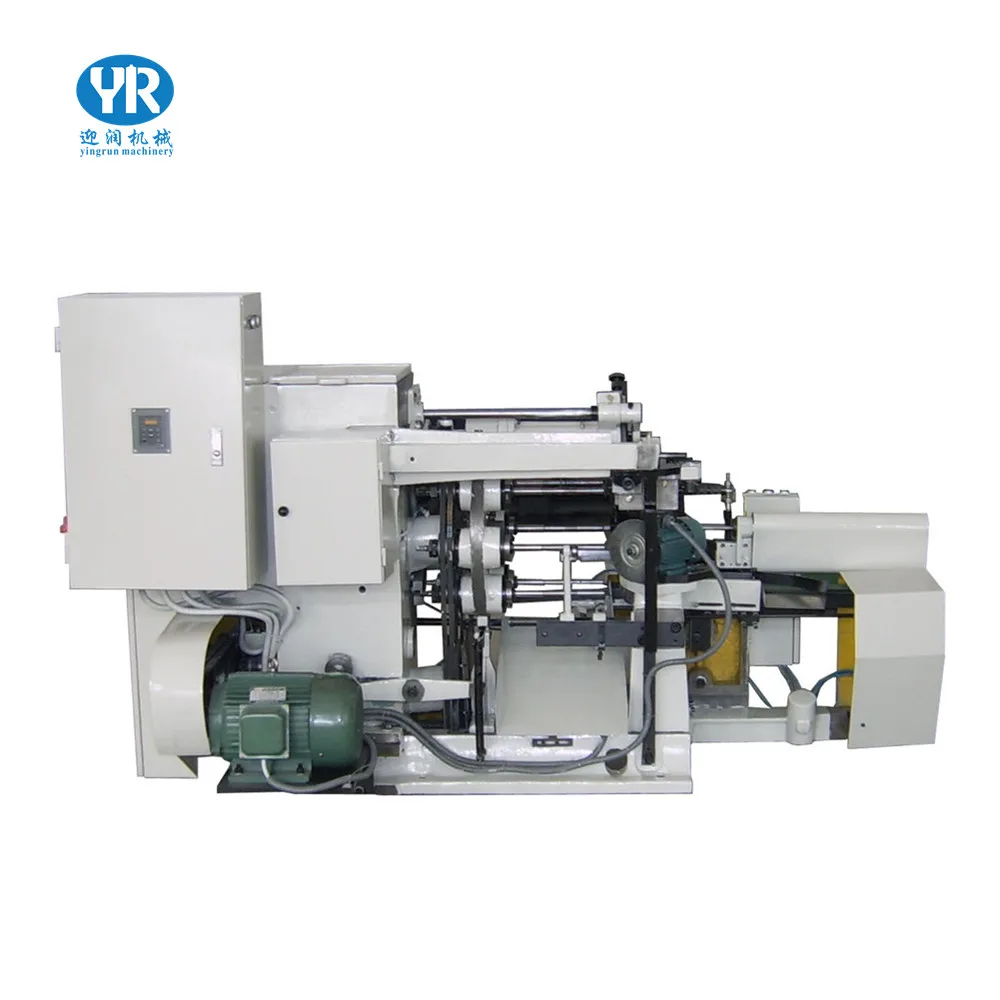

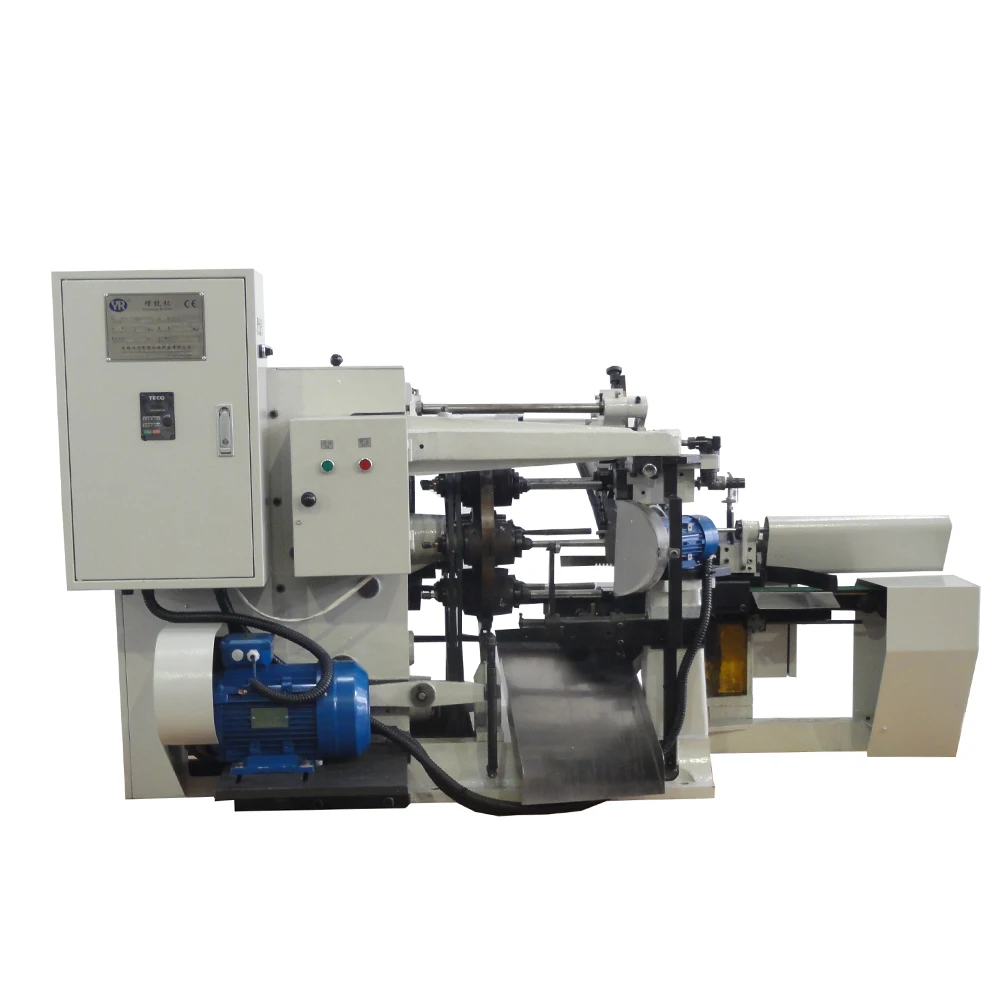

Name: LW01 Trimming machine
Main technical parameters
A. Tube diameter range: φ11mm-φ38mm
B. Tube length range: ≤185mm
C. Production speed: ≤60tubes/min
D. Motor power: 2.2KW
E. Dimensions: 2100*1750*1100mm
F. Weight: 1300KG
Main technical parameters
A. Tube diameter range: φ11mm-φ38mm
B. Tube length range: ≤185mm
C. Production speed: ≤60tubes/min
D. Motor power: 2.2KW
E. Dimensions: 2100*1750*1100mm
F. Weight: 1300KG
Packing&Shipping
PACKAGING
Size:
24 (L) * 3.5 (W) *4.2 (D)
Weight:
20 T
Packaging Details:
Vacuum treatment, wooden-case package
Size:
24 (L) * 3.5 (W) *4.2 (D)
Weight:
20 T
Packaging Details:
Vacuum treatment, wooden-case package
After Sales Service
ENGINEERS ONSITE GUIDACE
Experienced engineers team to the site to provide instructions.
Company Introduction
Wuxi Yingrun Machinery Technology Co., Ltd. Is located in beautiful Wuxi, China, only 150 kilometers away from Shanghai.
The company is mainly engaged in the production, sales, consulting and service of aluminum tube production line, aerosol can production line and toothpaste production line. We have more than 20 years of experience. Our products have passed the EU CE certification. Providing customers with better products and services is always our code of conduct. We also provide professional consulting and technical support to our clients.
The company is mainly engaged in the production, sales, consulting and service of aluminum tube production line, aerosol can production line and toothpaste production line. We have more than 20 years of experience. Our products have passed the EU CE certification. Providing customers with better products and services is always our code of conduct. We also provide professional consulting and technical support to our clients.
FAQ
Q: What's the MOQ?
A: 1 set.
Q: Are you trading company or manufacturer?
A: Both. We have our own factory to produce machines and also as the agents of some materials, such as parts, slug, latex...
Q: How long is your delivery time?
A: 1-10 months by negotiation.
Q: What's the warranty time?
A: One year start from installed.
A: 1 set.
Q: Are you trading company or manufacturer?
A: Both. We have our own factory to produce machines and also as the agents of some materials, such as parts, slug, latex...
Q: How long is your delivery time?
A: 1-10 months by negotiation.
Q: What's the warranty time?
A: One year start from installed.
