Product Description:

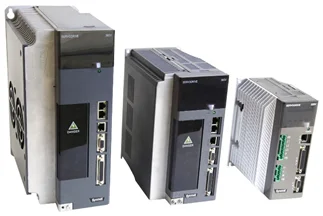

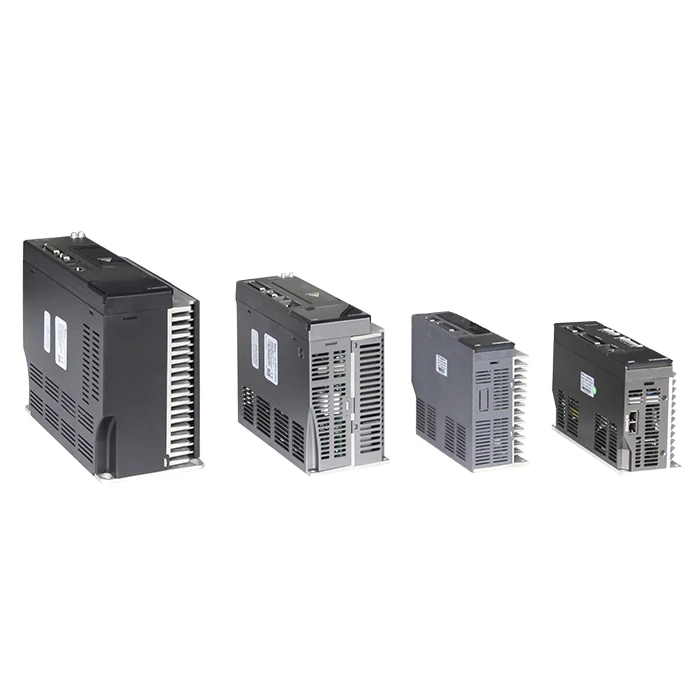

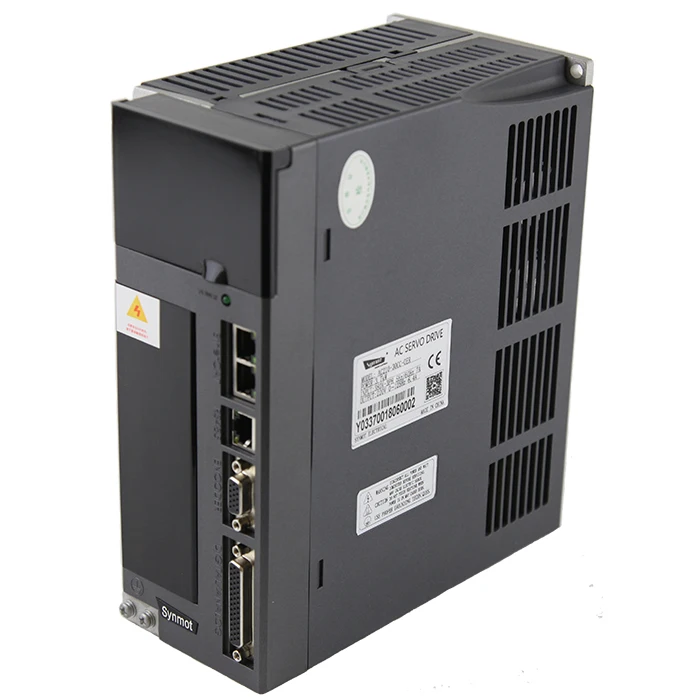

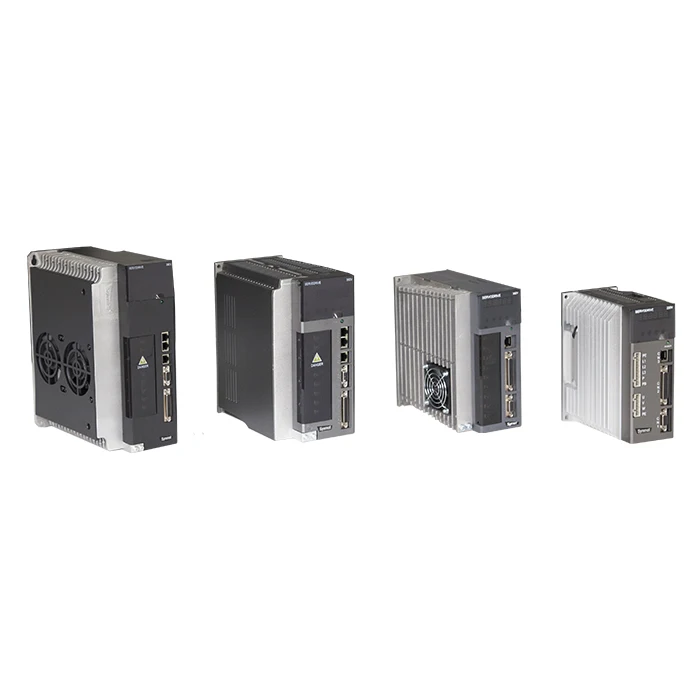

Synmot 10 series servo drive adopt the special digital processing DSP of motor and the newest IGBT module .which have the advantages of fast dynamic response.high reliability.come function and convenient operation .with high speed and low magnetic control function.it can effectively extend the range of motor operation .and the system can work normally at very low voltage .
Product Parameter:
| Model | Input Voltage | Rated Power | Rated Current | Maxed Current | Motor Capacity | Braking Resistor | Mounting hole size | Weight |
| Vac | kW | A | A | kW | Ω | R | kg | |
| SM10-40BA | 1PH/3PH AC220V -15%_+10% (50/60HZ) | 0.4 | 2 | 4 | 0.4 | ----- | ∅5 | 2 |
| SM10-75BB | 0.75 | 3 | 5 | 0.75 | ∅5 | 2 | ||
| SM10-10CB | 1 | 5 | 8 | 1 | ∅5 | 2 | ||
| SM10-15CB | 1.5 | 6 | 11 | 1.5 | ∅5 | 2.5 | ||
| SM10-22CB | 2.2 | 7 | 13 | 2.2 | ∅5 | 2.5 | ||
| SM10-30CB | 3 | 10 | 18 | 3 | ≥60 | ∅6 | 4 | |
| SM10-40CB | 4 | 12 | 22 | 4 | ∅6 | 4 | ||
| SM10-55CB | 5.5 | 17 | 31 | 5.5 | ∅6 | 4 | ||
| SM10-30CC | 3PH AC380V -15%-+10% (50/60HZ) | 3 | 7 | 13 | 3 | ≥60 | ∅6 | 4 |
| SM10-40CC | 4 | 10 | 18 | 4 | ∅6 | 4 | ||
| SM10-55CC | 5.5 | 13 | 24 | 5.5 | ∅5 | 4 | ||
| SM10-75CC | 7.5 | 17 | 31 | 7.5 | ∅6 | 7 | ||
| SM10-11DC | 11 | 25 | 45 | 11 | ≥32 | ∅6 | 7 | |
| SM12-75BB | 1PH/3PH AC220V -15%-+10% (50/60HZ) | 0.75 | 3 | 5 | 0.75 | ----- | ∅5 | 1.6 |
| SM12-10CB | 1 | 5 | 8 | 1 | ∅6 | 2 | ||
| SM12-15CB | 1.5 | 6 | 11 | 1.5 | ∅6 | 2 | ||
| SM12-22CB | 2.2 | 7 | 13 | 2.2 | ∅6 | 2 | ||
| SM22-11DC | 3PH AC380V -15%-+10% (50/60HZ) | 11 | 25 | 45 | 7.5-11 | ≥32 | ∅7 | 12 |
| SM22-15DC | 15 | 32 | 51 | 13-15 | ∅7 | 12 | ||
| SM22-18DC | 18 | 37 | 67 | 18.5 | ≥16 | ∅7 | 12 | |
| SM22-22DC | 22 | 45 | 85 | 22 | ∅8 | 21 | ||
| SM22-30DC | 30 | 60 | 99 | 25-30 | ∅8 | 21 | ||
| SM22-37DC | 37 | 75 | 149 | 34-37 | ≥8 | ∅10 | 32 | |
| SM22-45DC | 45 | 90 | 159 | 42-45 | ∅10 | 32 | ||
| SM22-55DC | 55 | 115 | 202 | 47-55 | ∅10 | 40 | ||
| SM22-65DC | 65 | 130 | 240 | 56-65 | ∅10 | 40 | ||
| SM22-75DC | 75 | 150 | 270 | 66-75 | ∅10 | 66 | ||
| SM22-90DC | 90 | 175 | 318 | 76-90 | ≥6 | ∅10 | 66 | |
| SM22-11EC | 110 | 205 | 378 | 92-110 | ∅10 | 66 |
Mounting Dimensions :
Company Information
FAQ
1.Q:Can i get sample ?
A:We are hornered to offer you sample for quickly check .
2.Q:Do you have the product in stock ?
A:All standard models we got in stock .special products are manufactured according to your requirement .
3.Q:When do you delivery ?
A:It usually take 3-7 working days .but the exactly time vary from different order at the different time .
4.Q:How long can it works ?
A:Properly use can work for 3 years .
5.Q:Warranty period ?
A:18 months after the days then the products leave our factory .
6.Q:Payment period ?
A:In general.30% by T/T of the amount as deposit .70% by T/T of the amount need be paid within one week after the day when you receive the copy of the B/L by email or consultations .
