manmade stone quartz stone basin sink molding pressing machine

Product Overview

Description

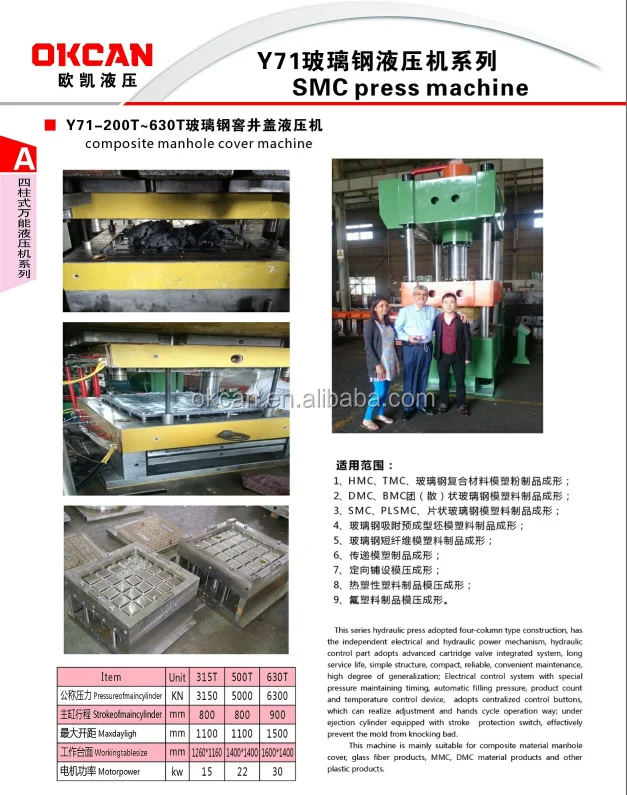

  Y71 type fiber glass  manhole cover  machine

This series hydraulic press adopted four-column type construction, has the independent electrical and hydraulic power mechanism, hydraulic control part adopts advanced cartridge valve integrated system, long service life, simple structure, compact, reliable, convenient maintenance, high degree of generalization; Electrical control system with special pressure maintaining timing, automatic filling pressure, product count and temperature control device, adopts centralized control buttons, which can realize adjustment and hands cycle operation way; under ejection cylinder equipped with stroke protection switch, effectively prevent the mold from knocking bad.

This machine is mainly suitable for composite material manhole cover, glass fiber products, MMC, DMC material products and other plastic products.





Technical parameters:



Item	Unit
Pressure of main cylinder	KN	3150	5000	6300
Stroke of main cylinder	mm	800	800	900
Working table size	mm	1260*1160	1400*1400	1600*1400
Max daylight	mm	1100	1100	1500
Motor power	kw	18.5	22	30





Note:the prarameter can be designed according to your requirement
