Model G and model F Drill Pipe Float Valve
- Category: >>>
- Supplier: Dongying Kangya Petroleum Equipment Co. Ltd.
Share on (62333683642):
Product Overview
Description
Product Description
Product Application

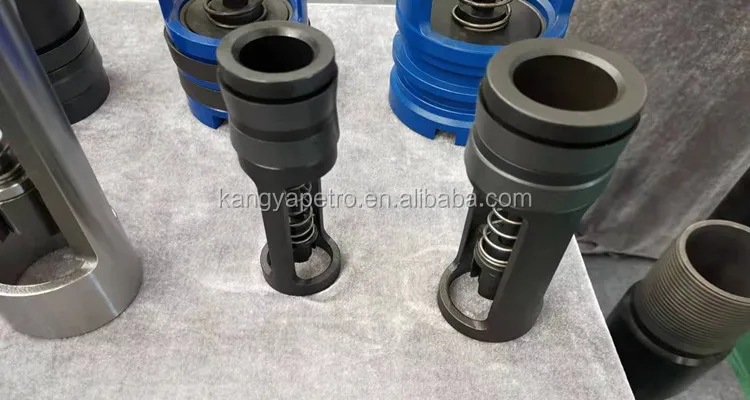

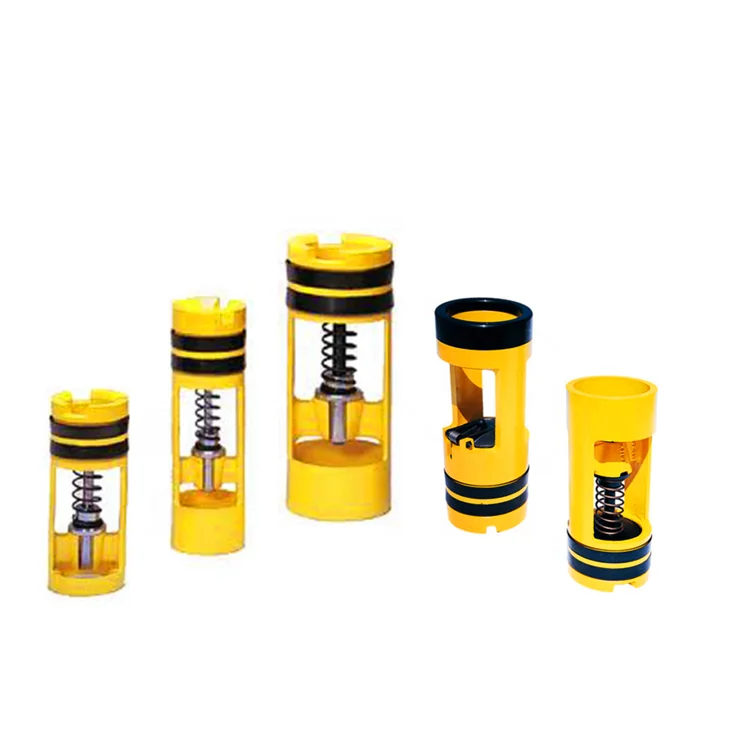

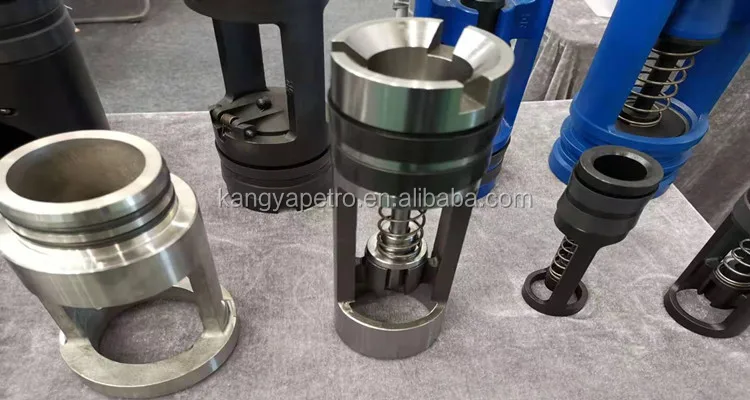

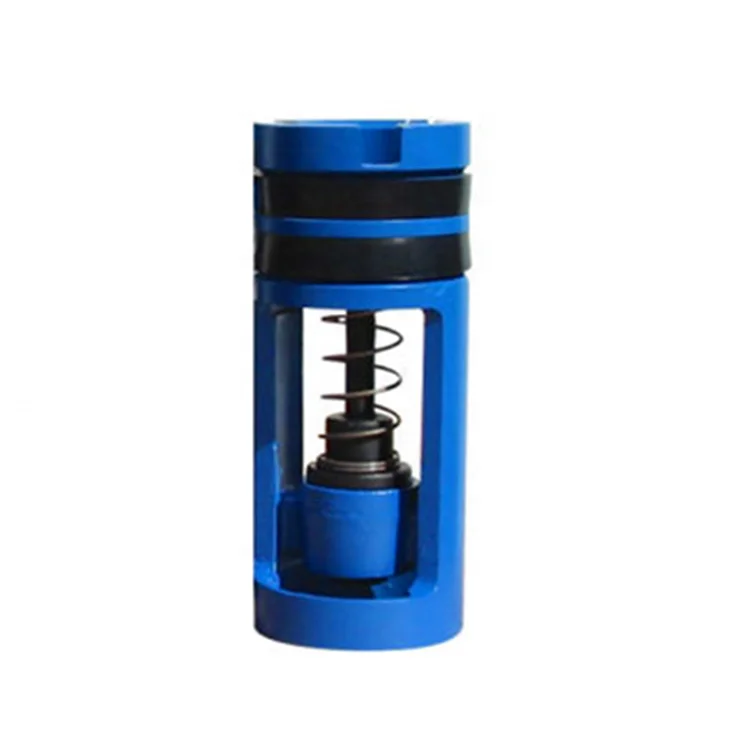

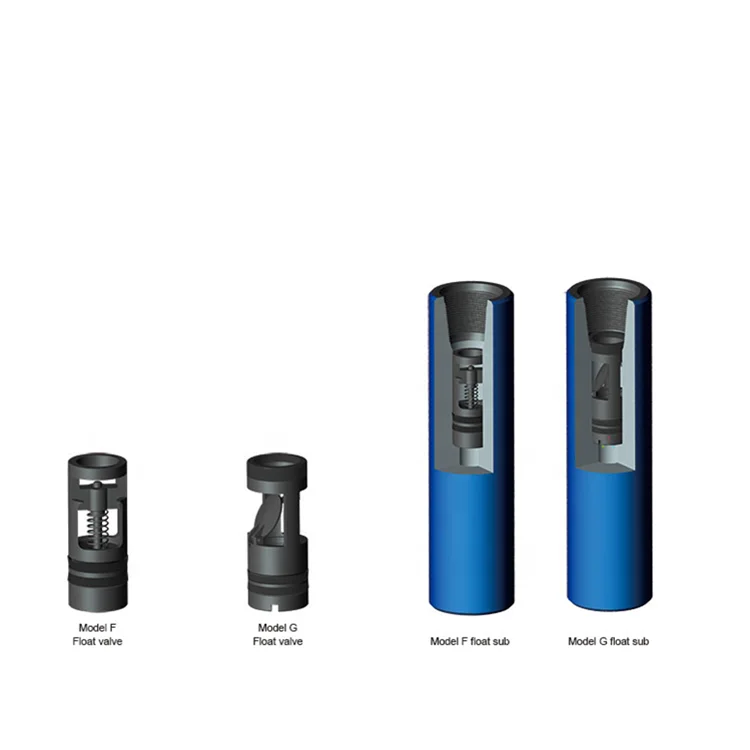

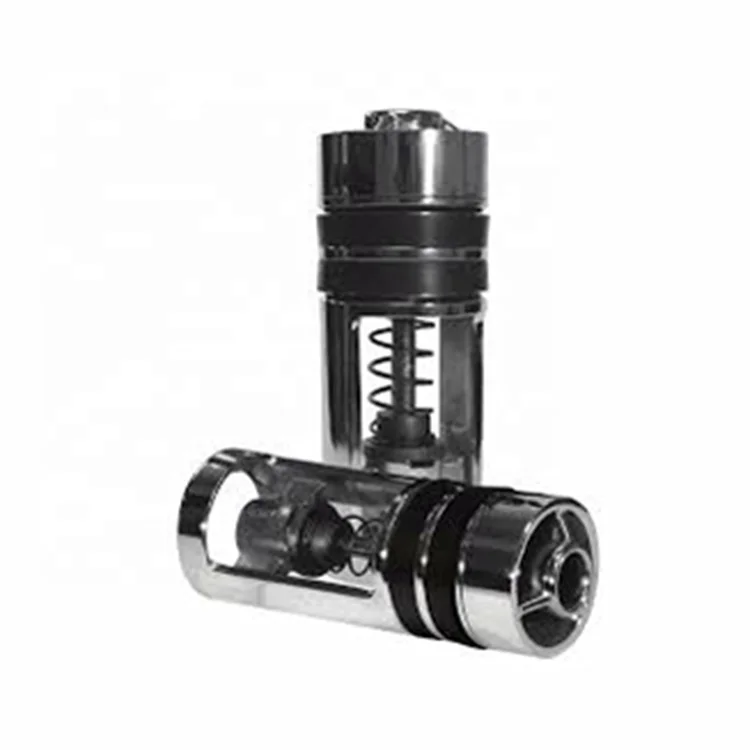

Model F Plunger Type Float Valve 1F2R-5F6R for Assembly Model F
The Model F Float Valve is a plunger-type float valve that provides a positive instantaneous shut off,providing constant fluid
control while drilling,The model F is a reliable and the most economical selection under standard drilling operations.

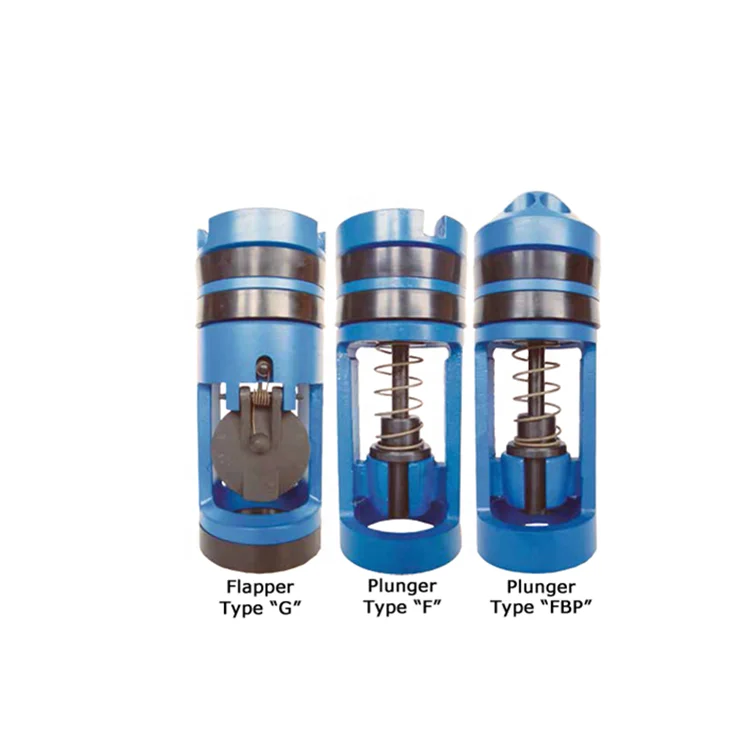

Model G Flapper Type Float Valve 2F3R-5F6R for Assembly Model G
The Model G is a flapper-type float valve that,when opened ,offers unrestricted bore through the float valve.The uniquely designed
flapper closes rapidly to prevent cutting from entering the drill string when circulation stops and also assists primary BOP
equipment in maintaining internal pressure control.
Model FA Plunger Type Float Valve 1F2R-5F6R for Assembly Model FA
The Model FA Float Valve has a special port running through the plunger of the float valve,This valve is used when monitoring the
bit head for gas pressure and allowing differential pressure measuring when required .The port also permits partial automatic fill
during run
Model GA Flapper Type Float Valve 2F3R-5F6R for Assembly Model GA
The Model GA Float Valve is indistinguishable from the Model G with the exception of a tungsten-cabide insert in the flapper
valve,The insert has a quarter-inch orifice through the center that allows for differential pressure monitoring .The port also
permits partial automatic fill during run in .
Specification
The Model F Float Valve is a plunger-type float valve that provides a positive instantaneous shut off,providing constant fluid
control while drilling,The model F is a reliable and the most economical selection under standard drilling operations.
Model G Flapper Type Float Valve 2F3R-5F6R for Assembly Model G
The Model G is a flapper-type float valve that,when opened ,offers unrestricted bore through the float valve.The uniquely designed
flapper closes rapidly to prevent cutting from entering the drill string when circulation stops and also assists primary BOP
equipment in maintaining internal pressure control.
Model FA Plunger Type Float Valve 1F2R-5F6R for Assembly Model FA
The Model FA Float Valve has a special port running through the plunger of the float valve,This valve is used when monitoring the
bit head for gas pressure and allowing differential pressure measuring when required .The port also permits partial automatic fill
during run
Model GA Flapper Type Float Valve 2F3R-5F6R for Assembly Model GA
The Model GA Float Valve is indistinguishable from the Model G with the exception of a tungsten-cabide insert in the flapper
valve,The insert has a quarter-inch orifice through the center that allows for differential pressure monitoring .The port also
permits partial automatic fill during run in .
Specification
Model G I.D. of Valve | Model F I.D. of Valve | Size Valve | D = Diameter of Valve | R = (D Plus 1/32) Diameter of Recess for Valve | L = Length of Valve | T* = Diameter of Recess for TOTCO Spider |
N/A | 1 | 1R | 1 21/32 | 1 11/16 | 5 7/8 | 1 5/16 |
1 | 1 1/4 | 1F2R | 1 29/32 | 1 15/16 | 6 1/4 | 1 1/2 |
1 1/4 | 1 9/16 | 2F3R | 2 13/32 | 2 7/16 | 6 1/2 | 1 29/32 |
1 5/8 | 1 7/8 | 3F | 2 13/16 | 2 27/32 | 10 | 2 7/16 |
1 5/8 | 1 7/8 | 3 1/2IF | 3 1/8 | 3 5/32 | 10 | 2 11/16 |
1 31/32 | 2 5/16 | 4R | 3 15/32 | 3 1/2 | 8 5/16 | 2 15/16 |
2 3/16 | 2 1/2 | 4F | 3 21/32 | 3 11/16 | 12 | 3 1/4 |
2 1/4 | 2 3/4 | 5R | 3 7/8 | 3 29/32 | 9 3/4 | 3 3/8 |
2 7/8 | 3 1/4 | 5F6R | 4 25/32 | 4 13/16 | 11 3/4 | 4 9/32 |
4 1/18 | 6F | 5 11/16 | 5 23/32 | 14 5/8 | 5 3/16 |
We make a complete line of Float Valves and Repair Kits to accommodate a wide range of drilling situations and operating
conditions.
Spare Parts for Model G Type Drill Pipe Float Valve include: 1.Small Bumper 2.Spring 3.Pin 4.Large Bumper 5.Shock Absorber 6.Seal
Retainer 7.Flapper Valve 8.Seal 9.Side Seal 10.Cage
Spare Parts for Model F Type Drill Pipe Float Valve include: 1.Valve Seal Disc 2.Plunger 3.Side Seal 4.Valve Seal 5.Guide 6.Spring
7.Cage
Product Overviews
conditions.
Spare Parts for Model G Type Drill Pipe Float Valve include: 1.Small Bumper 2.Spring 3.Pin 4.Large Bumper 5.Shock Absorber 6.Seal
Retainer 7.Flapper Valve 8.Seal 9.Side Seal 10.Cage
Spare Parts for Model F Type Drill Pipe Float Valve include: 1.Valve Seal Disc 2.Plunger 3.Side Seal 4.Valve Seal 5.Guide 6.Spring
7.Cage
Product Overviews
Certifications
Packing & Delivery
Company Profile
Dongying Kangya Petroleum Equipment Co.,Ltd.is a professional manufacturer and supplier of all types of petroleum equipment.The company is located in Dongying, the beautiful petroleum city at Yellow River Delta, covers an area of more than 330 million square
meters.
And we have many years of history in the petroleum equipment industry.Our main products include drilling equipment,oil production equipment,wellhead equipment,well control equipment,downhole tools,OCTG pipe, vavle & pipe fitting and oilfield tools. Currently,our products is already exported to America, Middle East, Australia,Africa and 20 other countries and regions.
Our company has always focused on research, development and innovation.Kangyapetro will initiate the second phase of our development strategy.Our company regards "reasonable prices, efficient production time and good after-sales service" as our tenet.
We hope to cooperate with more customers for mutual development and benefits. We welcome potential buyers to contact us.
meters.
And we have many years of history in the petroleum equipment industry.Our main products include drilling equipment,oil production equipment,wellhead equipment,well control equipment,downhole tools,OCTG pipe, vavle & pipe fitting and oilfield tools. Currently,our products is already exported to America, Middle East, Australia,Africa and 20 other countries and regions.
Our company has always focused on research, development and innovation.Kangyapetro will initiate the second phase of our development strategy.Our company regards "reasonable prices, efficient production time and good after-sales service" as our tenet.
We hope to cooperate with more customers for mutual development and benefits. We welcome potential buyers to contact us.
FAQ
1) How can I place order?
A: You can contact us by email about your order details, or place order on line.
2) How can I pay you?
A: After you confirm our PI, we will request you to pay. T/T and Western Union are the most usual ways we are using.
3) What's the order procedure?
A: First we discuss order details, production details by email or TM. Then we issue you an PI for your confirmation. You will be requested to do pr -epaid full payment or deposit before we go into production. After we get the deposit, we start to process the order. We usually need 15-25days if we don't have the items in stock. Before production has been finished, we will contact you for shipment details, and the balance payment. After payment has been settled, we start to prepare the shipment for you.
4)How do you take care when your clients received defective products?
A: replacement. If there are some defective items, we usually credit to our customer or replace in next shipment.
5)How do you check all the goods in the production line?
A: We have spot inspection and finished product inspection. We check the goods when they go into next step production procedure.
