5T/h full automatic wheel tire recycle machine to recycled tires

Product Overview

Description

Promotion Now!



Advantages

1. CE, ISO , excellent seal and long life.

2. High production efficiency

3. Less energy consumption

4. Reliable structure, easy to be operated.







Truck Car Tire Granulating Used Tire Recycling Production Line Waste Tyre Recycling Machine

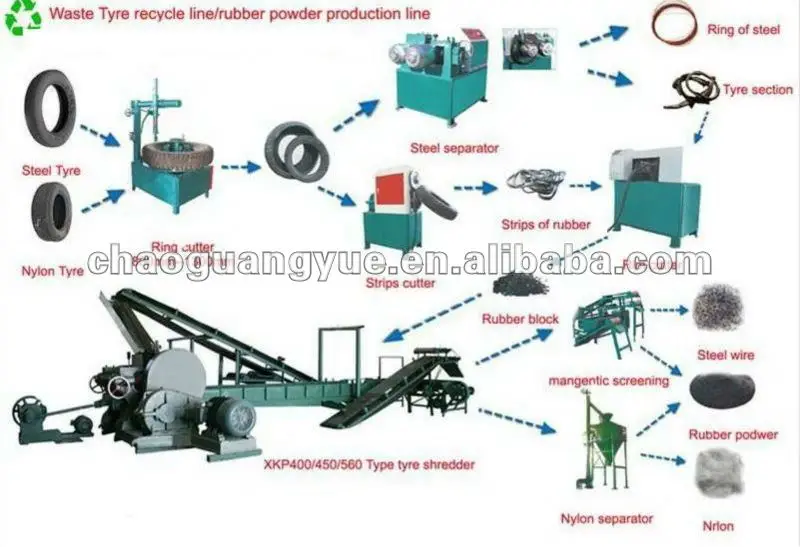

waste tire→cutting diameter of hub→cutting strips→cutting blocks→separate steel wire→crush rubber blocks→making powder→magnetic separation→final products(rubber powder)





1. Ring cutter



Function: will whole tire cutting into tire crown, the side of the tire and inner circle



Power	Blades rotating speed	Adapt tire	Productivity	Dimensions	Weight
3kw	15R/MIN	650-1200	30strips	1150*850*1200	0.5t





2. Strips cutter



Function: various tire, glue, glue board piece cut into long strips



Power	Productivity	diameter	Output size	Equipment size	weight
4kw	20strips/h	650-1200	25-55	1230*650*1580	0.8t





3. Rim cutter



Functions: this machine should cut machine tyres, used for supporting the use of the strip cut into 3-5CM glue pieces.



Power	Productivity	Output size	Equipment size	Weight
7.5kw	0.8-1.0t/h	35*35	780*550*1210	0.8t





4. Steel wire separator



Function: tires circle wire centrifuges, mouth will tire of coarse steel mouth circle parts with rubber effective separation



Power	Blades rotating speed	Adapt tire	Productivity	Dimensions	Weight
11kw	18R/MIN	650-1200	1-2strips/min	1.7*1.2*1.3m	1500kg





5.Rubber crusher



Type&Specification	XKP-400	XKP-450	XKP-560
Feeding size	3.5CM	3.5CM	3.5CM
Discharging size	10—30 mesh powder	10--30 mesh powder	10--30 mesh powder
Rubber crusher throughput(kg/h)	100--150kg	250—300kg	350—420kg
Motor power(kw)	45	60	75
Outside measurement(m)	4.1×1.8×1.9	4.4×1.9×1.9	5.5×2.2×2.1
Weight(t)	7.5	11	19
