HBFL Automatic Reinforce Steel Rebar Weld Fence Panel Wire Mesh Make Machine
- Category: >>>
- Supplier: Hebei Fanlian Import And Export Trade Co. Ltd.
Share on (62333788819):
Product Overview
Description
HBFL Automatic Reinforce Steel Rebar Weld Fence Panel Wire Mesh Make Machine
Product Introduction
About the machine:

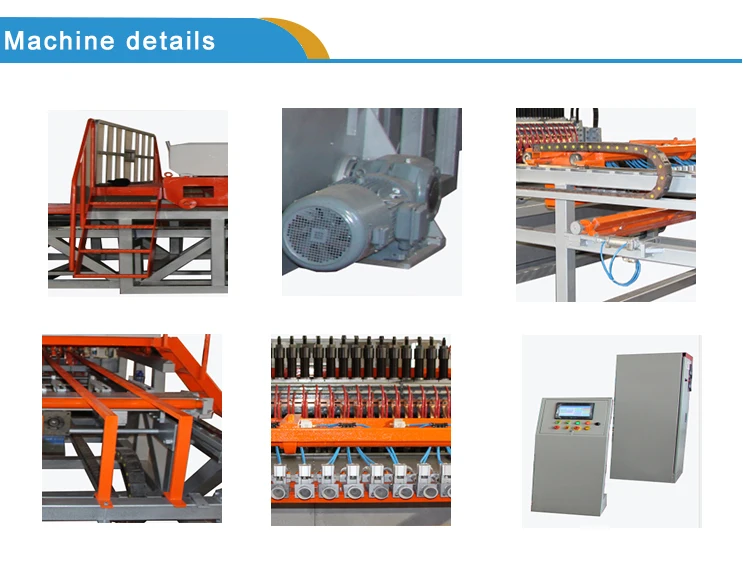

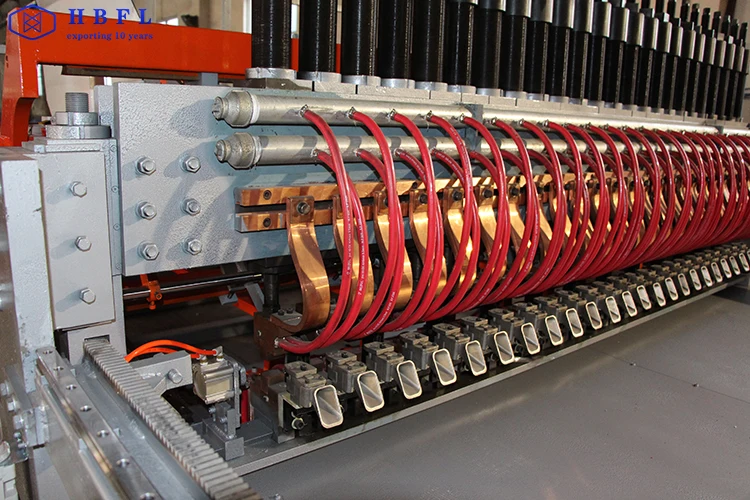

1.Main Machine:Compress tightly once time and welding separately,it could promise the welding firmness.It include welding machine part,mesh dropping parts,mesh pulling part,and PLC control cabinet.
2.PLC Control system adopts programming technique from Mitsubishi of Japan,touch screen operating,Chinese-English display,easy operation.
3.Mesh pulling system adopts PLC programming system,servo motor controlling,higher precision,it could realize different mesh size.

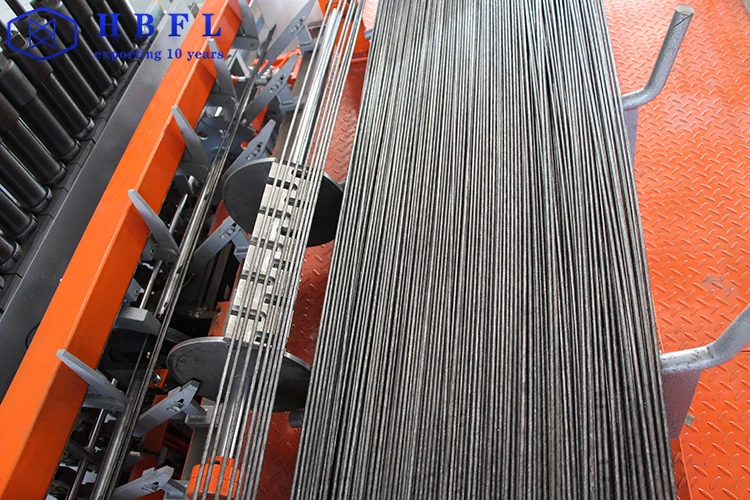

4.Cross wire feeding system adopts store holder,mesh dropping aromatically,easy and convenient operation.
5.Mesh dropping system automatically.
Product parameter
Basic Technical Parameter:
Wire rod | 5-12mm |
Mesh panel width | 2.0m |
Mesh panel length | 4.0m |
Mesh opening size | 100-300mm |
Welding frequency | 50-70times/min |

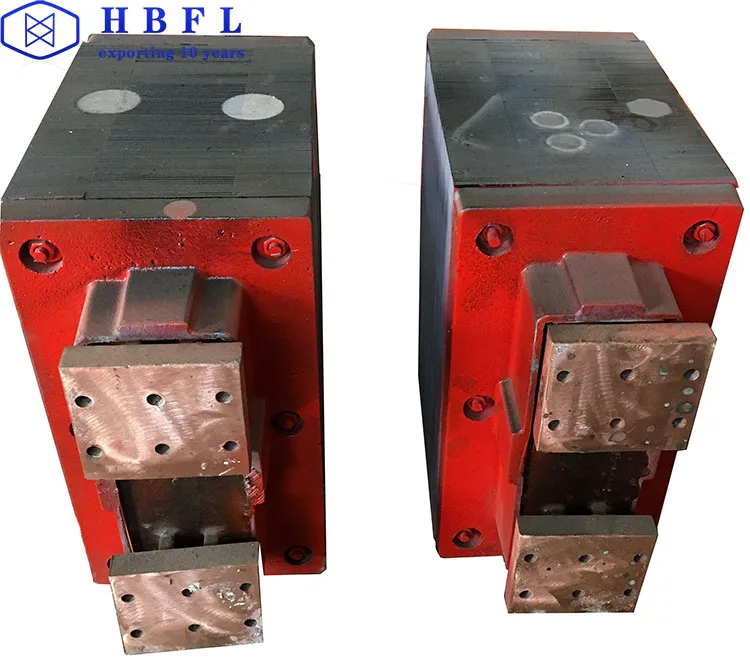

Transformer KVA water cooling | 125KVA*11sets |
Voltage | 380v |
Current frequency | 50hz |
Control system | PLC totally touch screen |
Welding type | Pneumatic |
Mesh panel Stretch type | Servo motor |
wire feeding type | Pre-straightening & cutting |
Cross wire hopper feeder | 1 ton |
Trolley power | 3.5KWservo motor +Precision reducer |
Seine runway | rack gear |
Seine car | Pneumatic opening and closing (noise reduction, precise return) |
Outside dimension(length*width*height) | 20*3.2*1.9m |
Weight | 8tons |
Wire straightening and cutting machine | 2sets |
Working Condition:
Item | Working condition |
external power source | Three-phase power 380V50HZ, distance from main control cabinet ≤50 meters, power supply voltage fluctuation ≤±5% |
The control voltage | DC24V |
The power supply capacity | 1500KVA |
Three times welding main transformer power | 250-500KVA |
Single-phase load area of power line | The copper wire is 120 square |
The surrounding environment | Temperature 0 ~ 40℃, air relative humidity (25℃) ≤90% |
The cooling system | Clean, neutral to slightly alkaline (PH=7 ~ 8) water, flow 5.12m3/h, inlet temperature 25 ~ 30℃, inlet pressure 0.15 ~ 0.3mpa, cooling capacity of 29kw |
Air supply requirements | The working pressure is 0.6mpa and the flow is about 130 m3/h |
Product advantages
Company Profile
Packaging and logist
Q1:In. order to offer you an accurate price of the machine, pls confirm the following points?
A1:Wire diameter range/ mesh size rang/panel width range/panel length range/your usage of the finished panel.
Q2:delivery time?
A2:In 30 days after get your deposit.
Q3:will you test the machine before loading?
A3:Yes we will test the machine before loading .
Q4:can you customized the machine?
A4:Yes we can.
A5:if you have more question, pls come to me,I will try my best to support you.
