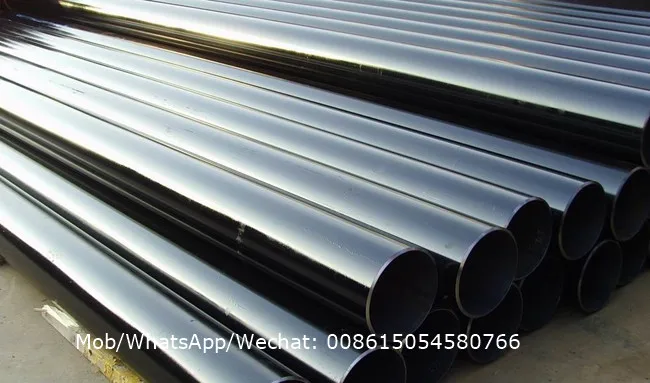

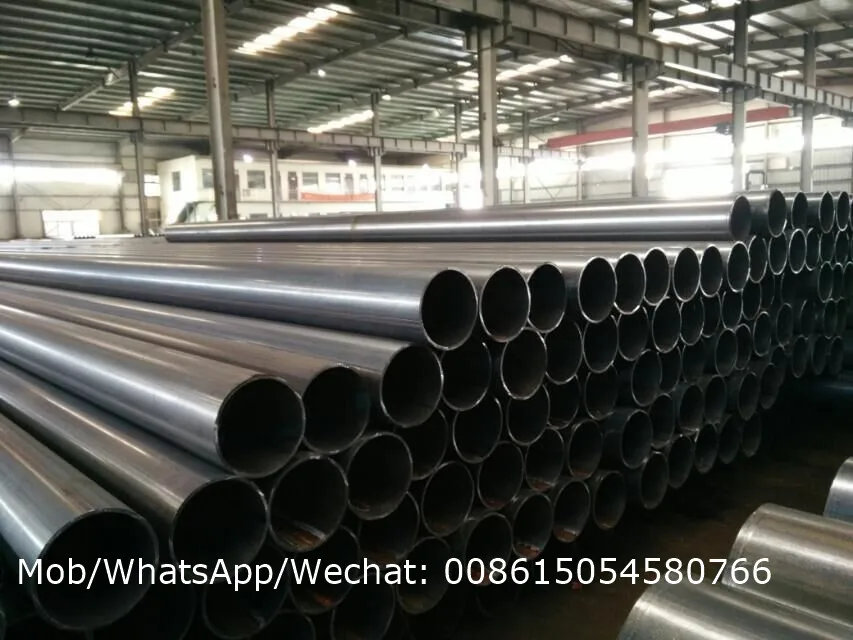

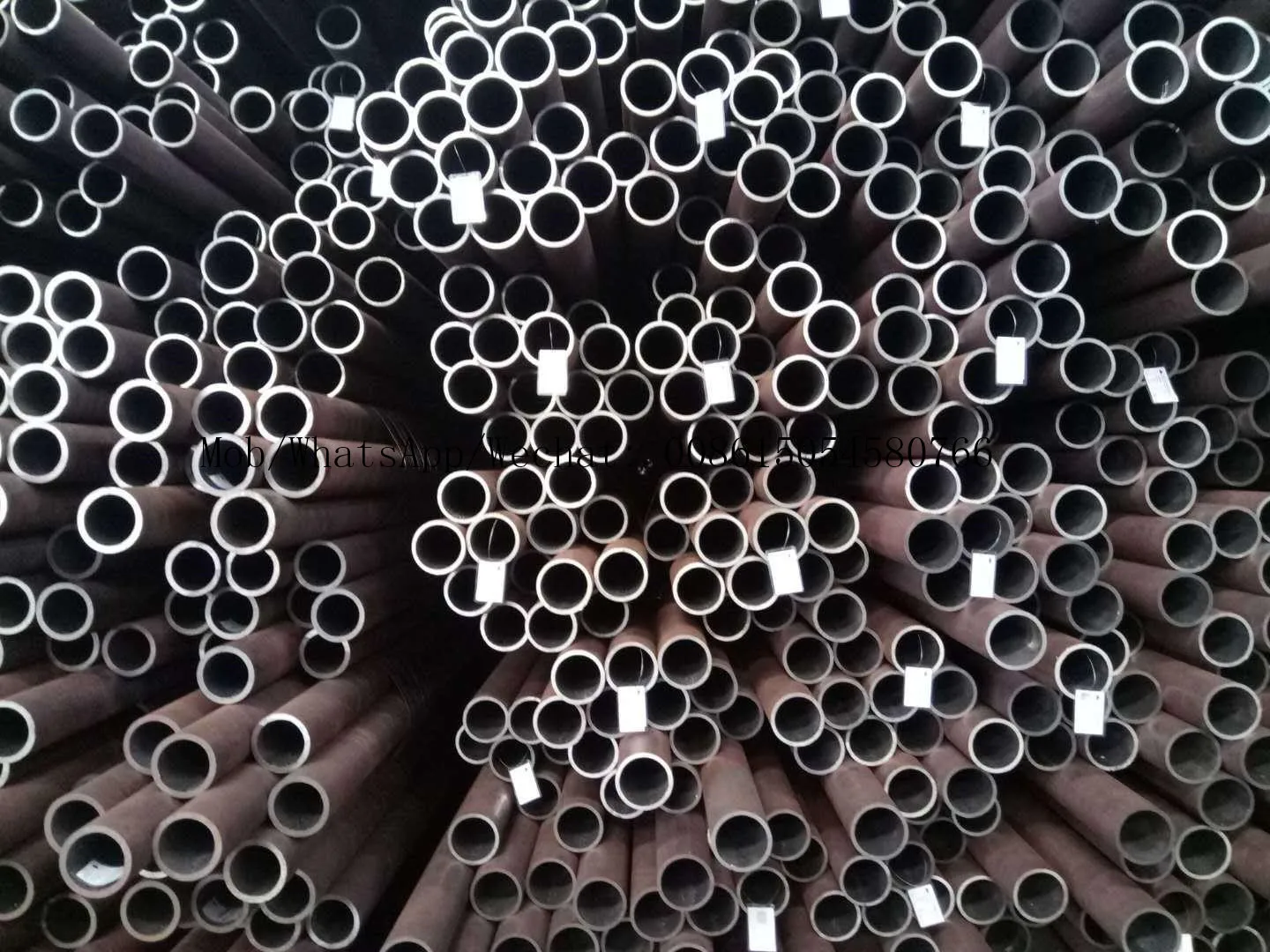

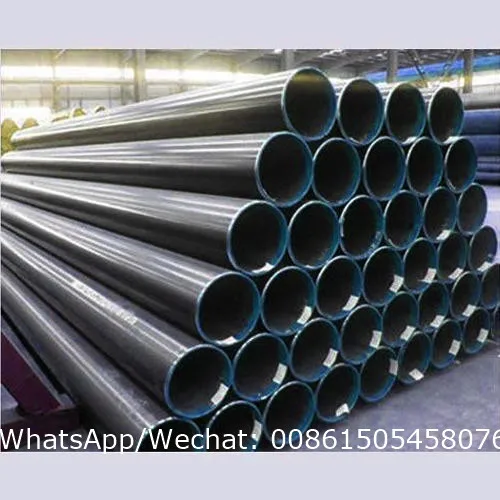

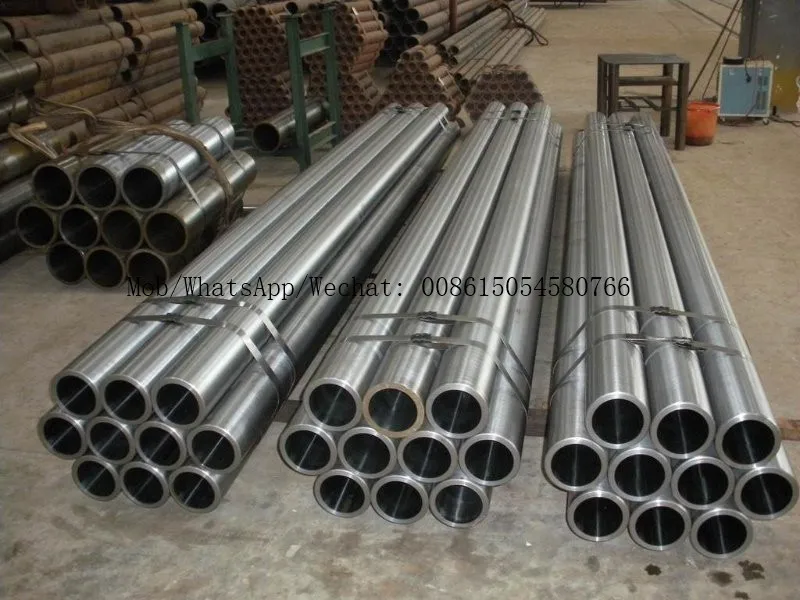

Shandong Xinhuihe Steel API 5L GRADE X42 X52 X60 X65 X70 PSL1 PSL2 seamless carbon steel line pipe
- Category: >>>
- Supplier: Shandong Xinhuihe Steel Co. Ltd.
Share on (62333870895):
Product Overview
Description
Product Description

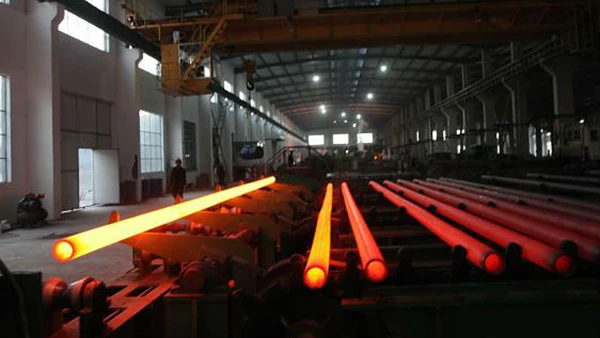

X52 line pipe manufacturing process

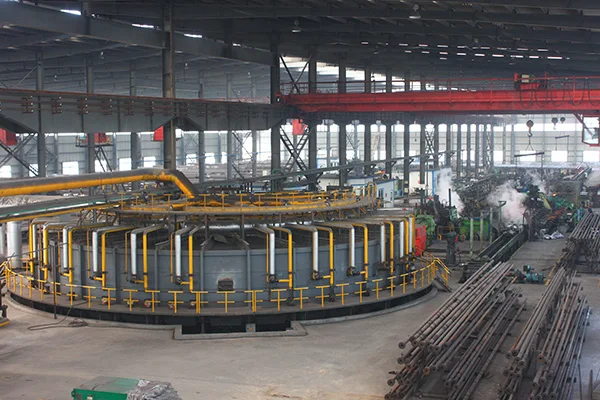

1. Ring furnace heating control
Raw material placing angle: 2.8 ° C.Temperature control: Preheating section: 650-750 °C, preheating a section of 950-1080 °C, heating a section of 1100-1200 °C, heating two sections of 1200-1250 °C, heating three sections of 1260-1280 °C, soaking section of 1270-130 °C , the second section of the soaking heat 1270-1310 ° C (normal production control according to the upper limit).
2. Punch control
When adjusting the hole type, the top front reduction rate is ≤5%, the rolling speed is ≤0.7M/s, and the capillary temperature is controlled at 1200-1220°C.
3. Rolling mill control:
Rolling speed ≤0.35M/S, high pressure water is opened in the background, the head and tail of the waste pipe should be sprayed,but not black, the temperature of the waste pipe is controlled at 1000-1100 °C.
4. Small cold bed: open high pressure water jacket and fan to strengthen the steel pipe here.
5. Sizing machine control:
Use medium and thick wall pipe rolling speed, sizing inlet temperature ≤ 850 ° C, outlet temperature ≤ 750 ° C, high pressure water for cooling in the background
6. Thermal sampling control:
One of the open rolling heads is sampled, one for each of the head and tail samples, and the wall thickness, outer diameter and length of the steel pipe are carefully measured, and the rolling mill and the sizing machine are adjusted according to the measurement results, and all the geometrical dimensions of the steel pipe are satisfied. Process requirements for continuous production. Each batch must be sampled and checked in the class.
7. Cooling bed control
Inter-branched fabric: Select fast-forward mode. In this group batch, the batch batch mode should not exceed 200 packs/batch after cutting.
8. Straightening machine control
Carefully adjust the straightening machine to ensure that the bending is acceptable. Be careful not to cause the steel pipe to have concave and scratch defects.
1. Ring furnace heating control
Raw material placing angle: 2.8 ° C.Temperature control: Preheating section: 650-750 °C, preheating a section of 950-1080 °C, heating a section of 1100-1200 °C, heating two sections of 1200-1250 °C, heating three sections of 1260-1280 °C, soaking section of 1270-130 °C , the second section of the soaking heat 1270-1310 ° C (normal production control according to the upper limit).
2. Punch control
When adjusting the hole type, the top front reduction rate is ≤5%, the rolling speed is ≤0.7M/s, and the capillary temperature is controlled at 1200-1220°C.
3. Rolling mill control:
Rolling speed ≤0.35M/S, high pressure water is opened in the background, the head and tail of the waste pipe should be sprayed,but not black, the temperature of the waste pipe is controlled at 1000-1100 °C.
4. Small cold bed: open high pressure water jacket and fan to strengthen the steel pipe here.
5. Sizing machine control:
Use medium and thick wall pipe rolling speed, sizing inlet temperature ≤ 850 ° C, outlet temperature ≤ 750 ° C, high pressure water for cooling in the background
6. Thermal sampling control:
One of the open rolling heads is sampled, one for each of the head and tail samples, and the wall thickness, outer diameter and length of the steel pipe are carefully measured, and the rolling mill and the sizing machine are adjusted according to the measurement results, and all the geometrical dimensions of the steel pipe are satisfied. Process requirements for continuous production. Each batch must be sampled and checked in the class.
7. Cooling bed control
Inter-branched fabric: Select fast-forward mode. In this group batch, the batch batch mode should not exceed 200 packs/batch after cutting.
8. Straightening machine control
Carefully adjust the straightening machine to ensure that the bending is acceptable. Be careful not to cause the steel pipe to have concave and scratch defects.

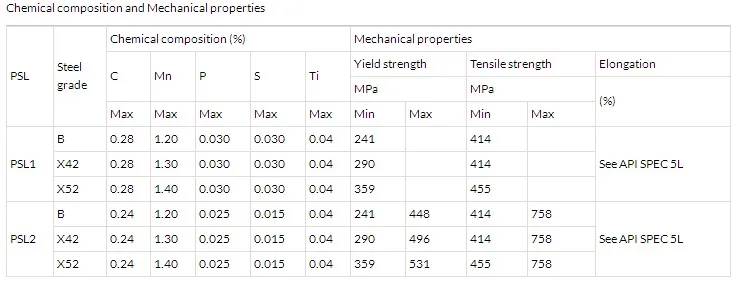

Product Paramenters
Details Images
Company Profile
Who We Are
Shandong Xinhuihe Steel Co.,Ltd is located at the beautiful water city of Liaocheng, where is the prodcution base of seamless steel pipes in China.Our company is founded in 2006, with more than 10 years of production and marketing experiences of steel products.As the seamless pipe factory, our factory invested 200 million RMB, and covers an area of 70,000㎡. Now, we have 100 workers and 4 hot rolled lines and 3 cold drawn lines, with annual production capacity of 1,000,000 tons. Our company have 2 production lines for square and rectangular pipes, with annual production capacity of 150,000 tons. All the pipes are produced by seamless pipes, by continuous rollings and deformations. The mechanical properties are highly superior, particularly suitable for clients who have high technical requirements.
What We do
Seamless pipes and tubes:
1. Seamless Carbon Steel Pipe
Sizes: O.D21.3mm -558mm(1/2”-22’’)
Standard: ASTM A106 Gr. B, ASTM A53 Gr. B, SAE1020, SAE1045, ST45-8,ST52,JIS G4051 S20C JIS G4051 S45C JIS G3454 STPG370 JIS3454
STPG42 DIN ST45-8 DIN ST52 API 5L X42 X52 X60 X70,etc.
1. Square and Rectangular tubes and Pipes
Material: Q195, Q235, 10#, 20#，45#， Q345B, Q345D, 42CrMo, etc
Diameter Ranging: 10mm-720mm
Max thickness: 20mm
Length: 6m-12m
Surface: black annealing,galvanized or mirror finish
Standard: GB3094-2000, GB6725-2002, GB6728-2002, ASTM500-1999,etc.
Why Choose us
As the ISO9001 holder, our production, sales, inspection, package, transportation and after sales procedure are strictly
controlled as the system.
We also have API certificate, EN10204 3.1 certificate.
We have built good and stable relationship with many client in and abroad. Our products have been exported to many countries and
regions, such as, east Aisa, India, Middle East, South America, USA, Europe, etc.
Xinhuihe is committed to provide cost effective solutions to our valued clients, never compromising in the quality, believe we can
be your trustworthy partner for our mutual benefits.
Shandong Xinhuihe Steel Co.,Ltd is located at the beautiful water city of Liaocheng, where is the prodcution base of seamless steel pipes in China.Our company is founded in 2006, with more than 10 years of production and marketing experiences of steel products.As the seamless pipe factory, our factory invested 200 million RMB, and covers an area of 70,000㎡. Now, we have 100 workers and 4 hot rolled lines and 3 cold drawn lines, with annual production capacity of 1,000,000 tons. Our company have 2 production lines for square and rectangular pipes, with annual production capacity of 150,000 tons. All the pipes are produced by seamless pipes, by continuous rollings and deformations. The mechanical properties are highly superior, particularly suitable for clients who have high technical requirements.
What We do
Seamless pipes and tubes:
1. Seamless Carbon Steel Pipe
Sizes: O.D21.3mm -558mm(1/2”-22’’)
Standard: ASTM A106 Gr. B, ASTM A53 Gr. B, SAE1020, SAE1045, ST45-8,ST52,JIS G4051 S20C JIS G4051 S45C JIS G3454 STPG370 JIS3454
STPG42 DIN ST45-8 DIN ST52 API 5L X42 X52 X60 X70,etc.
1. Square and Rectangular tubes and Pipes
Material: Q195, Q235, 10#, 20#，45#， Q345B, Q345D, 42CrMo, etc
Diameter Ranging: 10mm-720mm
Max thickness: 20mm
Length: 6m-12m
Surface: black annealing,galvanized or mirror finish
Standard: GB3094-2000, GB6725-2002, GB6728-2002, ASTM500-1999,etc.
Why Choose us
As the ISO9001 holder, our production, sales, inspection, package, transportation and after sales procedure are strictly
controlled as the system.
We also have API certificate, EN10204 3.1 certificate.
We have built good and stable relationship with many client in and abroad. Our products have been exported to many countries and
regions, such as, east Aisa, India, Middle East, South America, USA, Europe, etc.
Xinhuihe is committed to provide cost effective solutions to our valued clients, never compromising in the quality, believe we can
be your trustworthy partner for our mutual benefits.
Testing Equipments
Certifications
Contact US
Clare Zhang
Tel: 0086 635 8884871
Fax: 0086 635 8881596
Mob/WhatsApp/Wechat: 008615054580766
xinhuihe(@)aliyun.com
Skype: clarezhang2009
