Small Excavator Mini Excavator prices
- Category: >>>
- Supplier: Shandong Mountain Raise Industry And Trade Co. Ltd.
Share on (62333998237):
Product Overview
Description

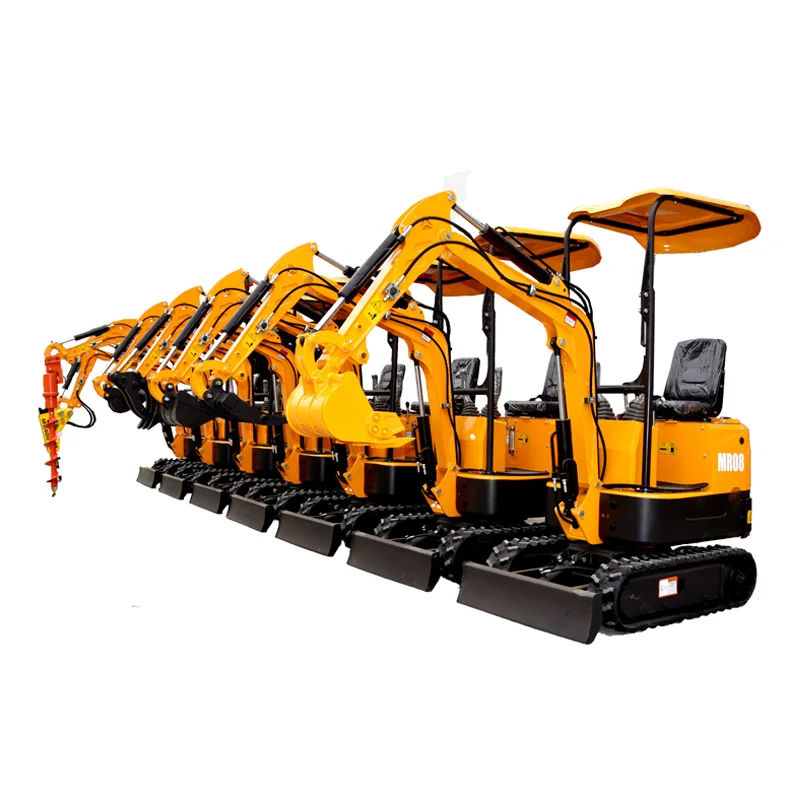

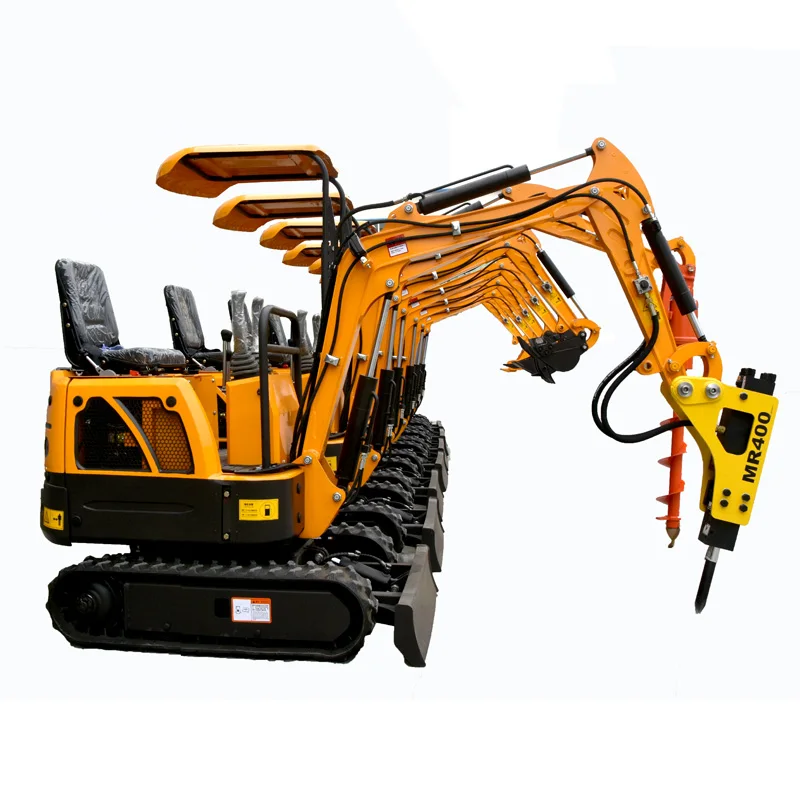

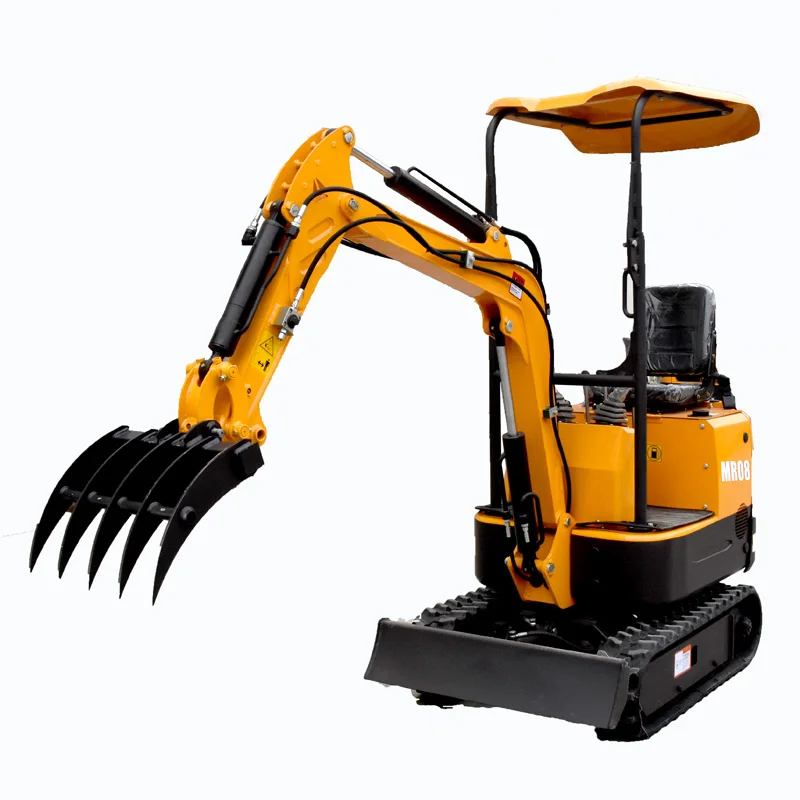

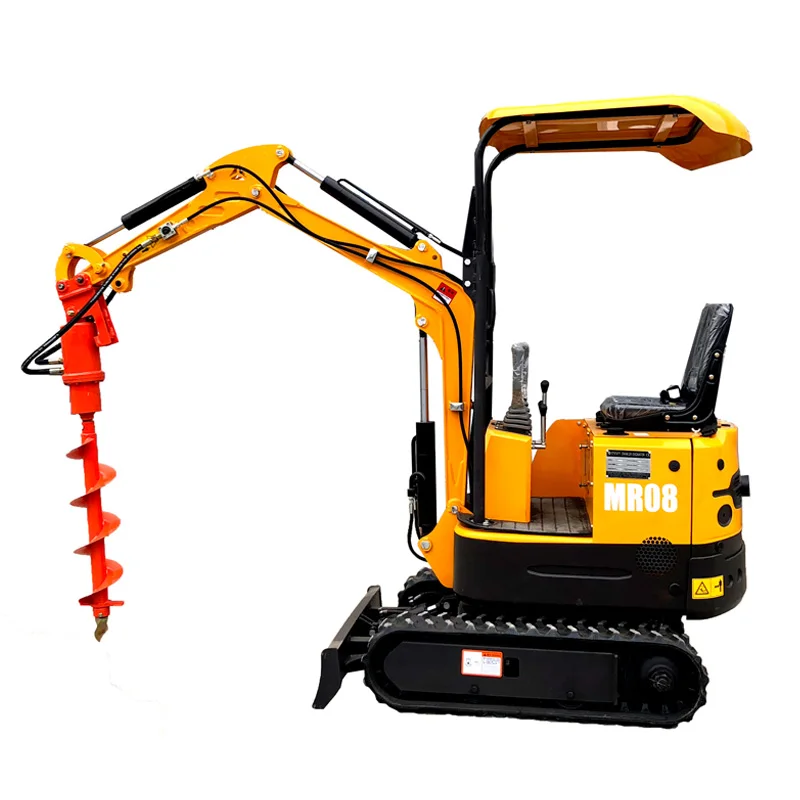

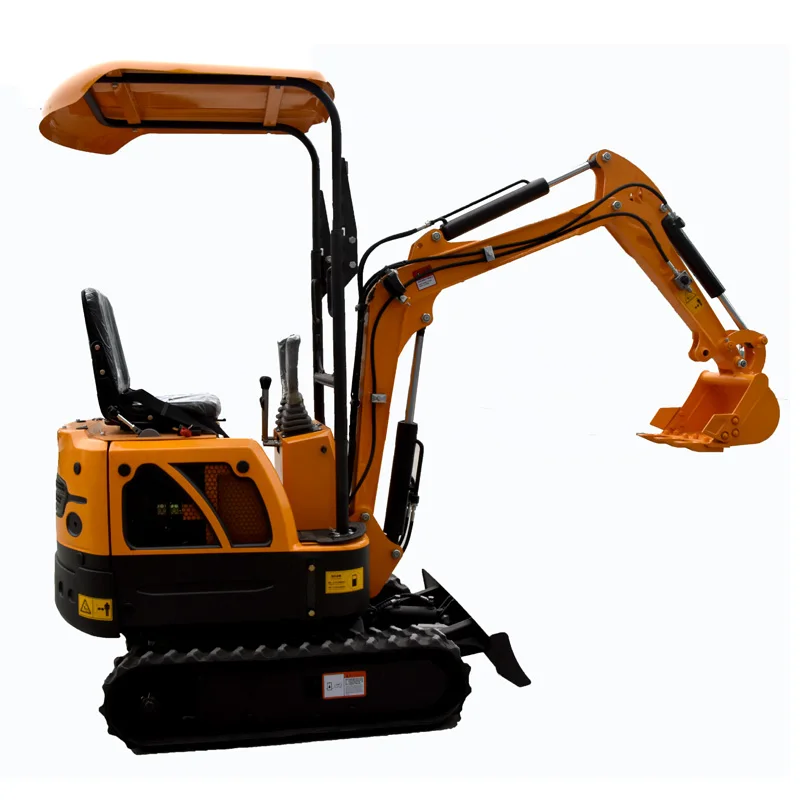

Small Excavator Mini Excavator prices
Product Description
MR08 mini excavator with beautiful appearance, high configuration, superior performance, low consumption wide operating range. It's compact design for small works in garden, farmland, municipal works, vegetable greenhouse etc.
Specifications
Model | MR08 |
Operating Weight | 850kg |
Digging bucket capacity | 0.025cbm/100kg |
Bucket width | 340mm |
Engine | KOOP |
Rated power | 8.6 kw/3600r/min |
Displacement | 0.211 L |
Bore stroke | 70x55 |
Main pump | CBK-F6.8 |
Displacement | 6.8ml/r |
Swing motor | SJ-TECH (MP-1-160) |
Traveling motor | KERSEN (OMS-2450) |
Travel speed | 1.5km/h |
Main Size | |
Overall dimension( LxWxH) | 2770x896x1490 mm |
Wheelbase | 910 mm |
Total length of track | 1230mm |
Platform ground clearance | 380 mm |
Platform back turning radius | 784 mm |
Chassis width | 896 mm |
Track width | 180 mm |
Chassis ground clearance | 132 mm |
Track height | 320 mm |
Operating Range | |
Max. Digging depth | 1650 mm |
Max. Vertical digging depth | 1375 mm |
Max. Digging height | 2610 mm |
Max. Dumping height | 1850 mm |
Max. Digging radius on ground | 2850 mm |
Min. Rotation radius | 1330 mm |
Max. Upgrade height of bulldozer blade | 345 mm |
Max. Digging depth of bulldozer blade | 255 mm |

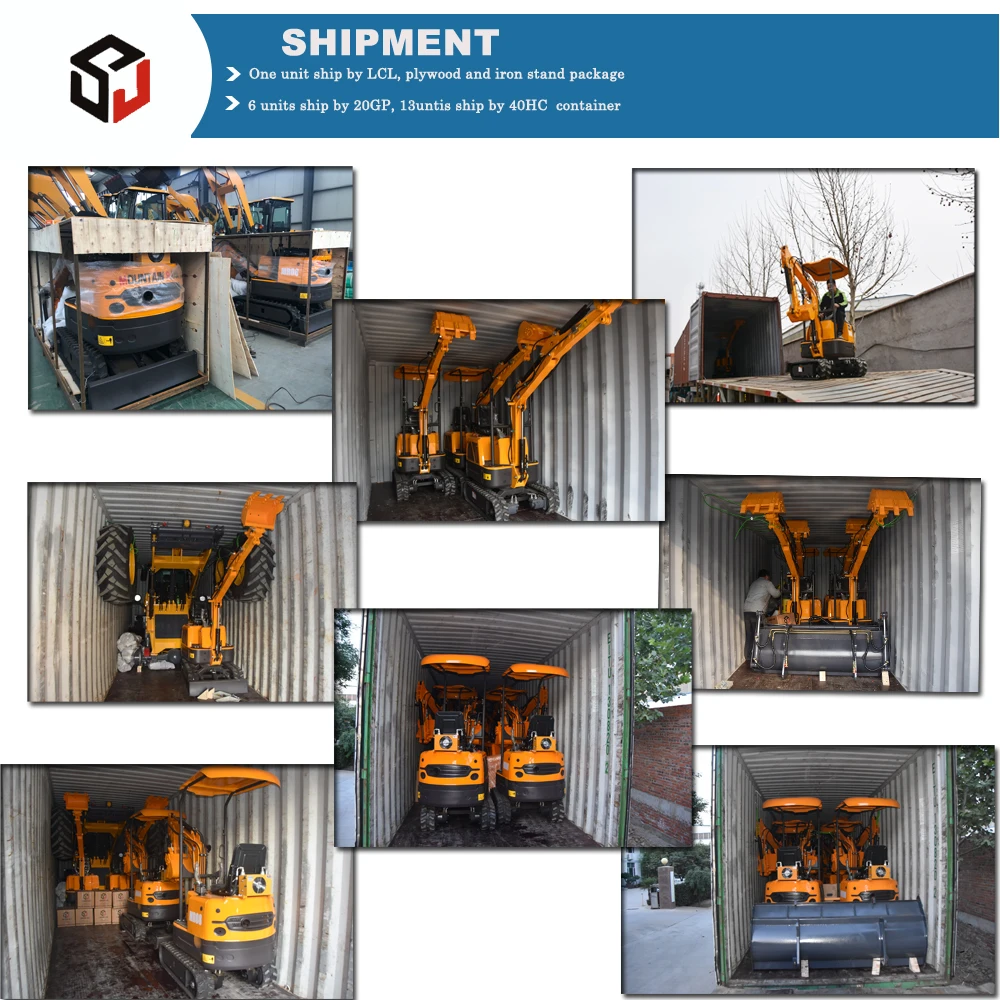

Packaging & Shipping
Our Services
Company Information
FAQ
Is your machine specification data real?
Yes, 100% real, we never overstate, never use fake data to attract customers.
What is your payment?
Normally we can work on T/T or L/C.
What is Quality Control system?
Mountain raise 5 steps:
A, After order confirmed, we have a meeting with the main peoples who work for workshop before production,investigate all the workmanship and some technical problems, ensure all of them have related ways to settle and control.
B, Inspect all the materials when arrived, ensure they will be catched up customers's requirements.
C, Inspect the semi-finished goods.
D, Inspect the finished products.
E, Final inspection when pack up all the goods.if there is not any problems for this step,our QC will issue the inspection report and release this products.
