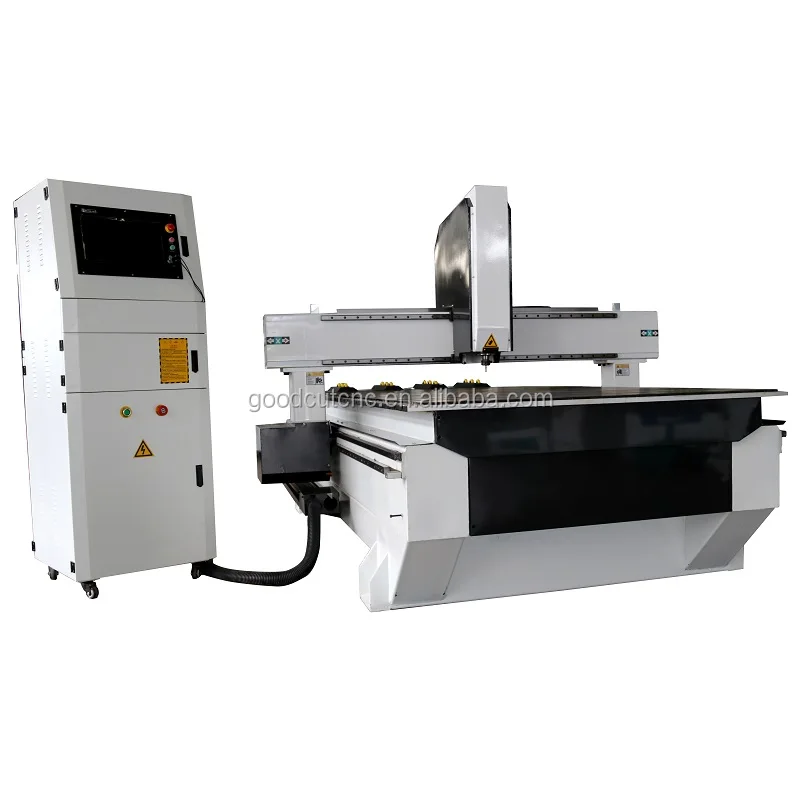

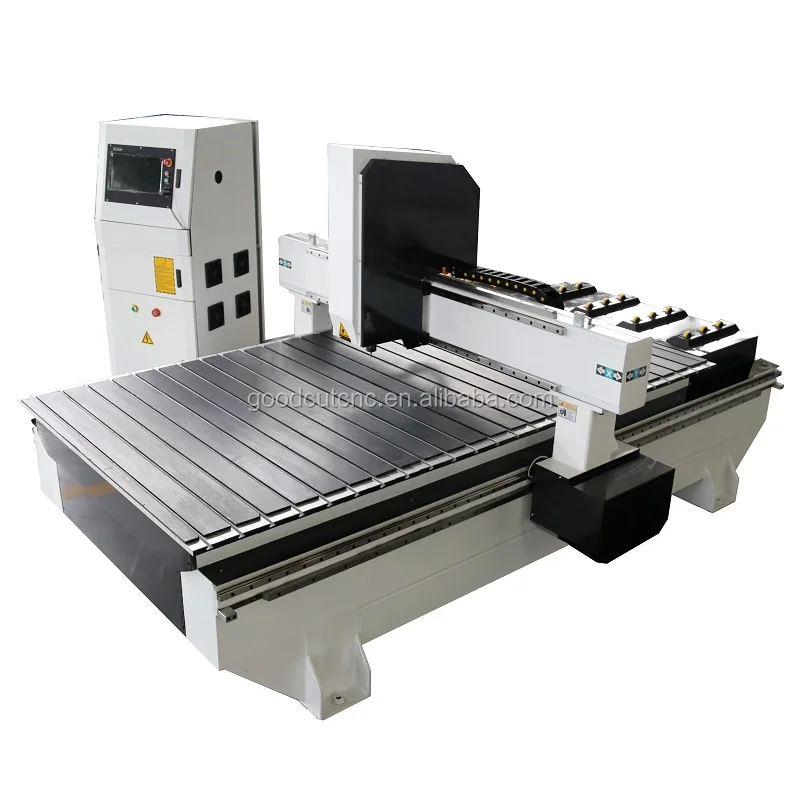

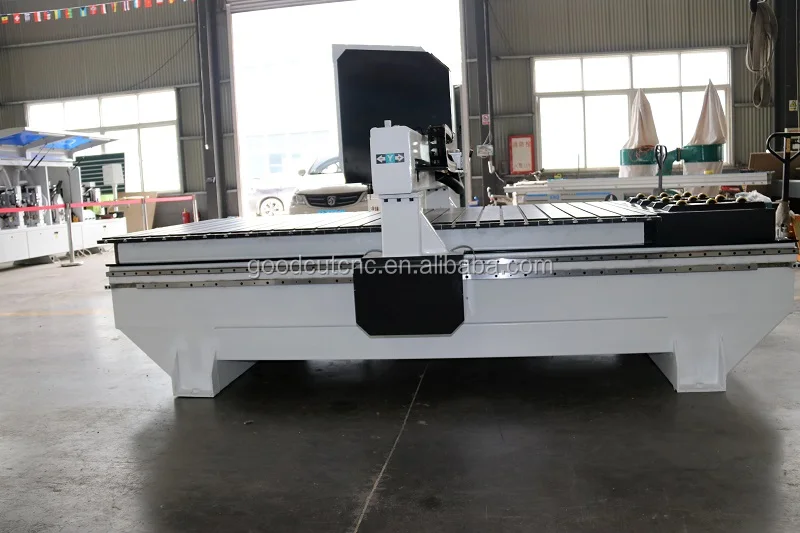

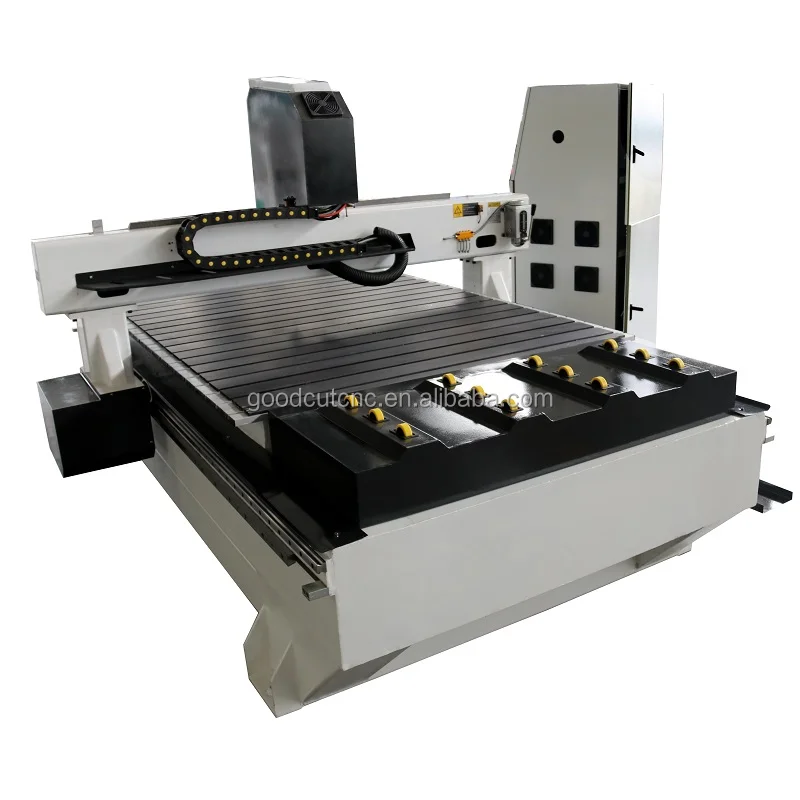

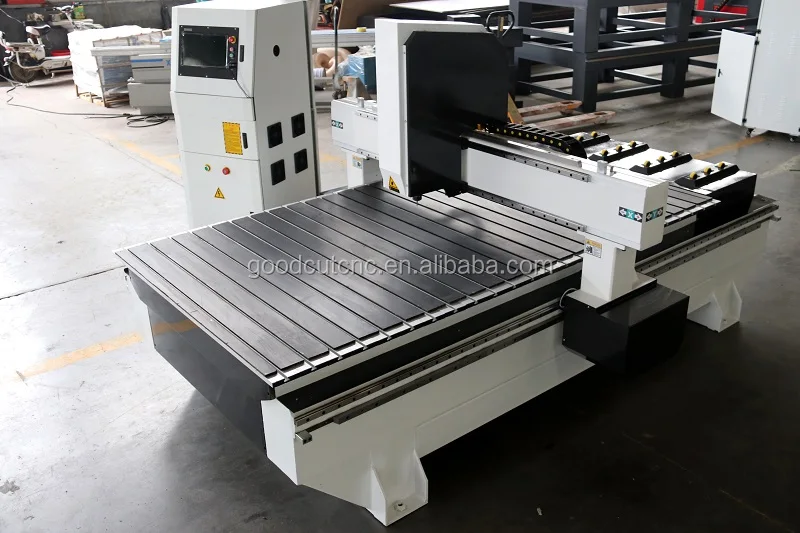

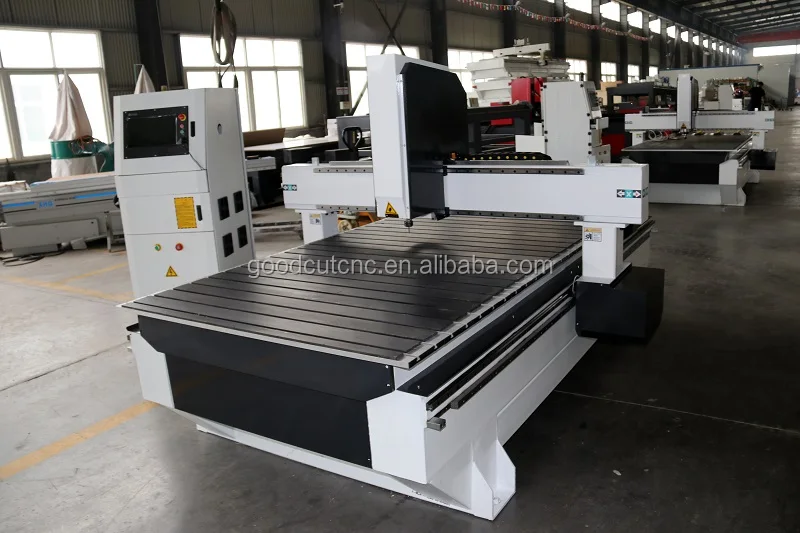

Wooden carved bed designs multifunction woodworking machine with 3d letter carving

Share on (62334060331):


Price:RUB 305,405.67

Quantity:


Product Overview

Description

wooden carved bed designs multifunction woodworking machine with 3d  letter carving

Feature of cnc wood router:

1. Ball screw for Z axis.It's stable running,precision and fast.

2. X,Y axis are gear rack,steady rate transmission,fast speed and high efficiency.

3. DSP control system with USB port,just need the handle to operate the machine,easy and convenient.

4. With vacuum table,holiding the materials with vacuum pump,you can do variety of high precision works.

5. Heavy duty frame and gantry,it's very strong and stability



 1325 heavy duty frame 81325 heavy duty frame 15



Model

JZ-1325

X, Y, Z working stroke

1300*2500*210mm

Spindle power

4.5kw air-cooled spindle

Transfer method

XY rack rotation Z axis screw

Screw rod

Taiwan TBI grinding screw

Rack Reducer

Germany Henry high precision helical rack

Navigation

Taiwan original silver

System

Taiwan Baoyuan 4-axis linkage system

Servo motor

Japan Yaskawa Servo Motor

Repeatability

±0.05mm

Maximum idle speed

30 meters/minute

Maximum processing speed

15meters/minute

The main function

Wooden mold sculpture foam mold

Total Weight

1650KG

 1325 heavy duty frame (19)



1325 heavy duty frame (16)







Features for GoodCut cnc router machine

 cnc router parts



1325 heavy duty frame (3)



wooden carved bed designs multifunction woodworking machine with 3d letter carving

Other companys without this design

1325 heavy duty frame (13)



orderly wires



 1325 heavy duty frame (14)

450B stepper motor, MA860H driver



driver (2)





DSP RichAuto A1X A11 controller, easy operate



control system DSP(A11)





Vacuum adsorption table

 1325 heavy duty frame (15)







air cooling vacuum pump for optional





Application

1.Woodworking Industry: stereo wave board processing, wooden door, various furniture product auxiliary

processing.

2.Advertising Industry: Advertising label, PVC plate, PCB board (drilling and engraving), Double color boards, logo production, acrylic cutting, plastic suction for making advertising dedication, word cutting, sign making, crystal word, LED display screen, kinds of doorplate, nameplate and so on.

3.Mold Industry: Apply for carving various molds, wood pattern, Foam mould, and metal mold, etc.

4.Musical instrument industry: instrument 3D surface engraving, shape cutting

5.Wooden crafts.

6.Exhibition industry: showcase, etc







sample




Quality control

1. Engineers availbal to service machinery overseas.

2. 1 year guarantee for whole machine.

3. Technical support by phone,e-mail,whatsapp and skype.If you have any problems,we will within 12 hours to solve it.

4. You will be get free training advice towards our machine in our factory.

5. If you need any component of the machine,we will provide the best price for you.

6. Friendly English version manual and operation video CD disk.



Jinan GoodCut CNC

Jinan GoodCut CNC Machinery Co.,Ltd.

 GoodCut has been abiding by the “Good quality, Good creation”management philosophy, innovating efficient R & D and management team, having advanced development manufacturing technology, high precision machine part testing equipment and strict norms ISO9001 quality management system, while the introduction of 5S on-site management to ensure the performance and quality of each machine. Products are sold in more than 90 countries and regions in the world, we strive to create a global fiber laser cutting machine leader.
