OEI с высоким коэффициентом усиления 29 дБ 860 МГц 24 в CATV выдвижной гибридный модуль усилителя
- Category: Radio & TV Broadcasting Equipment >>>
- Supplier: Shenzhen Sanland Technology Co. Ltd.
Share on (62334362466):
Product Overview
Description
Products Description

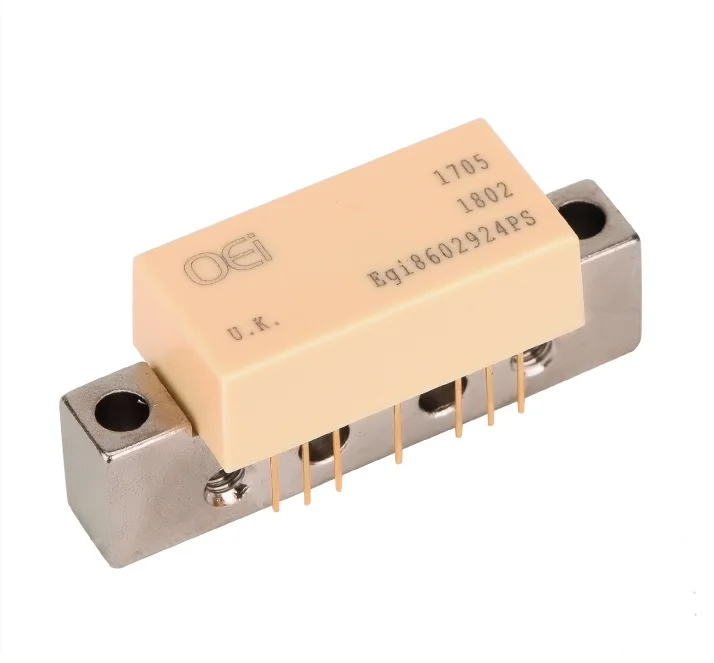

The Egi8602924PS is a hybrid push pull amplifier module.The part employs GaAs and is operated from 40MHz to 860MHz with supply voltage +24V( DC).
Specification
Symbol | Parameter | Unit | Min. | Typ. | Max. | Conditions |
Gp | Power Gain | dB | 29 | - | 30.5 | f=50MHz |
SL | Slope | dB | 0.5 | 1.5 | 2.5 | f=50-860MHz |
FL | Flatness | dB | - | - | ±0.5 | f=50-860MHz |
S11 | Input Return Loss | dB | - | - | -15 | f=50-860MHz |
S22 | Output Return Loss | dB | - | - | -15 | f=50-860MHz |
CTB | Composite Triple Beat | dB | - | - | -62 | 77 channel VO =44dBmV measured at 547.25MHz; |
CSO | Composite Second Order Distortion | dB | - | - | -61 | |
Xmod | Cross Modulation | dB | - | - | -60 | |
F | Noise Figure | dB | - | - | 4 | f=860MHz |
ltot | Total Current Consumption | mA | 230 | - | 330 | V=+24V |
Series Products
P/N | Fre (MHz) | Gain (dB) | Slope (dB) | Flatness (dB) | CTB (dB) | CS0 (dB) | NF (dB) | Voltage (V) | Current (mA) |
40-860 | 18±0.5 | 1~2 | ±0.5 | -62 | -61 | 4 | 24 | 260-300 | |
40-860 | 22±0.5 | 0.5~2 | ±0.5 | -65 | -61 | 3 | 24 | 260-330 | |
40-860 | 25±0.5 | 0.5~2 | ±0.5 | -62 | -61 | 4 | 24 | 250-330 | |
40-860 | 29±0.5 | -0.5~2.5 | ±0.5 | -62 | -61 | 4 | 24 | 230-330 | |
40-860 | 34±0.5 | -0.5~2.5 | ±0.5 | -62 | -61 | 4 | 24 | 250-330 |
