D3/D4/D6/D9 pneumatic tamping machine,Pneumatic tampers

Product Overview

Description

D3/D4/D6/D9 pneumatic tamping machine,Pneumatic tampers

The pneumatic tamping machine is one of the mechanized tools that use compressed air as the power. The tamping machine is equipped with a boring head in front of the tamping machine to compact the casting sand by impact. The tamping of the core can be used to repair the lining of the lining in the smelting industry. It can also be used in tanning bricks and concrete in construction projects.

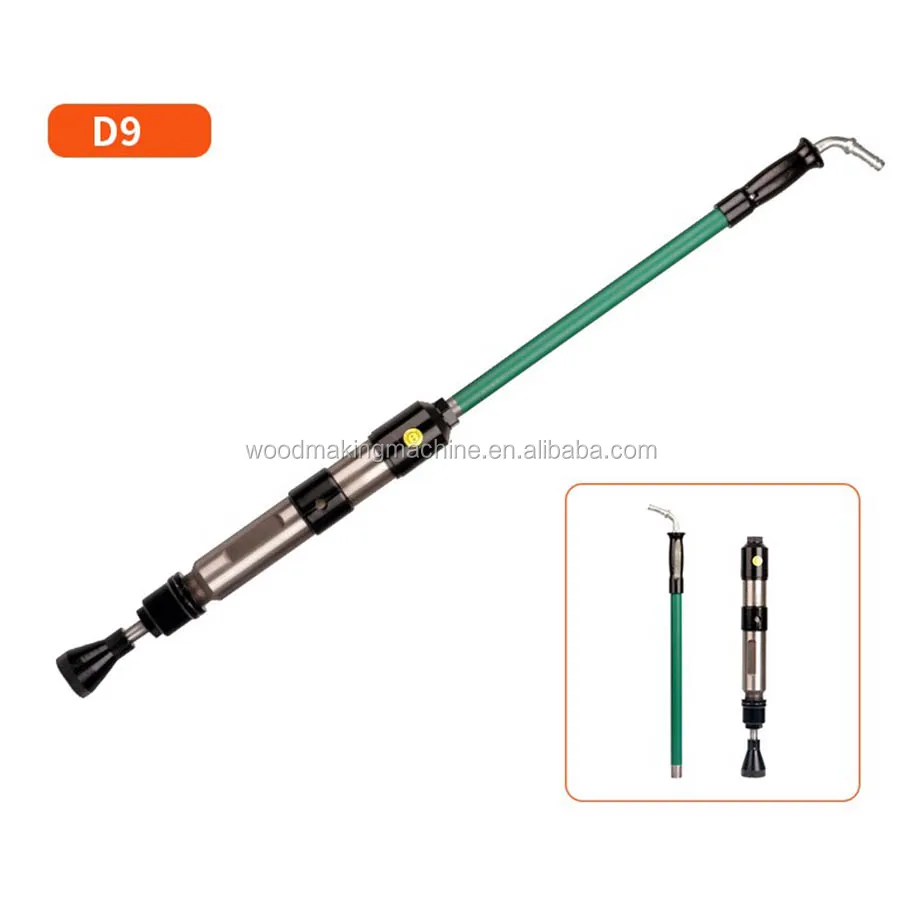

D9 type tamping machine has strong working ability and is suitable for tamping work of large casting sand type.

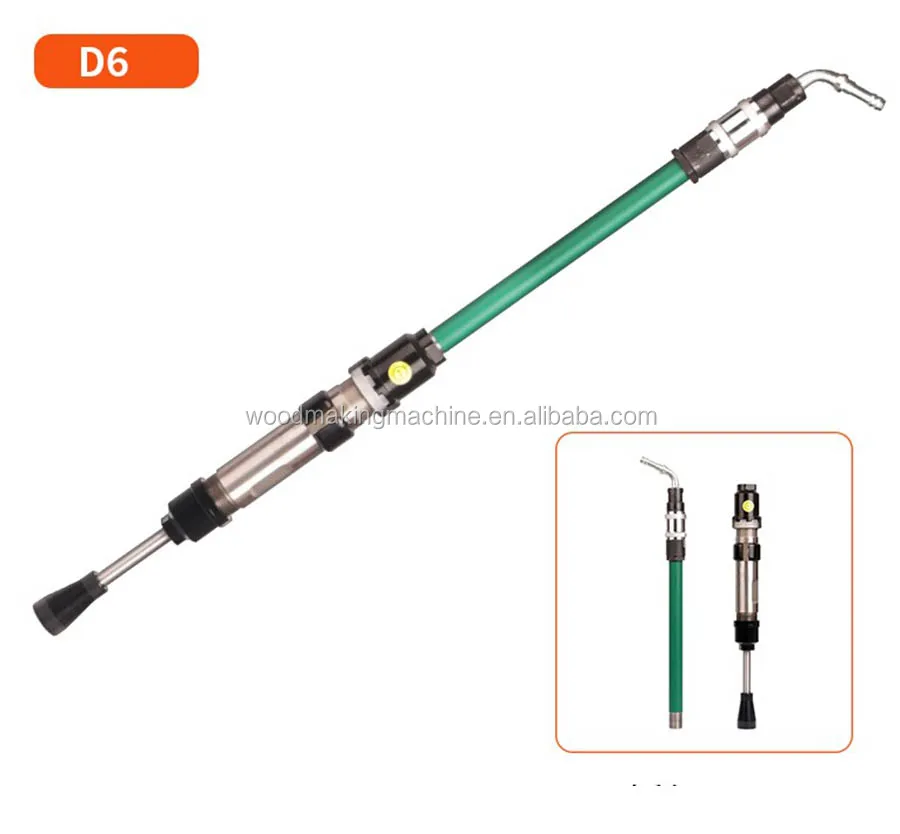

D6 type tamping machine for the shaping of medium castings.

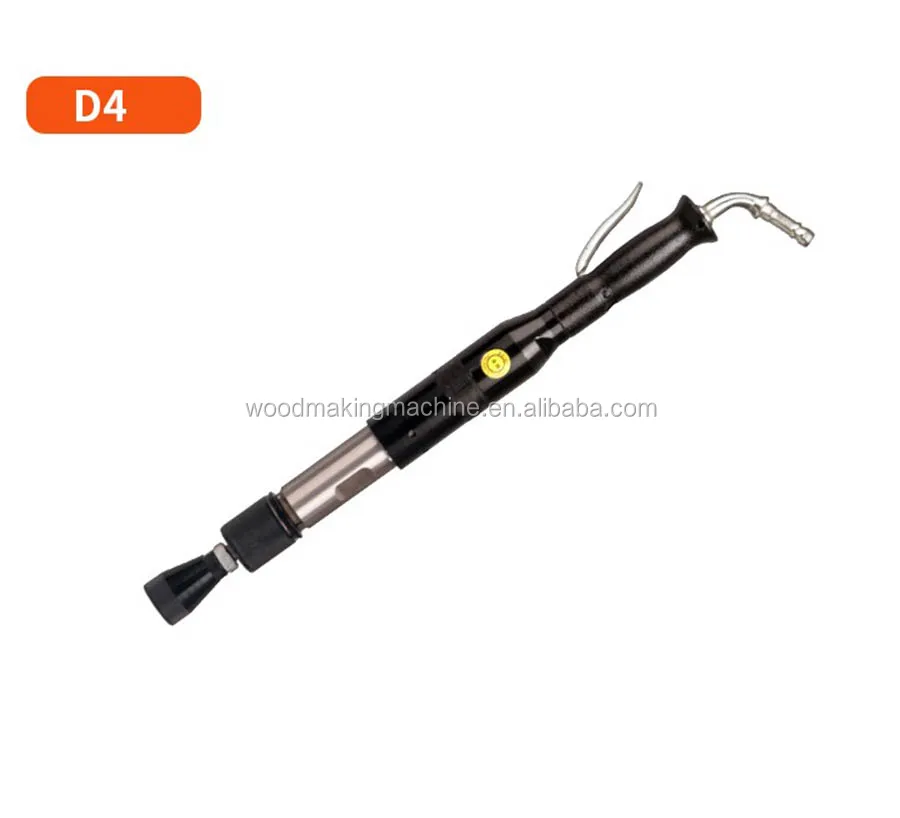

D4 type tamping machine, lighter, suitable for tamping sand core or small sand type.

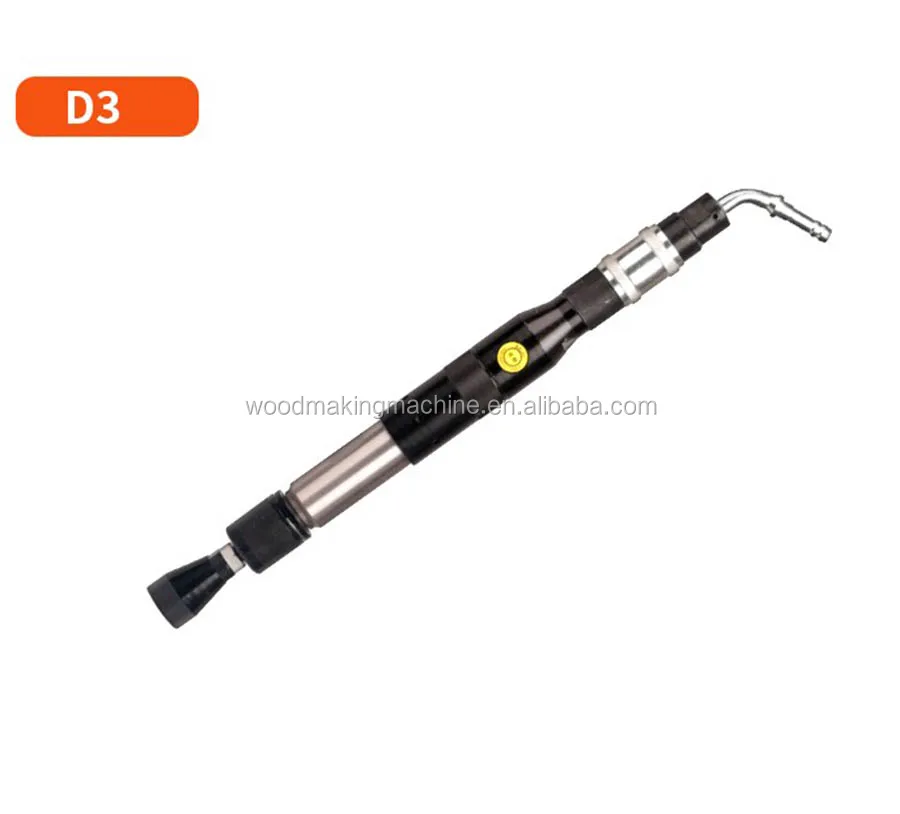

D3 type tamping machine is extremely small and can be used in applications where the working space is narrow.







Parameter of D3/D4/D6/D9 pneumatic tamping machine,Pneumatic tampers



Model	D3	D4	D6	D9
Using air pressure(Mpa)	0.63
Air consumption(m/min)	0.25	0.35	0.45	0.65
Number of impacts(times/min)	900	800	700	600
Piston diameter(mm)	17	20	25	32
Structural stroke(mm)	92	128	155	207
Hammer diameter(mm)	32	36	42	54
Air tube inner diameter(mm)	13
Total length(mm)	410	480	985	1180
Weight (kg)	2.5	3.6	6	9

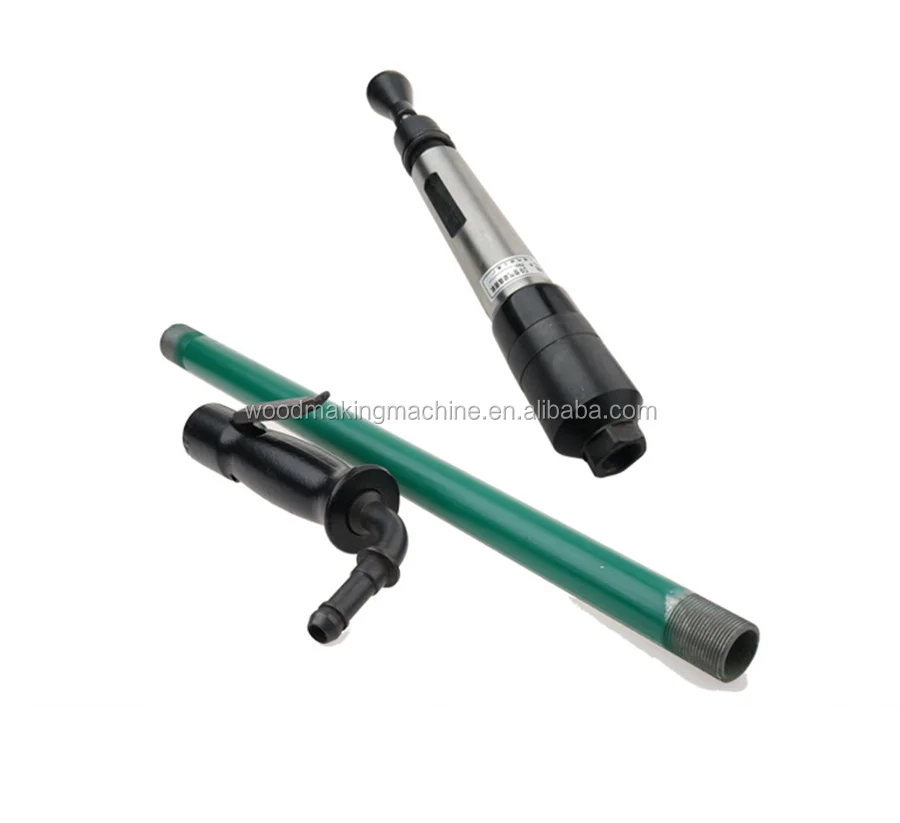

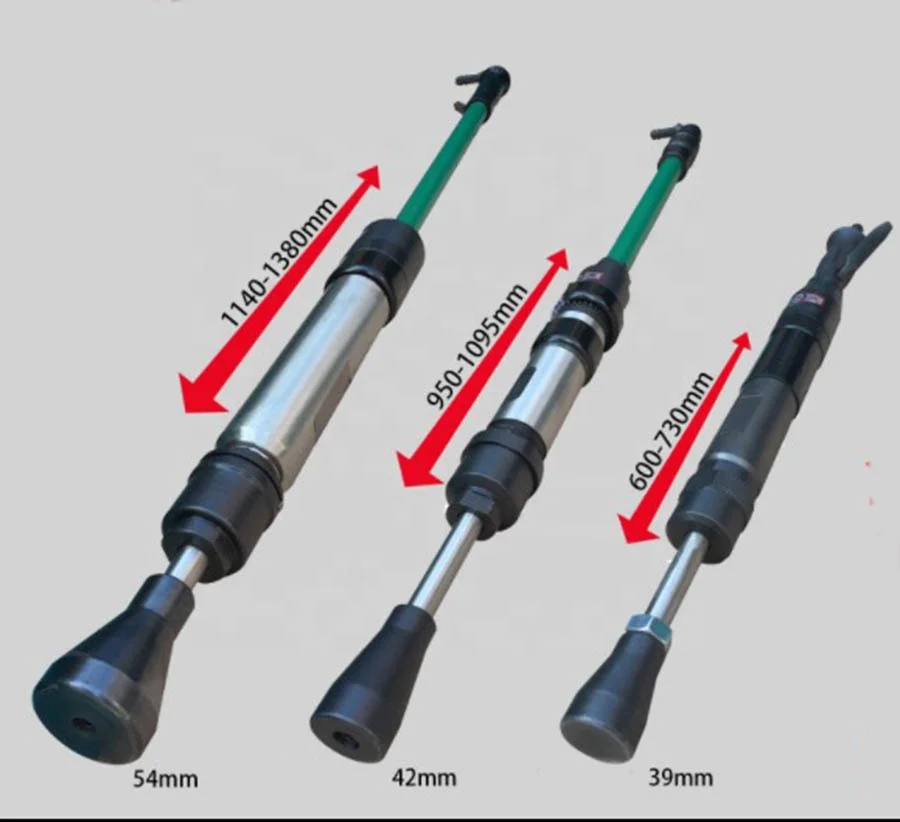

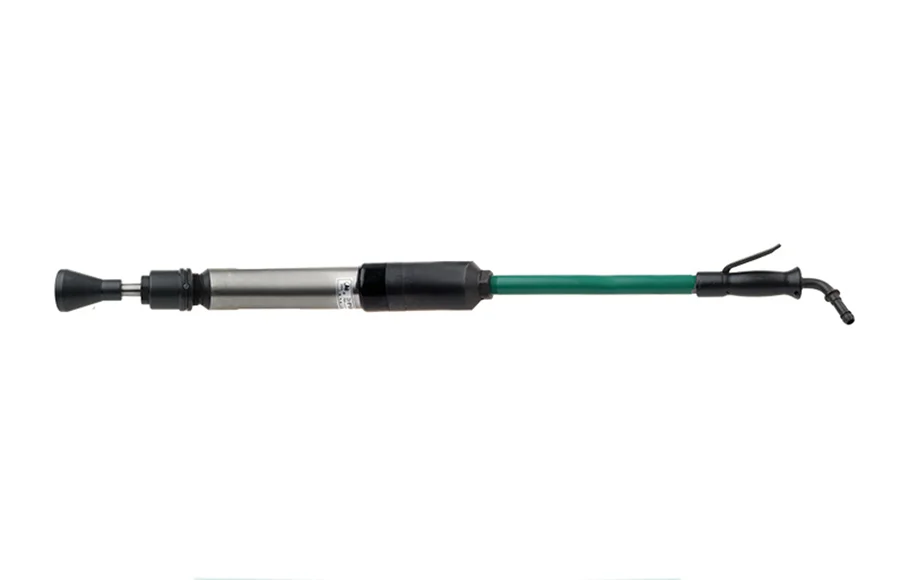

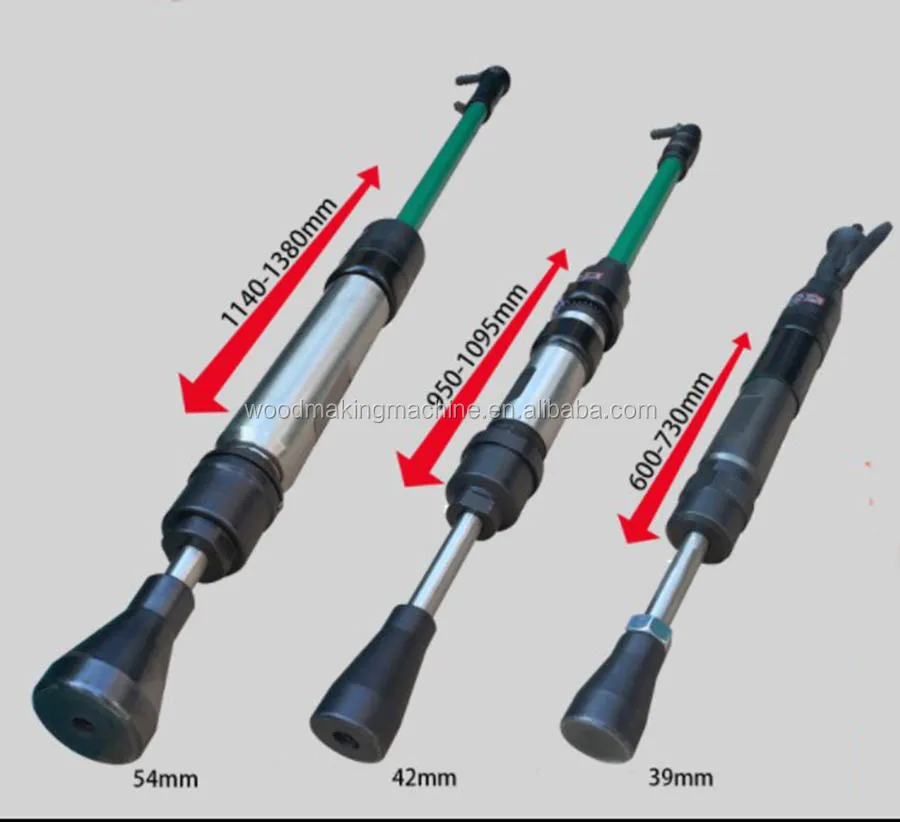

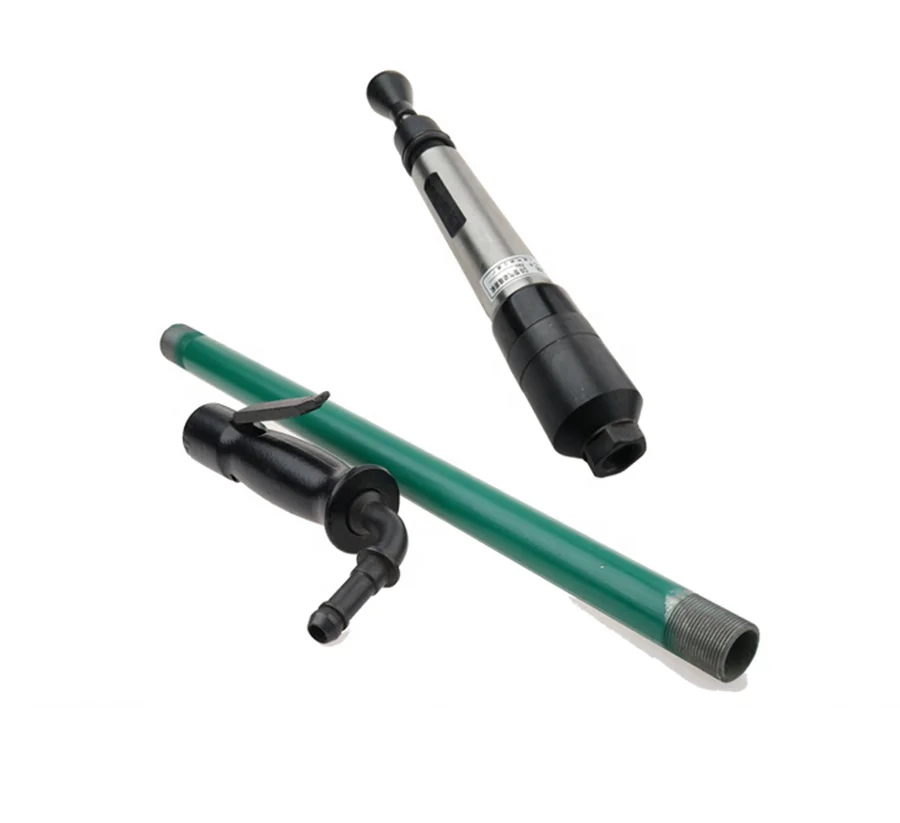

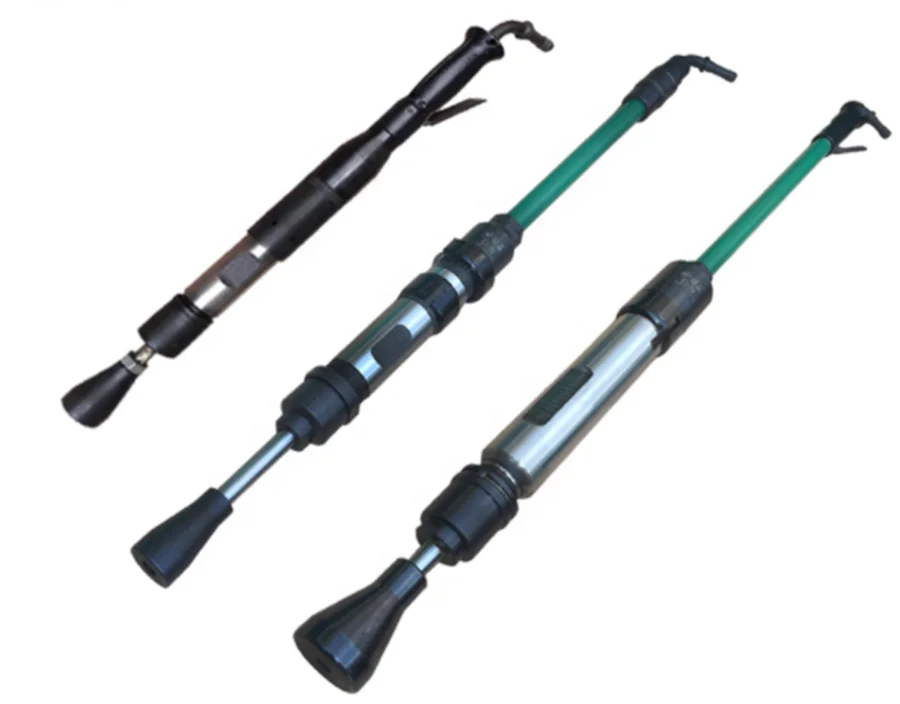

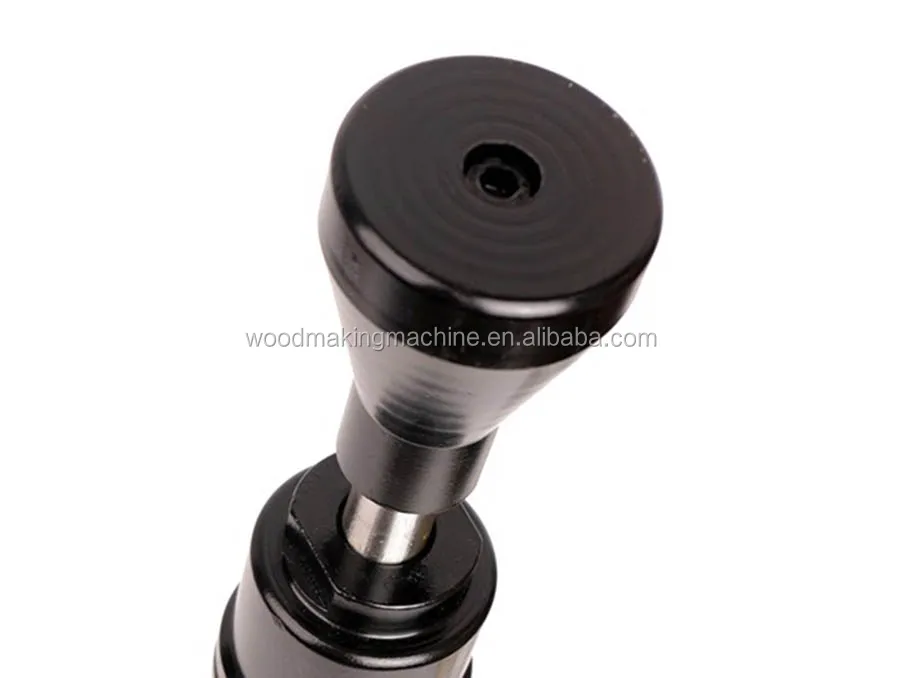

Photo of D3/D4/D6/D9 pneumatic tamping machine,Pneumatic tampers
