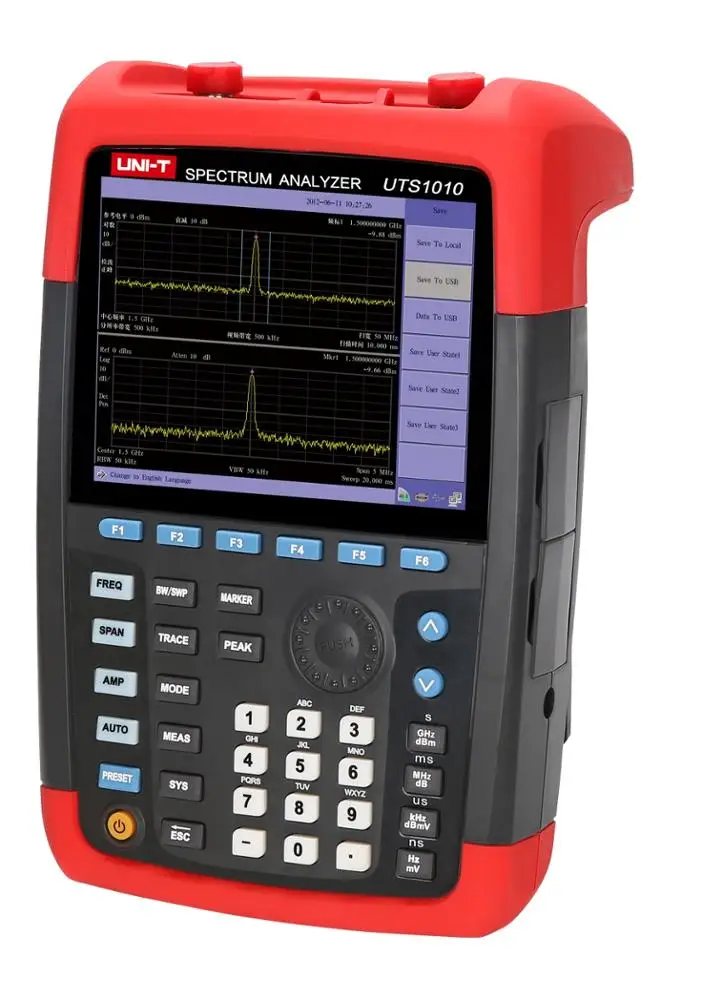

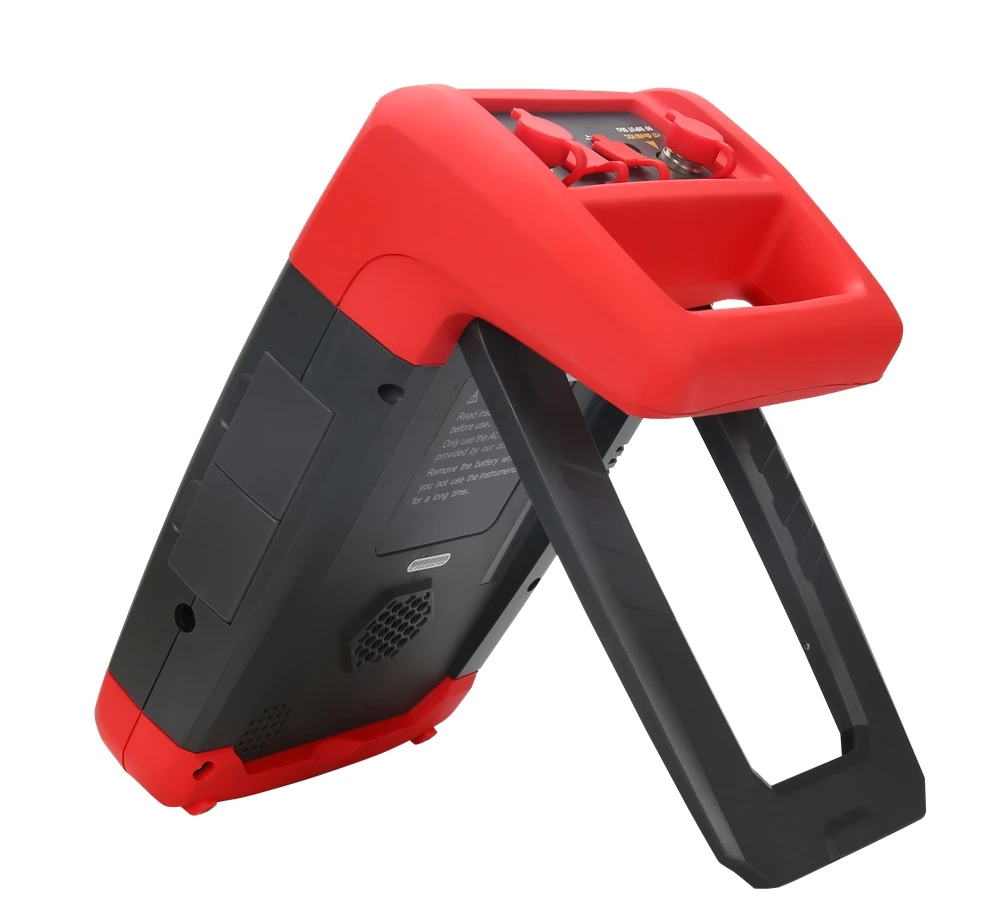

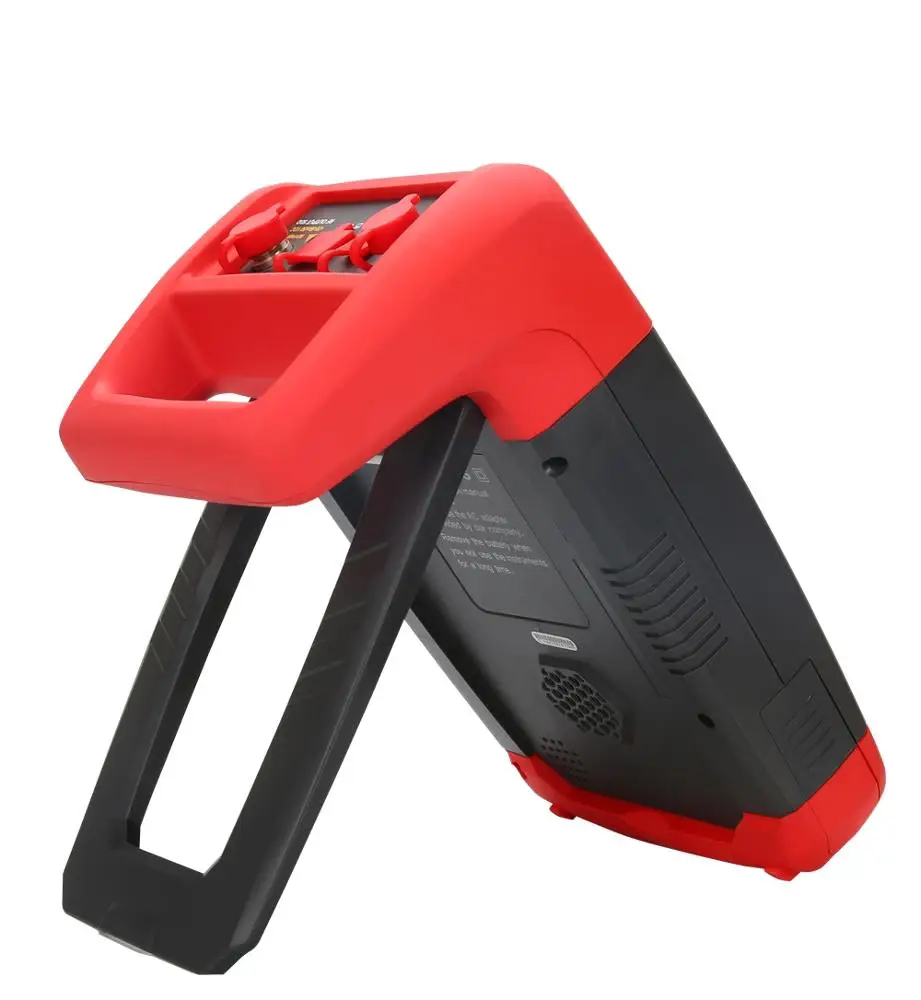

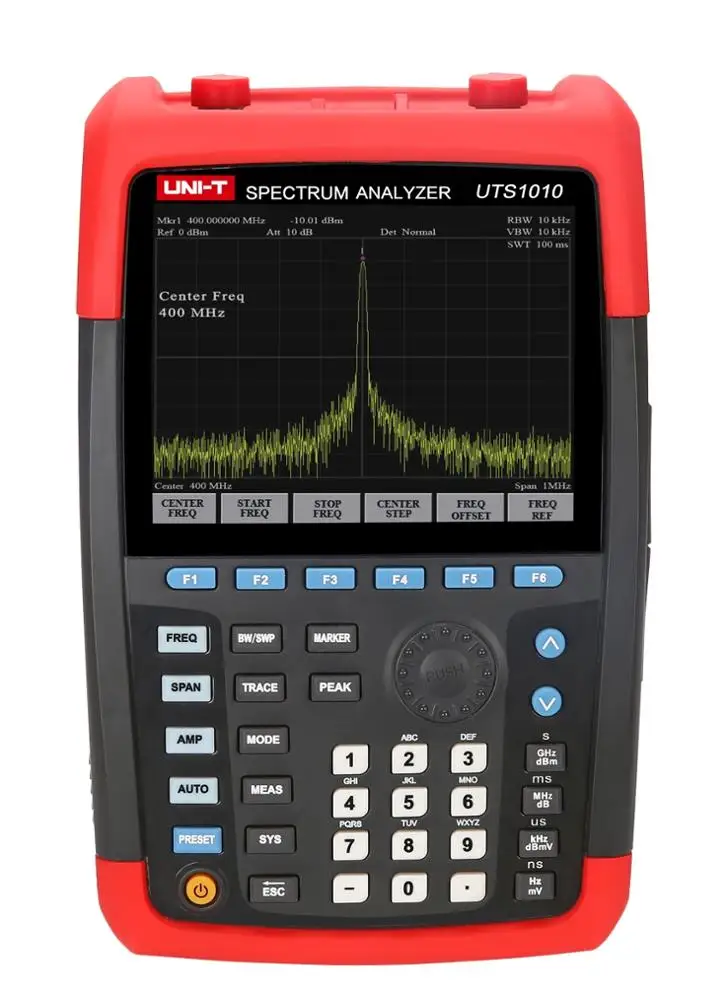

uni t factory automatic made in China usb music spectrum analyzer
- Category: Spectrum Analyzers >>>
- Supplier: Gongying Electron (Huizhou) Co. Ltd.
Share on (62334492557):
Product Overview
Description
Product Description
Specification | music spectrum analyzer | UTS1020 | UTS1030 |
Range | 9kHz~2GHz | 9kHz~2.6GHz | 9kHz~3.6GHz |
Resolution | 1Hz | ||
Accuracy | +/-(Frequency Marker Readout*Frequency Reference Accuracy +1%*Span +10%*RBW+0.5*[Span/(Sweep Points-1)]+1Hz) | ||
Internal Reference(10MHz) | Aging Rate: <1ppm/year; Stability Over Temperature :<0.5ppm(15°C ~ 35°C) | ||
Range | 10Hz~3MHz, Customized down to: 1Hz~10Hz | ||
Electability(60dB/3dB) | RBW≤500kHz :<5:1 Typical (Digital implementation,next to Gaussian shape); <5% Typical | ||
Accuracy | RBW≤500kHz : <5% Typical | ||
Video Bandwidth | 10Hz~3MHz | ||
Preamplifier Off | 100kHz~1MHz:<-100dBm-3×(f/100kHz)dB; 1MHz~10MHz:<-130dBm; | ||
Uncertainty | Frequency Readout x Frequency Reference Progress+Counter Resolution | ||
Overall Amplitude Accuracy(90%) | +/-1.5dB,Input Signal Range: -50dBm ~ 0dBm | ||
Max. Safe Input Level | Average Continuous Power: +27dBm | ||
Input Attenuator Range | 0~39dB, in 3dB step | ||
Frequency Range | 100kHz to 1.5GHz | ||
Output Power | -30dBm ~ 0dBm, in 1dB step | ||
Reference Input/Output | 10MHz, BNC Female, Input: 0dBm ~ +10dBm;Ouput: 0dBm±2dB | ||
Power | Li-ion Battery: 7.4V 6600mAh;DC Adapter: 100-240VAC 50/60Hz 1.5A | ||
Display | 6.5 Inches TFT LCD, 640×480 | ||

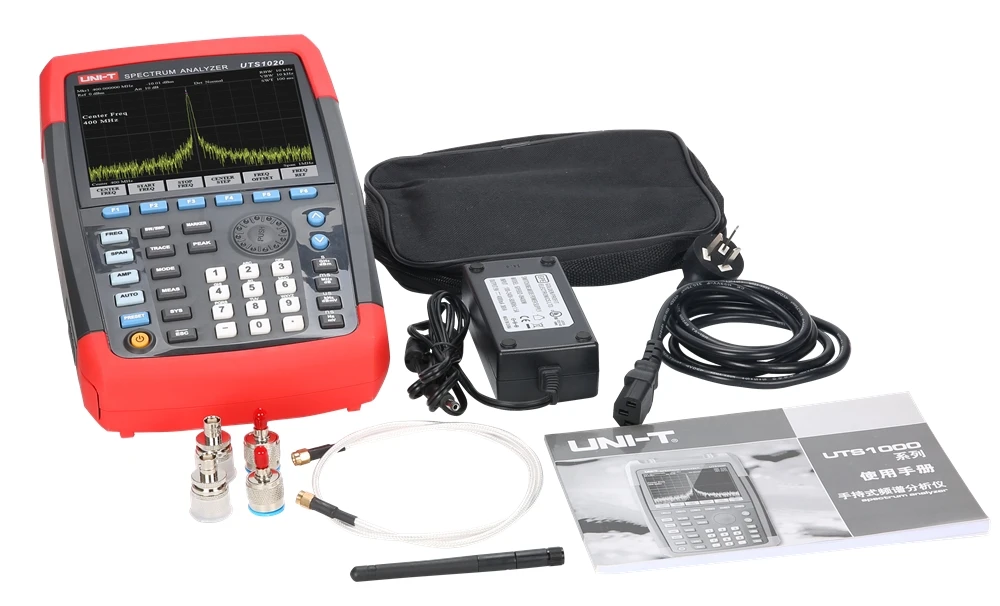

Standard Accessories | DC Adapter,N/SMA Convertor,N/BNC Convertor, RF Cable, Antenna | ||
Standard Carton Measurement (L×W×H) | 400mm × 280mm × 220mm | ||
Standard Carton Cross Weight | 3.9 Kg | ||
Advantages
Certifications
Packaging & Shipping
Company Information
FAQ
Q: Are you trading company or manufacturer ?
A: We are UNI-T Original factory.Q: How long is your delivery time?
A: Generally it is 3-5 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
If you have another question, pls feel free to contact us as below:
Q: Are you trading company or manufacturer ?
A: We are factory.Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity. Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
If you have another question, pls feel free to contact us
