SMA Female To UFL MHF1 Ultra Low Loss 1.37mm Coaxial Pigtail Jumper Cable

Share on (62334502070):


Price:$0.45 - $0.65

Quantity:


Product Overview

Description

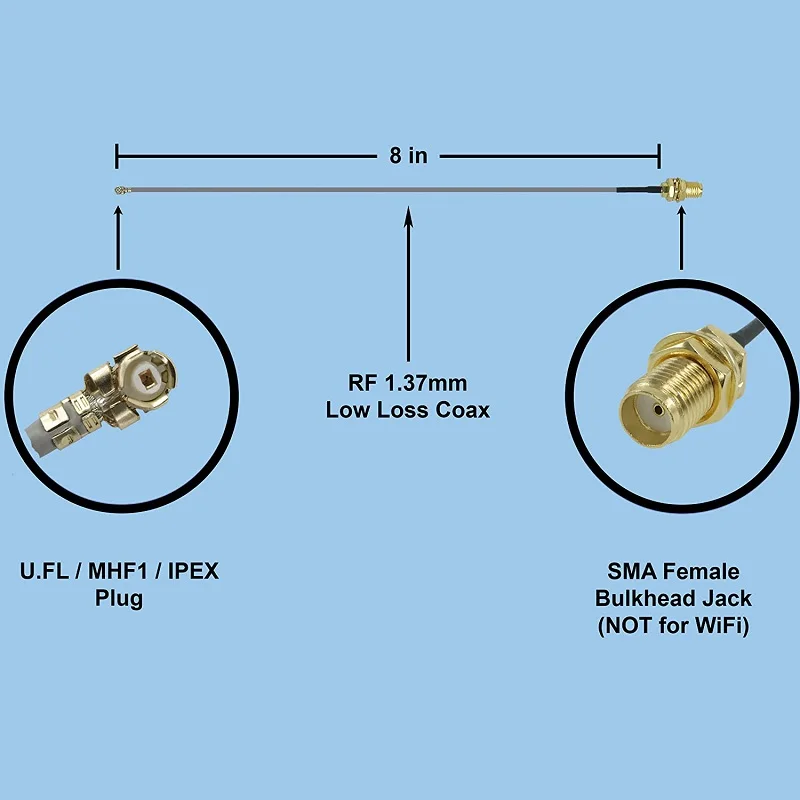

8 inch U.FL (IPEX / MHF1) to SMA Female Ultra Low-Loss 1.37mm Coaxial Pigtail Jumper Cable for 4G, LTE, 5G, Bluetooth, ZigBee, 900 MHz, LoRa, GPS, Drone, RC Radio Antennas (ANT-105-SMA-2PK)

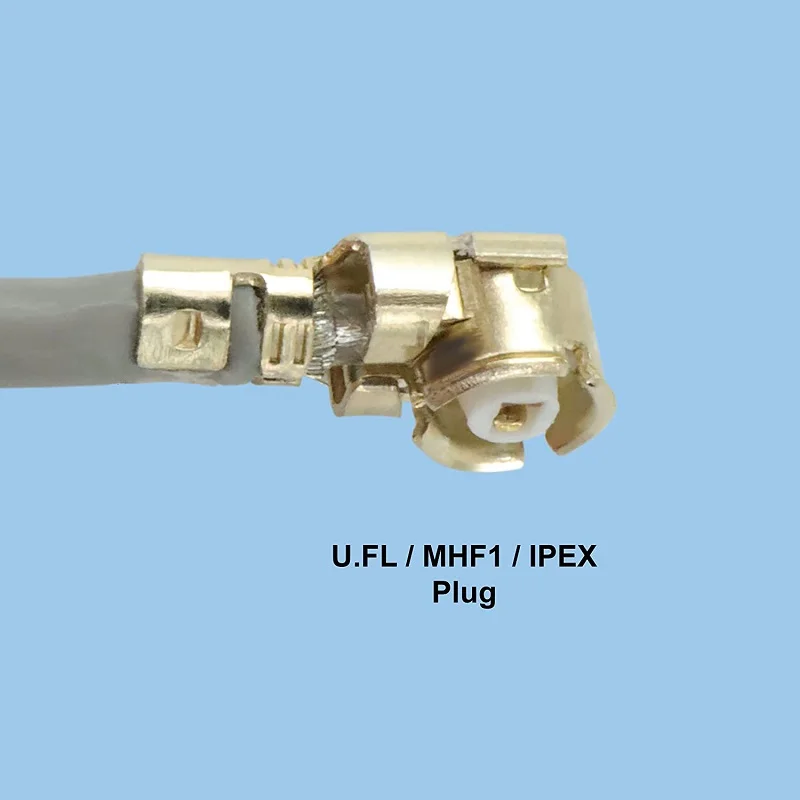

  • U.FL (I-PEX MHF1) MALE for Mating with Female RF Connectors on PCI, PCIe, mPCIe, and other circuit boards

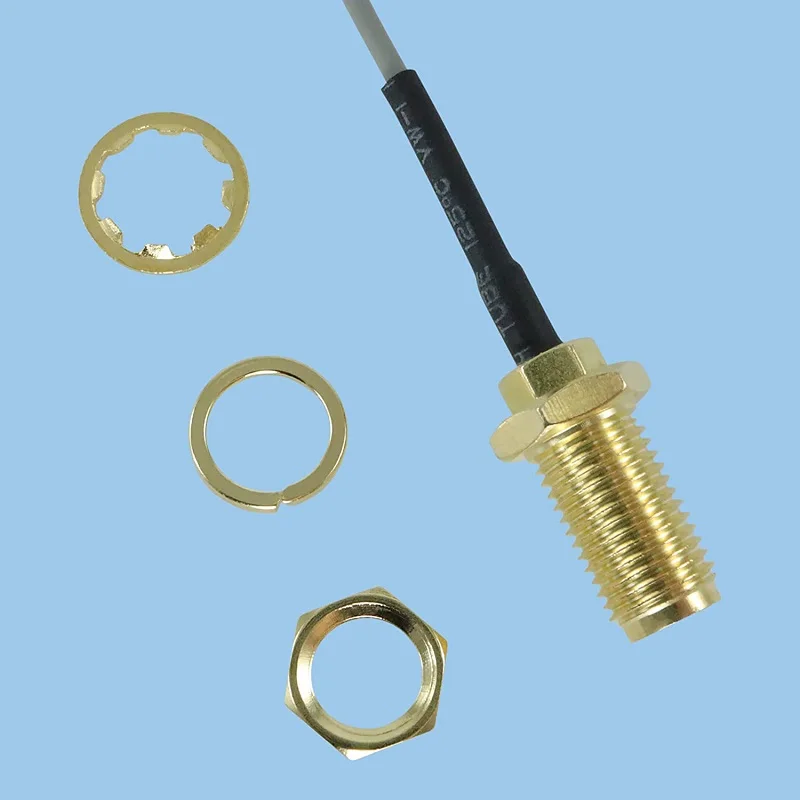

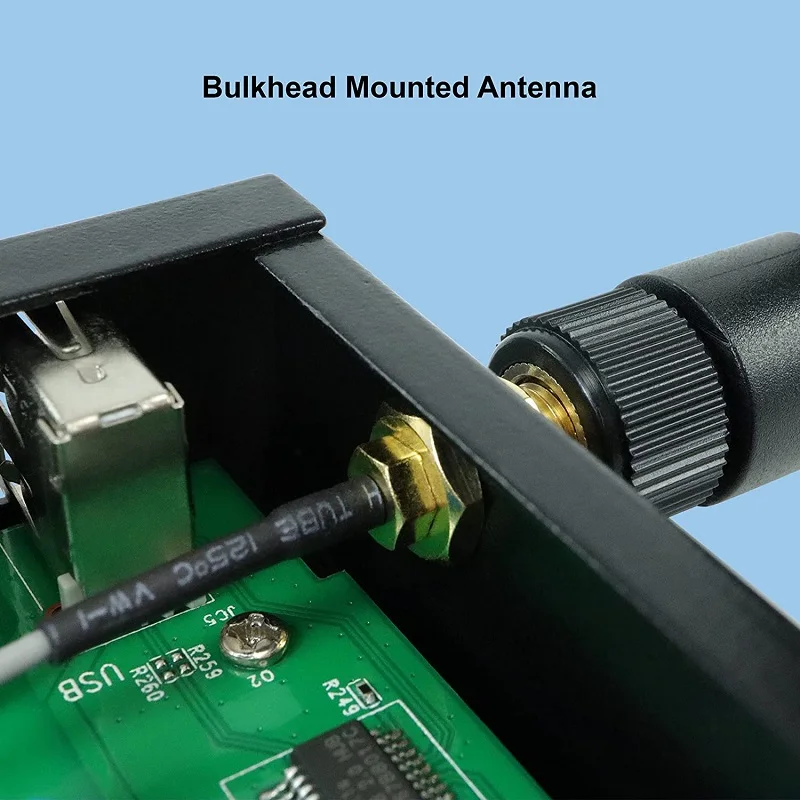

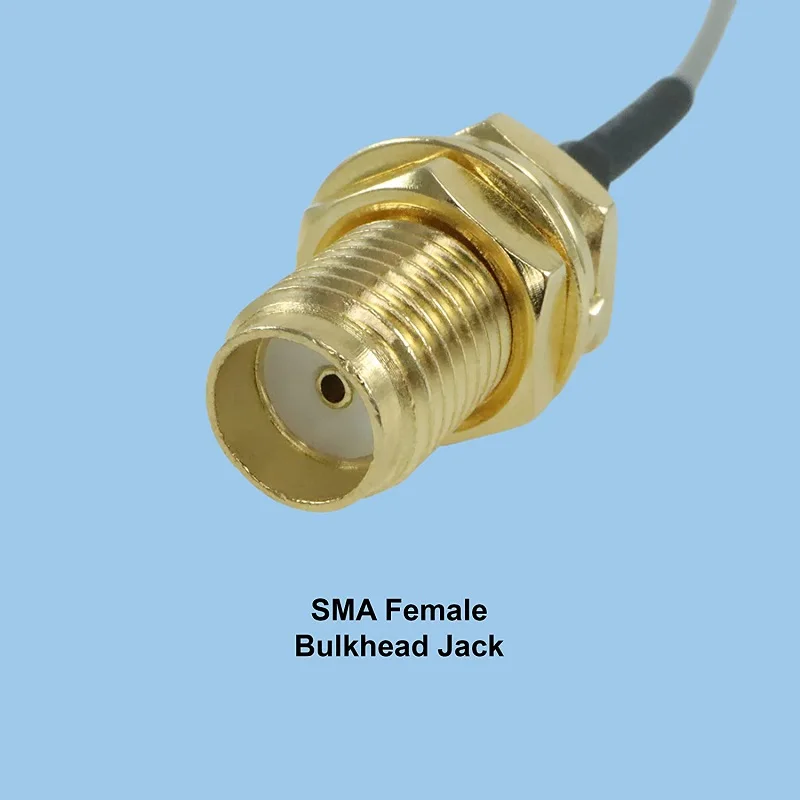

  • SMA FEMALE BULKHEAD JACK for Connection to External Antennas or Other Wireless Equipment

  • ULTRA LOW-LOSS Thin & Flexible RF1.37mm 50 Ohm Coax - 8 inches (20 cm) - Best for High Frequencies

  • SOLID SILVER-PLATED COPPER CORE, GOLD-PLATED PINS and TINNED COPPER SHIELDING Minimize Signal Loss

  • Not for use with M.2 (NGFF) sized expansion cards or modems - those typically use the MHF4 connector interface



























Connector on first SMA jack connectorDepends on your needs
Connector on second ufl connector
Cable type1.13, 1.37 cable, RG178

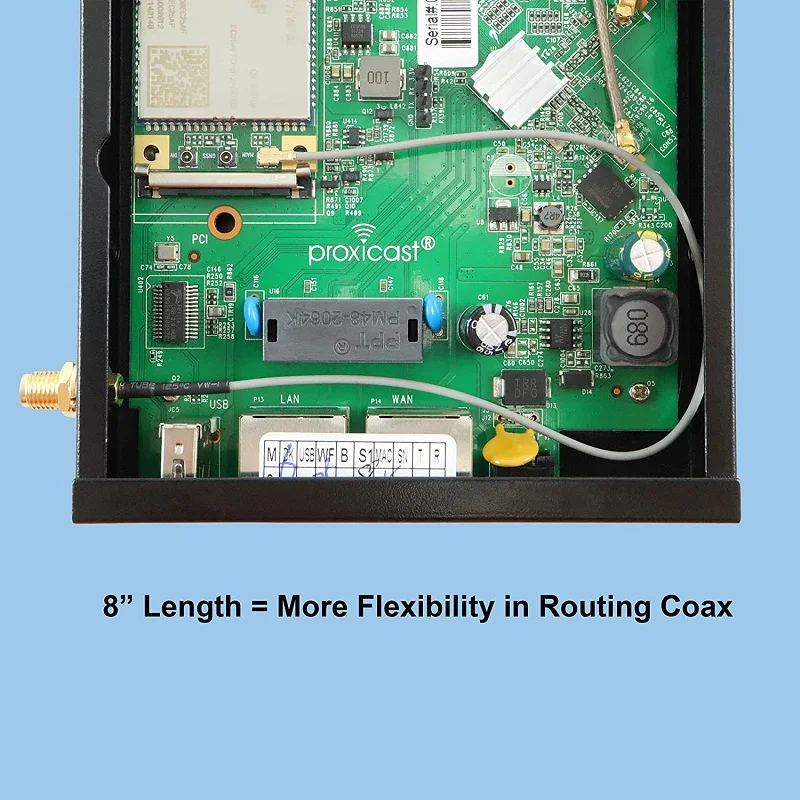

Cable length20cm
PackingNeutral packing or customized




 SMA coaxial cable.jpgsma socket.jpgMHF1.jpgsma cable.jpg
