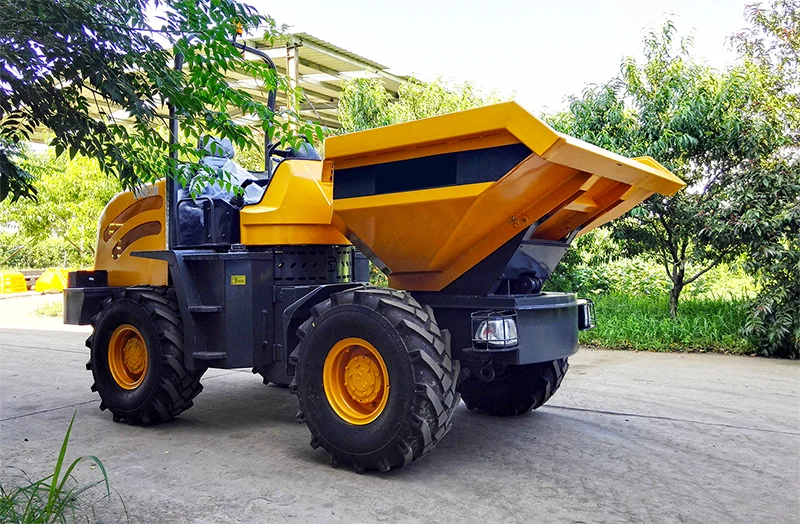

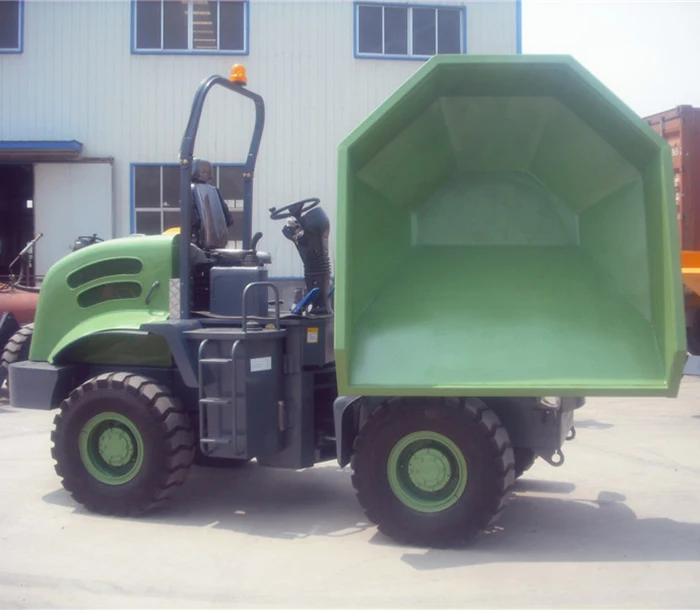

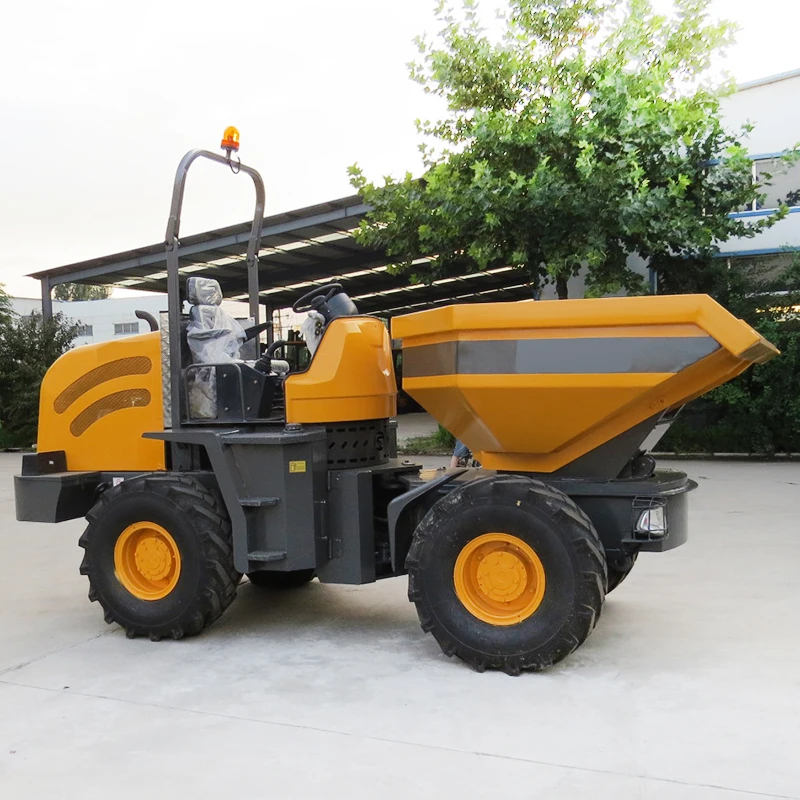

high lifting oil palm farm dumper

1)  Euro-3 engine xichai498 37kw have lower diesel consume and good quality

2)  CVT transmission have good quality,Easier operate and never flameout at rough terrain

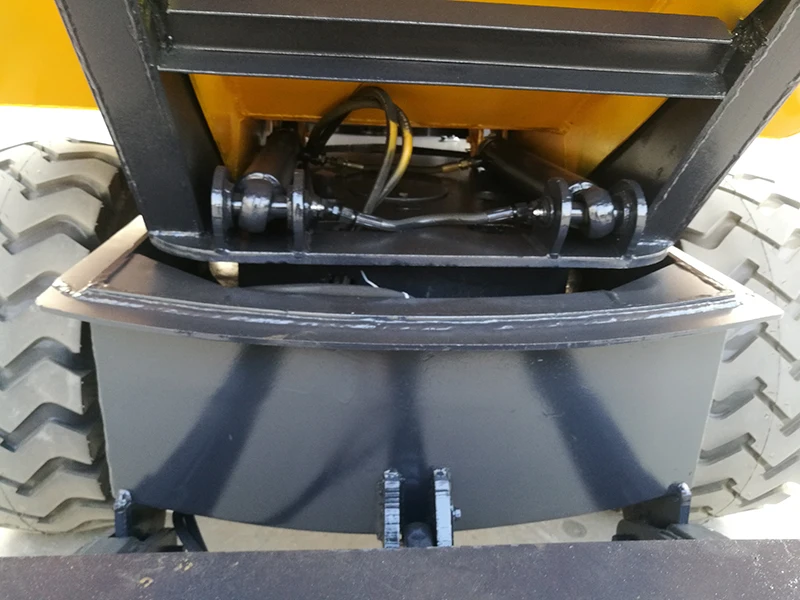

3)  Central articulated frame and load sensing hydraulic steering

4)  Four wheel drive,Oscillating gear axles

5)  Four wheel hydraulic 4 wheel air disc brake and hand brake

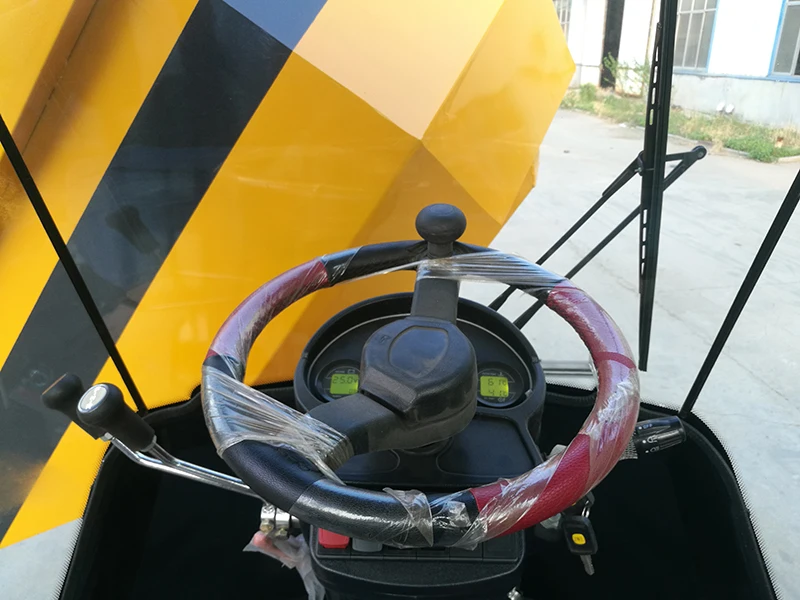

6)  ROPS frame,adjustable and comfortable seat,adjustable steering wheel,Single handle mechanical joystick control

7)  Famous brand Camel battery with Big AH

8)  Authentic machinery CE approved by Germany TUV.

9)  20.5/70-16tires

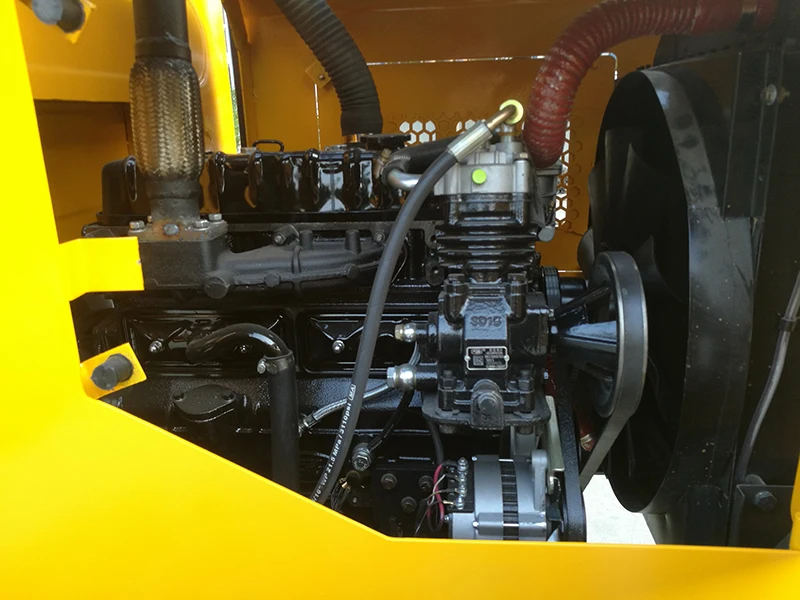

1.0   Engine Details

(1)   Model: Changcai 4L68

(2)   Engine type: In-line arrangement, water-cooled, four-cycle diesel Engine

(3)   Rated Power: 37KW (50.32H.P.)

(4)   Rated Speed: 2200 r/min (rpm)

(5)   Fuel Consumption ratio in standard working condition: 230g/kw.h

2.0   Transmission System

(1)   Type: Fixed-spindle Power shift (CVT shift)with Hydraulic torque convertor

(2)   Shift gear control oil pressure: 1.2~1.5MPa

(3)   Rated input speed: 2500 (rpm)

(4)   speed: F1:4.4km/h

                   F2:28km/h

                   R1:4.4km/h

                   R2:28km/h

3.0   Bucket

(1)   Bucket Capacity: 2.0 m3 180 (rotated)/2.5m3(without bucket rotated)

(2)   Bucket width: 2000mm

(3)   Bucket type: Heavy-duty with single or dual cylinders

(4)   Max. dumping Force: 5000kg

(5)   Rated Load: 5000kg

(6)   Operating Weight(machine weight): 4000kg

(7)   Max Dumping degree:50

(8)  Max dumping position bucket mini clearance:1400m

4.0   Overall Dimensions

(1)   Overall Length: 4200mm

(2)   Overall Height

(a)   Ground to ROPS Top: 2700mm

(b)   Ground to the top of cabin:2850mm

(3)   Overall Width: 2050mm

(4)   Axle base:2180mm

(5)   Wheel base:1950mm

5.0   Operating Specifications

(1)   Steering System: Articulated Frame with hydraulic power steering

(2)   Min Turning Radius: 4500mm

(3)   Driving System: Hydraulic converter

6.0   Brake System

(1)   Service Brake: 4 wheel hydraulic-Air disc brake

(2)   Parking Brake: Hand operate

We offer 1 year warranty for Chassis,engine,transmission system,and hydraulic system.Note that cabin glass,Tires,Electrical device,quick wear parts (Filters,fuse,seals,etc…) do not covered by warranty

Within the warranty We sending the parts air express to the customer.With seller pay the shipping cost.

Beyond the warranty.We sell the parts to customer at EX-factory low price.With buyer pay the shipping cost.

We have a parts warehouse in middle europe

 You can choose more styles
