250w fat ratrod 20INx4 electric bicycle/500w scrambler flattracker/750w e bike caferacer 1000w Velo assistance electriquepedelec
Optional different style of headlight grill
optional tank colors or luxury tank strap on it
optional children seat on the rear
Optional two styles of front racks
optional surf board carrier
optional luxury leather tank strap

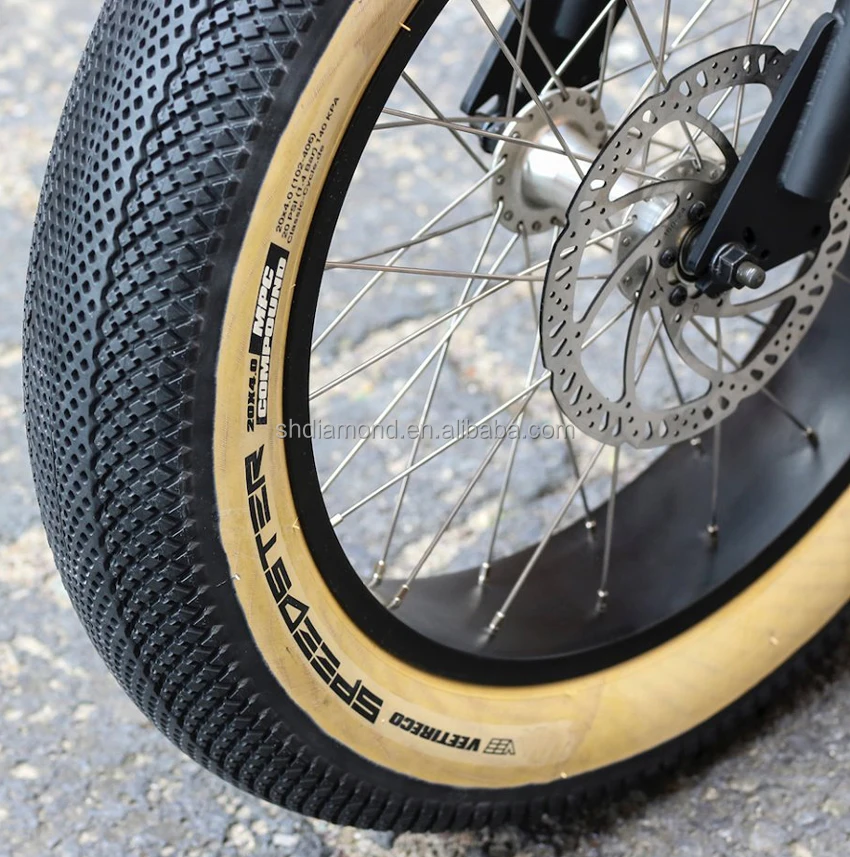

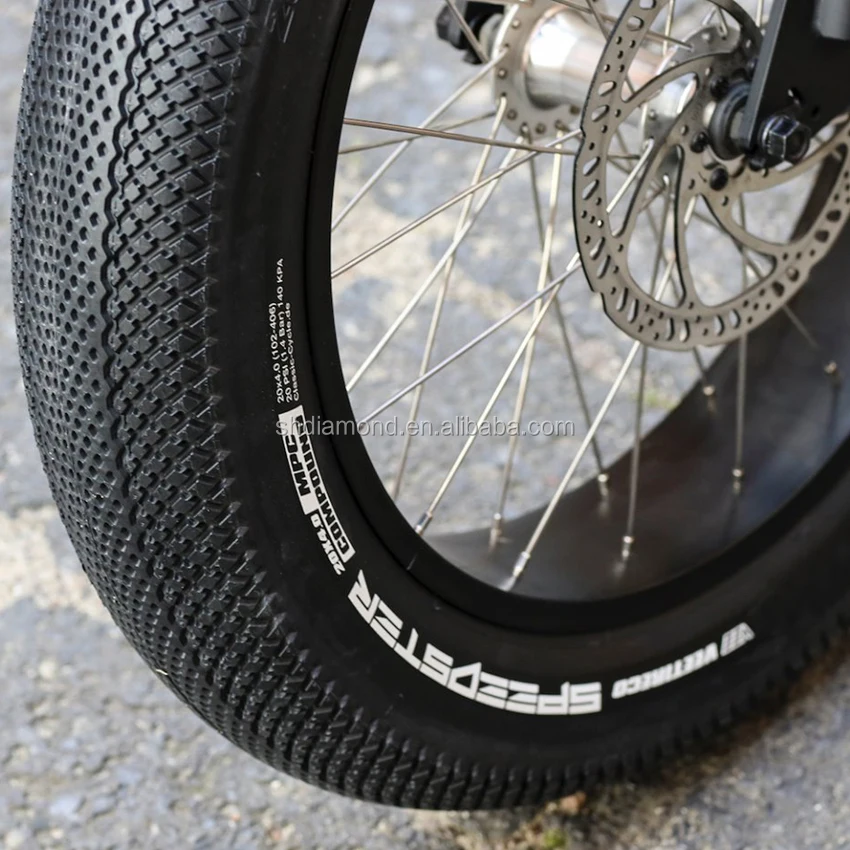

can match it customized tires of streethog,white wall, vintage brown,vee tire full black or skinwall
optional brandable advertisement side panels

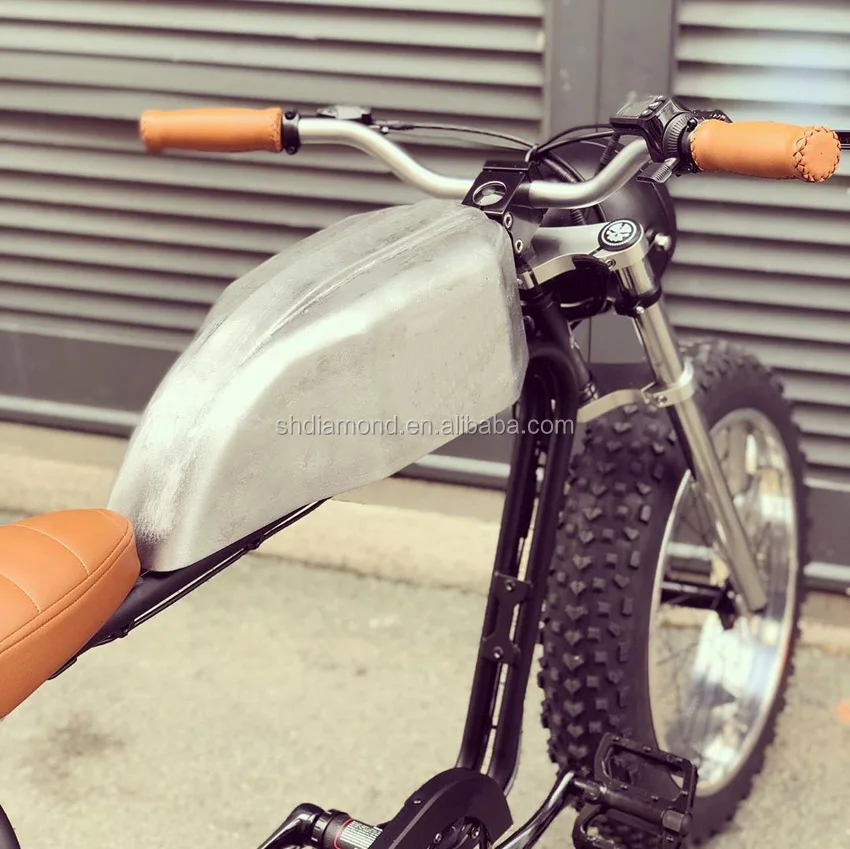

battery case tank can be customized
ratrod 250W electric fat bike/500w scrambler caferacer seat pedelec/750w bobber e bicycle/1000w boardtracker Cycle shocky fork
vintage 250W electric bike/500w scrambler fat pedelec/750w bobber e bicycle/1000w boardtracker Cycle battery tank,headlamp grill
rat rod 250W fat electric bike/500w scrambler pedelec/750w e bicycle/1000w caferacer elektrische fietsen headlight rock guard
tracker hot rod 250W e bike/500w fat caferacer pedelec/750w scrambler retro electric bicycle/1000w vinyege elektrische bakfiets
20x4 scrambler e bike /rat custom fat retro pedelec/urban cafe racer fatty electric bicycle/bonnie headlamp 250w/500w/750w velo

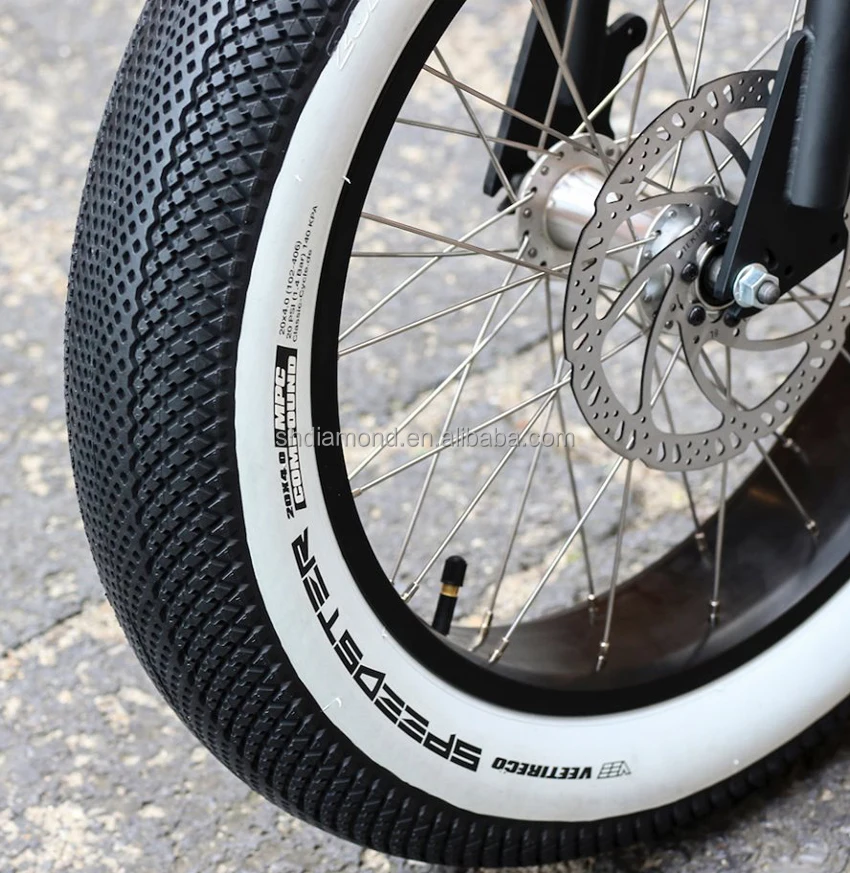

option white wall tire, knobby tire, vee speedster 2019 special tire

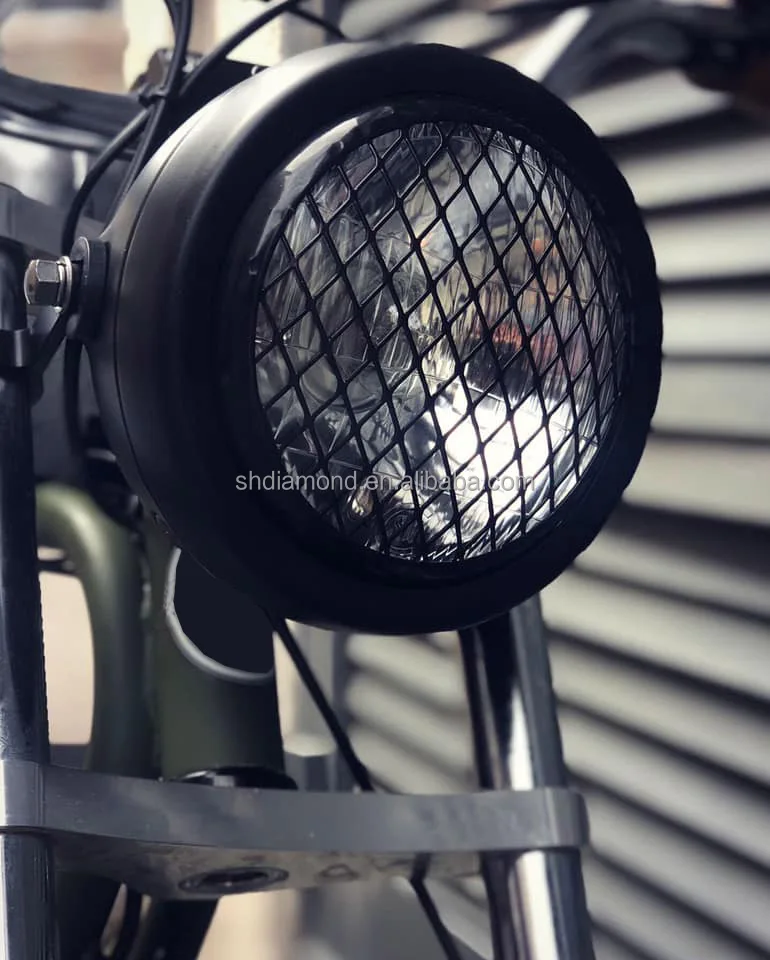

headlight grille or stone guard can be with different styles as you prefer
range up to 50 km to 60km per charge
CE and EN15194
customized battery tank, tires can be road tire, knobby tire, handle bar can be with different styles
headlight lens can be yellow or white
spec:
Model
CARLETON
Dimension
1720×615×835 mm
Motor Type:
8fun Brushless High Speed Geared Hub Motor at rear wheel
Motor Power:
250w
Option 350w
Option 500w
Option 750W OR 1000W
Motor Torque:
35 Nm for 250w
Battery:
48/8.8Ah Samsung or Panasonic Li-ion battery
optional 48V 14.5AH to match 500w/750w motor version
battery tank can be customized with your design
Speed control:
Power Assist-PAS (with built -in Sensor)
Charger:
Smart Charger
Charging time
4-6 hours from empty
Frame Type:
HD Steel
Wheels:
Aluminium alloy, double wall, inner 19mm
tires
fat tire 20″ x 4
Option white wall tire or VEE speedster tire,full black or skinwall
Lights
big front front Headlight in white lens or yellow lens
option different style of headlight grille,stone guard
Handle bar:
handlebar with low rise stem
Fenders
front small rear long
Front Fork:
normal integrated
Derailluer
Shimano 7 speed altus
Speed:
25kmh for European
32kmh for US and Canada
Range:
Up to 50km to 60KM per charge based on battery use only, more with pedaling. dependent on weight of cyclist, frequent use of PAS, air pressure in tyres, road condition,wind ,etc.
Meter
LCD
King meter LCD display with indication of lights, odometer, Tachometer,control, soft-start
Braking System:
Front and rear Tektro disc brake
Power of Mode
Pedals only; Pedal assist (a combination of motor and pedaling); or Optional throttle controlled
