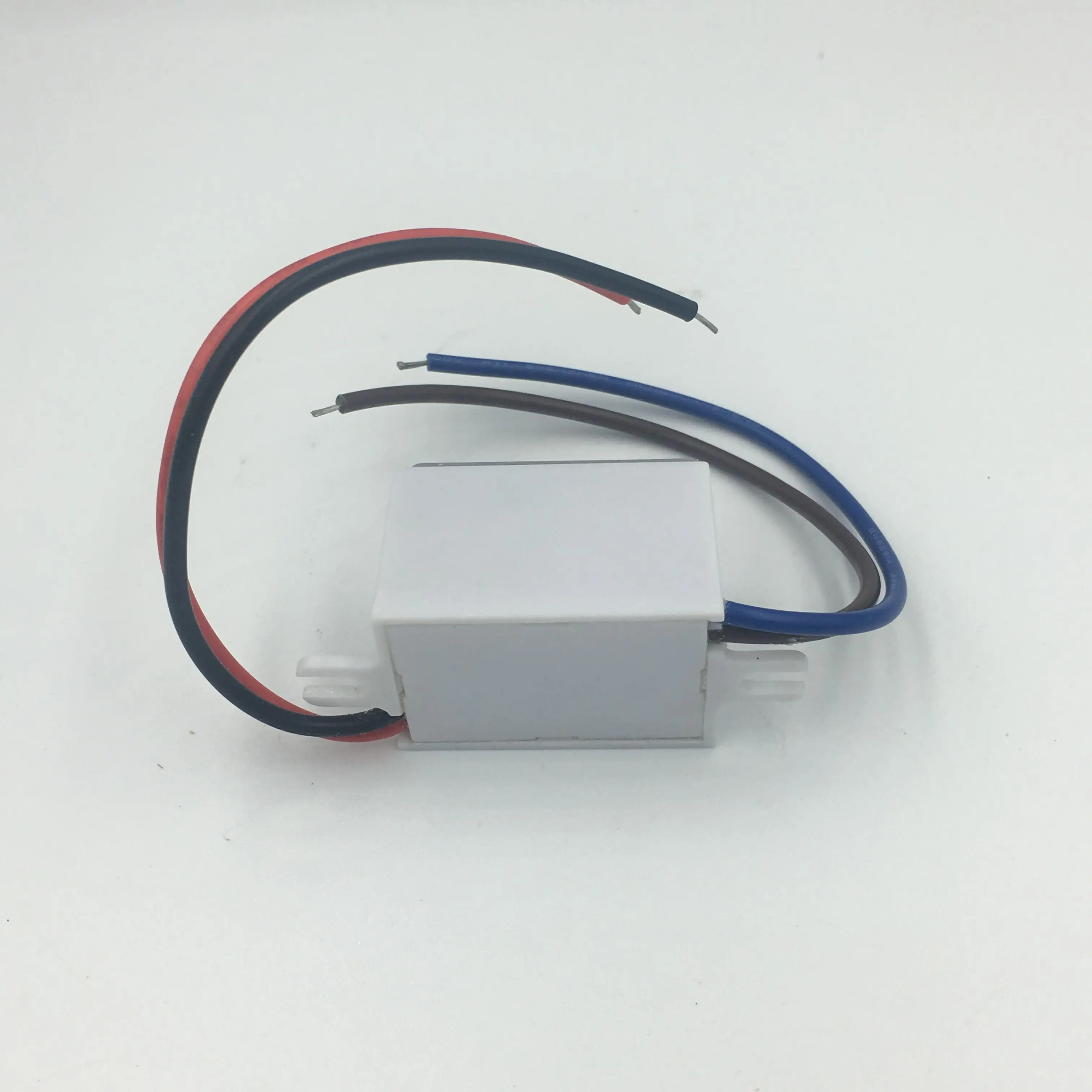

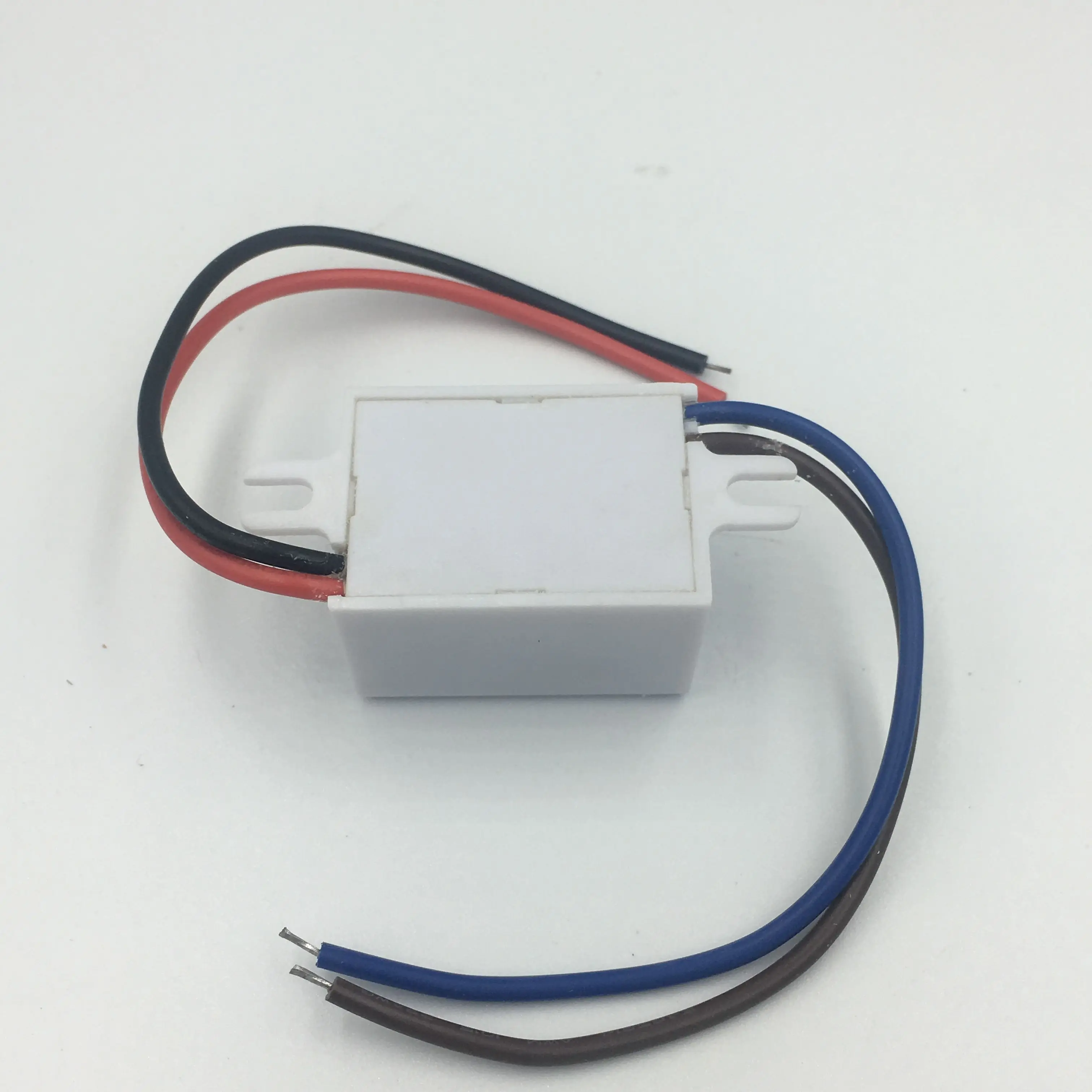

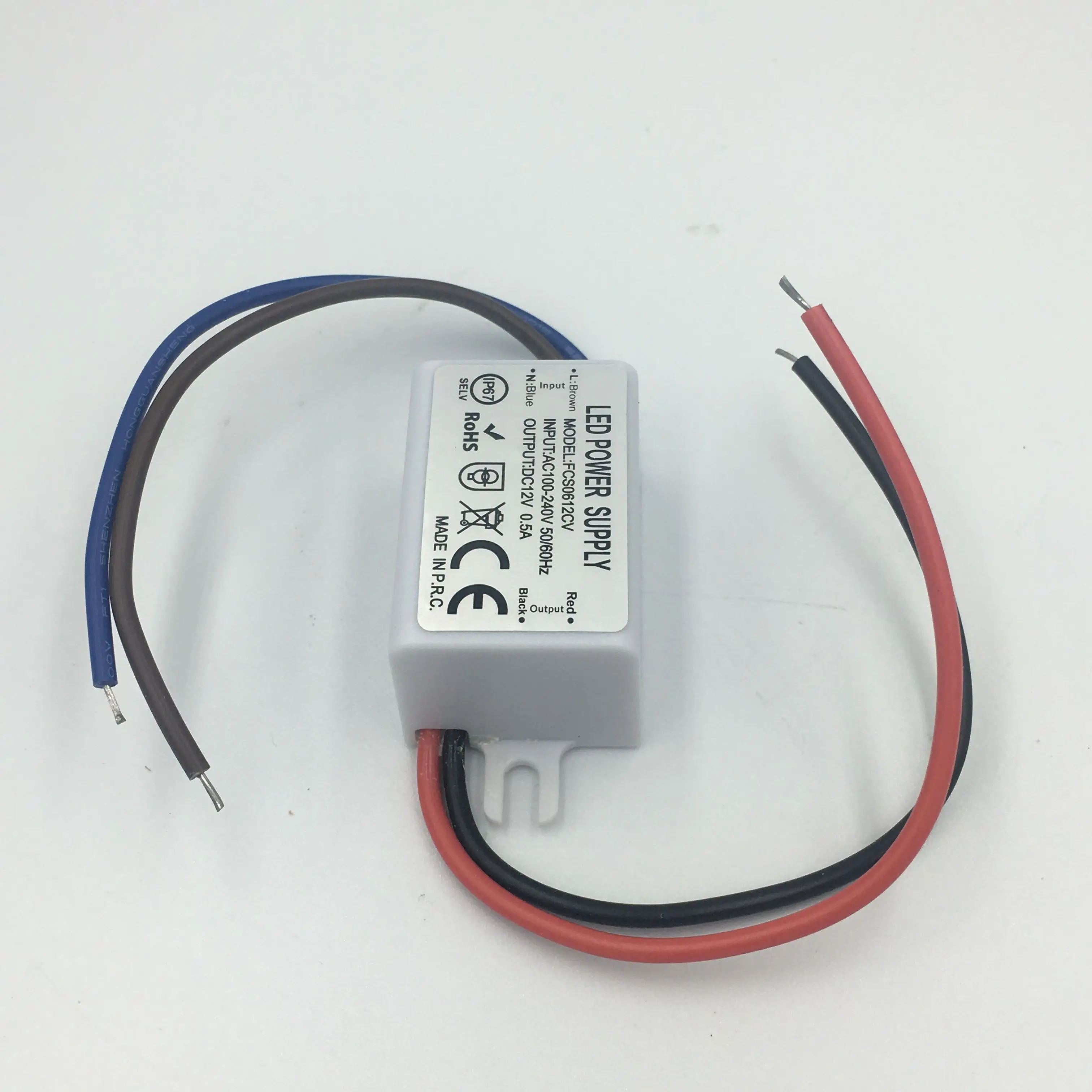

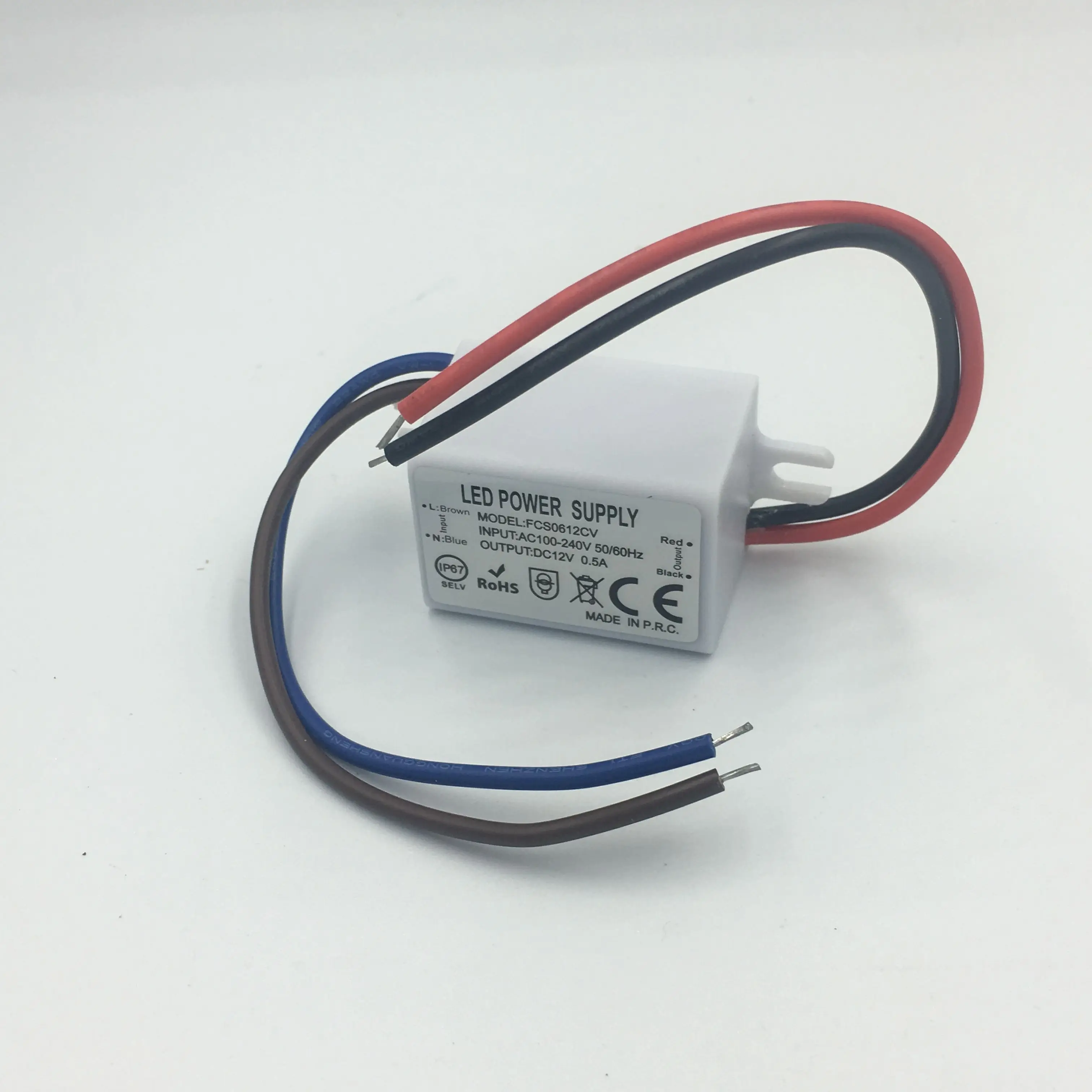

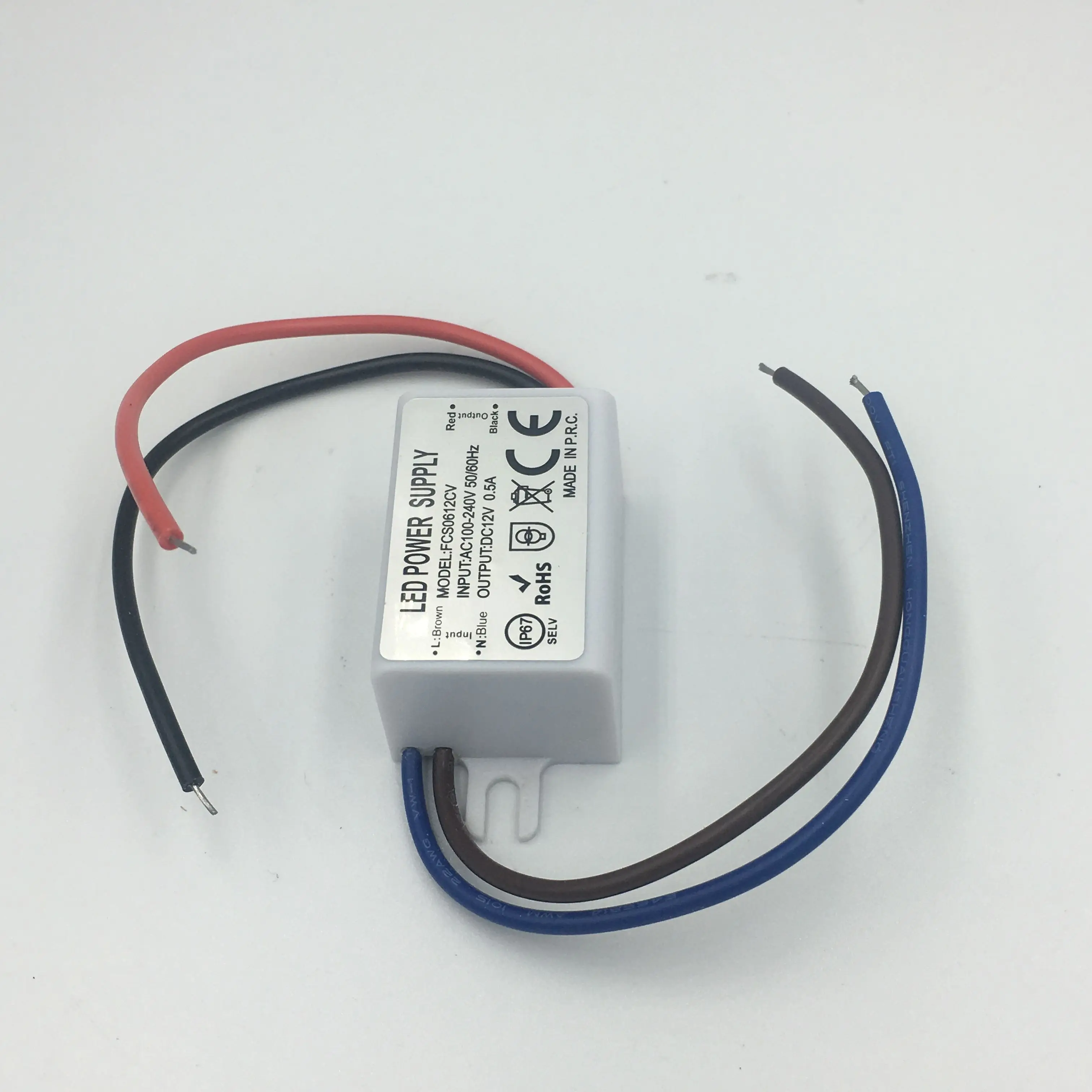

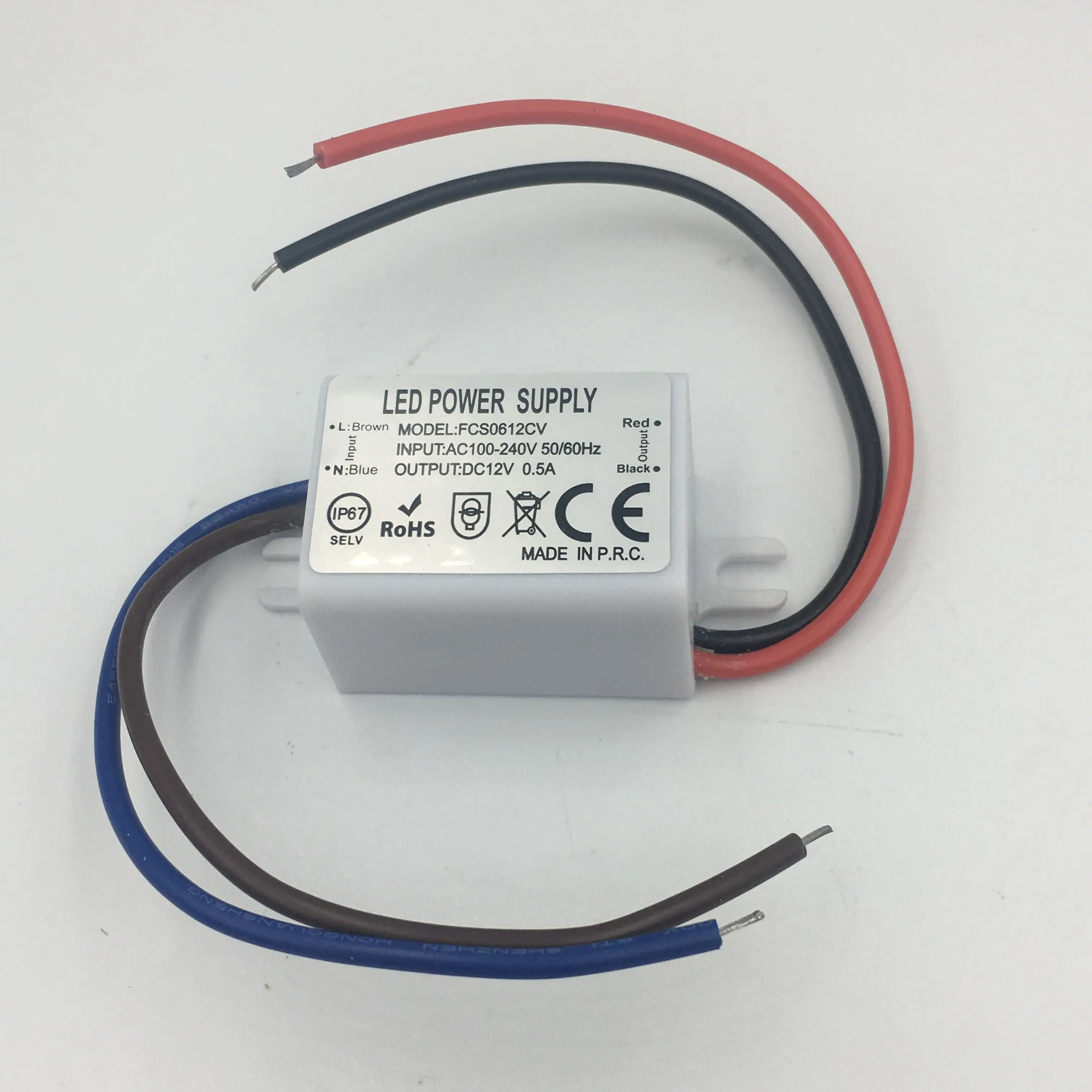

IP67 waterproof mini size 6w led light source 12v 6w led power supply

MODEL

FCS0612CV

FCS0624CV

OUTPUT

DC VOLTAGE

12V

24V

RATED CURRENT

0.5A

0.25A

CURRENT RANGE

0~0.5A

0~0.25A

RATED POWER

6W

6W

RIPPLE&NOISE(max)

<700mV

<400mV

VOLTAGE TOLERANCE

±0.5V

±0.5V

INPUT

VOLTAGE RANGE

100~240VAC

FREQUENCY RANGE

50~60Hz

POWER FACTOR(Typ.)

EFFICIENCY(Typ.)

>80%

>81%

AC CURRENT(Typ.)

0.090A/100~220VAC

PROTECTION

Short circuit

Protection type:recovers automatically after condition is removed

Overload

overload protected@145-160% above peak rating

Over temperature

Protection type:Shut down o/p voltage,re-power on to removed

ENVIRONMENT

WORKING TEMP.

-30~+50℃ (Refer to output load derating curve)

INGRESS PROTECTION

IP67 design for indoor or outdoor installations

STORAGE TEMP

-40~+80℃

SAFETY&EMC

SAFETY STANDARDS

EN61347-1;EN61347-2-13;SELV;IP67  UL, CE, ROHS approved

WITHSTAND VOLTAGE

I/P-O/P:2KVAC  I/P-FG:2KVAC O/P-FG:0.5KVAC

EMC Test Standards

EN55015:2006;EN61547:1995+2000;EN61000-3-2:2006

EN61000-3-3:1995+A2:2005;EN61346-1:2001;EN61347-2-13:2006

NOTE

1.All parameters NOT specially mentioned are measured at 110V ~ 220VAC input,

rated load and 25℃ of ambient temperature.

2.Ripple&noise are measured at 20MHz of bandwidth

by using a 12" twisted pair-wire terminated with a 0.1uf&47uf parallel   capacitor.

3.Tolerance:includes set up tolerance,line regulation and load regulation.
