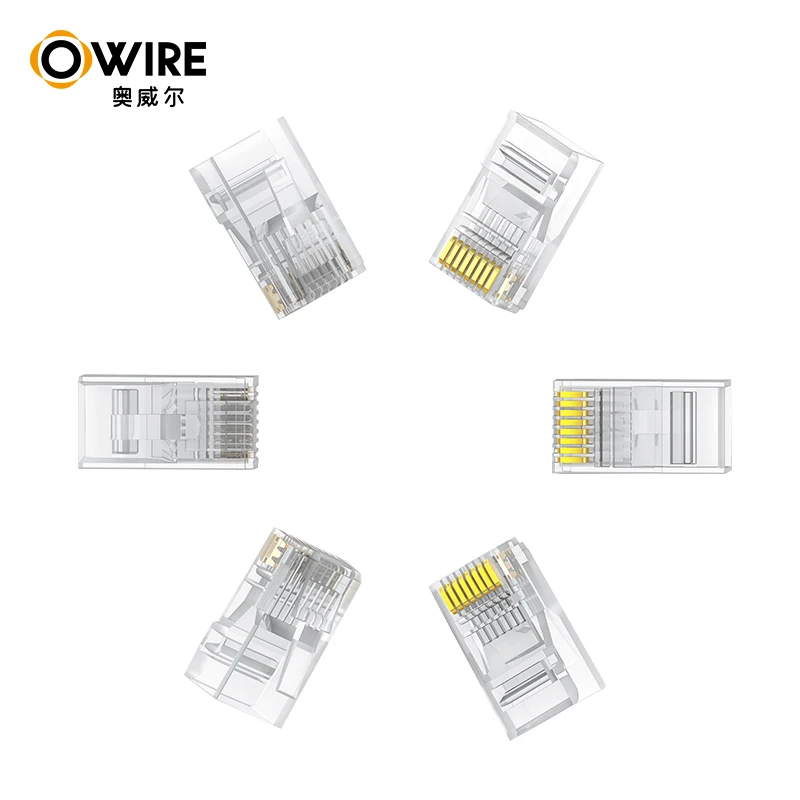

Shenzhen 100pcs high Quality RJ45 Connector Cat5e cat6 cat6a utp/FTP Network Cable Connectors

Share on:

Price:RUB 0.7534 - RUB 2.27
Price in USD:Details


Product Overview


Product Description


1). Transparent color

2). Meet or exceed the requirement in the cat5e T568A and T568B

3). Contacts are  nickel plated, phosphor bronze with 1U, 3U, 6U….50U gold plated

4). Exclusive stagger conductors guide design reduces near end cross talk

6). Accept 22AWG, 23AWG, 24AWG, 26AWG solid with a insulation diameter of 0.64mm, 0.56mm, 0.50mm, 0.40mm





1) UL application:250vac,2a(max)

2) Dielectrical with standing voltage:500v AC

3) Insulation resistance:35m ohm(max), after environmental testing




l ) Cable- to-plug tensile strength:20lbs(89n) (min.)

2) Durability: 750 matching cycles

3) Temperature range:-40~60


Material and finish:


1) Housing:polycarbonate(pc)UL94-v-0 or UL 94-v-2

2) Contact blade: phosphor broze

3) Gold plating:80u over nickel,3-50u gold plating


Carton measurement


1-pair patch plug

 53.5cm x 31.3cm x 23.4cm

  3.5 kg

2-pair patch plug

 53.5cm x 31.3cm x 23.4cm

  3.8 kg

4-pair patch plug

 53.5cm x 31.3cm x 23.4cm



8P8C RJ45 Connectors.jpgCat5e UTP Connector.jpgCat6 Connector .JPG

RJ45 Connector.jpg


Company Information

Network Cable Connector .jpg

Cat7 8P8C Connector.jpg
