Product Overview
Description
Product Description
Equipment type | YH400A |
Treatment air volume (m/h) | 9000-12000 |
Shape size (LxWxHmm) | 2088*1450*2800 |
Equipment Shell Material | 2.0 mm Carbon steel sprayed |
Equipment resistance (Pa) | <700 |
Gas Source Pressure (MPa) | 0.6-0.8 |
Specification of filter cartridge (mm) | 325*1200 |
Filter cartridge number | 12 |
Equipment filtration area (m2) | 120 |
Filter cartridge material | Flame Retardant of Polyester (PTFE Coating) |
Air leakage rate | < 3% |
Dedusting method | Automatic Back Blowing Mechanism and Automatic Ash Cleaning |
Equipment noise | < 75 db(A) |
> Removal rate of 0.4um particulate matter | 99.99% |
Full Fan Pressure (Pa) | 2000-2500 |
Motor power | 11-15kw |
Equipment weight | 1200KG |
Details Images

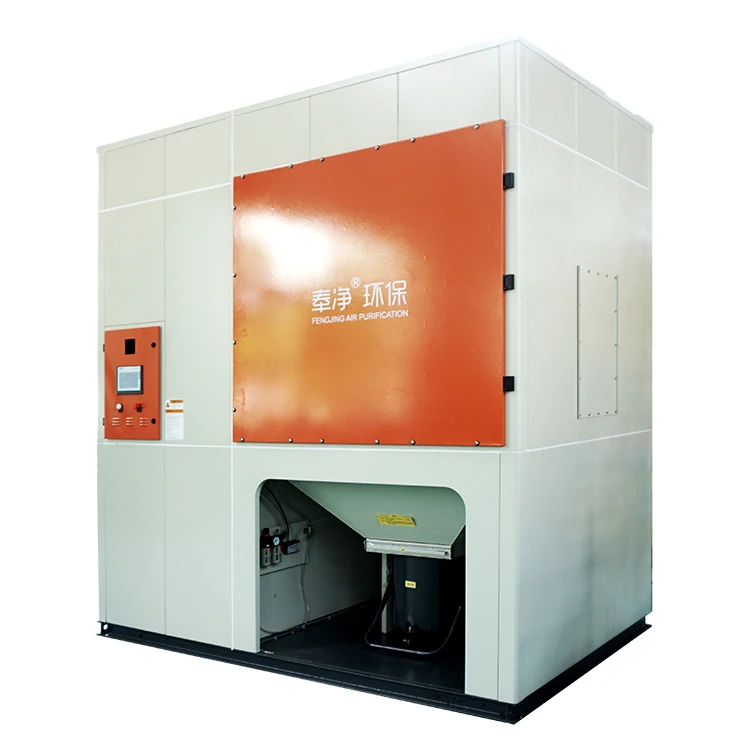

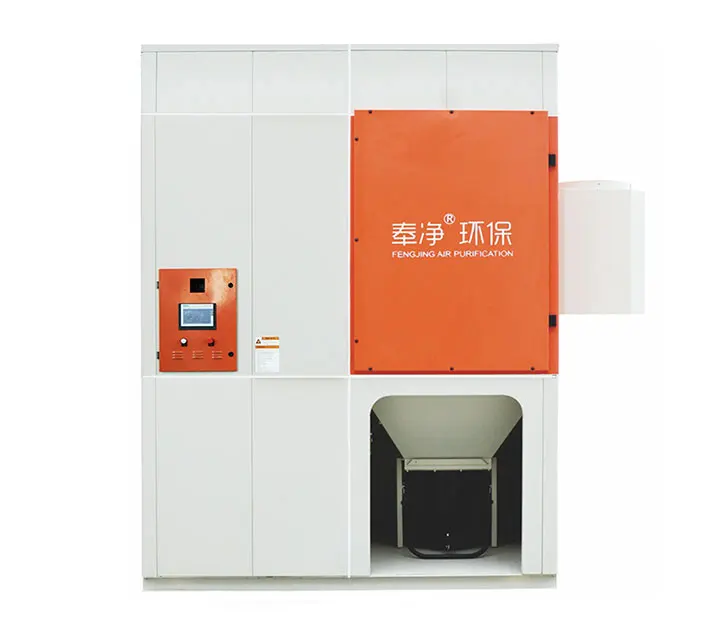

Y SERIES CENTRAL SMOKE PURIFICATION SYSTEM
CENTRAL All- IN - ONE MACHINE
WORKING PRINCIPLE
CENTRAL All- IN - ONE MACHINE
WORKING PRINCIPLE
[1] The Front End Will Send Smoke And Dust Into The Purifier Through Various Smoke And Dust Capture Methods (Such As Suction Arm, Suction Hood, Suction Mouth, Etc.)
[2] When Passing Through Ptfe Membrane Filter Cylinder, Soot Is Filtered And Attached To The Surface Of The Filter Cylinder.
[2] When Passing Through Ptfe Membrane Filter Cylinder, Soot Is Filtered And Attached To The Surface Of The Filter Cylinder.
[3] The Clean Air Is Taken Out Of The Purifier By The Fan After Noise Elimination Treatment And Discharged To The Outside.
[4] Dust Particles On The Surface Of Filter Cylinder Will Be Automatically Backblown And Then Fall Into The Dust Collector.
[4] Dust Particles On The Surface Of Filter Cylinder Will Be Automatically Backblown And Then Fall Into The Dust Collector.
DETAILS OF PRODUCT
SEIKO MANUFACTURING, LEAN MANUFACTURING
SEIKO MANUFACTURING, LEAN MANUFACTURING
PCL WELDING SMOKE CONTROL TOUCH SCREEN SYSTEM:
PCL Welding Smoke Control Touch Screen System Can Realize The Machine Pressure Difference System Control, Blowing Pressure Difference, Alarm Pressure Difference, Stop Pressure Difference And Other Pressure Difference Control. Users Can Choose Blowing Mode, Timing Blowing Mode,Manual Automatic Cycle Blowing Mode, According To The Actual Working Conditions, Users Can Automatically Set The Fan Automatic Operation Stop Time, Automatic Blowing Interval Time, Air Storage Buffer Time, Blowing Cycle Number After Stopping.

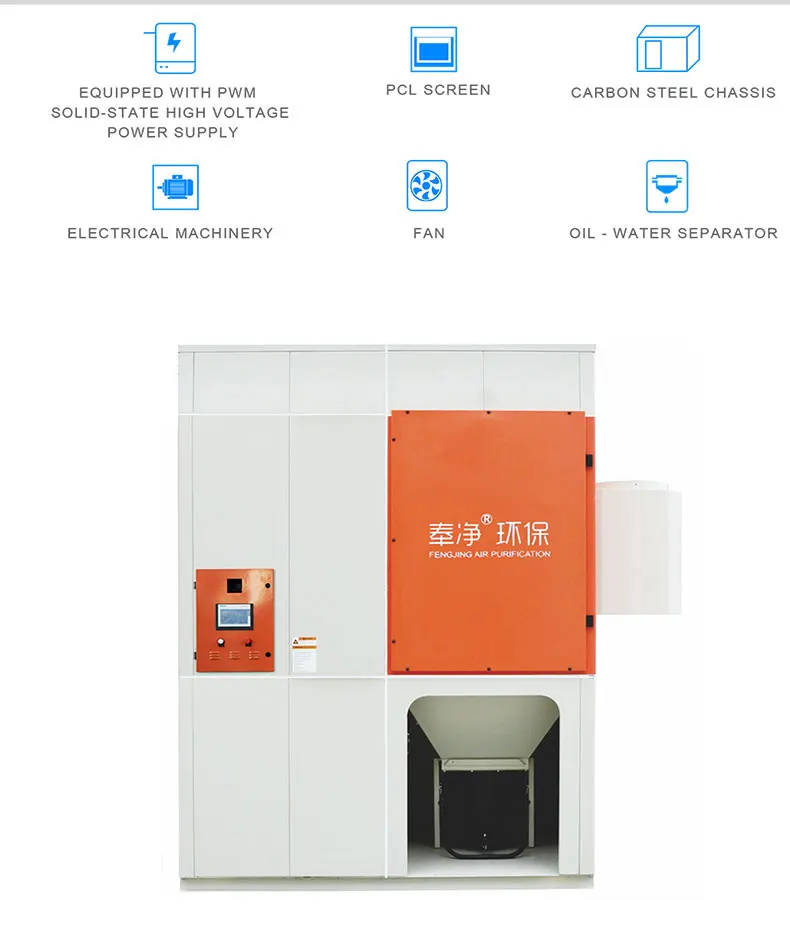

BRAND COMPONENTS:
[1] High Eficiency Level Reduces Energy Consumption And Ensures The Use Of Customers Safe And Reliable.

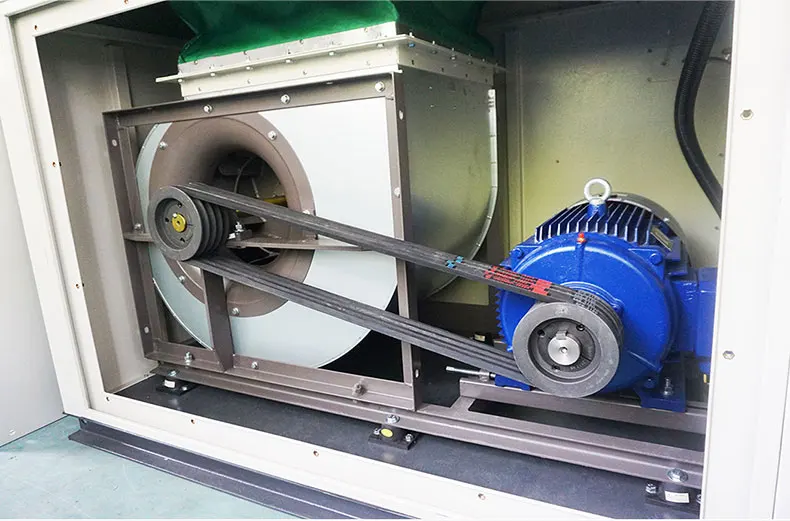

[2] Built-In Imported Fan With Strong Suction And Special Noise Reduction Processing,Mute Mode.

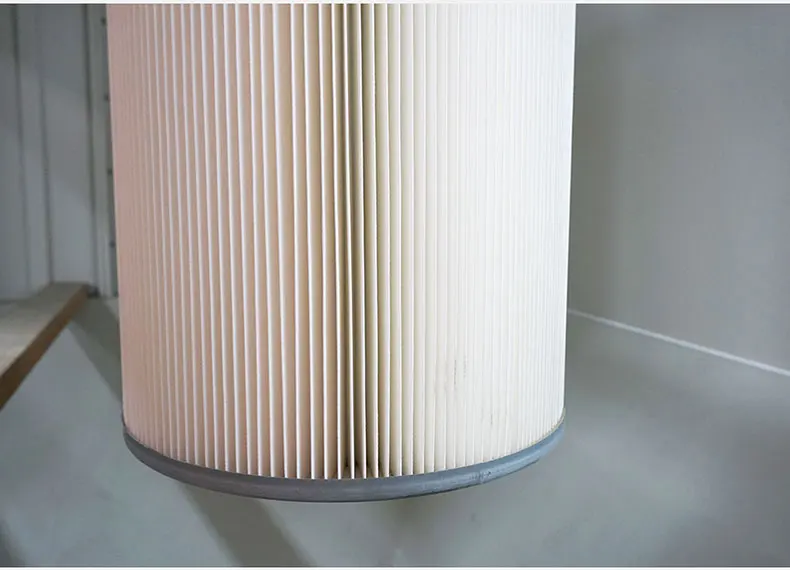

[1] PTFE Membrane Filter Cylinder: A Composite Layer Of PTFE Microporous Membrane ls Applied On The Surface To Filter Materials, With Better Filtration Efficiency.
[2] The Filtration Accuracy Is Up To 99.98%, Which Can Block Large Particles Of Dust, So As To Ensure The Service Life Of The Machine And Enhance The Cleaning Effect.
[2] The Filtration Accuracy Is Up To 99.98%, Which Can Block Large Particles Of Dust, So As To Ensure The Service Life Of The Machine And Enhance The Cleaning Effect.
[1] At The Front End, Smoke Will Be Sent To The Purifier Through A Variety Of Smoke Capture Methods (Such As Suction Arm, Smoke Hood And Suction Mouth).
[2] The Centralized Collection And Purification Dust ls Suitable For The Case Of More Work Stations, And The Comprehensive Cost Is Lower Than That Of Single Work Station.
[3] The Clean Air Is Taken Out Of The Purifier By The Fan After Noise Elimination.

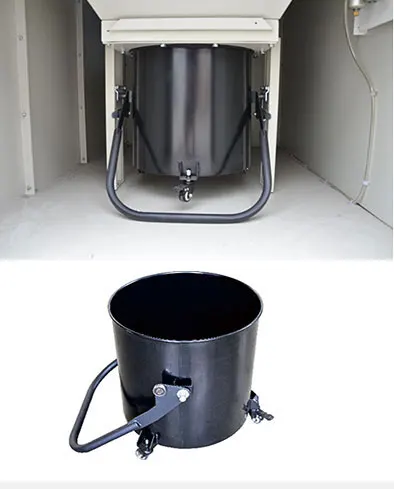

[4] The Dust Particles On The Surface Of The Filter Cylinder Will Be Automatically Backblown Into The Dust Collecting Bucket After Aggregation.
[2] The Centralized Collection And Purification Dust ls Suitable For The Case Of More Work Stations, And The Comprehensive Cost Is Lower Than That Of Single Work Station.
[3] The Clean Air Is Taken Out Of The Purifier By The Fan After Noise Elimination.
[4] The Dust Particles On The Surface Of The Filter Cylinder Will Be Automatically Backblown Into The Dust Collecting Bucket After Aggregation.
[2] The Filtered Clean Air Is Discharged Into The Room Through The Air Outlet Below The Purifier.
Long Service Life Of Filter Cylinder, Physical Barrier Of Filter Barrel Nozzle Can Completely Isolate Particles Above 0.3 Micron, And Have Good Filtering Effect On Wet And Sticky Dust.
Packing&Shipping
Why Choose Us

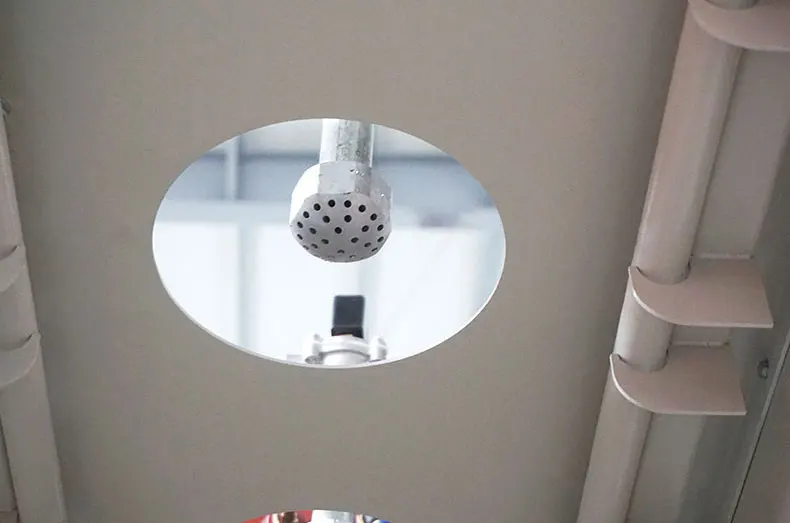

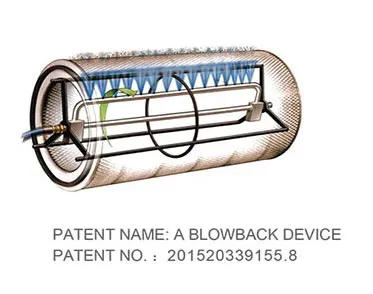

The Filter Element Adopts All-direction Automatic Rotation Back-blowing, Which Makes The Surface Of The Filter Element More Effective And Clean,And Can Maintain The Air Absorption Of Particulate Matter. Can Ensure The Purifier Is Always In Good Working Condition.

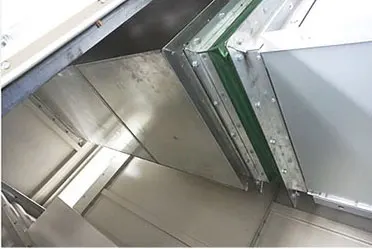

[1] It Is Composed Of A Number Of Parallel Unit Mufflers Arranged In An Orderly Manner, Which Has The Characteristics Of Large Muffler Volume And Small Resistance Loss.
[2] The Noise Emitted From The Air Inlet And
Outlet Of The Fan To The Environment Can Reach 110~120 Decibels, Which Greatly Exceeds The Standard Requirements.
[2] The Noise Emitted From The Air Inlet And
Outlet Of The Fan To The Environment Can Reach 110~120 Decibels, Which Greatly Exceeds The Standard Requirements.

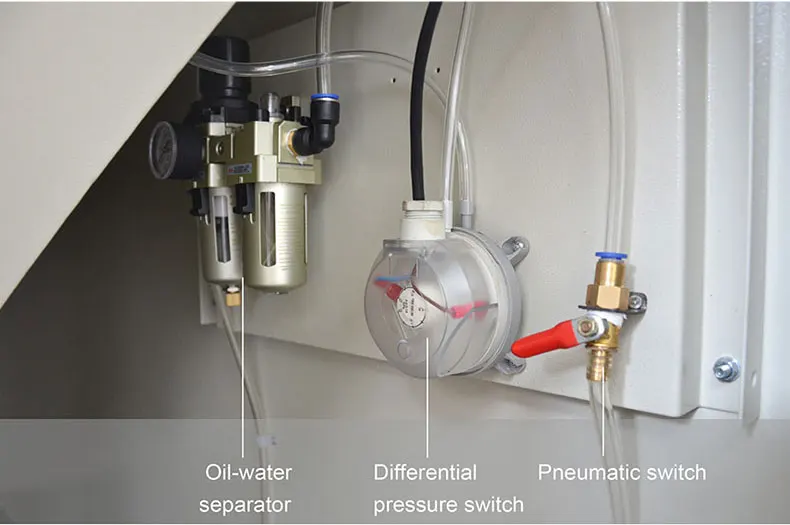

[1] Low Pressure Loss, High Water Separation Efficiency.
[2] Pressed-in Self-locking Mechanism Prevent The Setting Pressure From Abnormal Movement Due To External Interference.
[3] Transparent Inspection Of The Cover Can Directly Observe The Amount Of Oil Dripping.
[2] Pressed-in Self-locking Mechanism Prevent The Setting Pressure From Abnormal Movement Due To External Interference.
[3] Transparent Inspection Of The Cover Can Directly Observe The Amount Of Oil Dripping.
[1] The Maximum Pressure Is 10kpa, And The Operating Temperature Is 20c To +850c
[2] High Efficiency Monitoring Of Over Pressure,Vacuum And Pressure Difference Of Air Or Other Non-flammable And Non-corrosive Gases.
SEAL ING RUBBER STRIP

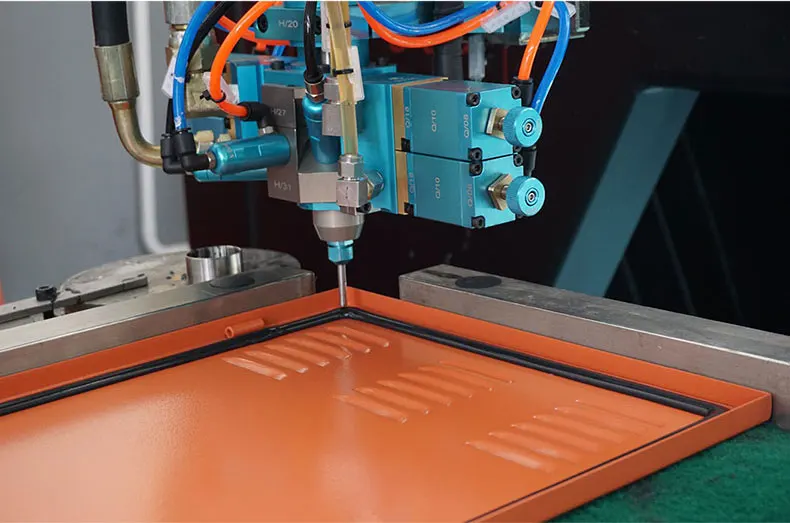

AUTOMATIC GLUING AND SEALING TECHNOLOGY,
QUALITY STARTS FROM EVERY DETAIL
AUTOMATIC GLUING AND SEALING TECHNOLOGY,
QUALITY STARTS FROM EVERY DETAIL
Fengjing Environmental Protection Lampblack Purifier Seal Treatment Adopts Automatic Glue Coating Technology, Which Can Effectively Solve The Oil Leakage In The Long-term Operation Of Lampblack Purifier, And At The Same Time Prevent The Infitration Of Rain Water Outside The Machine, Effectively Increasing The Service Life Of The Machine.
CERTIFICATIONS
Our Advantages
SEVEN PRODUCT CORE ADVANTAGES
WE PAY ATTENTION TO PRACTICAL RESULTS, NEVER WORRY ABOUT EIA

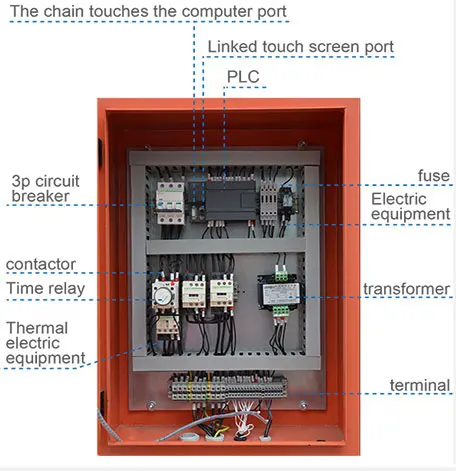

[2]Wiring Layout Is Clean, Brand Components, Durable.
[3] It Can Be Connected To A Computer For Numerical Control Operation,Which is More Convenient For Diversified Operation.
[4] It Can Be Connected To The Touch Screen For Operation, Which Is Simple And Easy To Operate.
