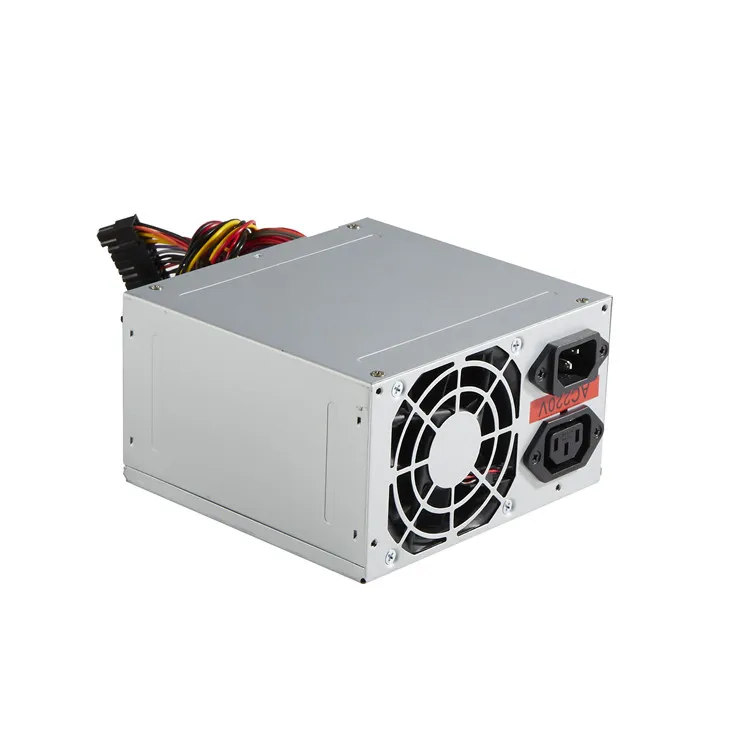

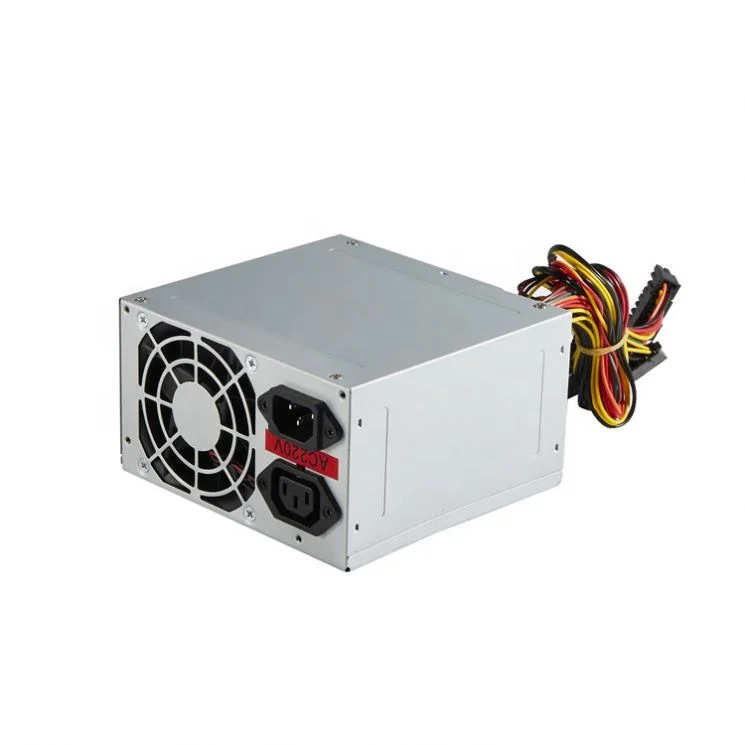

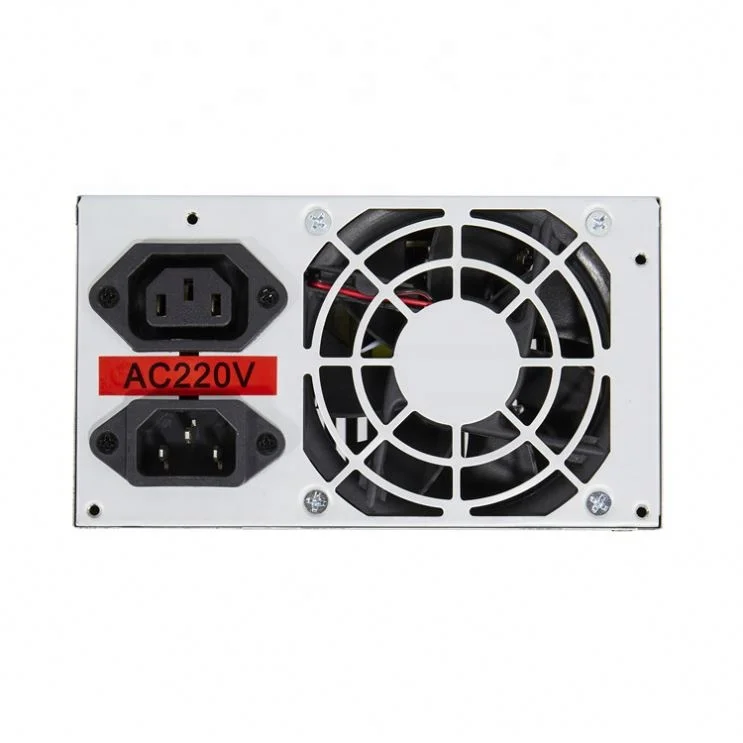

Cheap Economic fuentes de poder Power Source 200Watt /230w/250w Atx Power Supply Fuente De Alimentacion Pc
- Category: Power Supply Units >>>
- Supplier: Dongguan,Worldwide,Electronic,Technologies,Co.,Ltd.
Share on:
Product Overview
Description
Product Description
| Specification | |||||
| Model No. | ZU-200W | ||||
| Rate Power | 200W | ||||
| Efficiency | 78% | ||||
| AC input | 110/230V | ||||
| Housing Material | SECC | ||||
| Fan size | 8cm black fan | ||||
| Housing Size | 150*140*85mm | ||||
| Packing | PE bag & 10pcs/bulk package, brown or white box, retailed color box | ||||

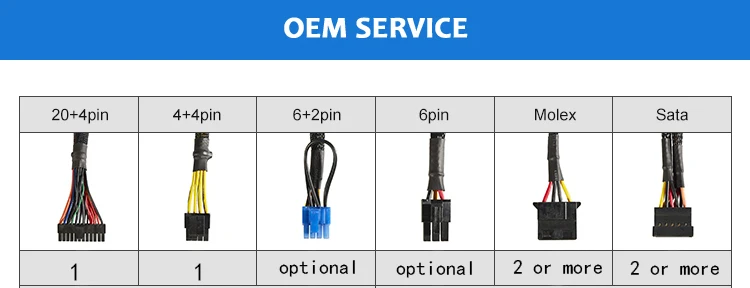

| M/B (20+4P) | 1 | ||||
| CPU(4+4P) | 1 | ||||
| PCI 6 PIN | optional | ||||
| SATA | 2 or more | ||||
| Molex/IDE | 2 or more | ||||
| Input AC | 110/230Vac 3A 50-60Hz | Fuse rating 8A 250Vac | |||
| Output voltage | +12V | +5V | +3.3V | -12V | +5Vsb |
| Output current | 12A | 8A | 8A | 0.5A | 2A |
| Max.output power | 140W | 60W | 6W | 10W | |
| Rated power | 200W | ||||
| Input AC | 110/230Vac 3A 50-60Hz | Fuse rating 8A 250Vac | |||
| Output voltage | +12V | +5V | +3.3V | -12V | +5Vsb |
| Output current | 14A | 10A | 10A | 0.5A | 2A |
| Max.output power | 160W | 60W | 6W | 10W | |
| Rated power | 230W | ||||
| Input AC | 110/230Vac 3A 50-60Hz | Fuse rating 8A 250Vac | |||
| Output voltage | +12V | +5V | +3.3V | -12V | +5Vsb |
| Output current | 18A | 16A | 16A | 0.5A | 2A |
| Max.output power | 200W | 80W | 6W | 10W | |
| Rated power | 250W | ||||
FAQ
Q. What products you offer?
A.PC power supply,ITX power supply, industral power supply(1U power dupply, 2U power supply,FLEX power supply,SFX power supply, TFX power supply), LED power supply(waterproof power supply, rainproof power supply, 3D printer power supply,led dispaly power supply).CCTV power supply, Air inflator
Q.Are you manufacturer or trading company.
A. We are manufacturer with profesional reserch and development group.Speclized in this indusrey more than 10year.
Q. what is your MOQ of switch power supply?
A.MOQ is 1 Piece.
Q.How many year warranty of your led power supply
A.Two years.
Q. Do you offer free sample?
A:Yes, we offer free sample, but client need to pay for the shipping fee.
Q.Do you have any certification?
A: Yes,we have UL CE-EMC,CE-LVD, CB,TUV, ROHS,FCC, EAC etc. if you need other certification with larger order, we can apply for it.
Q.Do you accept OEM and ODM service?
A: Yes, OEM and ODM are acceptable.
