XHDATA D 328 Radio Hot Sale Factory Direct Price FM AM SHortwave MP3 Player TF Card Portable Receiver PLL

Product Overview

Description



XHDATA D-328 Portable Radio FM AM SW Band MP3 Player With TF Card Jack





Item Description

This machine uses the latest generation of full-band radio free tuning technology in the United States. Ensure that the radio has high sensitivity, good selectivity and stability, greatly improving the signal-to-noise ratio and anti-interference ability. And its sound quality is a woofer, which is better than TECSUN-9012,

Let's see what functions this product has!

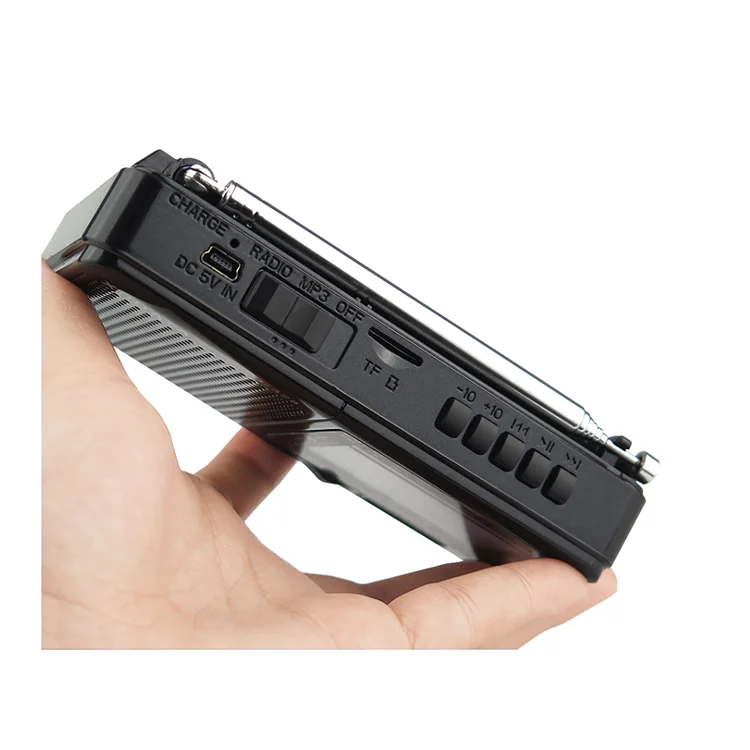

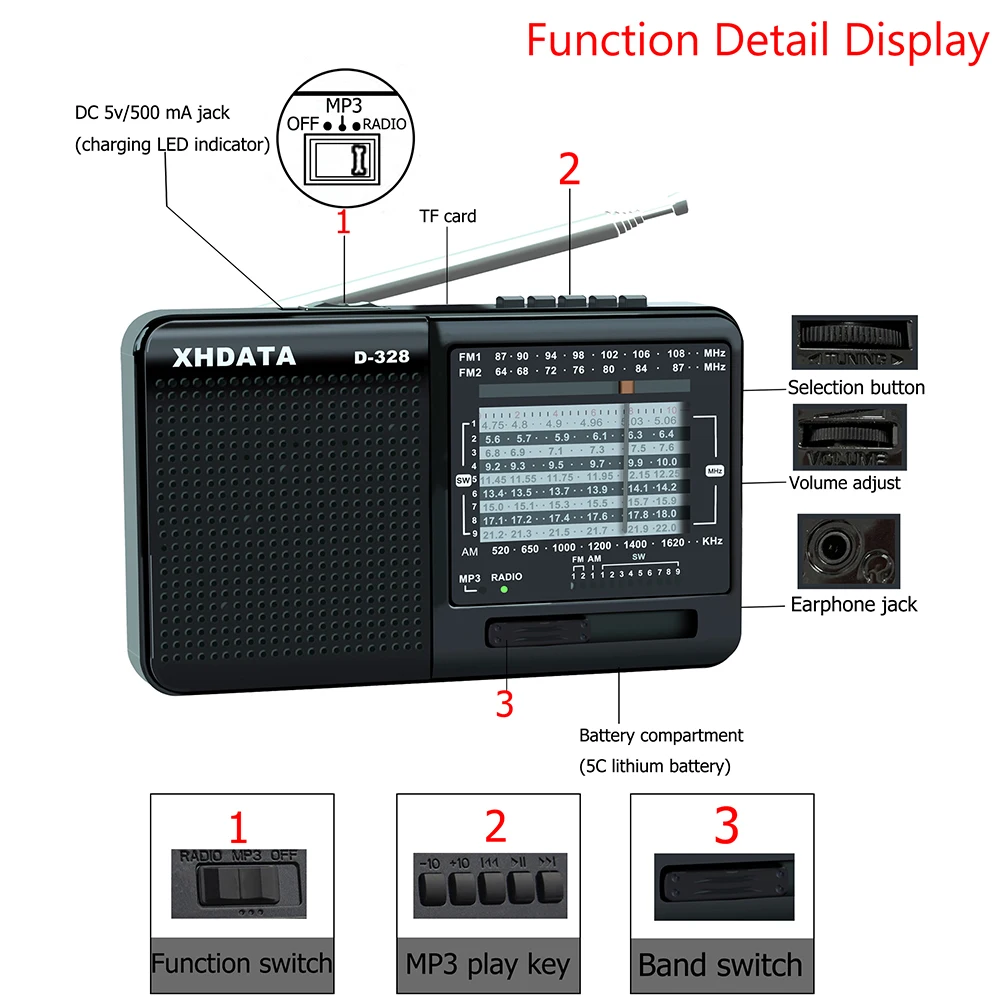

1.This unit adopt simple mechanical switch to change function and band. Traditional pointed type indicator frequency could reduce the electromagnetic which brought by MCU(microcomputer) change function,to ensure it has more higher S/N ratio, sensitivity and better value for money.

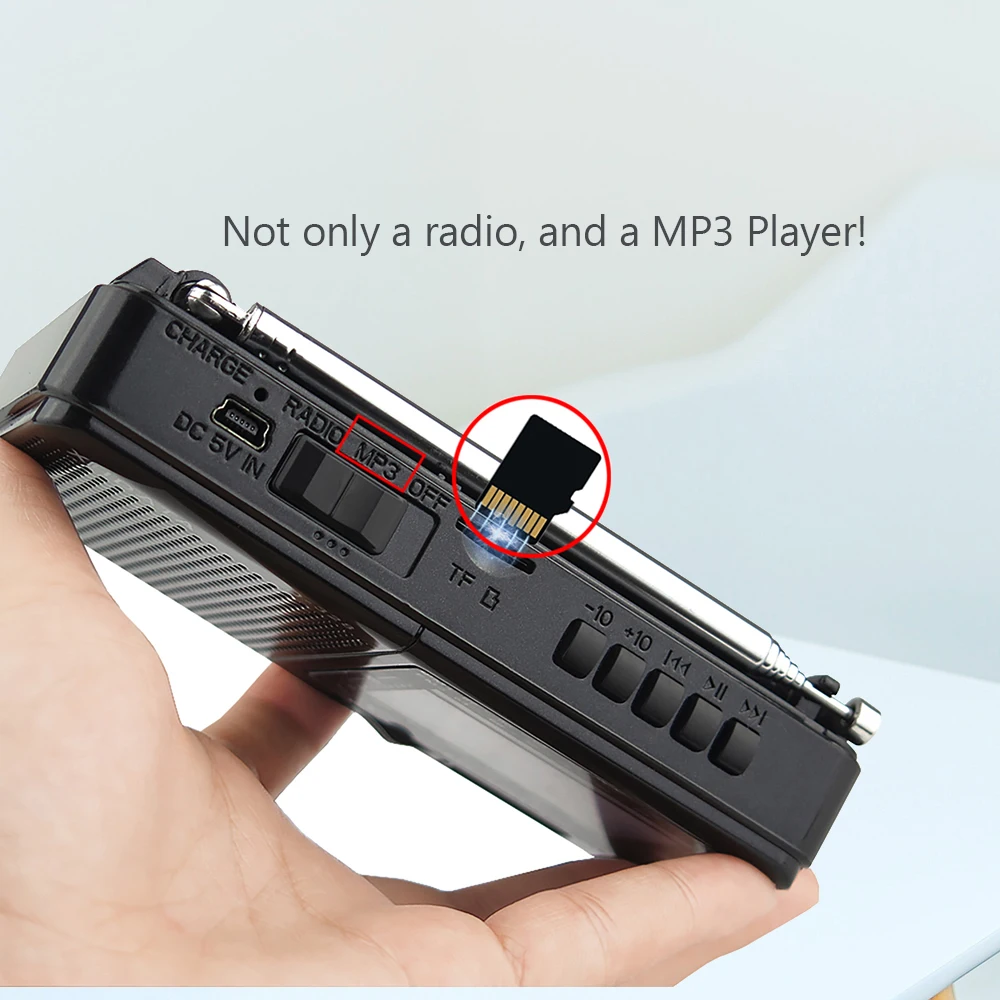

2. It has mp3 function.:MP3 player LED digital tube display and MP3 has playback memory.



3. Supports TF card, and uses the latest generation of full-band radio free tuning technology in the United States.

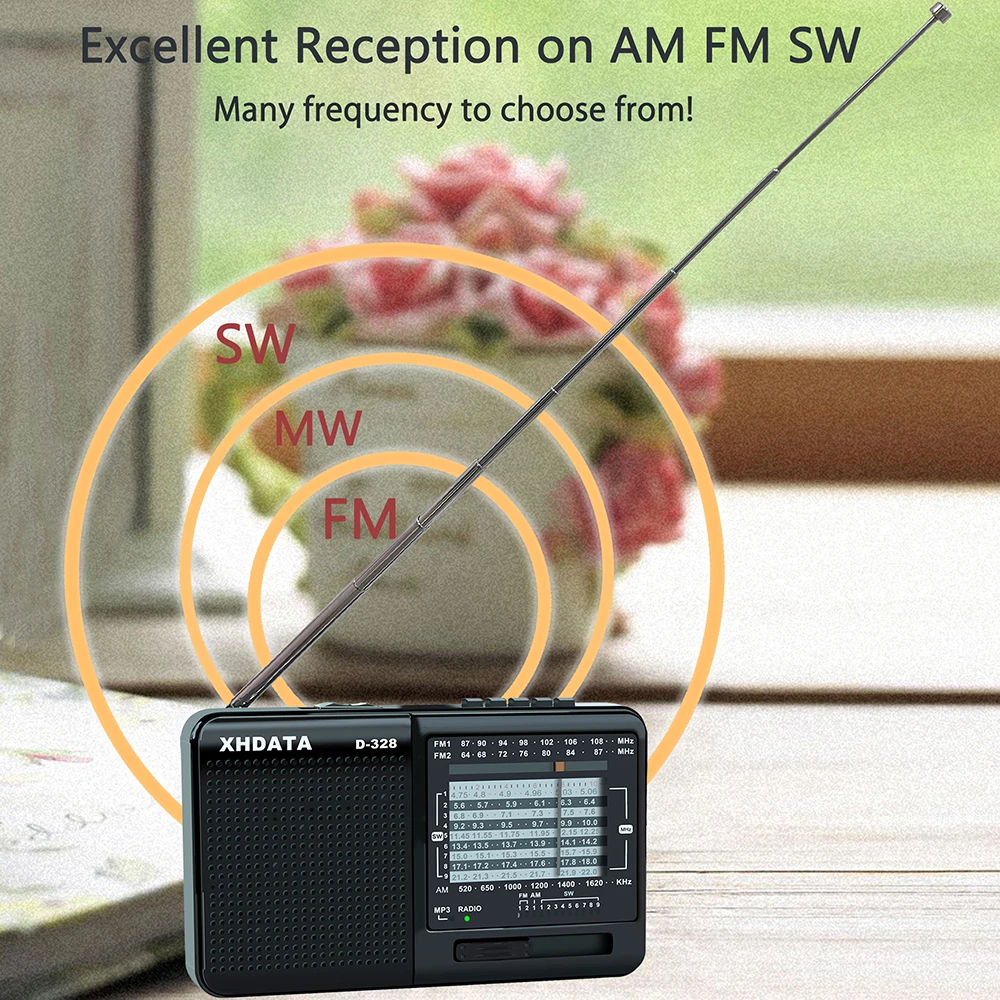

4. FM AM SW 3-band radio, short FM receiving range, long MW receiving range,SW accepts the farthest range and can receive global frequencies.

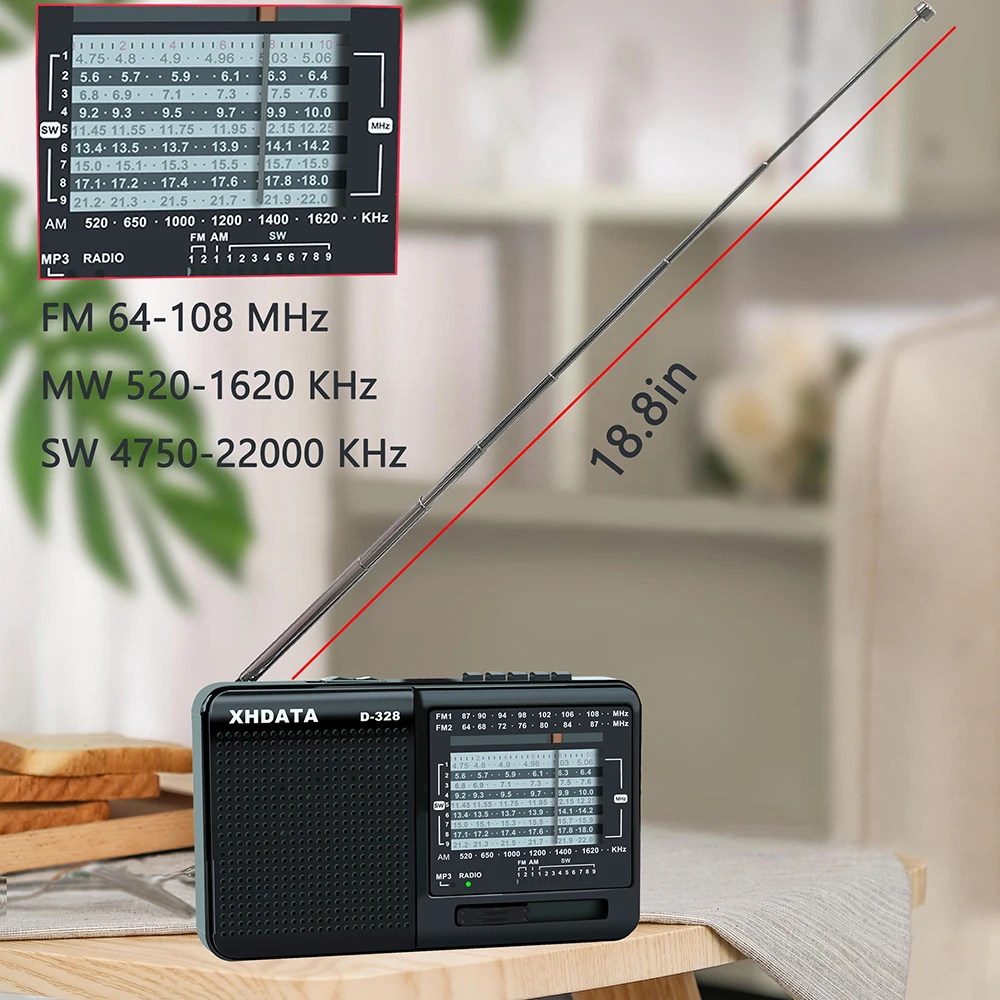

Here is the Frequency range:

FM: 87-108 / 64-87 MHz:China FM87.5~108MHz

Japan 76~90MHz

US FM87.5~107.9MHz

European countries: FM87.5~108MHz

AM: 520-1620 KHz

SW1-9: 4.75-22MHz



5. Use high-quality PU edge large electromagnetic steel speakers, high power and high efficiency class AB power amplifier.

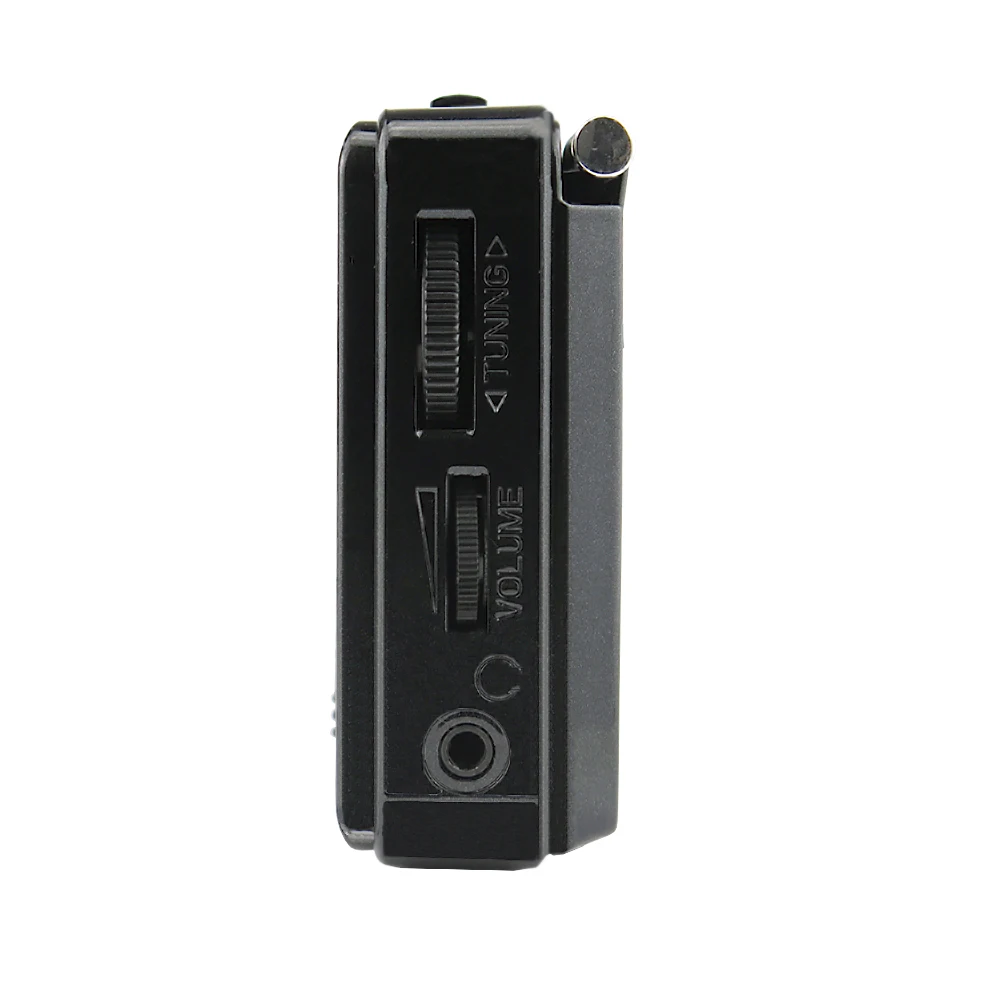

6. With 3.5mm headphone jack, you can listen to it with headphones

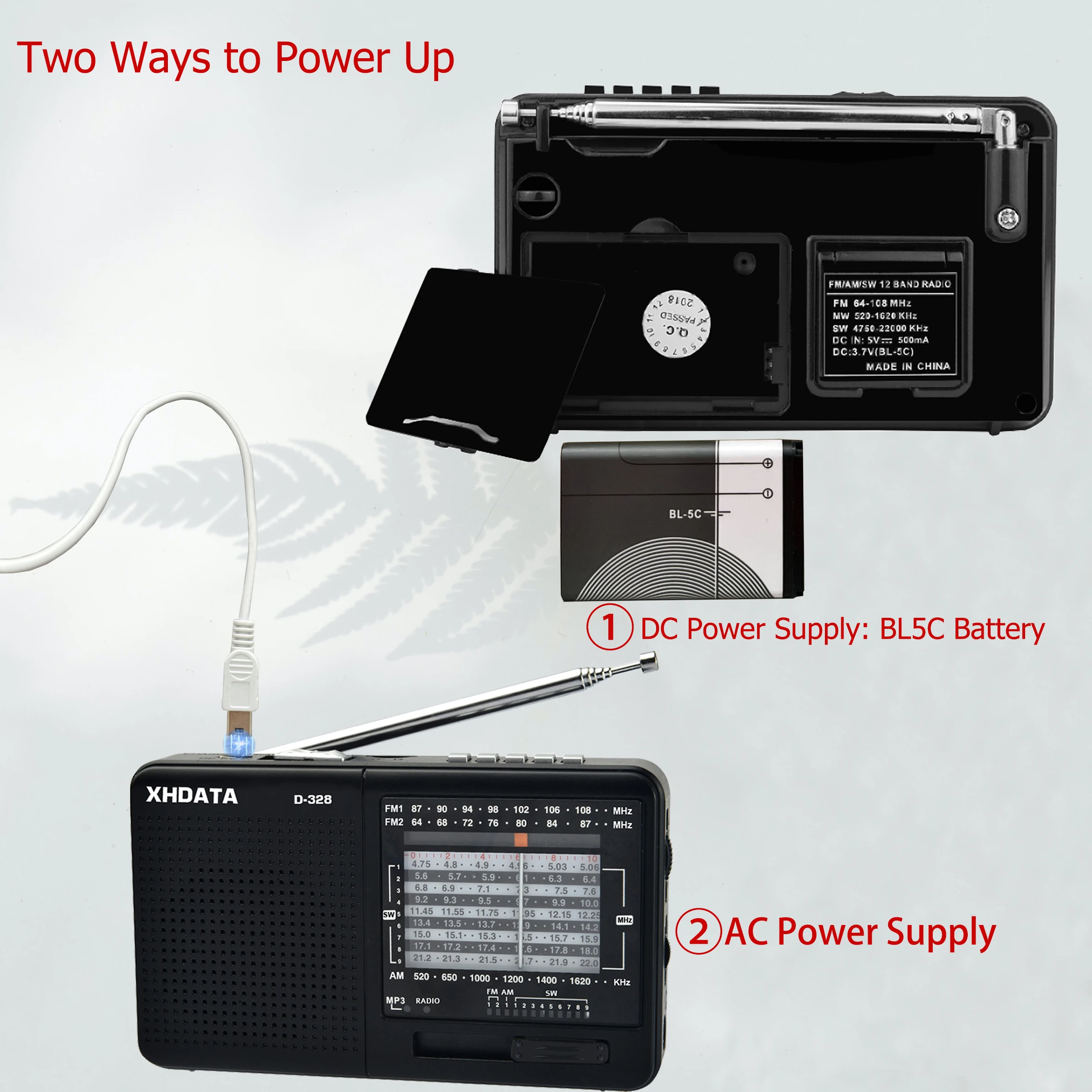

7. Powered by rechargeable lithium battery, economical and environmentally friendly .

Specification

FM 1/ FM2 :  87-108 / 64-87 MHz

AM :             520-1620 KHz

SW1-9 :        4.75-22MHz

2.Sensitivity: FM  better than 3uV

                     AM  better than 1mV/m

                     SW  better than 20uV

3.Speaker: 4Ω/3W

4.Output power : 1.5W(RMS)

5.DC input: 5V/500mA

6.Standard 3.5mm earphone jack

7.Support TF card play(MP3 audio format decoding)

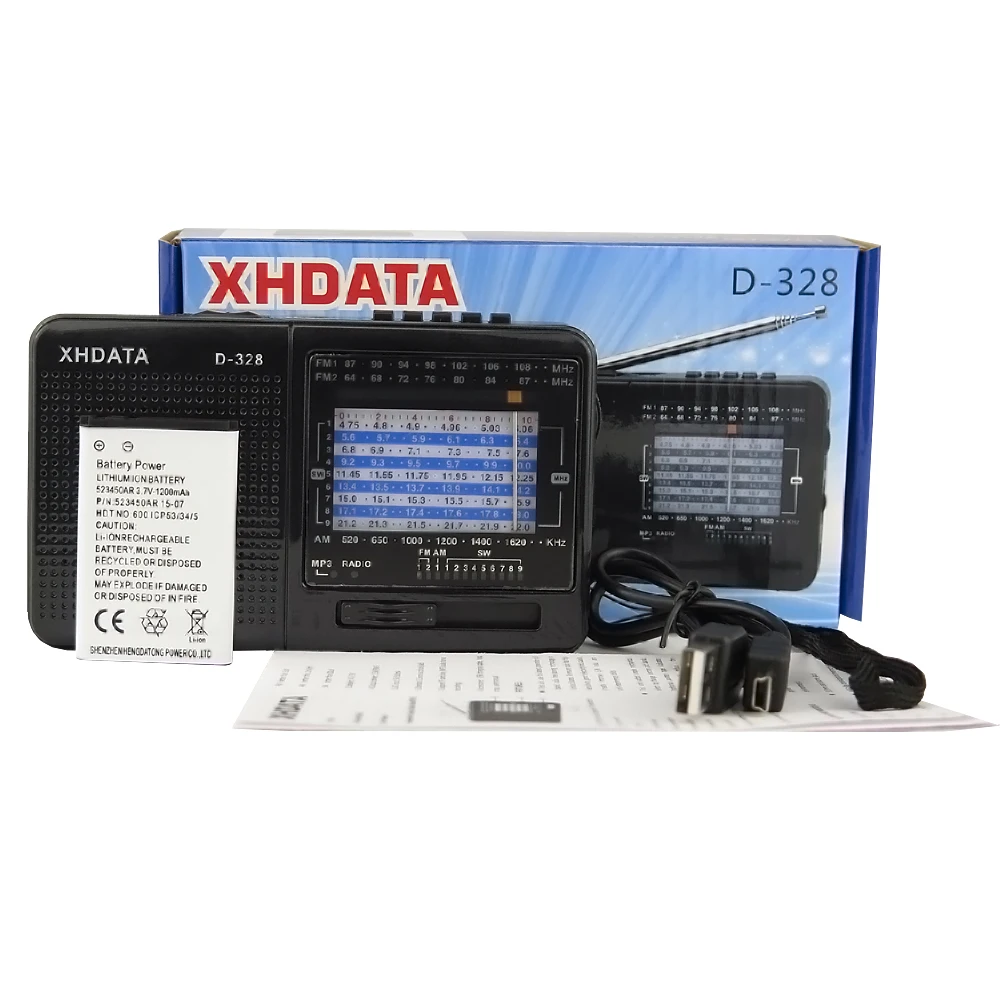

Package Included

1 x BL-5C lithium battery

1 x User manual(English//German/Russia/Japanese)

1 x USB cable

1 x wrist band
