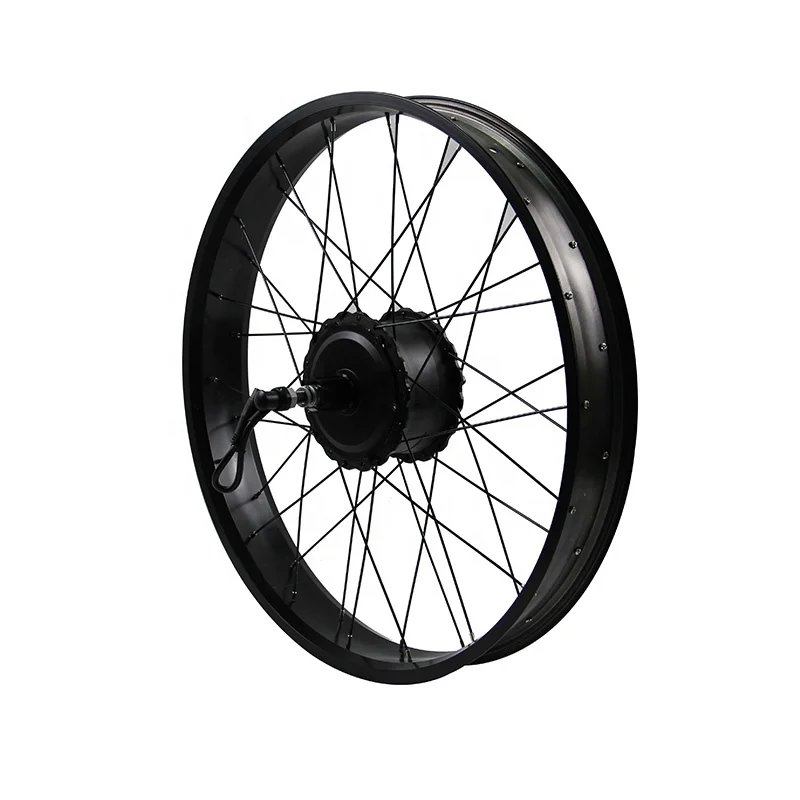

Epower high quality 48V 750W brushless electric bicycle motor for fat tire electric bicycle
- Category: >>>
- Supplier: Changzhou Epower Technology Co. Ltd.
Share on (62334929157):
Product Overview
Description
EPOWER EPR05C SPECIFICATION
| Basic Specification | |
| Model | EPR05C |
| Nomical Voltage | 48V |
| Design | brushless |
| Rated Power | 750W |
| Position | Rear Motor |
| construction | Gear Motor |
| RPM | RPM 250-500 |
| Max Torque | 40N.m |
| efficiency | 81% |
| color | Black |
| Mounting Parameters | |
| Brake | V/Disc Brake |
| Weight | 5kgs |
| Installation Width | 175mm |
| Max.Housing Diameter | 180mm |
| Cable in | Shaft Center, Right |
| Gearshift | Cassette Freewheel |
| Spoke Specification | 12G/13G |
| Further Specifications | |
| Cadence(Pulses/Cycle) | 1/1 |
| Reduction Ratio | 1/4.35 |
| Magnet Poles | 16 |
| Noise | <50dB |
| Hall Sensor | Optional |

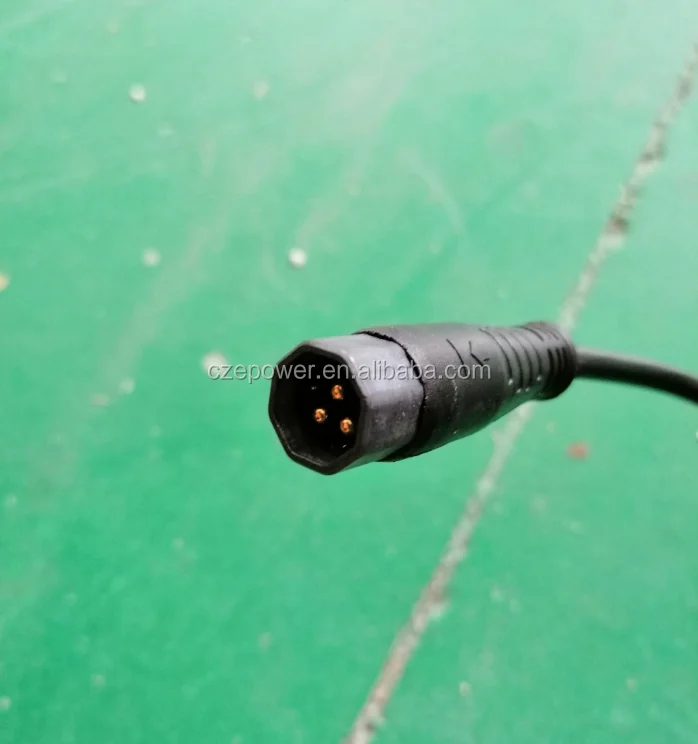

| Connector | Waterproof |
| Tests & Certifications | |
| IP-Code | IP 65 |
| Certifications | ROSH/CE |

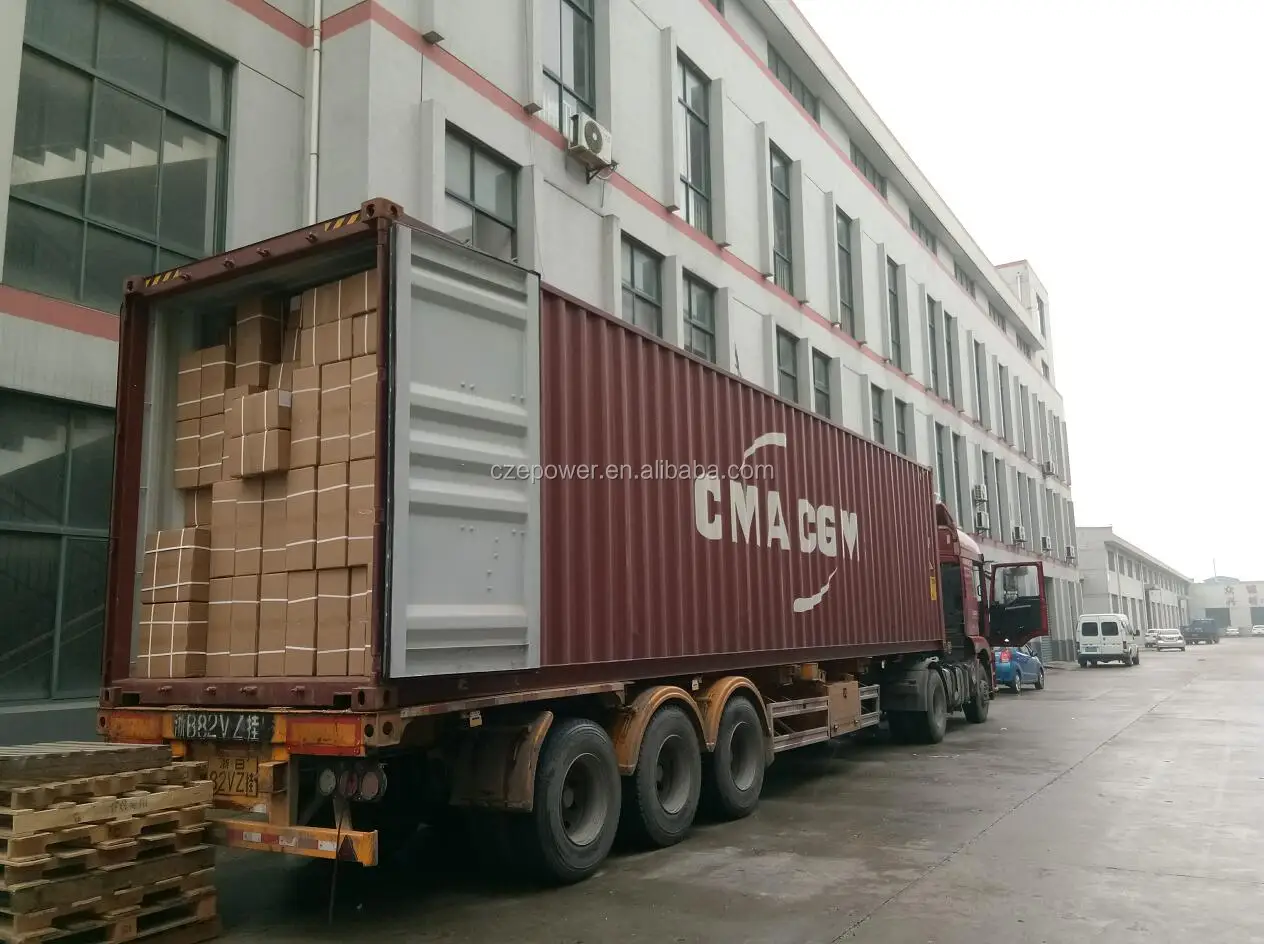

| Packaging & Delivery | |
| Selling Units: | Single item/4Pcs/CTN |
| Single package size: | 20x20x27cm/53X34X20 cm |
| Single gross weight: | 5kgs |
| Package Type: | standard packing box with foam |

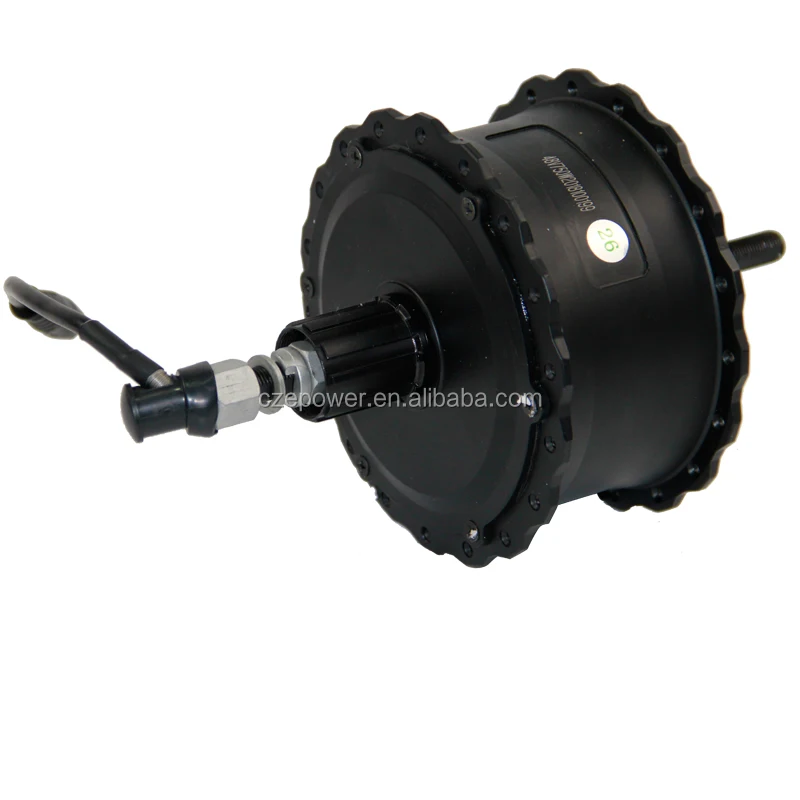

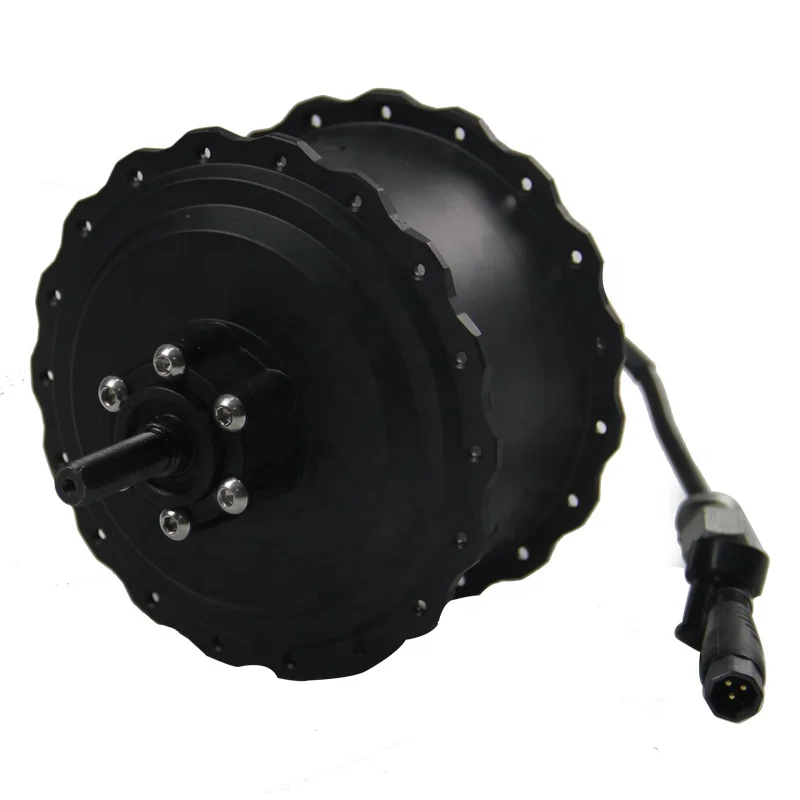

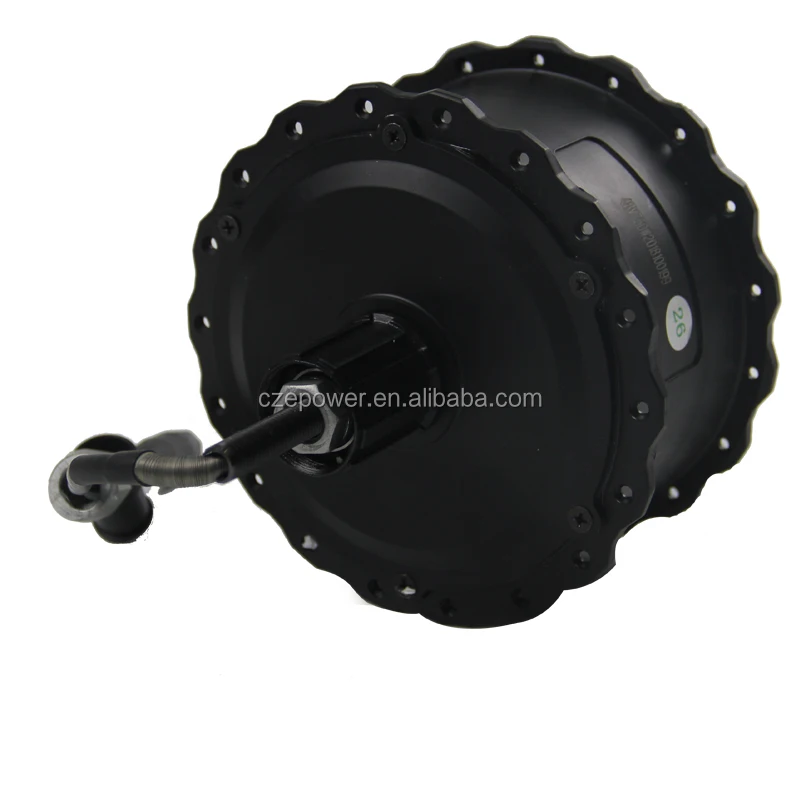

PRODUCT PHOTOS

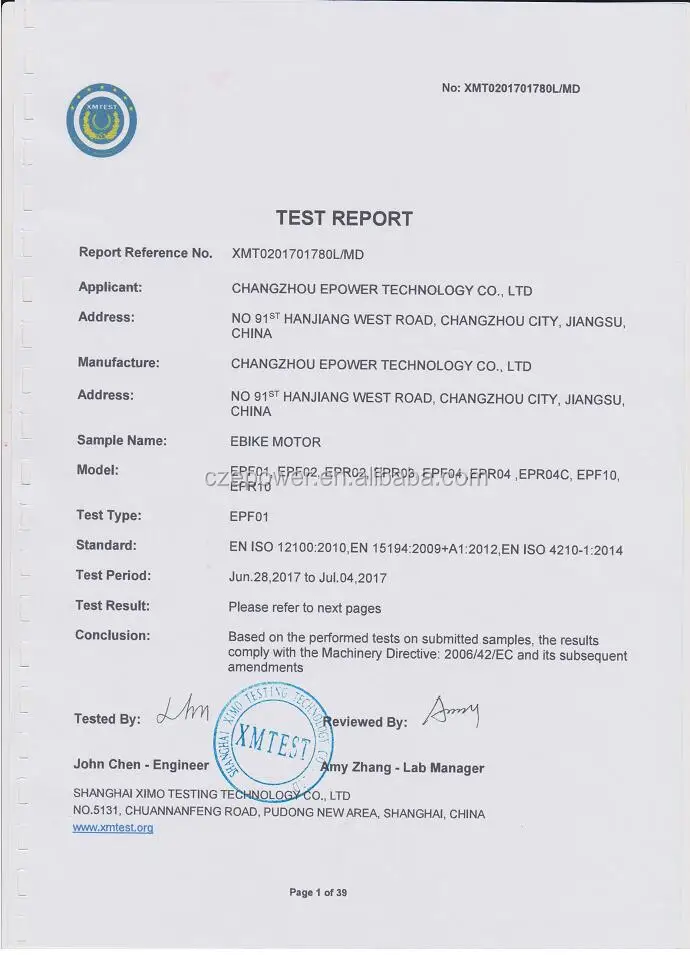

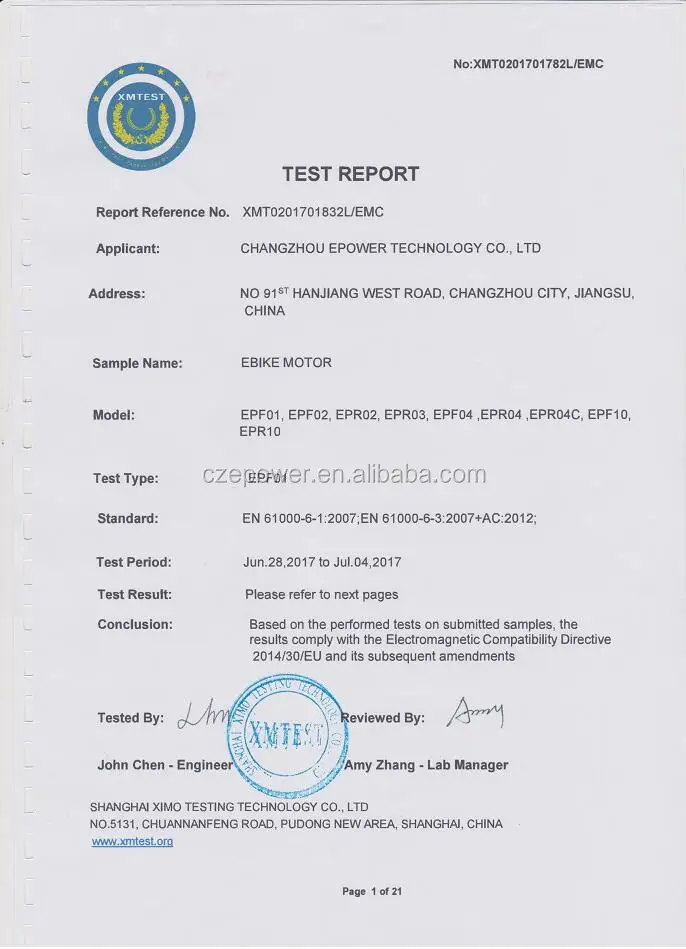

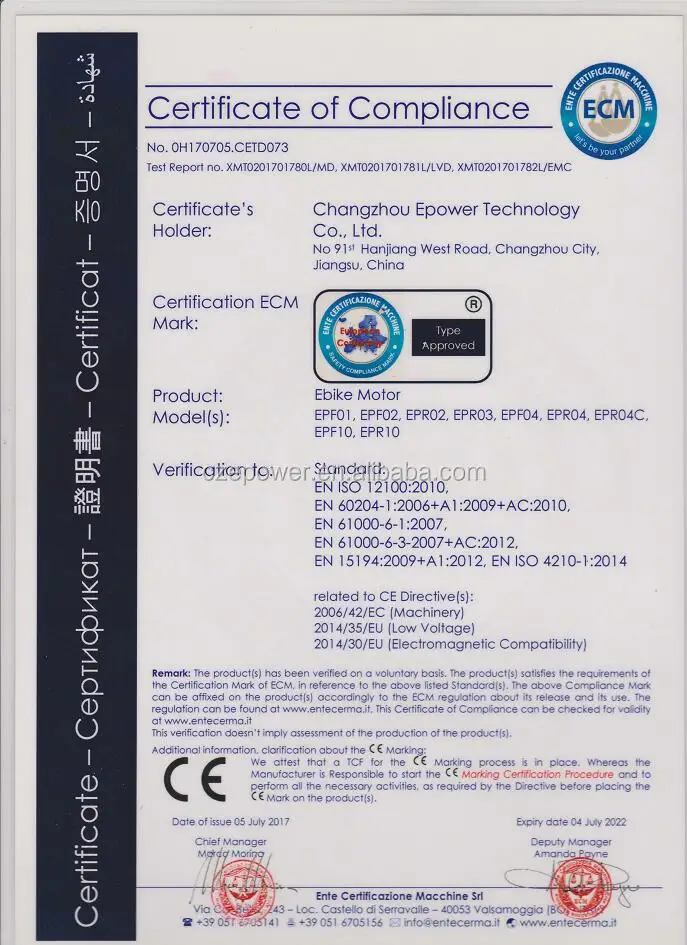

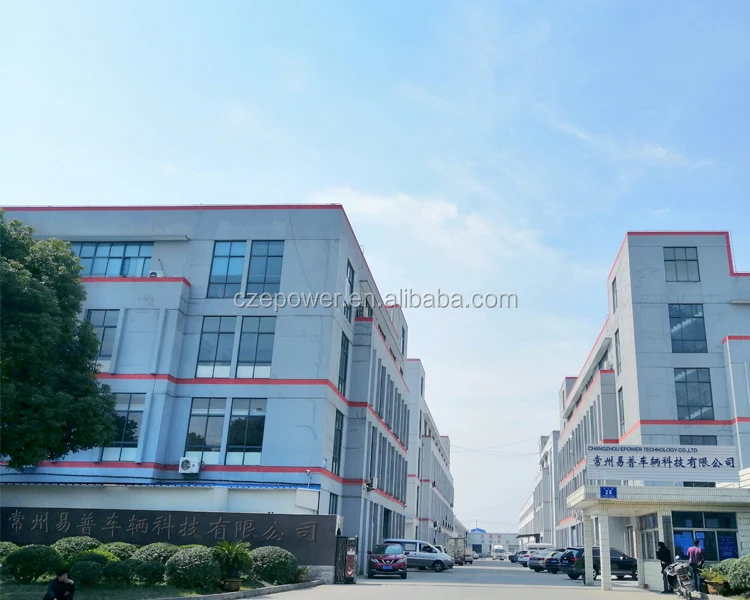

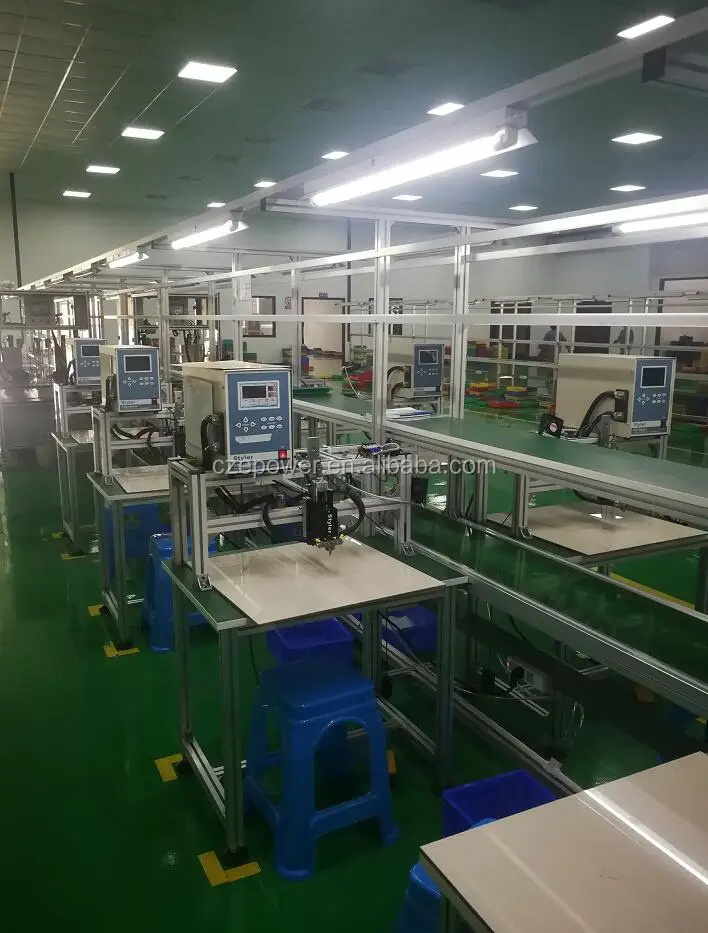

EPOWER PROFILE AND CERTIFICATION
Warranty:
Epower give two years warranty to the motor. If there is any quality problem within warranty period, Epower will send the replacement within one week.
