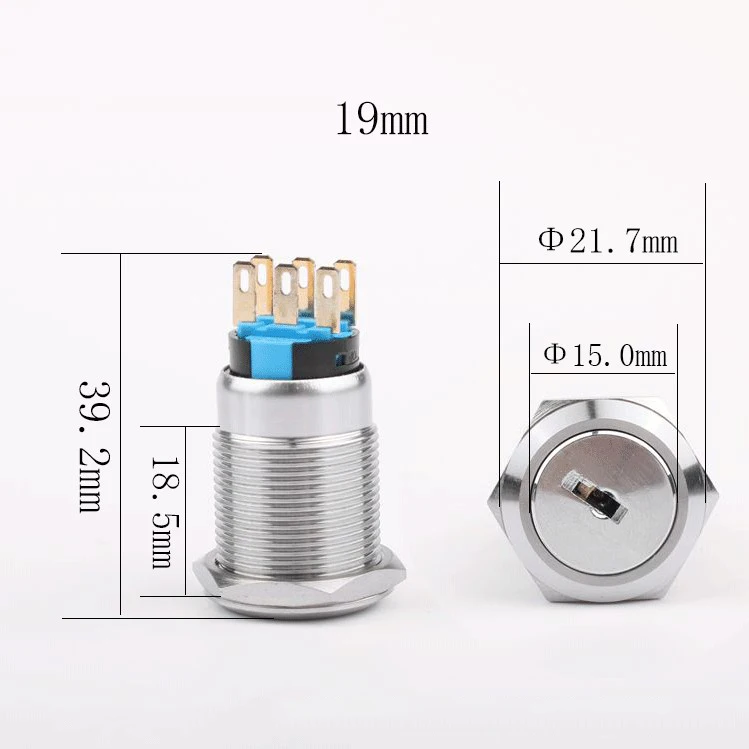

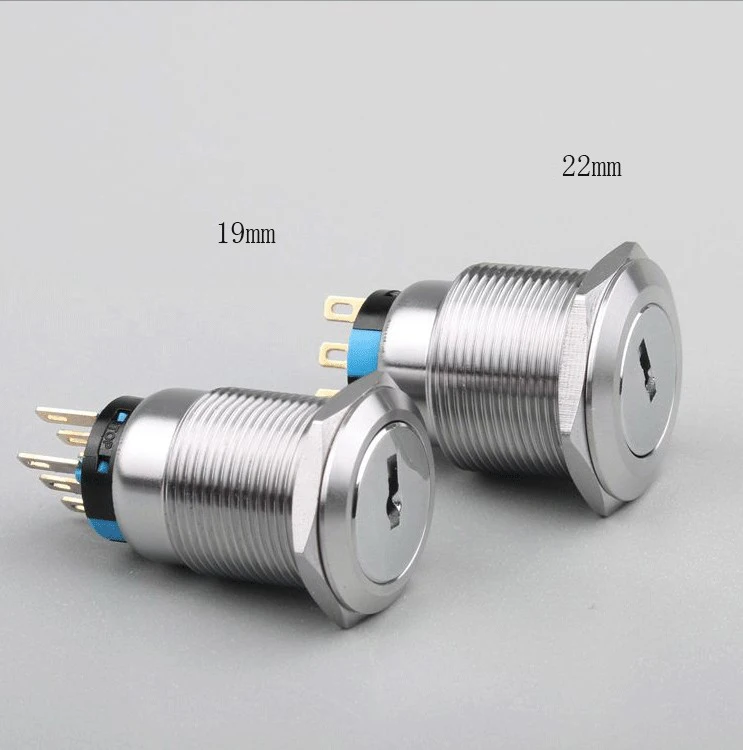

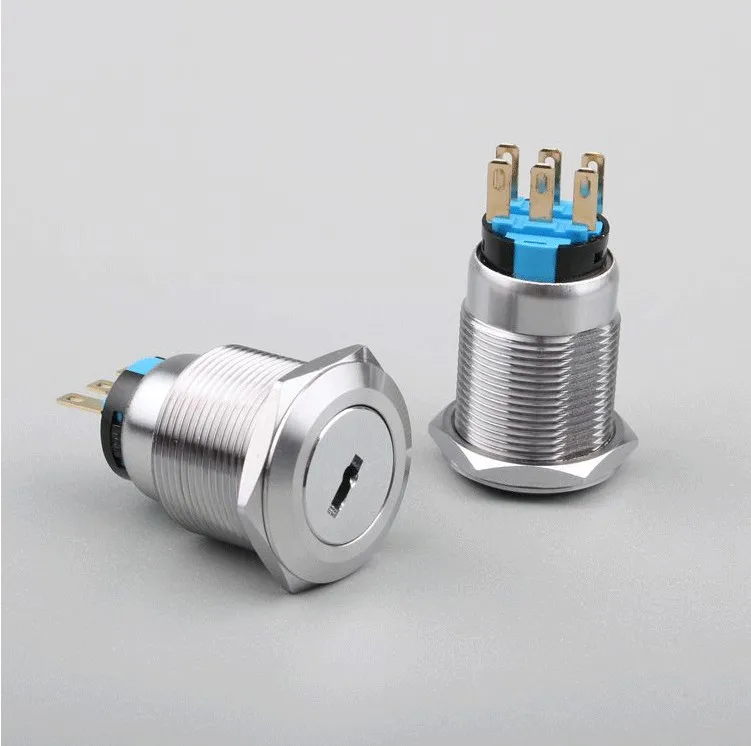

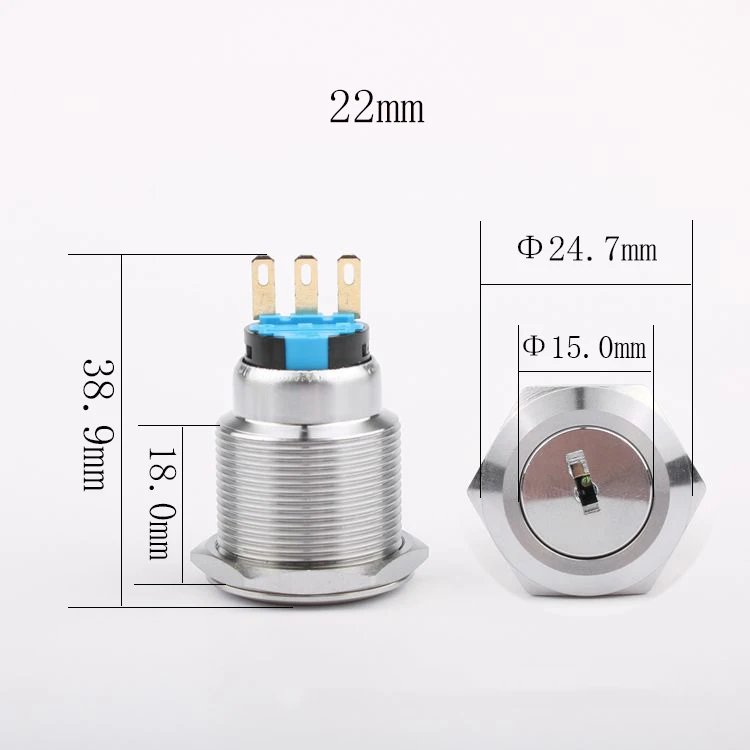

metal switch Emergency Stop Button 22mm 19mm Key Switch
- Category: >>>
- Supplier: Yueqing Lanpu Electrical Co. Ltd.
Share on (62335260590):
Product Overview
Description
Features:
· Flat/ Concave
· Variety of Color
· Momentary/ Latching
· Anti-Vandal IK09/ Sealed IP66
· Illuminated and Non-Illuminated
Momentary: Means that when you push switch and then move your finger, the actuator will back to the
original position.
Latching: Means that when you push switch once it will change state and stay in this pushed-down position and will not come back to original position unless you push it again.
Technical Data

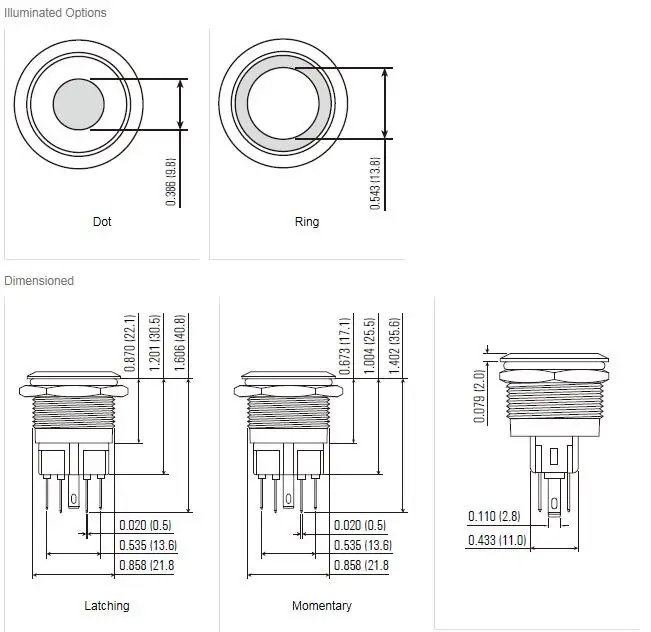

Type | L22-F | L22-F-R | L22-F-D | ||||
Illuminated Options | Non-Illuminated | Ring | Dot | ||||
Max. Panel Thickness: | 0.394" (10.0mm) | ||||||
Terminal | Pin(2.8x0.5) | ||||||
Max. Switch Rating | 5A/ 250VAC | ||||||
Contact Resistance | ≤50mΩ | ||||||
Insulation Resistance | ≥1000mΩ | ||||||
Dielectric Strengh | 2000VAC | ||||||
Operation Temp. | -20°C ~ +55°C | ||||||
Mechanical Life | 1,000,000cycles | ||||||
Electrical Life | >50,000cycles | ||||||
Contact Material | Silver Alloy | ||||||
Torque | 5 ~ 14Nm | ||||||
Operation Pressure | approx. 3 ~ 8N | ||||||
Protection | IP65 | ||||||
Material | Actuator | Stainless Steel/ Anodized Aluminum | |||||
Body | Stainless Steel/ Anodized Aluminum | ||||||
Base | PA | ||||||
Color | Type | LED (ratings @ 20mA) | |||||
Color | R-Red | Y- Yellow | O- Orange | G- Green | B- Blue | W- White | |
Luminous Intensity (mcd) | 160 | 200 | 150 | 520 | 220 | 2000 | |
Forward Volatge | 1.8~2.6 | 2.8~3.6 | |||||
Illumination Voltage | no suffix No resistor fitted. An appropriate resistor must be series connected by the user. Voltages as above. | ||||||
6V/ 12V/ 24V/ 36V/ 110V/ 230V | |||||||
Life | Approx. 40, 000hours | ||||||
