Elliptical Louver Making High Precision Multi Rip Saw with Planer

Product Overview

Description

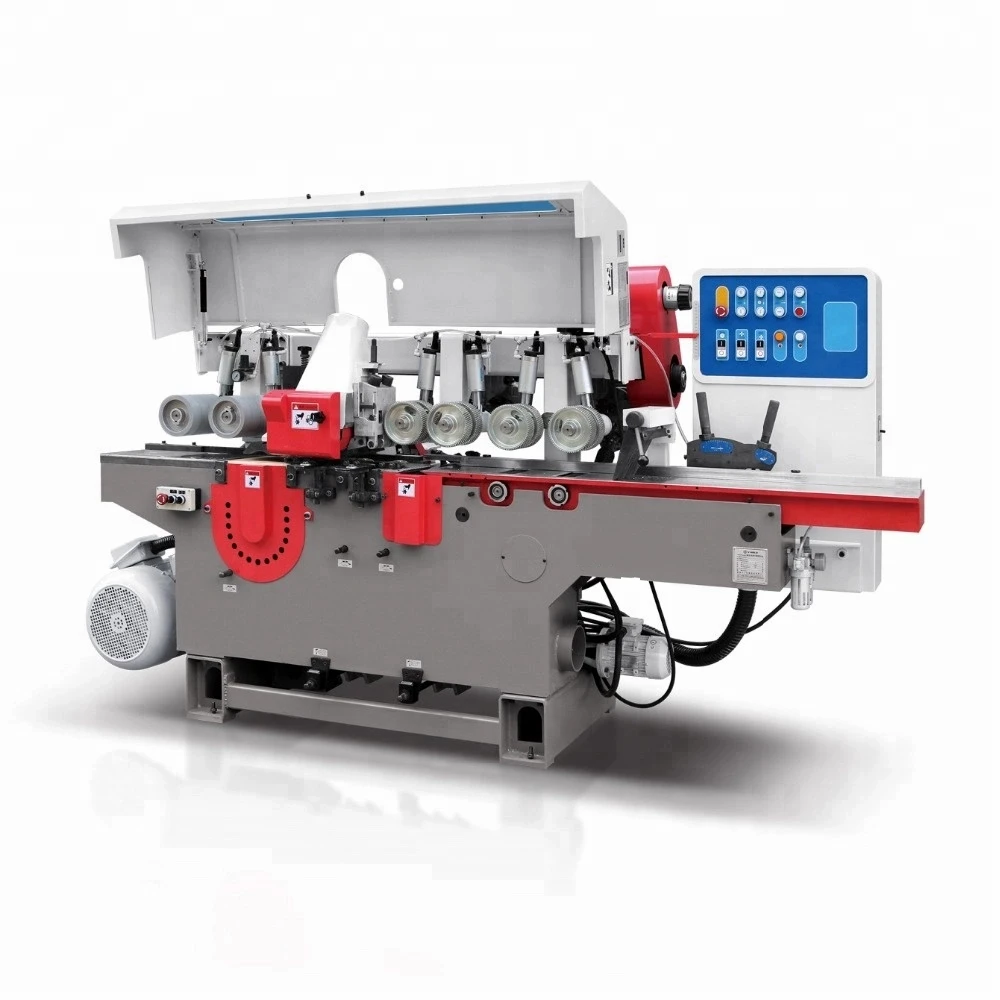

Elliptical Louver Making High Precision Multi Rip Saw with Planer





Main Feature

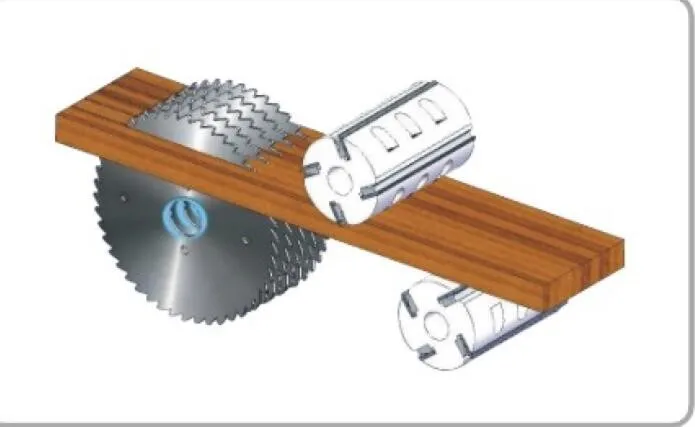

Based on the 1999 year’s ML9320, the ML9321 is optimized and upgraded according to customer feedback requirements. It combines double-sided planer and multi-piece saw with integrated multi-purpose woodworking equipment.

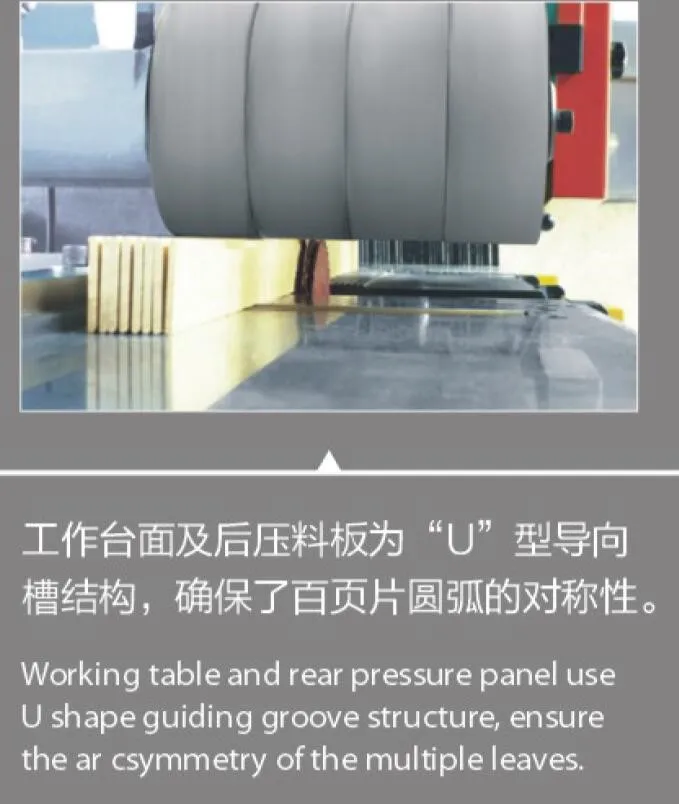

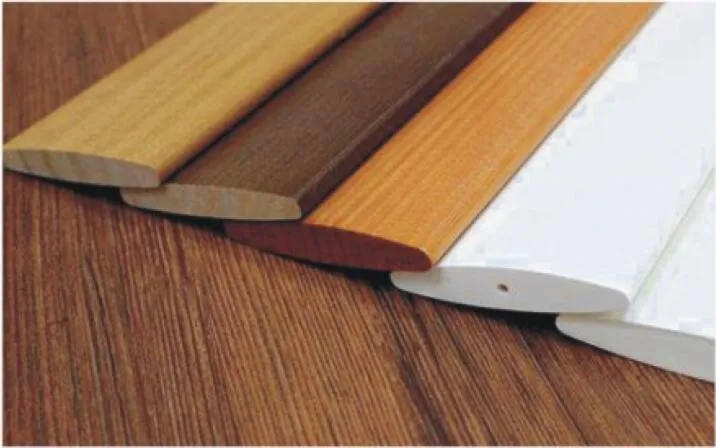

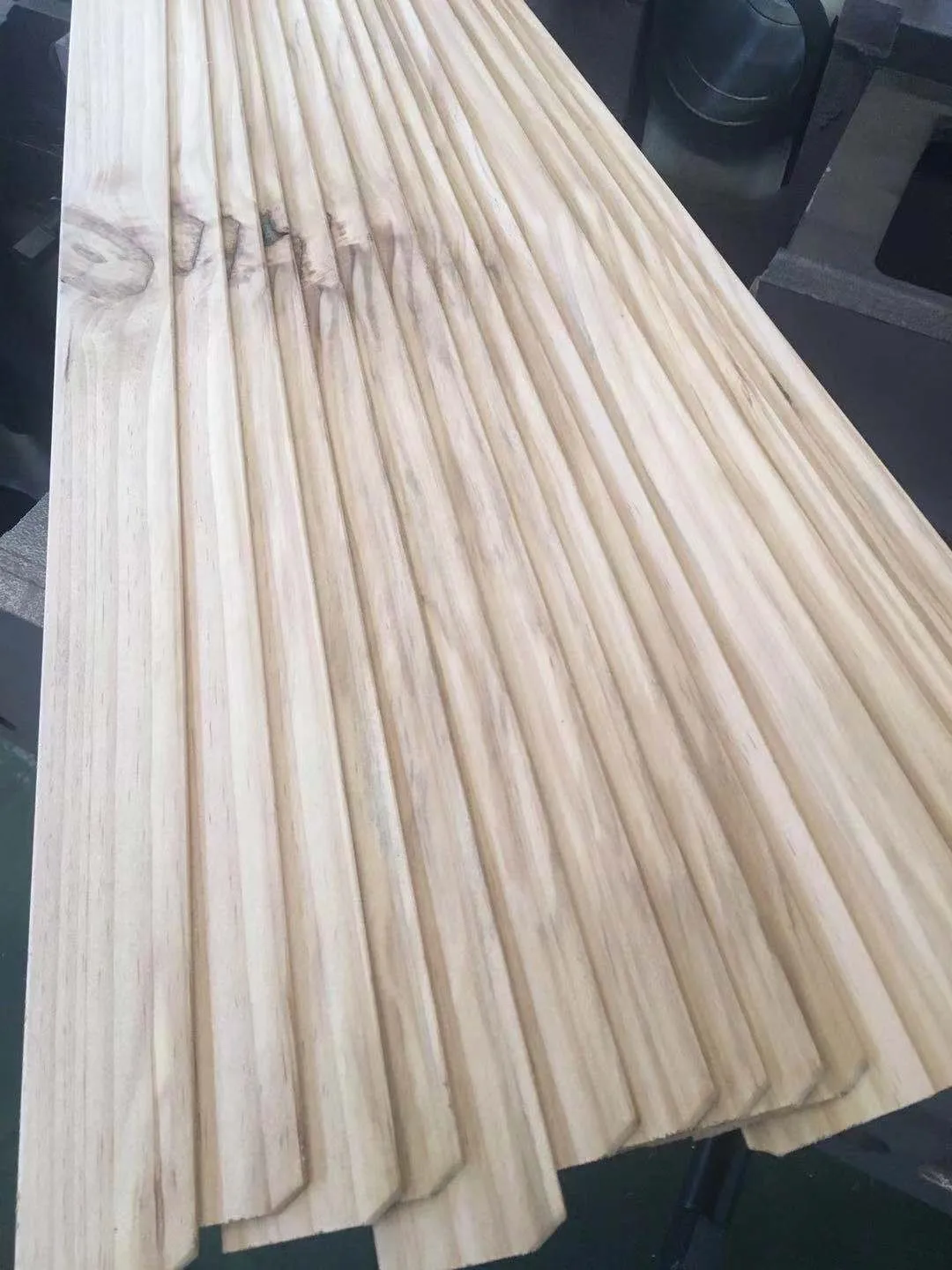

After the wood wool is shaved, the multi-piece is opened, and the special custom arc groove of the countertop and the rear plate is used to mass-produce the louver, and the chamfer is formed at one time. Labor saving, high efficiency and good quality!



Parameters

Processing capacity
Model	ML-9321
Max. working width	200mm
Max. working thickness	75mm
Feeding speed	4-18m/min
Top spindle diameter	40mm
Top spindle rotation rate	6000r/min
Top spindle movement	20mm
Top spindle motor power(kw)	5.5kW
Bottom spindle diameter(mm)	40mm
Bottom spindle rotation rate	6000r/min
Bottom spindle motor power	4kW
Cutting spindle diameter	50mm
Cutting spindle rotation rate	4000r/min
Max. saw blade diameter	300mm
Spindle power	22kW
Spindle elevating motor	0.37kW
Feeding motor power	2.2kW
Elevating motor power	0.37kW
Total power	34.44kW
Air pressure	0.6MPa
Dimension	3070×1230×1540mm

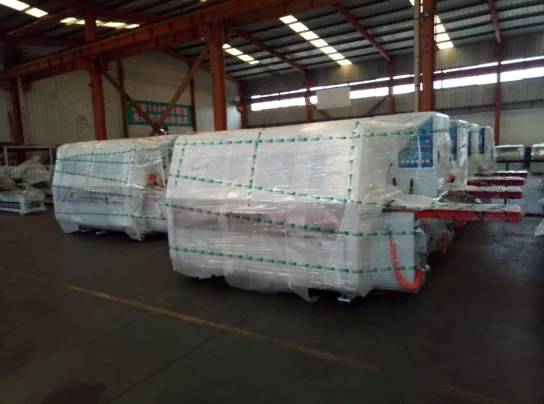

 After passed the quality inspection, the machine will be wiped with biodegradable anti-rust oil to protect from the humid sea air. Then use PE film packaging.
Usually we use iron pallet handling equipment to the container. It can also be packaged in a fumigant-free wooden box according to customer requirements.





 Pre-sale Service

· Tailored configuration solutions according to your needs.

· Customized service available.

· Free workshop layout design.

· Free visit reception service.

· Free supply chain support service.



After-sales Service

· Professional on-site installation, training and maintenance.

· Timely and efficient online and video technical support.

· Super 18 months warranty since package opened.

· Reliable lifetime spare parts support and technician service available.

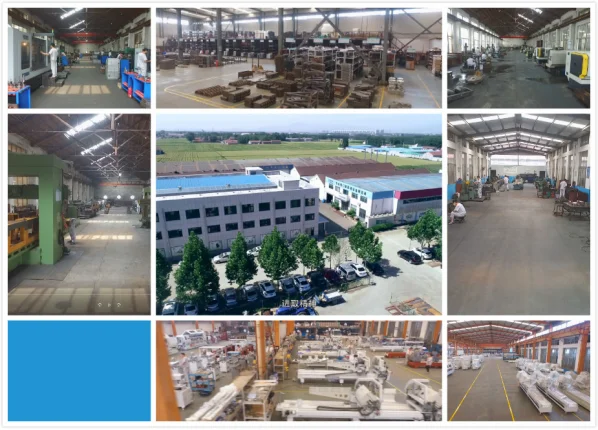

About Us
Since established in 1990s years, we keep our attention on four side moulder, Double Side Moulder, Rip saw, Optimizing cross cut saw and double end tenon machine. Depand on powerful R&D capability, strong machining capacity and high quality products and service, we have becoming a leader manufacturer in China.
