High quality single facer machine/ corrugated cardboard carton box making machine
- Category: >>>
- Supplier: Cangzhou Yuyuan Imp & Exp Trade Co. Ltd.
Share on (62335320330):
Product Overview
Description
Product Description

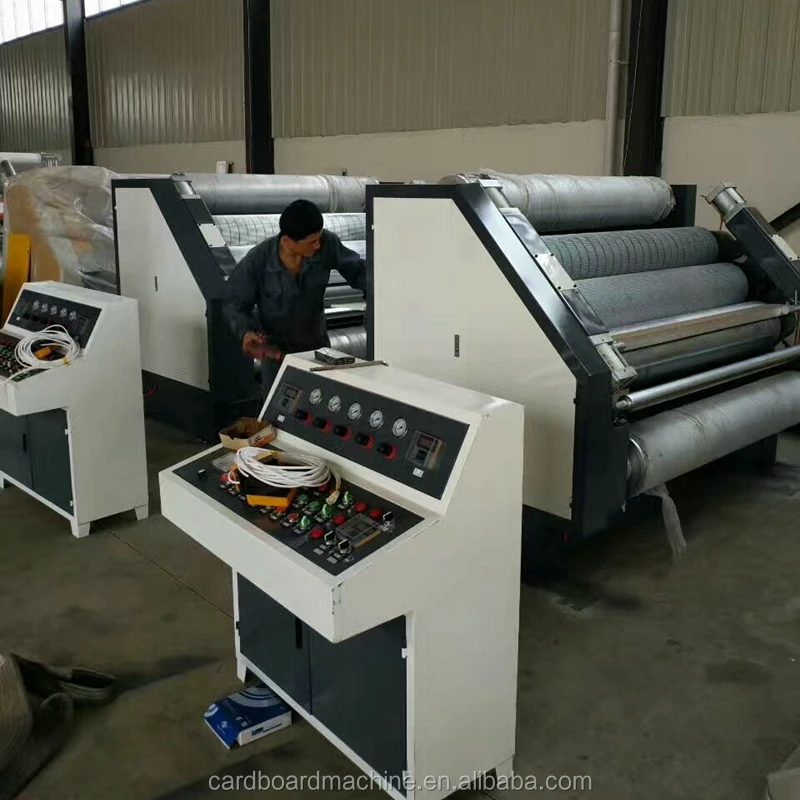

Heavy type Cardboard Single Facer corrugated machine
Specification:
Max. machine speed | 100m/min |
Economic speed | 60m/min |
Max. working width | 1600mm |
Max working steam pressure: | 1.0-1.3Mpa |
Steam temperature | 160—210 centigrade |
Power requirements: | 380V, 50Hz |
Diameter of corrugated roller | 280mm |
Diameter of Press roller . | 28mm. |
Diameter of preheater roller | 300mm |
Diameter of Glue roller | 215mm |
Diameter of doctor roller | 105mm |
Machine Introduction:
*Design speed: 120m/min.
*Corrugated rollers made of 48CrMo alloy steel, with heat treatment for hardness HRC58-60, surface plated with chrome treatment.
*corrugating roller: Dia.320mm with a drum.
*Press roller: Dia.325mm. with drum.
* Vacuum suction Fingerless design provides perfect flute formation in high speed manufacturing.

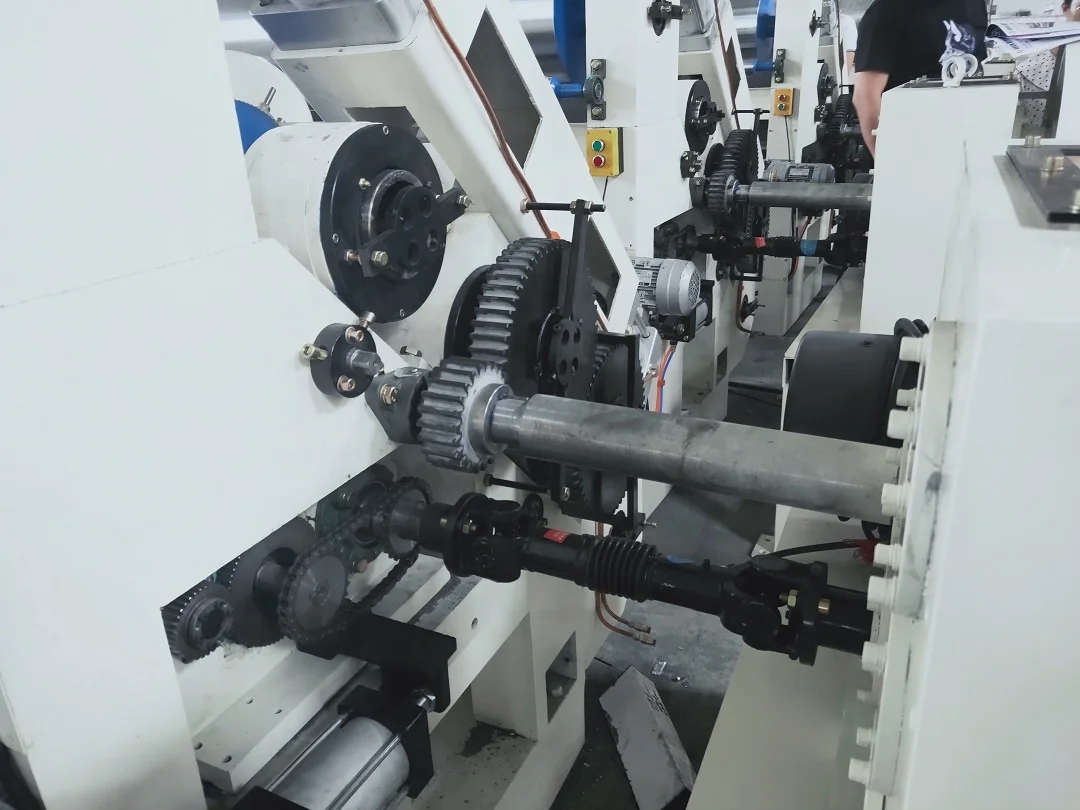

* Gimbal driver system. Individual immersion oil gear type drive box, separating dynamic vibrations improve running stability, easy and fast for maintenance.
*Gluing roller: surface is embossed with netting design and chrome plated.
*Adjustment of upper corrugated roller, pressure roller and glue roller controlled by pneumatic system.
*With preheating and preconditioning rollers.

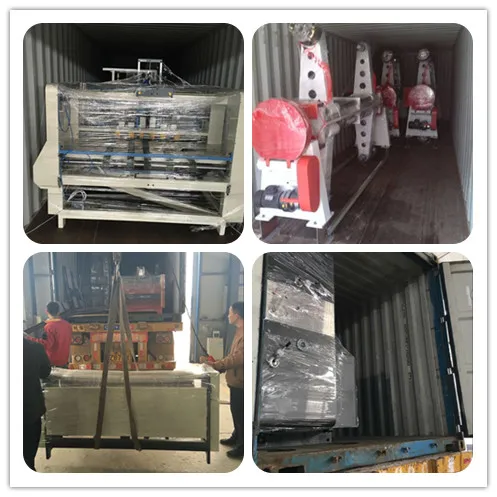

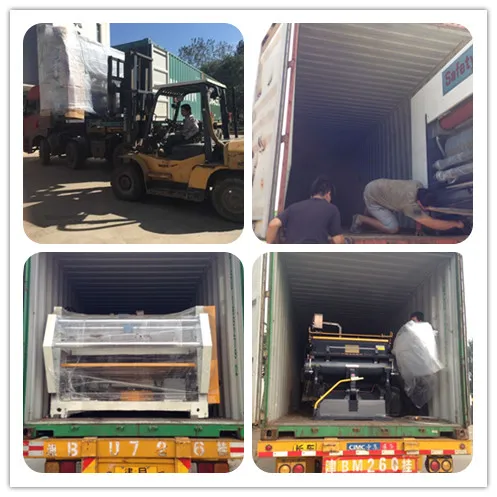

Packaging & Shipping
Our Services
a) The product can pass the carton industry standards.
b) The supplier supplies the paid service. The customer pays the engineers’ salary and the cost of round flight tickets and living and food when installing.
c) The suppliers take the responsibly of installment and help to train the technician, these kinds of cost should be paid by the customers
d) WARRANTY PERIOD: The guarantee period shall be 24 months counting from delivery date.
e) Whole Life paid service
Company Information
Cangzhou Yuyuan IMP&EXP Co., Ltd.
| Business Type: | Trading Company | |
|---|---|---|
| Location: | Hebei, China (Mainland) | |
| Main Products: | carton machine,Flexo printer machine,carton folder gluer,corrugated cardboard production line,stitching machine | |
| Total Employees: | 201 - 300 People | |
| Total Annual Revenue: | US$5 Million - US$10 Million | |
| Year Established: | 2003 | |
| Top 3 Markets: | South America 30.00%Southeast Asia 20.00%Eastern Europe 20.00% | |
FAQ
1.Q: Do you have after sales support?
A: Yes, we are happy to give advice and we also have skilled technicians available across the world. Weneed your machines running in order to keep your business running.
2.Q: How can we be assured that you will deliver us quality machine with spare parts?
A:1) Customers to send the technical people to our factory for checking the quality.
2)We can send the technicians to the buyer`s factory for the installation of the machine.
3)Good aftersales-service, its free of charge during the warranty period.
3.Q:What can you do if the machine broken?
A:Our machine's warranty period is 12months,if the broken parts can't repair,we can send the new parts replace the broken parts freel, but you need pay the express cost yourself. if after warranty period, we can look at negotiation to solve the problems, and we sup ply the technical support for the whole life of the equipment.
4.Q:How to play order?
Inquiry---confirm the profile drawings and price----confirm the PI arrange the deposit or L/C---then OK
5.Q:How to visit our company:
1)Fly to Beijing airport: By high speed train From Beijing Nan to Cangzhou Xi (1 hour),then we can pick up you at the station.
2)Fly to Shanghai Airport: By high speed train From Shanghai Hongqiao to Cangzhou Xi(4.5 hours),then we can pick up you.
If any questions,you can call my mobile phone at any times:0086-15646577534
Contact us
Cangzhou Yuyuan IMP&EXP Trade Co,.Ltd
Peter Wu(WhatsApp):0086-15646577534
Skype :0086-15646577534
Wechat:15646577534
Factory add:Xiaoxing Village, Lianzhen Town, Dongguang County, Cangzhou, Hebei, China
