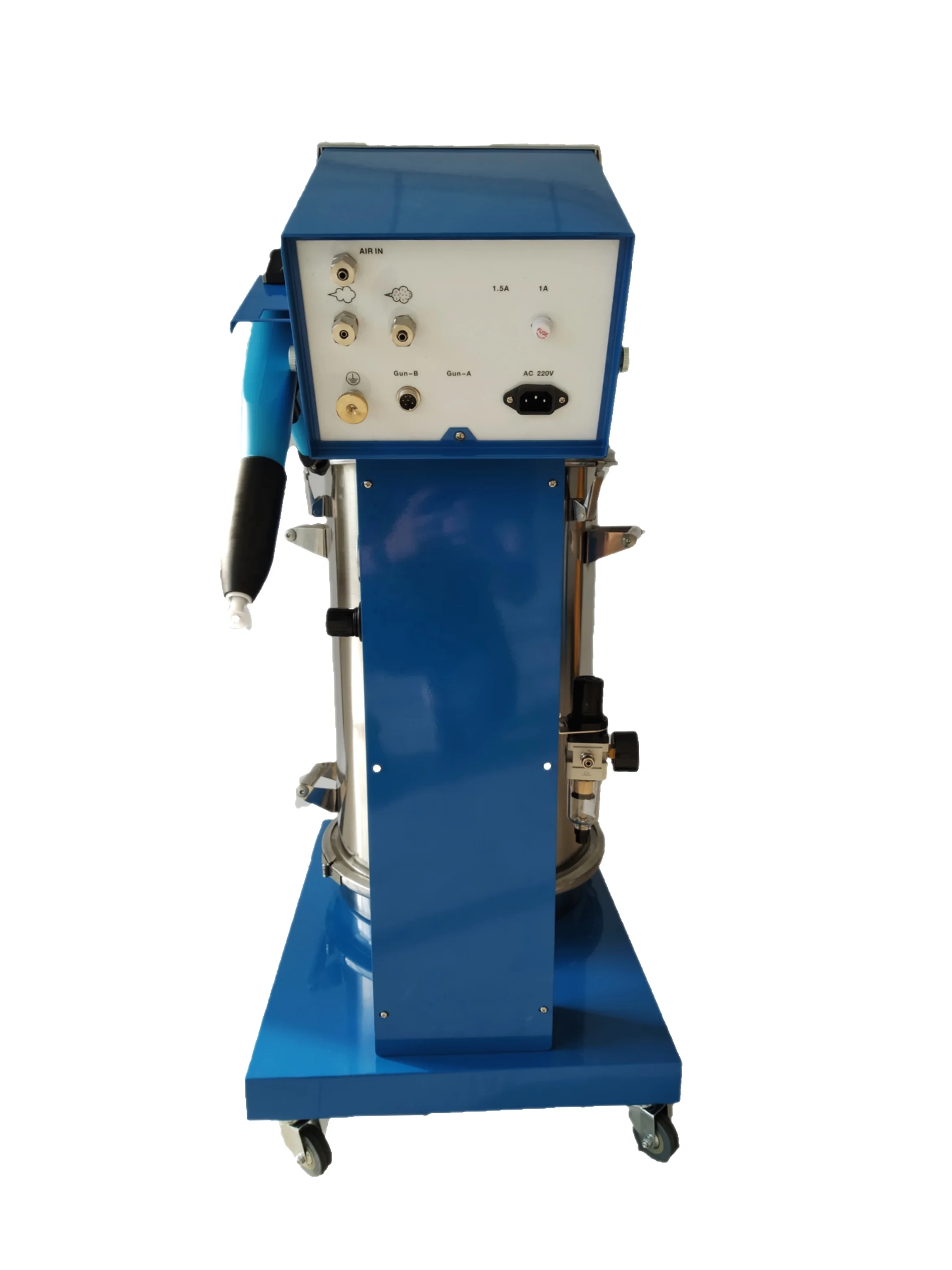

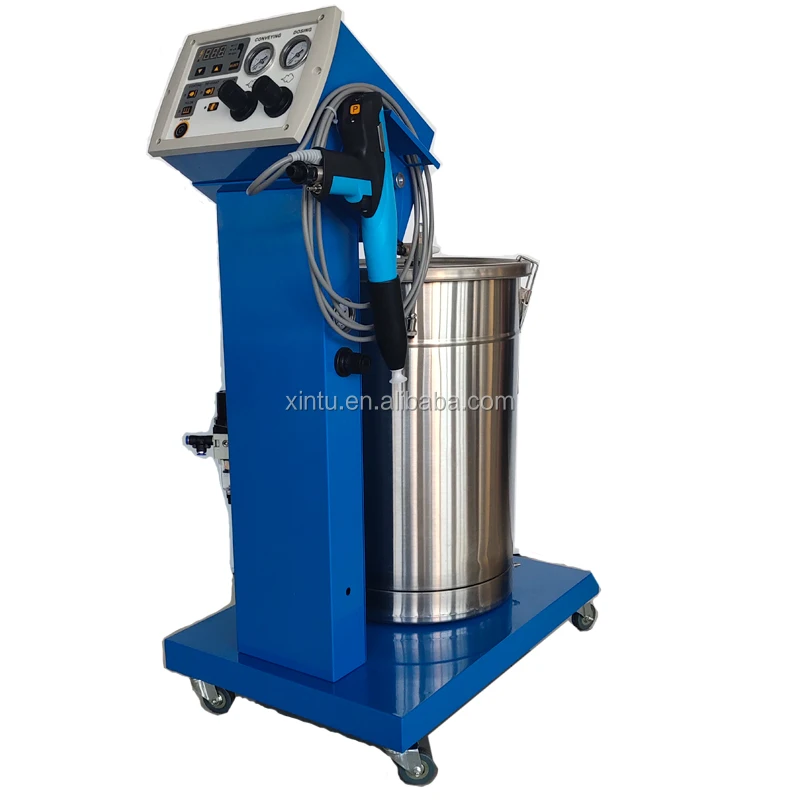

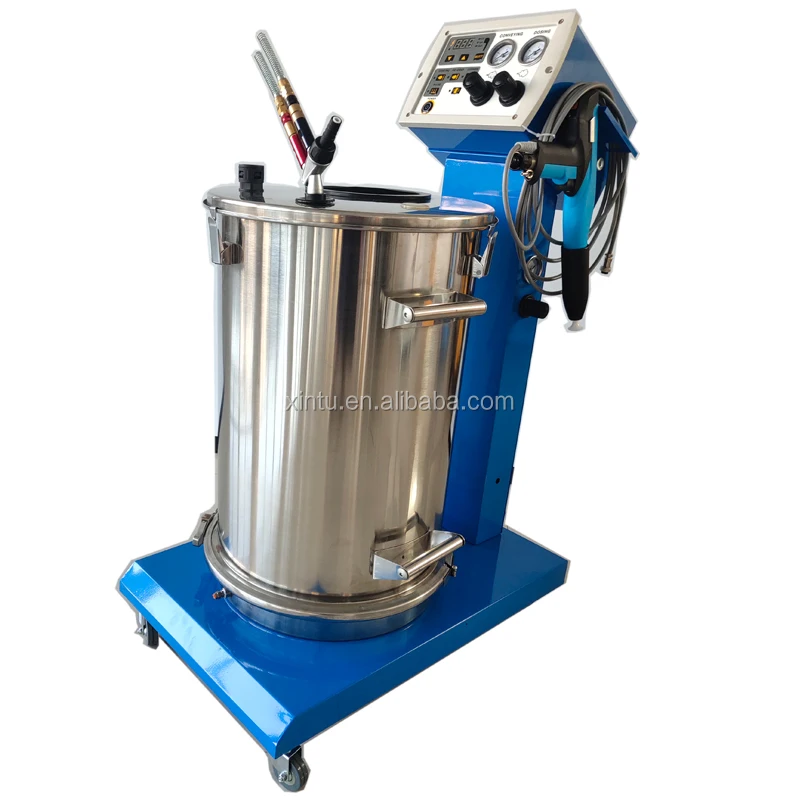

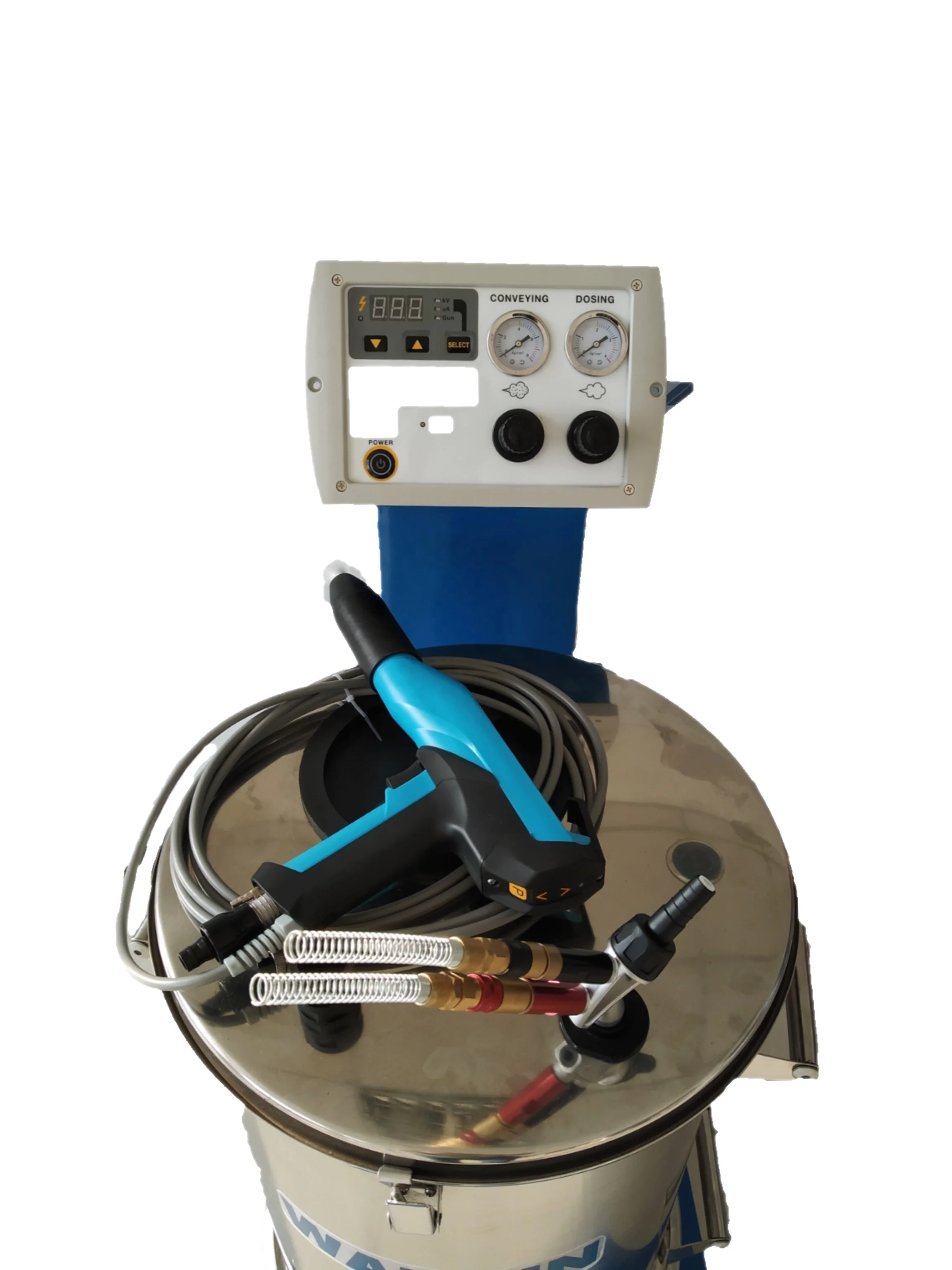

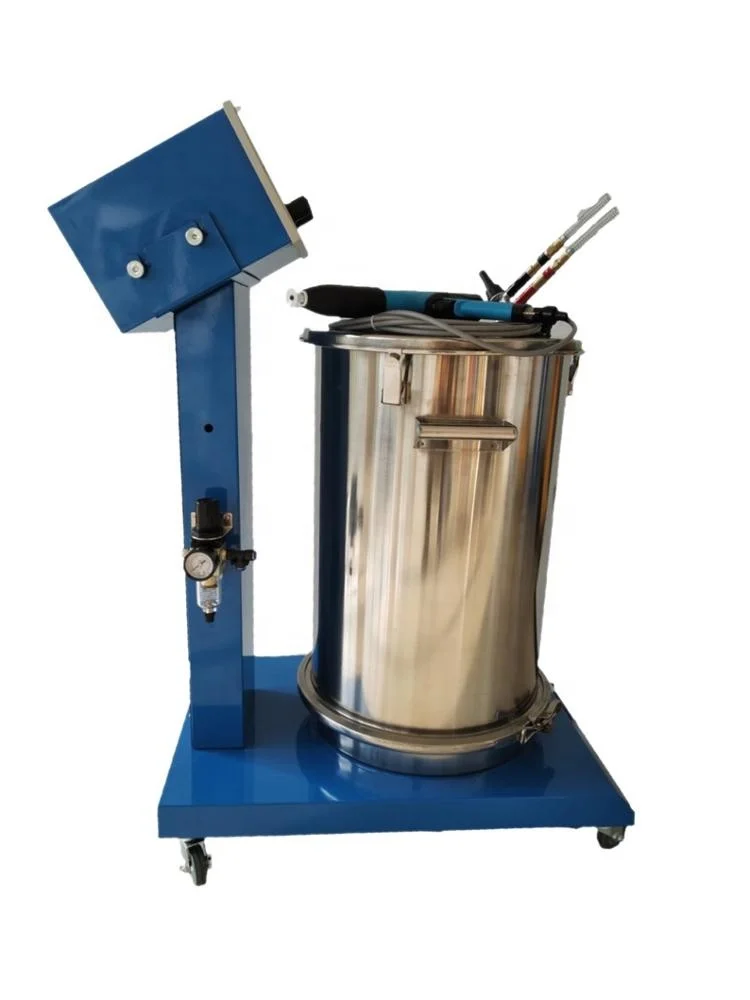

WX K1 Newest Digital Displayed Electrostatic Painting Machine Powder Coating machine

Product Overview

Description

WX-K1 Newest Digital Displayed Electrostatic Painting Machine Powder Coating Machine



1. BRIEF INTRODUCTION



• Commodity: Electrostatic Powder Coating Machine


• Model       :  WX-K1


• Brand        :  WANXIN(Similar Using as KCI)


• Type          :  High HV output Electrostatic Painting Machine



2. DESIGNED FEATURES

• Stable performance


• Durable life-span


• Simple design for easy operation by worker


• Affordable price by each user


• Good quality surface coating effects

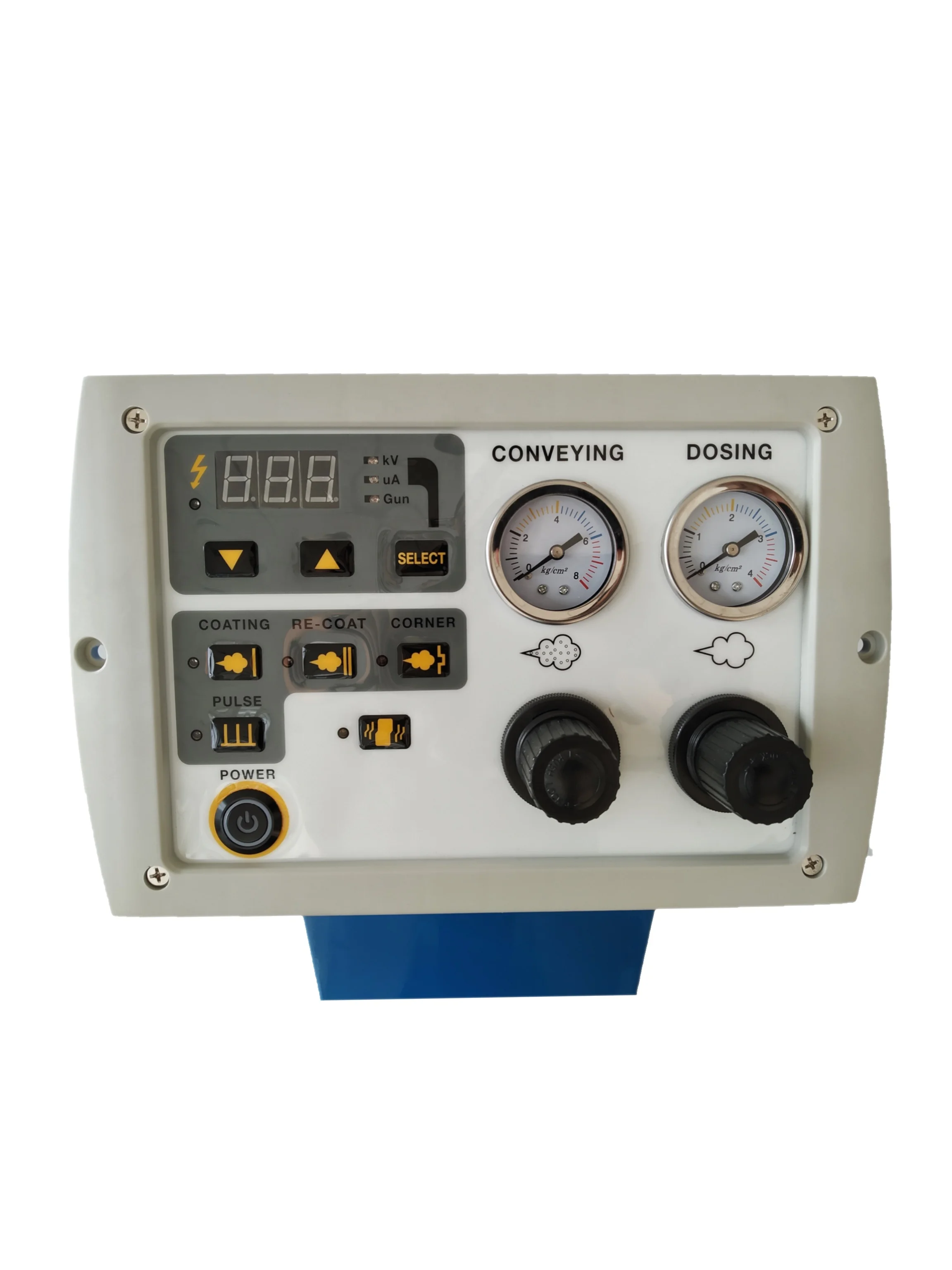

• Digital Displayed


• Touch Screen Control



3. TECHNICAL PARAMETER



Commodity	Electrostatic Painting Powder Coating Machine
Model	WX-K1
Input Voltage	220V/50-60HZ
Power	45W
Protection Grade	IP-54
Output HV	40-80KV
Output Current	0~180μA
Solenoid	24V
Air-in Pressure requirement	0~0.6 Mpa
Air-out Pressure requirement	0~0.4 Mpa
Compressed Air Consumption	13.2 M2/hour (At the working condition of 0.4Mpa)
Electrostatic Charges Polarity	Negative
Packing dimension	67*52*52CM
G.W	35KG
Quality Warranty	12 Months









5. PACKING & DELIVERY





5.1 Standard configruation



•  1 ×Control unit (Generator)

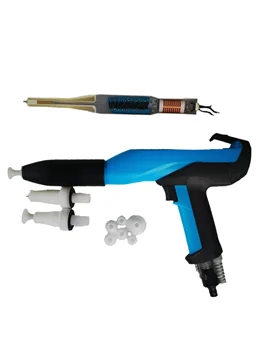

•  1 ×Powder spray gun


•  1 ×Oil-water separator


•  1 ×Air-out pressure adjustor


•  1 ×Movable Trolley


•  1 ×Stainless powder feeding hopper (45L/55L)(Customized)


•  1 ×Power cable, Air transit hose & Accessories


•  1 × Operation Manual



5.2  Packing reference

• Inside Packing material: Interior cusion material


•  Outside Packing material: Carton or wooden case (cusotmized and fixed by customer)

5.3  Delivery

• Order quantity ≤10 sets :we will arrange delivery within 15 working days;


• Order quantity >10 sets:Negotiable


• Means of transport: By DHL/TNT/FedEx/UPS or by sea;
