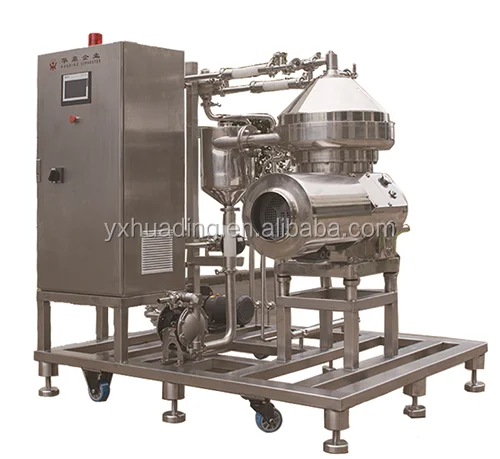

The craft beer clarifier skid from Huading separator at the right time,used in clarifying solutions of beer process,with the features of high quality,easy operation,high efficiency and easy maintenance,Huading beer clarifier series provide isolated air separation and clarifying,meanwhile keeping high yeast activity with no oxidation,this is the good recipe to ensure beer quality and improve the yield.
Application
• Hot wort separation
• Trub wort separation
• Cold wort separation
• Green beer separation
• Green beer clarification with addition of Yeast/Tank bottoms
• Clarification of beer before Kieselguhr filtration
• Manufacture of Non-Alcoholic Beer
• Kvass
• Turbidity Adjustment with sepatators

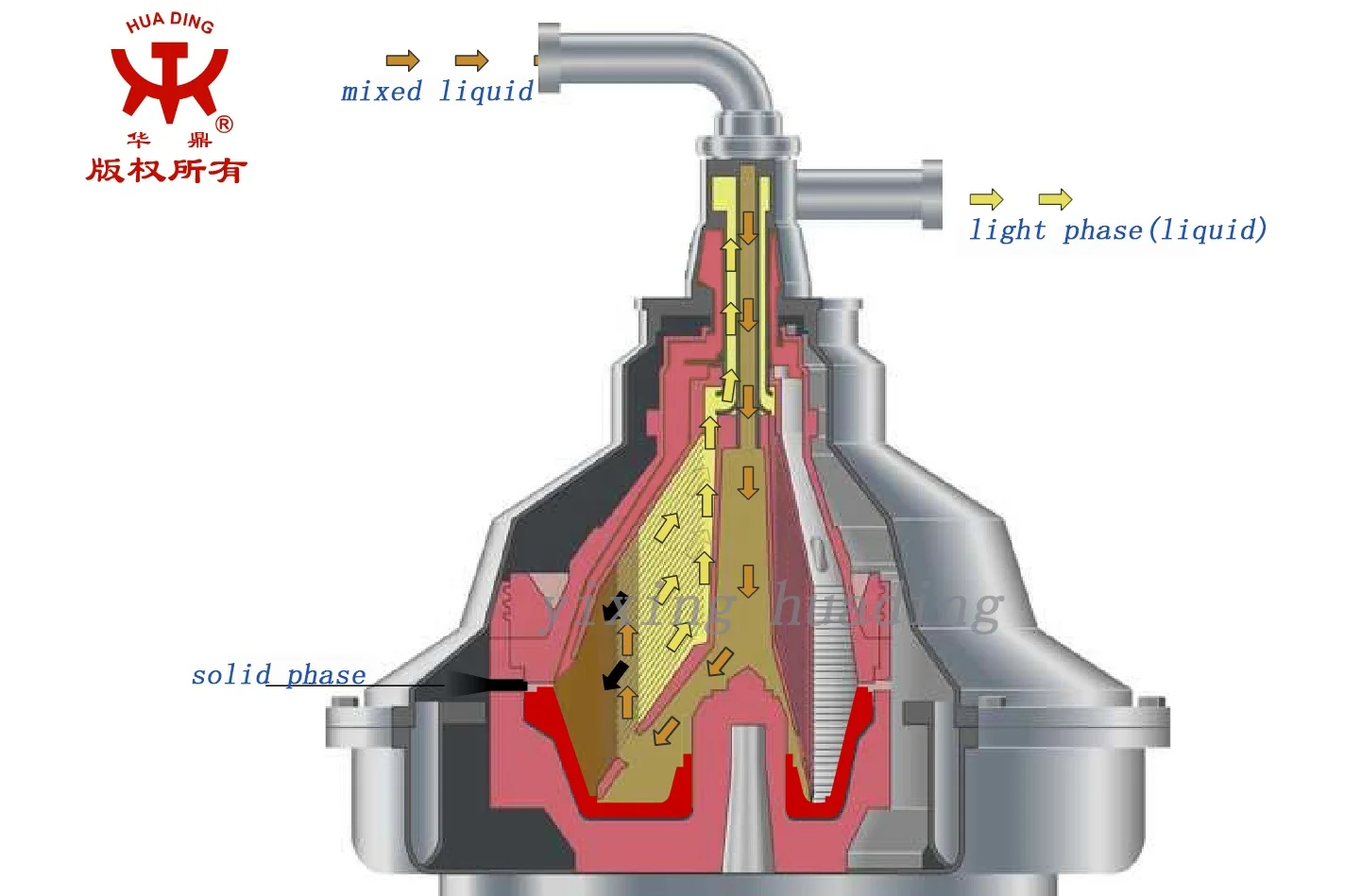

Process Flow
Product Model
Model
BRSX20
BRSX40
BRSX80
BRSX90
BRSX125
...
Capacity
300-1500L/h
1200-3500L/h
2500-7500L/h
3000-10000L/h
3500-13000L/h
...
Power
5.5KW
11KW
15KW
18.5KW
22KW
...
Dimension(mm)
950*950*1250
1500*1100*1500
1772*1473*1855
1772*1500*1855
1800*1500*1855
...
weight(kg)
~980
~1560
~2780
~3160
~3850
...
About us
Huading separator,Yixing Huading Machinery Co.,Ltd,estabilished in 1954, is one of the market leaders in the field of centrifugal spearation. we have more than 60 years experience in the design and manufacturing of centrifugal separation euqipment.More information please contact us
