Product Overview
Description
Product Description

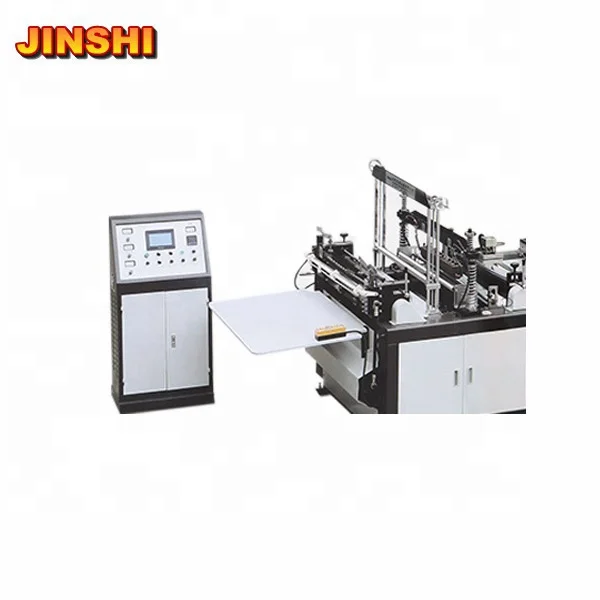

PP Non-Woven Bag Making Machine Manual Ruian Jinshi Company
This machine applies for non-woven materials. It can make many kinds of bags such as vest bags, loop handle bags, flat bags, box bags and ribbon-through bags for shoes and purse etc.
It is equipped with computer touch screen, step motor and photo electricity to track, accurately and steadily. There are control devices like auto-counting alarming, auto-punching etc., which make the finished products well-sealed and nice-cutting with high speed and efficiency. It is an ideal environmental protection bag making equipment.
Model | JS-600 | JS-700 | JS-800 | ||
Bag width | Vest bags: 200-550mm, Flat/boxbags: 280-800mm | Vest bags:200-650mm, Flat/boxbags: 280-8000mm | Vest bags:200-750mm, Flat/boxbags: 280-800mm | ||
Bag length | Vest bags: 280-800mm, Flat/boxbags: 200-550mm | Vest bags: 280-800mm Flat/ boxbags: 200-650mm, | Vest bags:280-800mm Flat/boxbags:200-750mm, | ||
power | According to clients' requirements. | ||||
Air compressor | 0.5-0.6Mpa | 0.5-0.6Mpa | 0.5-0.6Mpa | ||
Total power | 10kw | 11kw | 13kw | ||
Production speed | 25—110 pcs/ min. | 25—110 pcs/ min. | 25—110 pcs/ min. | ||
Overall Dimension (L×W×H) | 6.85 x 1.74 x 2.17 (m) | 6.85 x 1.84 x 2.17 | 6.85 x 1.94 x 2.17 (m) | ||
Machines' Advantage:
1 | Screen touch | Taiwan Software |
2 | Step motor | Made-in-china |
3 | Electrics switch | Zhengtai,China |
4 | Main motor | Made-in-Shanghai,china |
5 | Direct motor with speed controller | Made-in-Shanghai,China |
6 | Pneumatic element | Yadeke, Taiwan |
7 | Inverter | Euro |
8 | Cold cutter | best in China |
9 | Main ultrasonic | Taiwan brand ultrasonic |
10 | Machine running wheel | Aluminium |
11 | Solid contact | Japan brand |
12 | Rubber roller | with high wear resistance |
13 | Unwinding with photo cell EPC | Made-in-China |
14 | Main photocell | made-in-china |
15 | Air shaft | Made-in-china |
16 | Magnetic tension controller | Made-in-china |
17 | Triangle part | stainless steel |
18 | 2 pcs of heating blade for main machine | |
19 | 1 pc of ultrasonic with blade for vest bags | |
20 | 2 pcs of ultrasonic with design for flat bag | |

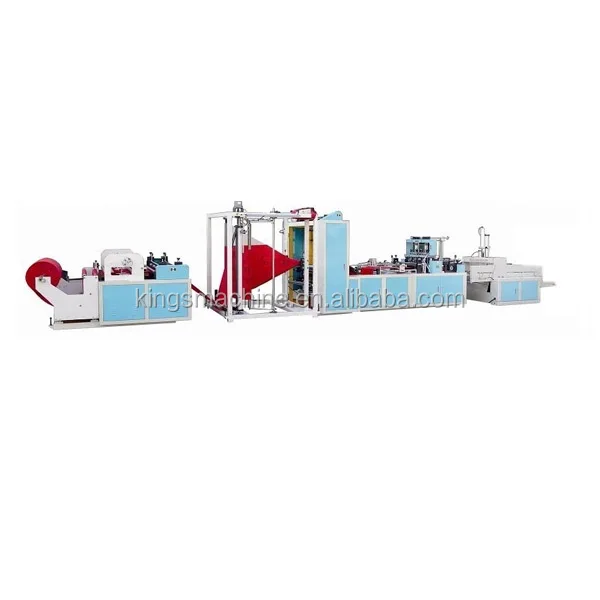

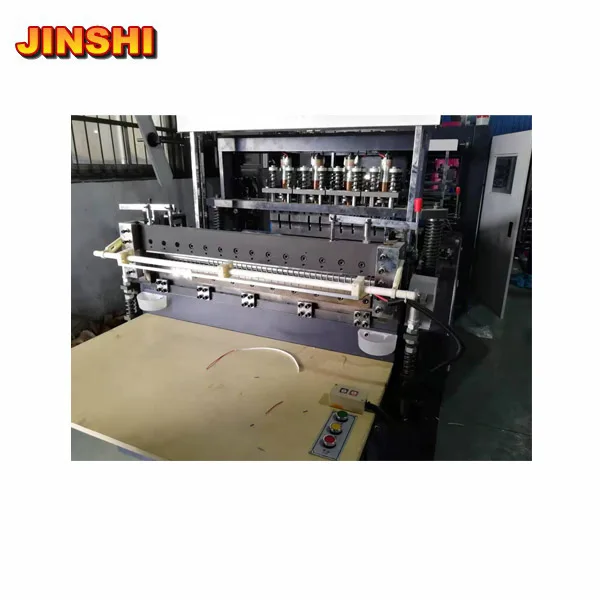

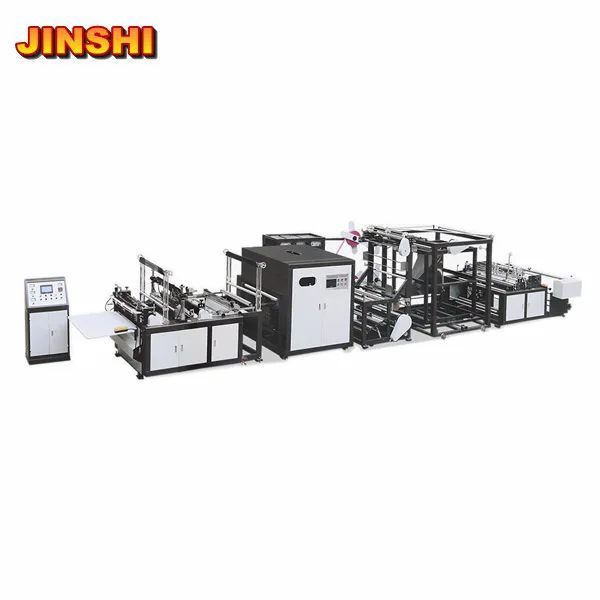

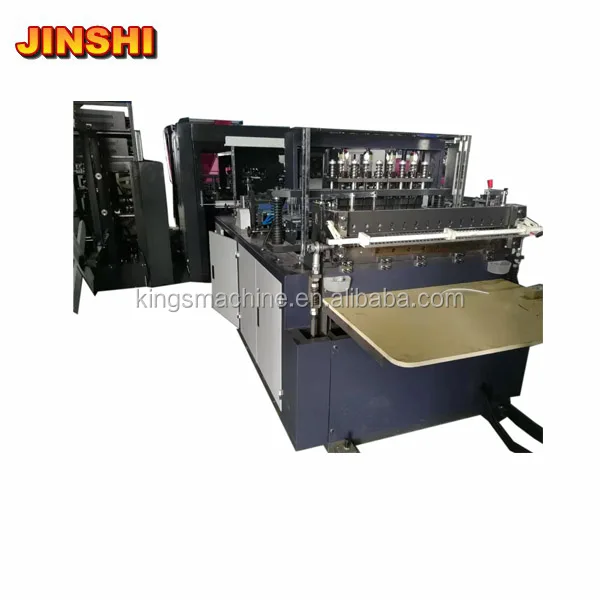

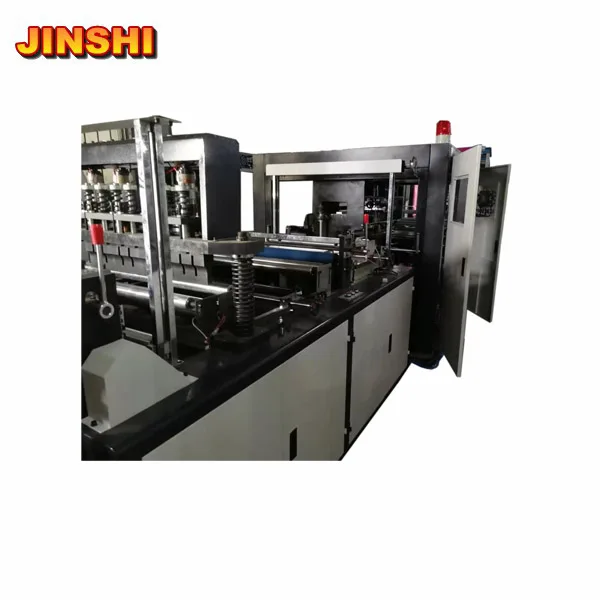

Detailed Images

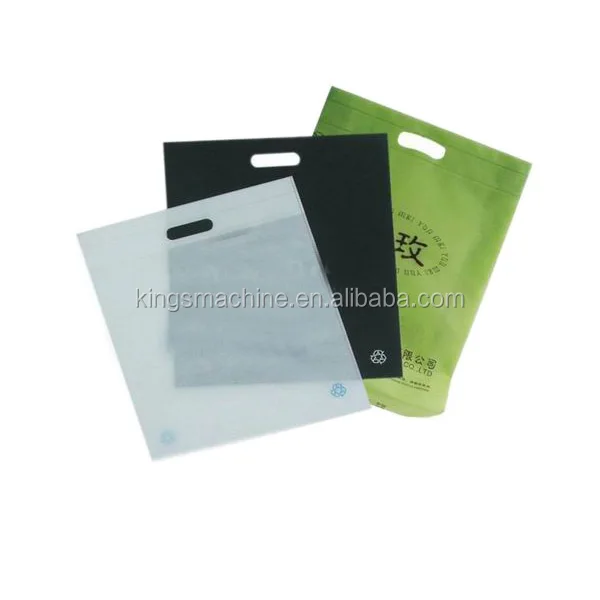

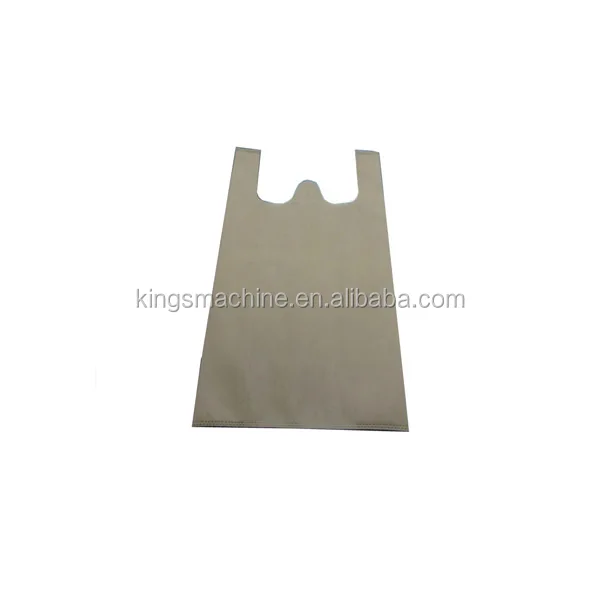

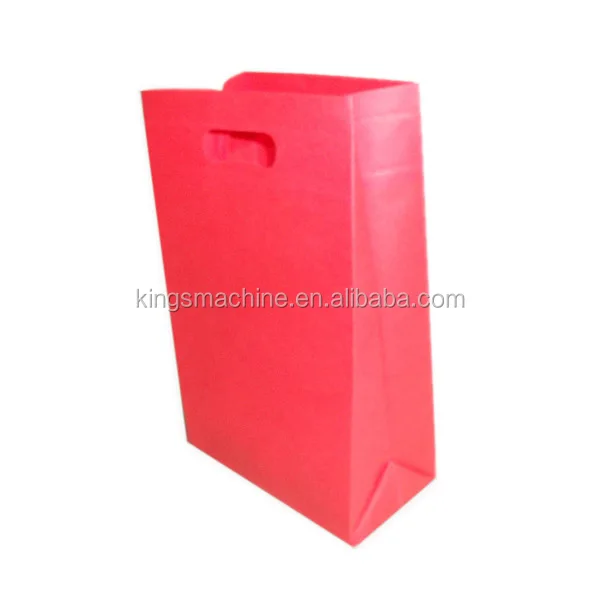

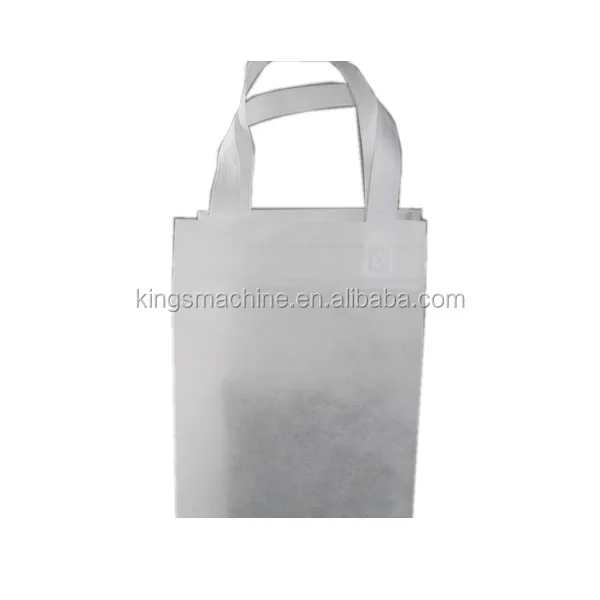

Finished Products

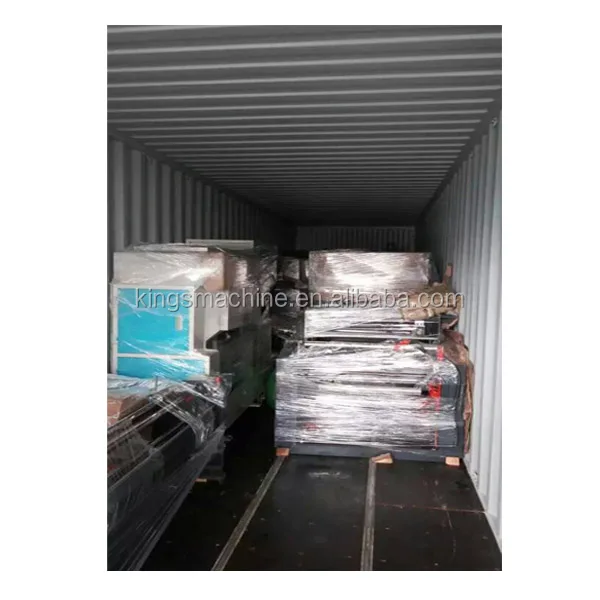

Packaging
Our Services
Pre-sales service
1- We can explain in details when you have any questions on our machines.
2- We provide making samples for you.
After sales-service
3- We provide testing machines for you before shipment.
4- We provide producing machines according to the customers' special requirements.
5- We provide one-year service, not including man-made reason.
6- Our engineer is available at any time if you need.
7- We provide long life service.
8- We are online the whole day, whole year and whole life. Please call 0086-18815155383.
Company Information

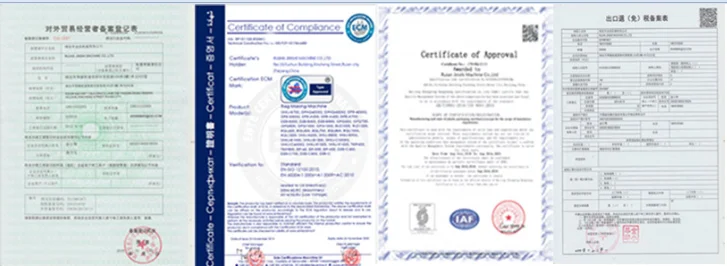

Certifications
